Ubiquiti RocketM3 3.5 GHz Rocket MIMO, airMAX BaseStation
- SKU: ROCKETM3
Product Information
RocketM3 BaseStation
3.5 GHz Rocket MIMO, airMAX
Featuring enhanced radio performance and mix-and-match industrial design, the Rocket™M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.
Plug and Play Integration
Rocket™ radios seamlessly work together with airMAX® Sector, RocketDish™, Omni and Yagi antennas for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.
Advanced Software Technology

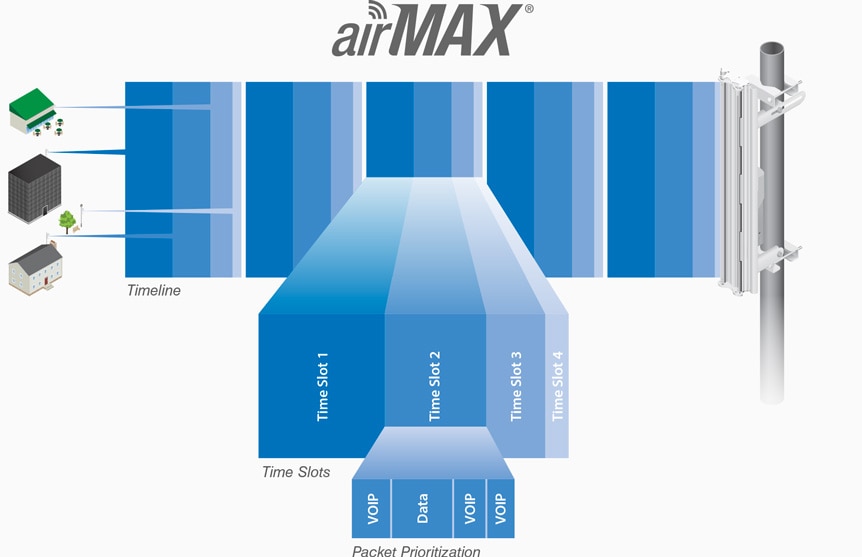

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Frequency and Channel Flexibility

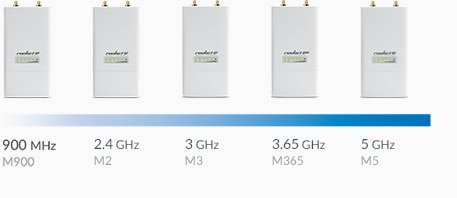

Built to survive harsh environments, the Rocket™M is available in several frequency models and supports multiple channel bandwidths, depending on the specific model and local country regulations.
Spectrum Analysis Tools

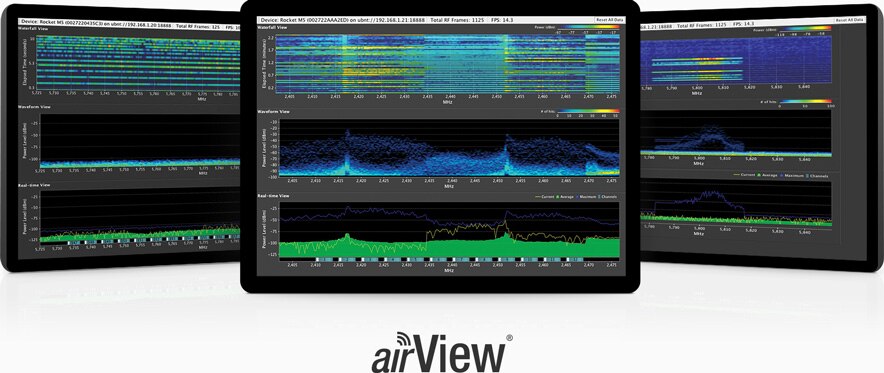

The airView® Spectrum Analyzer allows operators to identify noise signatures and analyze frequency usage and activity levels onsite, so new access points can be set up on the least-used channels to optimize wireless performance.
Specifications
Specifications ROCKETM3
| Dimensions | 160 x 80 x 30 mm (6.30 x 3.15 x 1.18") |
| weight | 500 g (1.1 lb) |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Processor | MIPS 24Kc |
| Memory | 64 MB SDRAM, 8 MB Flash |
| Networking Interface | (1) 10/100 Mbps |
| RF Connections | (2) RP-SMA (Waterproof ) |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Max. Power Consumption | 6.5W |
| Power Supply | 24V, 1A PoE Adapter |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| ESD/EMP Protection | ± 24KV Air / Contact |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Modes | Access Point, Station |
| Services | Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
| Utilities | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Distance Adjustment | Dynamic Ack and Ackless Mode |
| Power Adjustment | Software Adjustable UI or CLI |
| Security | WPA2 AES Only |
| QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
| Statistical Reporting | Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate |
| Other M3 M365 | Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM 5/8/10/20/25/40 MHz Channel Width Support 5/10/20/25 MHz Channel Width Support |
| Ubiquiti Specific Features | airMAX Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode |
| Wireless Approvals M3 M365 | FCC, IC, CE FCC Part 90Y |
| RoHS Compliance | Yes |
