Ubiquiti Networks LTE Backup Professional (US Version)

(0)No Reviews yet
  • SKU: U-LTE-BACKUP PRO-US
US$‎279.00
  • Manufacturer: Ubiquiti Networks
  • Installation Guide: Download
Call for Availability

Product Information

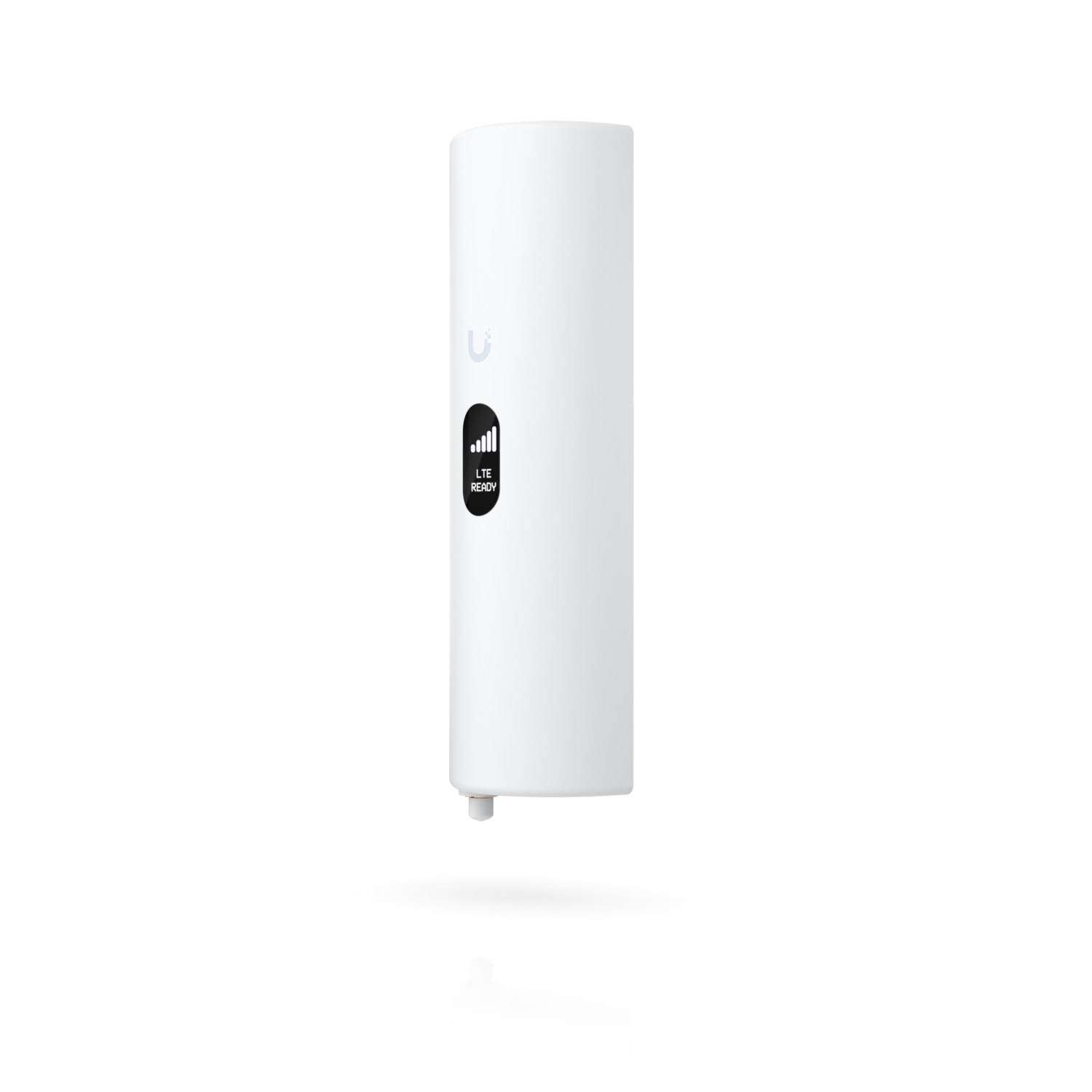

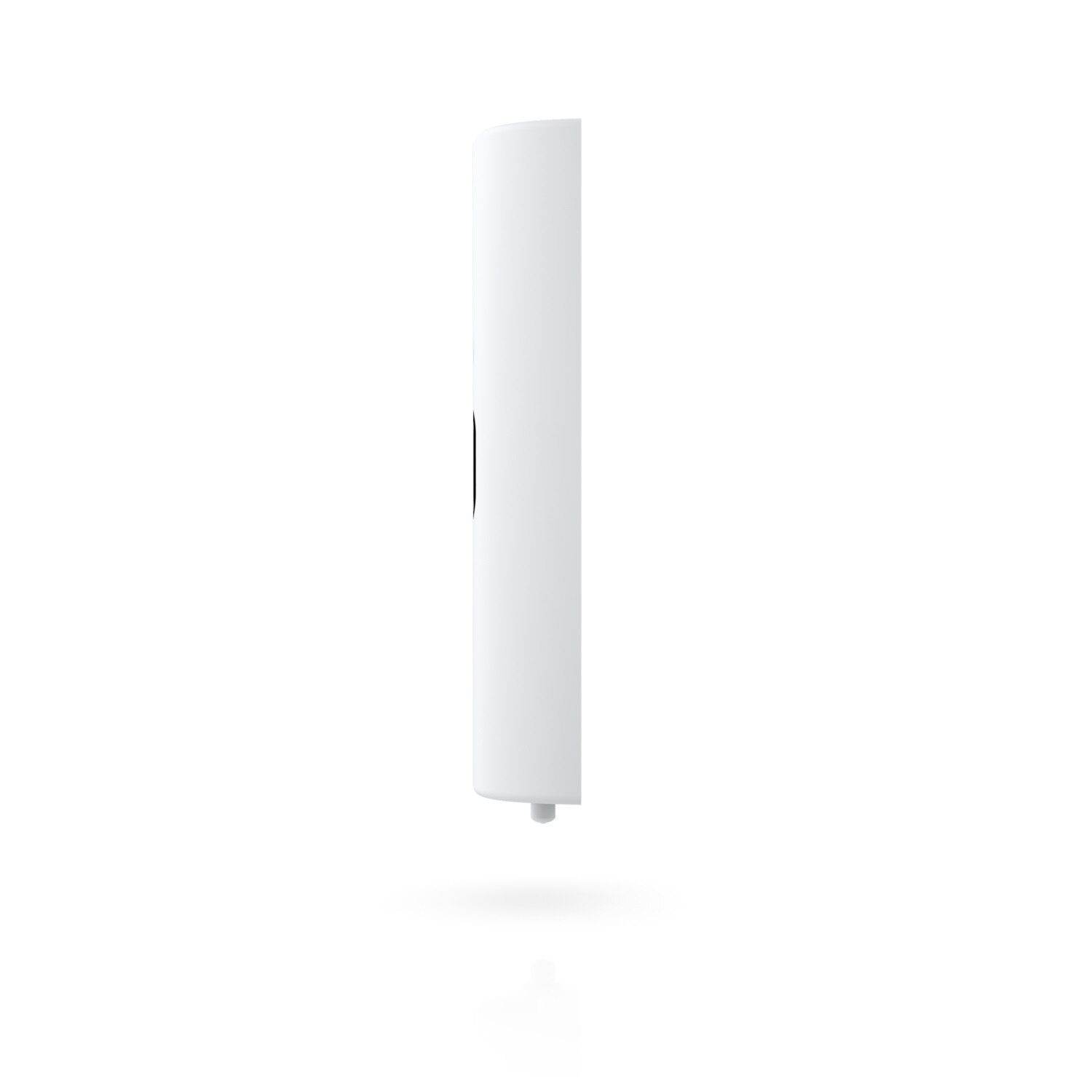

Ubiquiti Networks U-LTE-BACKUP PRO-US (US Version)

Seamless Internet failover for UniFi Gateways. Bring your own AT&T nano-SIM for LTE data.

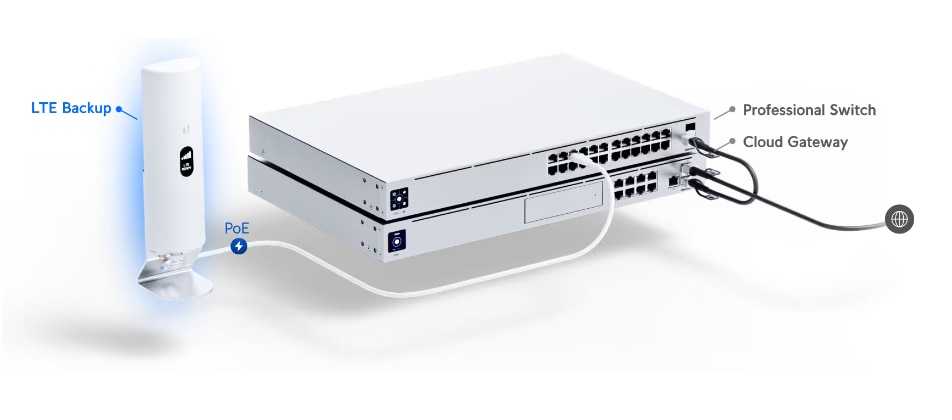

The Ubiquiti UniFi LTE Backup Professional is a redundant LTE backup internet connection used with UniFi gateways to eliminate network downtime resulting from internet service provider outages.


Features:

  • Requires a UniFi Gateway Console or Gateway

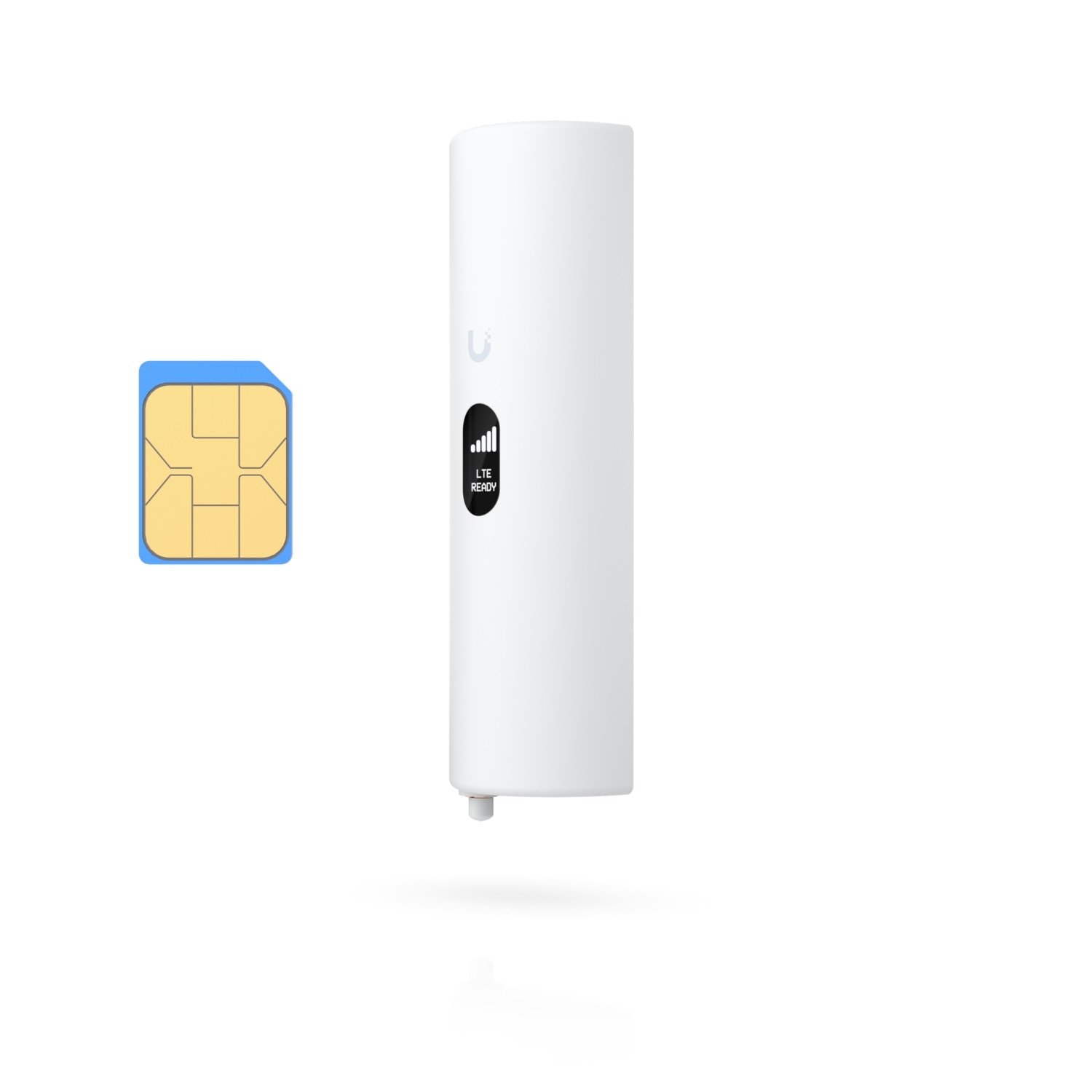

  • Bring your own AT&T nano-SIM for LTE data*

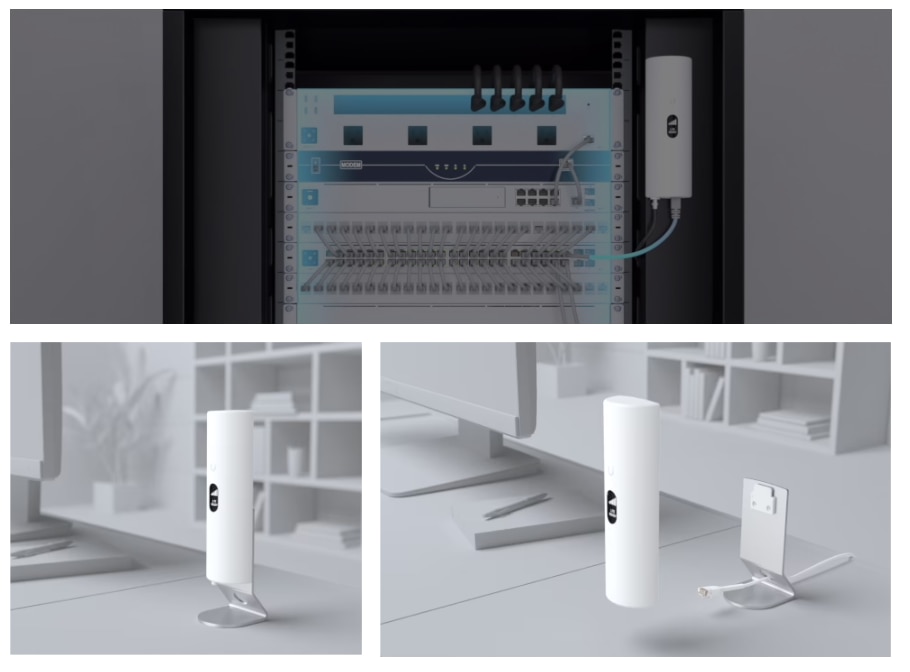

  • Flexible mounting
  • (1) GbE PoE port**
  • Powered using PoE
  • RP-SMA connector for optional external antenna

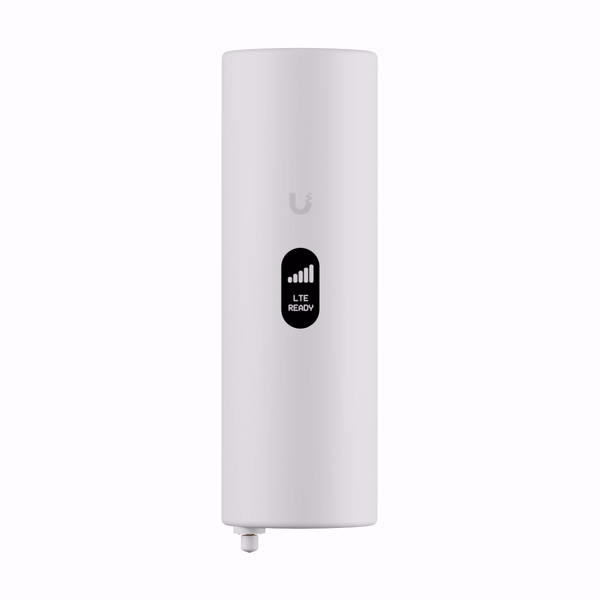

  • 1.54" status display

Specifications

Specifications U-LTE-BACKUP PRO-US

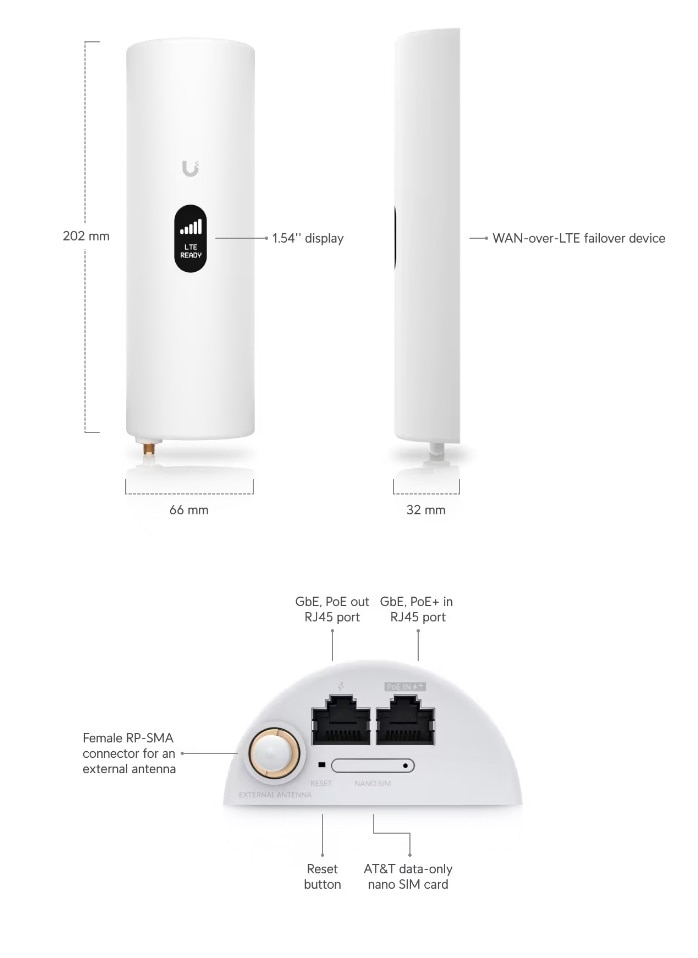

Dimensions66 x 202 x 32 mm (2.6 x 8 x 1.3")
Weight

Without stand: 223 g (7.9 oz)

With stand: 336 g (11.9 oz)

Enclosure materialPolycarbonate
Mount materials

Stand: aluminium

Wall mount: polycarbonate

Hardware
Processor74 Kc MIPS processor at 775 MHz
Memory128 MB DDR2
Networking interface

(2) GbE RJ45 ports

LTE Category 4 radio

Management interfaceEthernet
PoE interface

(1) PoE in (PoE output not used)

(1) PoE passthrough output (requires a PoE+ switch)

SIMnano-SIM* *Data-only.
LTE bandsBand 2, 4, 5, 12, 14, 66
Operator

AT&T network*

US only.

Power supplyUniFi PoE switch
Supported voltage range44—57V DC
Max. power consumptionExcluding PoE passthrough output: 8.5W
Max. PoE passthrough wattage per port

15.4W*

*Requires a PoE+ switch

MIMO2 x 2 LTE Category 4
Throughput speeds*Download 150 Mbps / Upload 50 Mbps * Speed and coverage depend on location and network performance.
Antenna

(2) Internal LTE antennas

(1) Female RP-SMA connector for an external antenna (optional)*

*The maximum antenna gain must not exceed 6 dBi to comply with regulation.

External antenna port*

Female RP-SMA connector

*Please use male RP-SMA antennas to match the U LTE Backup Pro.

LCM display1.54" screen
ButtonFactory-reset

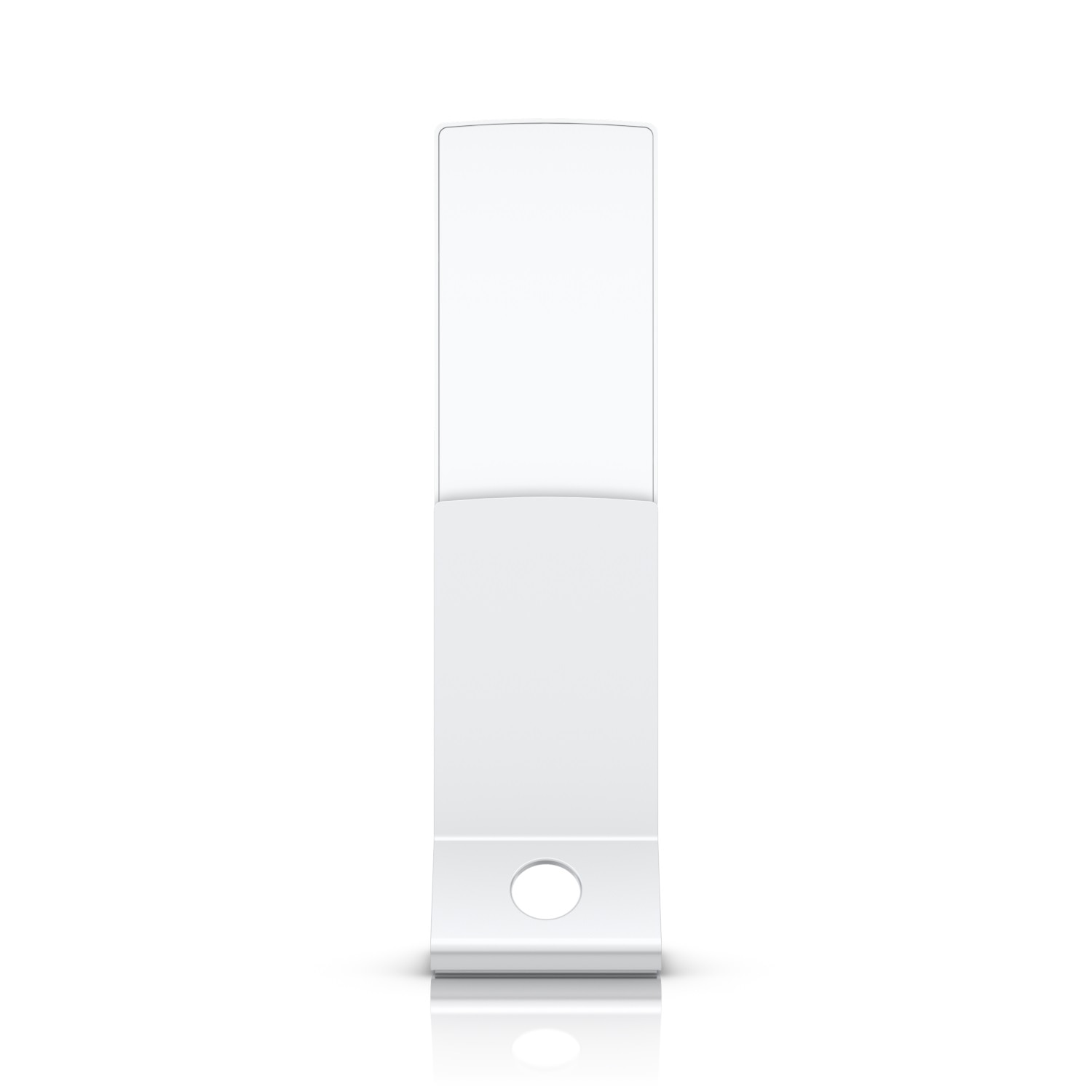

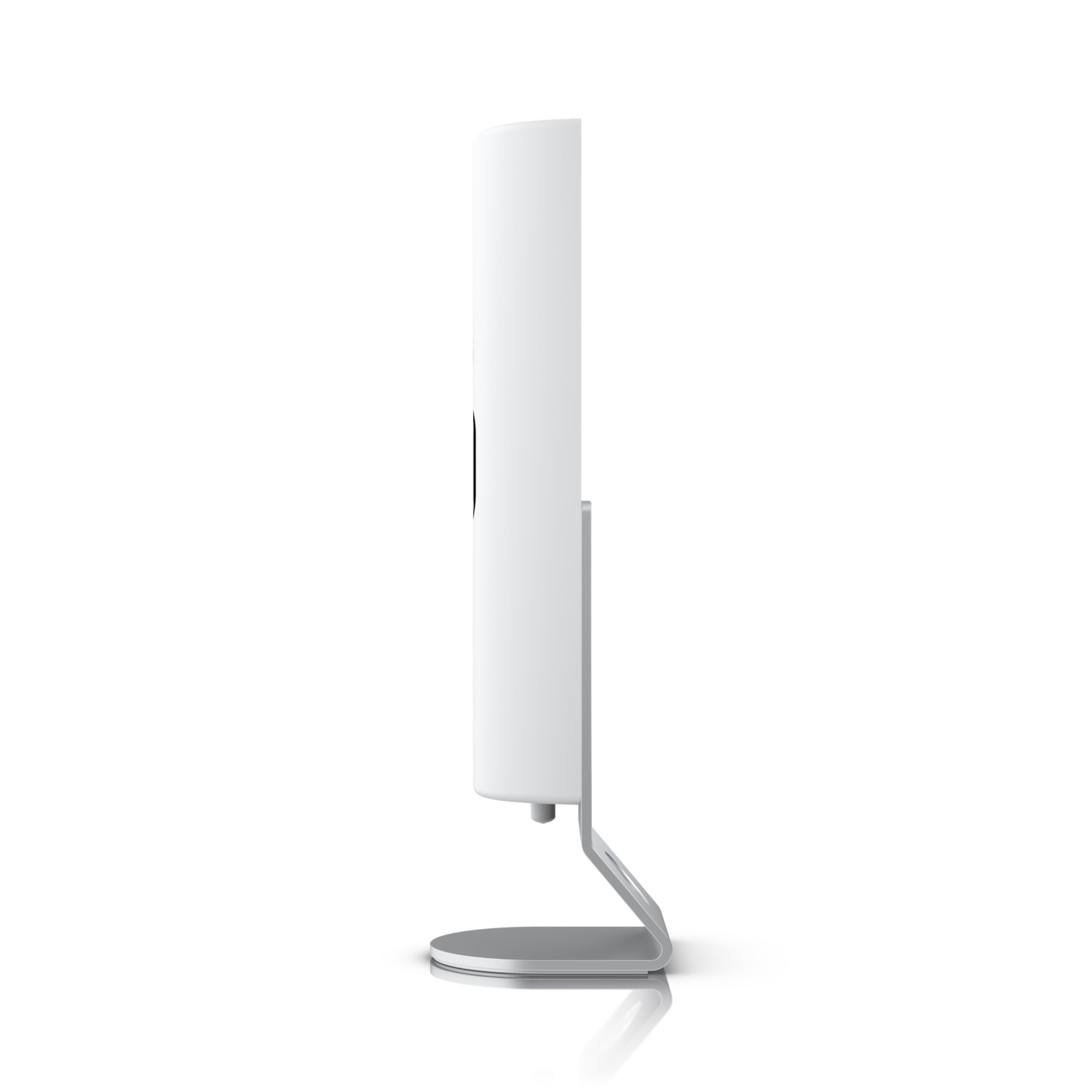

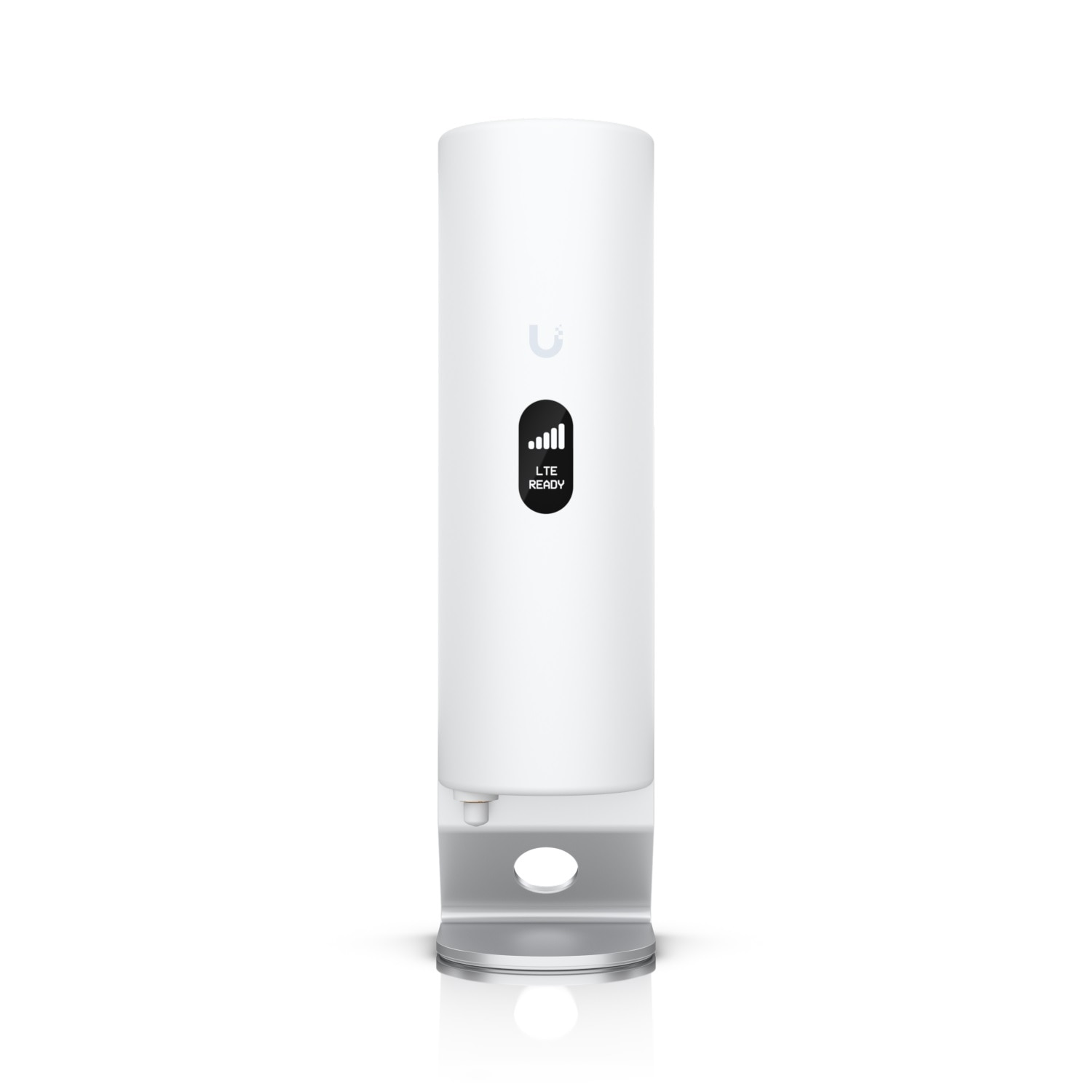

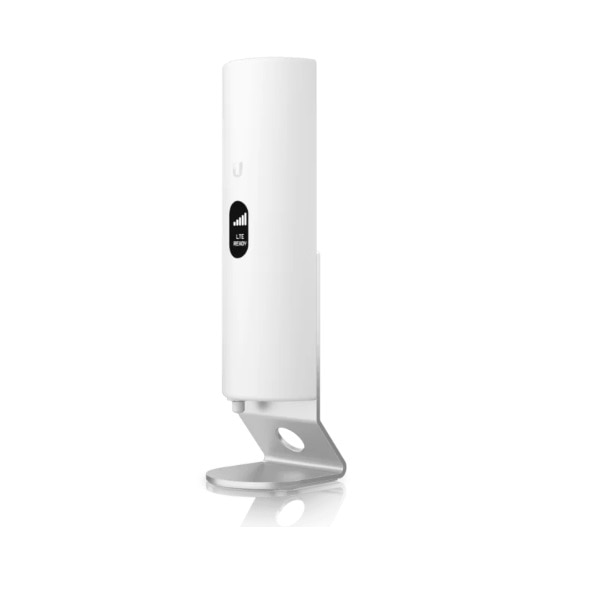

MountingWall mount or foot stand (included)
Operating temperature-10 to 60° C (-14 to 140° F)
Operating humidity5 to 95% noncondensing
CertificationsFCC, IC
Software
Management applicationUniFi Network: Version 7.2.85 and later
