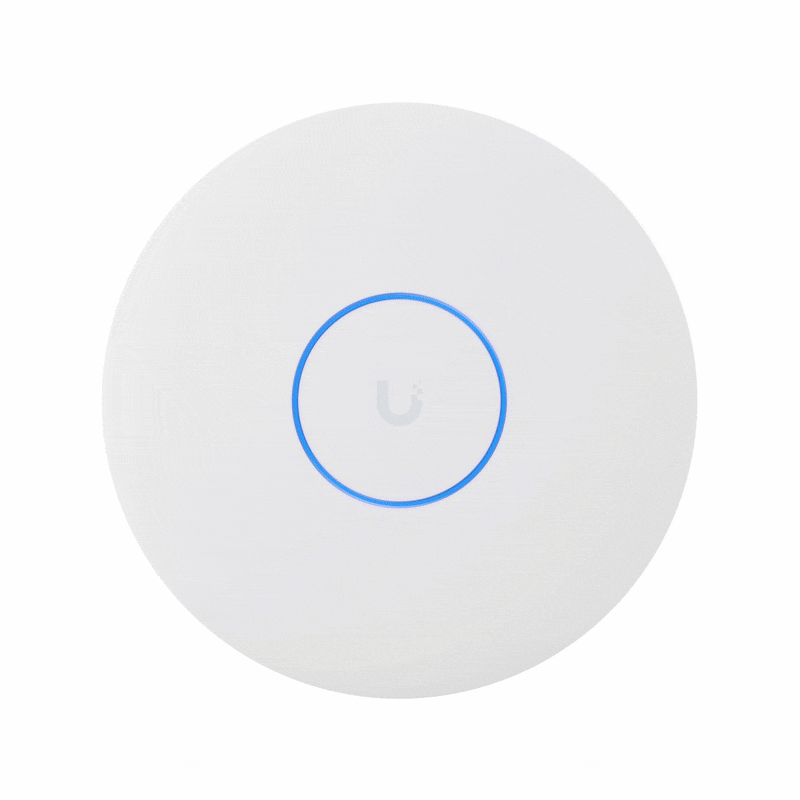

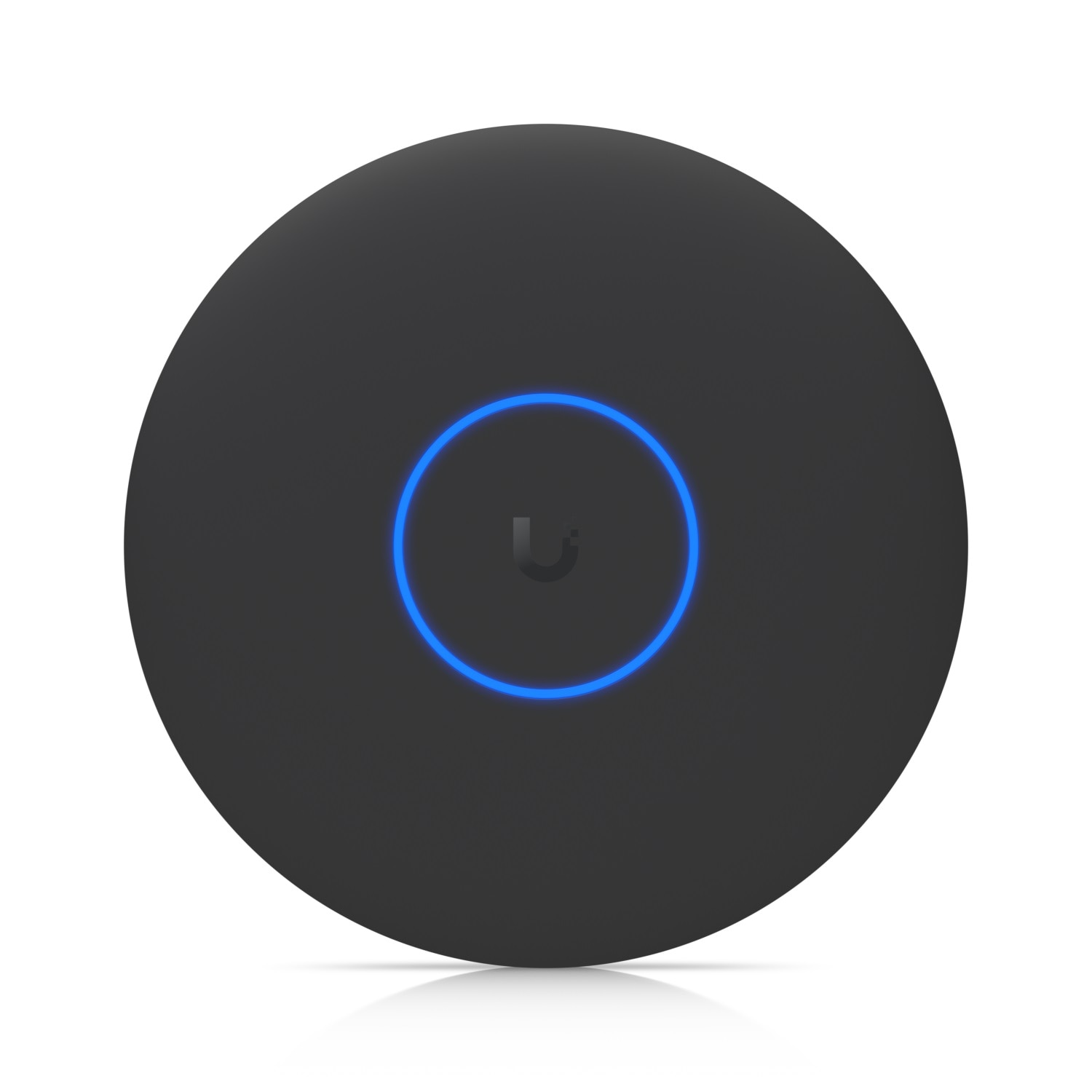

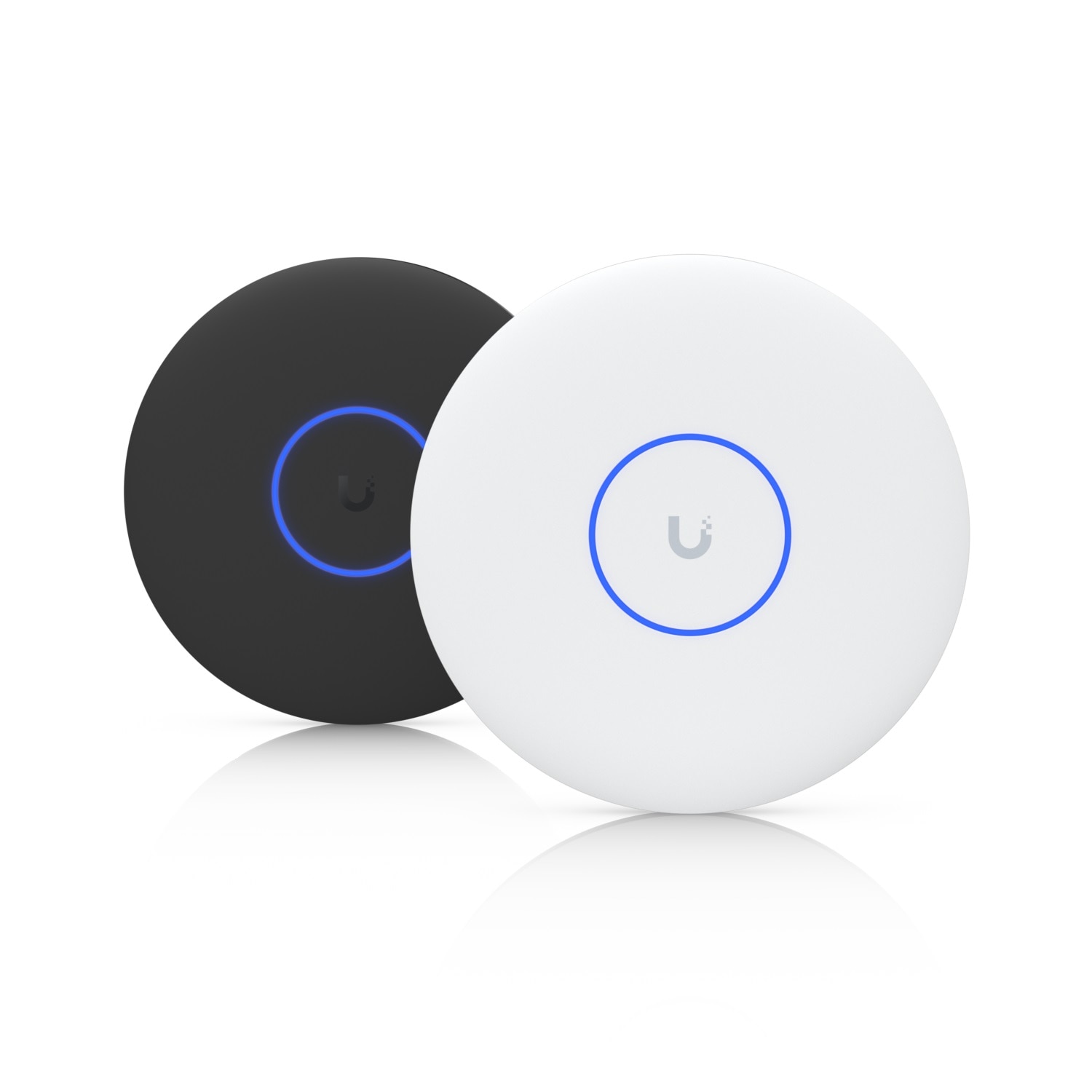

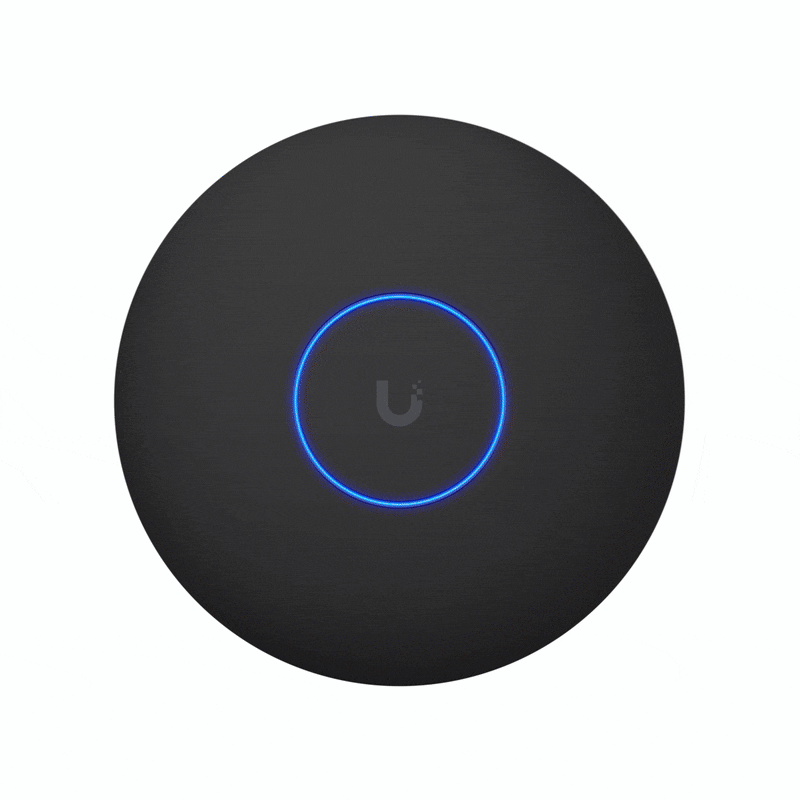

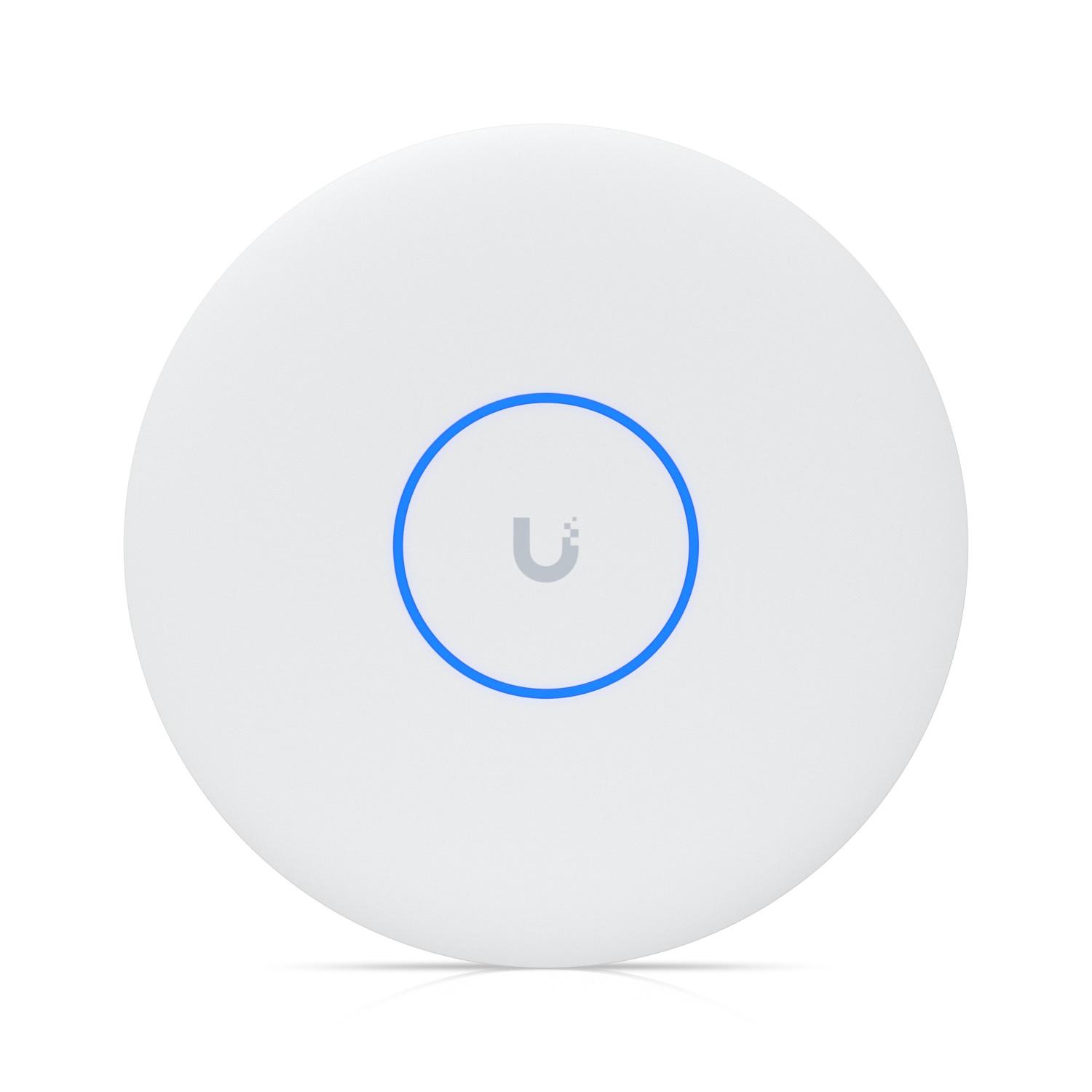

Ubiquiti Ceiling-Mounted 8-Stream WiFi 7 AP with 6 GHz Support
- SKU: U7-Pro-XGS-US
$299.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks U7-Pro-XGS-US
Ceiling-Mounted 8-Stream WiFi 7 AP with 6 GHz Support
Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
Features:
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE++
- 10 GbE uplink
Specifications
Specifications U7-Pro-XGS-US

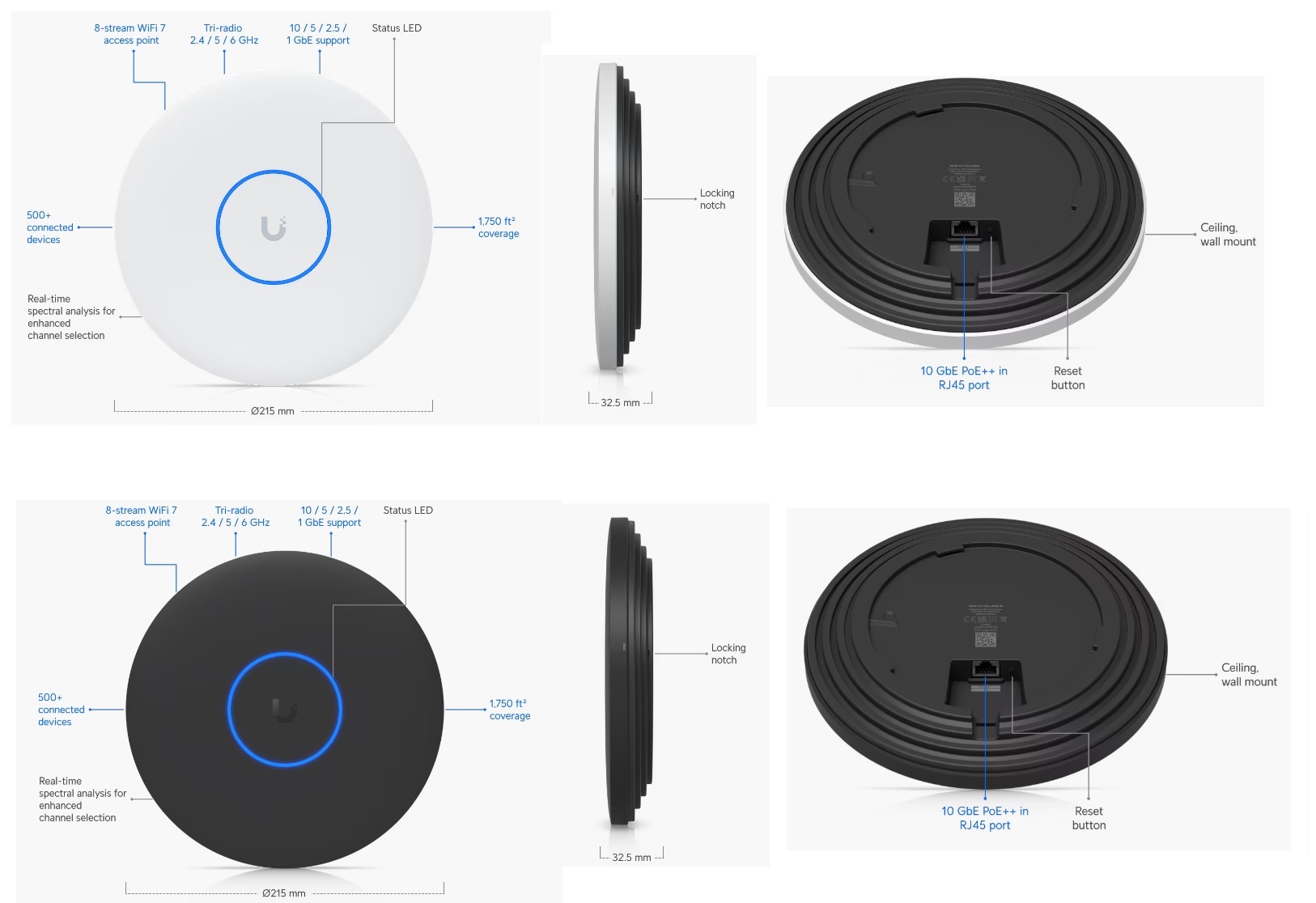

| Dimensions | Ø215 x 32.5 mm (Ø8.5 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Uplink | 10 GbE |

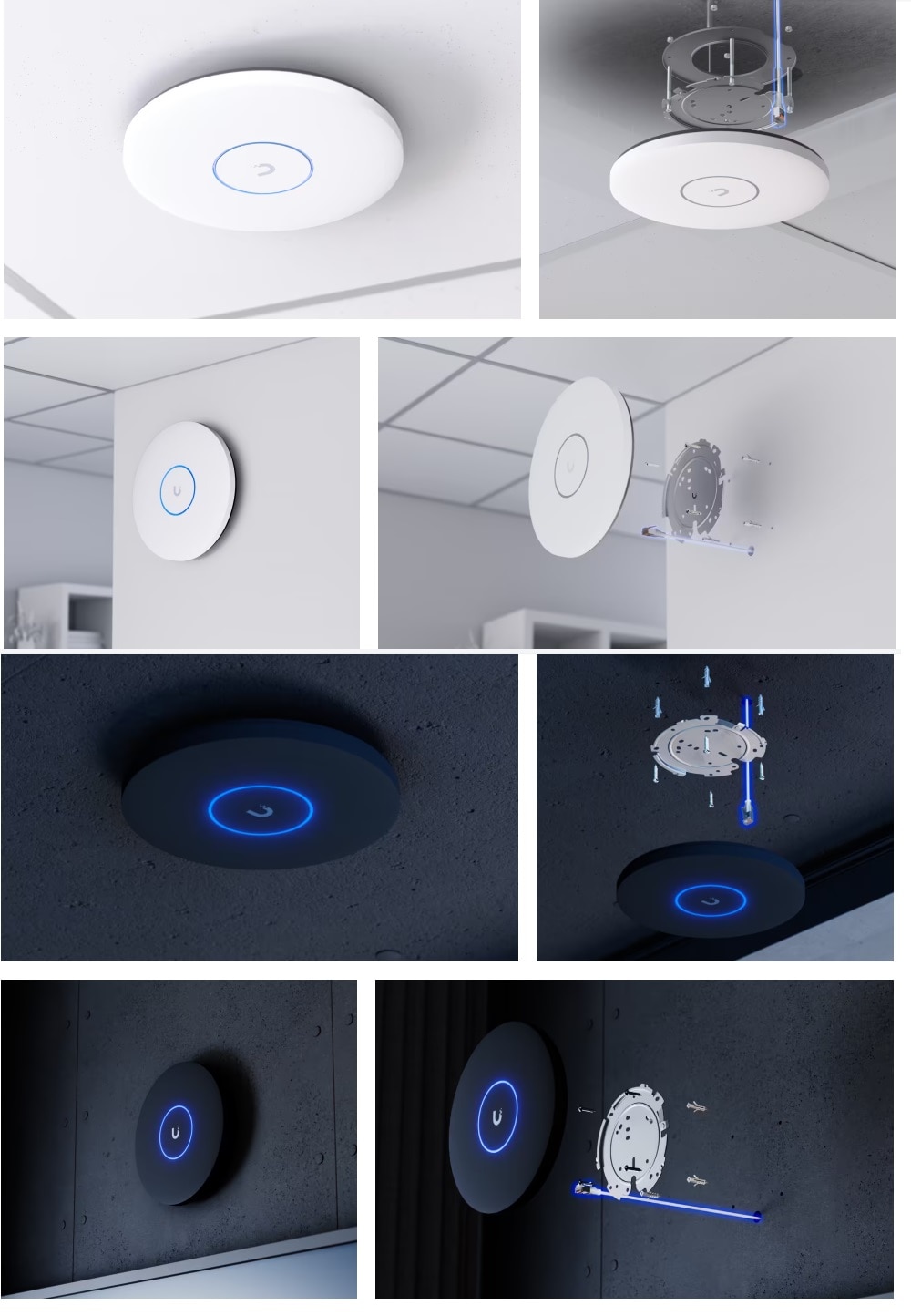

| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE++ |
| Performance | |
| MIMO | |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 8.6 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain | |
| 6 GHz | 6 dBi |
| 5 GHz | 6 dBi |
| 2.4 GHz | 4 dBi |
| Max. TX Power | |
| 6 GHz | 24 dBm |
| 5 GHz | 29 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Zero-Wait DFS | Yes |
| Advanced Radio Management | Yes |
| Real-Time Spectral Analysis | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | |
| Custom Branding Landing Page | Yes |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server Support | Yes |
| Password Authentication | Yes |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 29W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 800 g (1.8 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | |
| UniFi Network | Version 9.0.114 and later (U7 Pro XGS - White) Version 9.1.120 and later (U7 Pro XGS - Black) |
