Ubiquiti UniFi Access Hub

  • SKU: UA-Hub
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎199.00

Specifications UA-Hub

Dimensions190 x 126 x 33 mm
(7.48 x 4.96 x 1.29")
Weight457 g (16.12 oz)
Enclosure CharacteristicsPlastic Enclosure with Metal Mount Plate
Mounting OptionsDIN Rail
Networking Interface(4) 1 Gbps Ethernet
Max. Power Consumption40W
Power Method802.3bt PoE
Input RelaysREX - Request to Exit REN - Request to Enter REL - Remote Release DPS - Door Position Sensor
Dry Output Relay Lock Aux Rated 30VDC, up to 1A Rated 30VDC, up to 1A
Powered Output Relay Lock Aux Line 12VDC, up to 1A 12VDC, up to 0.33A 12VDC, up to 0.33A
LEDs(1) System, (3) PoE Out, (4) Input (2) Output Relays, (1) 12VDC Out
ButtonsTerminal Blocks, Reset
Operating Temperature0 to 40° C (32 to 104° F)
Operating Humidity5 - 90% Noncondensing
CertificationsCE, FCC, IC

Ubiquiti Networks UA-Hub

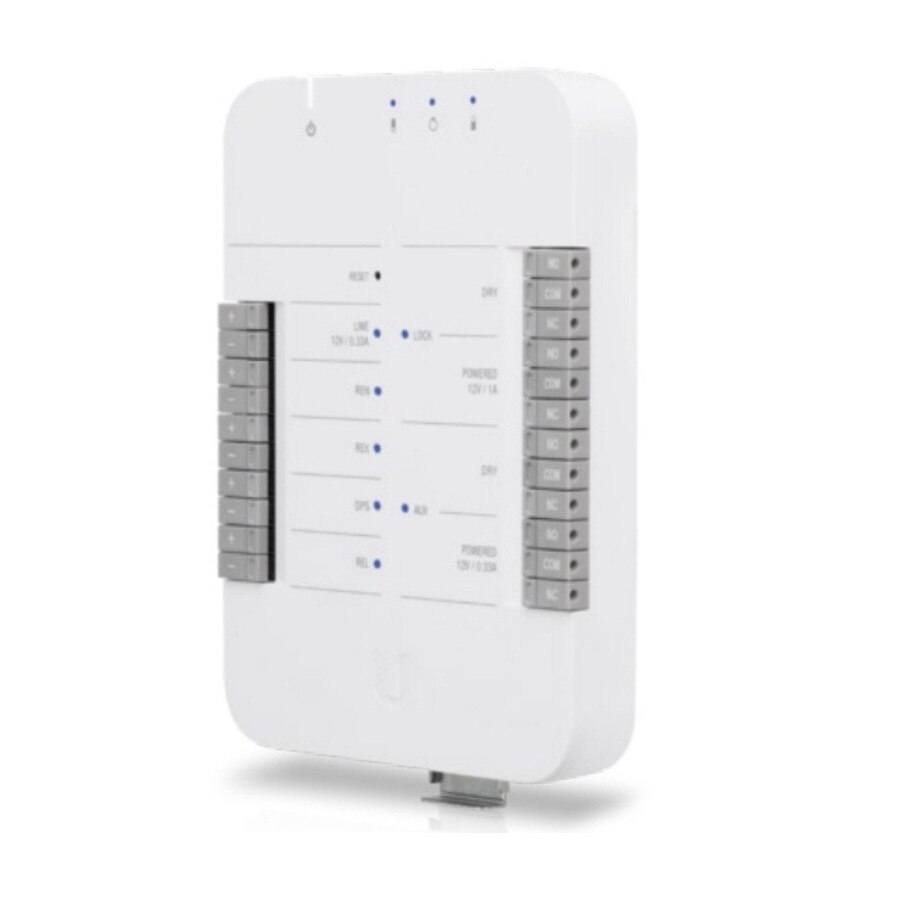

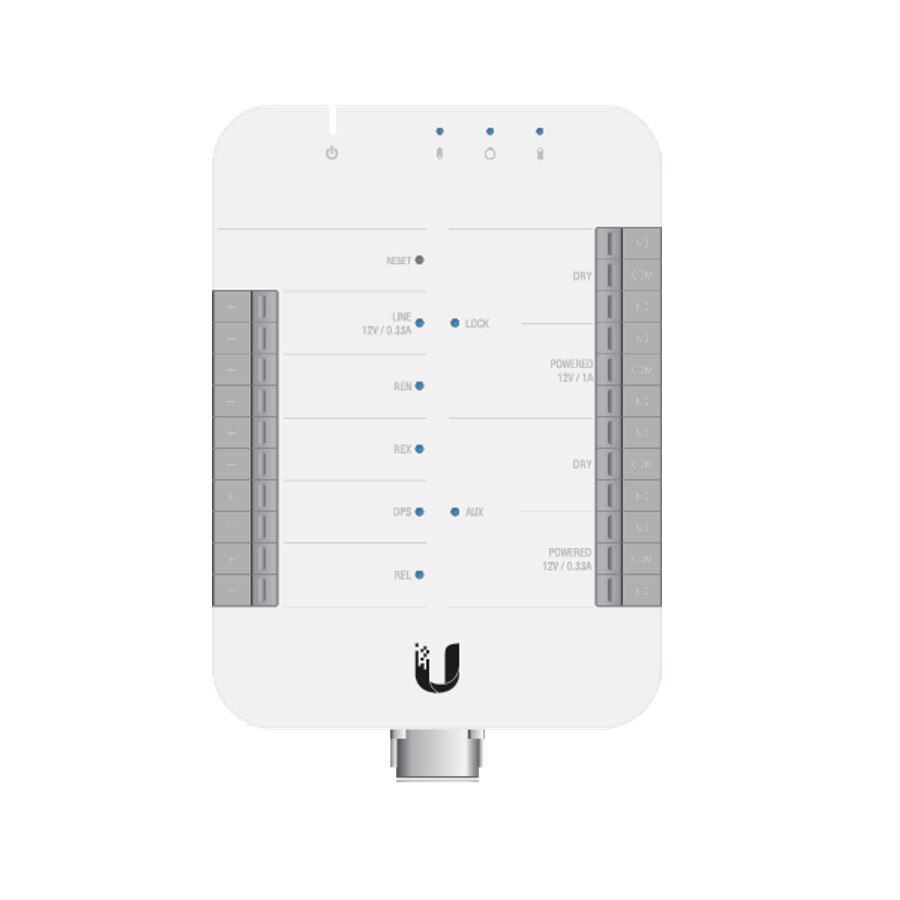

UniFi® Access Hub is an intelligent IP networked single door controller, a part of UniFi Access solution

The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access Controller software. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.


Features:

  • Powered by 802.3bt (PoE++) switch
  • Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
  • 12V powered and dry relays compatible with most locks
  • Four inputs for motion sensors, request-to-exit devices and door position switch
  • Managed with UniFi Access Controller in UDM-Pro
  • DIN-rail mounting
