Ubiquiti Access Lock Magnetic
- SKU: UA-Lock-Magnetic-270kg
$149.00
- Manufacturer: Ubiquiti Networks
Product Information

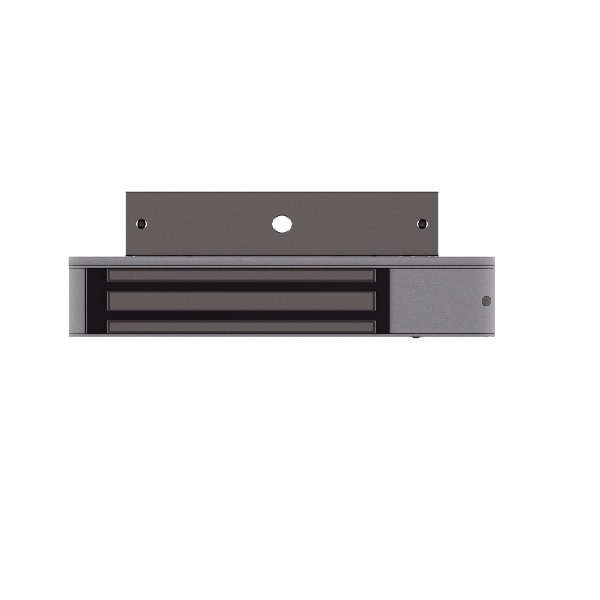

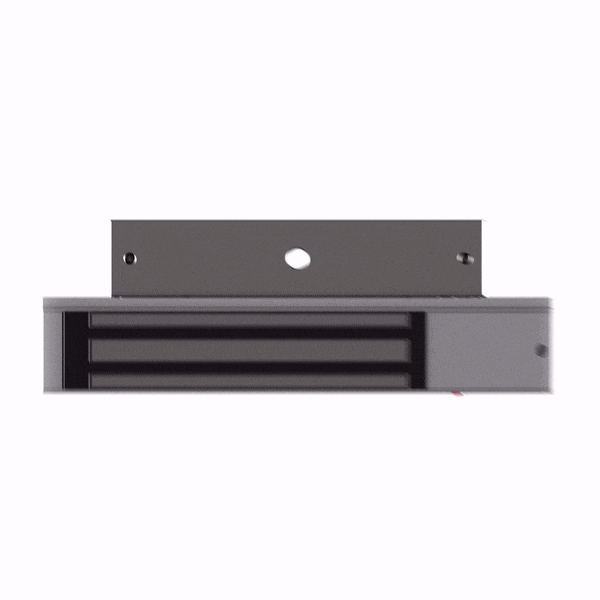

Ubiquiti Networks Access Lock Magnetic
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub). Can be installed on a wide variety of door types*
Specifications
Specifications UA-Lock-Magnetic-270kg
| Dimensions | |

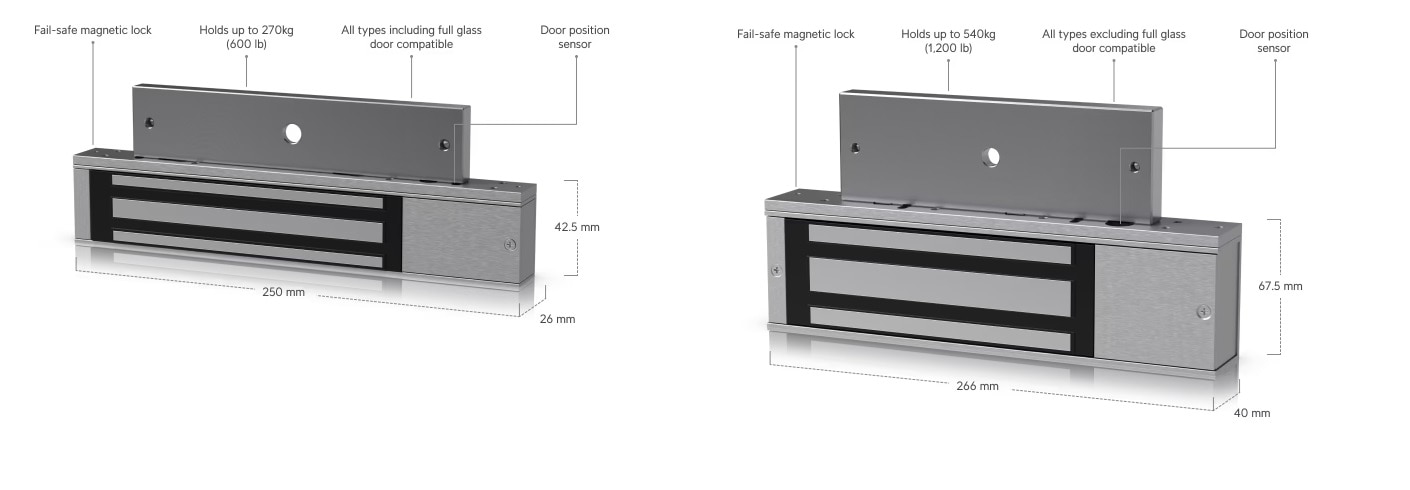

| Lock body | 250x 42.5x 26mm(9.8x 1.7x 1" ) |
| Install plate | 250x 25x 5mm (9.8x 0.98x 0.2" ) |
| Armature | 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") |
| Weight | |
| Lock body | 1 kg (2.2 lb) |
| Install plate | 70 g (0.15 lb) |
| Armature | 600 g (1.3 lb) |
| Hardware | |
| Voltage | 12VDC |
| Current power | UA-Lock-Magnetic-270kg: 800mA ±10% |
| Wiring connection | Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub) Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub) DPS/+ (DPS+ on UA-Hub) DPS/-(DPS-onUA-Hub) |
| Lock type | Fail safe lock Single door |
| Holding force | UA-Lock-Magnetic-270kg: 270 kg (600 lb) |
| LED | Green: unlocked Red: locked |
| Suitability | UA-Lock-Magnetic-270kg: wooden/metal/glass door |
| Mounting accessories | UA-Lock-Magnetic-270kg |
| L bracket | door thickness < 42 mm (< 1.7"), outward opening door |
| Z bracket | used with L bracket for inward opening door |
| U bracket | used with glass door |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 - 90% noncondensing |
| Certifications | FCC, IC, CE |
