Ubiquiti EV Station Lite
- SKU: UC-EV-Station-Lite
$499.00
+ $39.00 Surcharge
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks UC-EV-Station-Lite

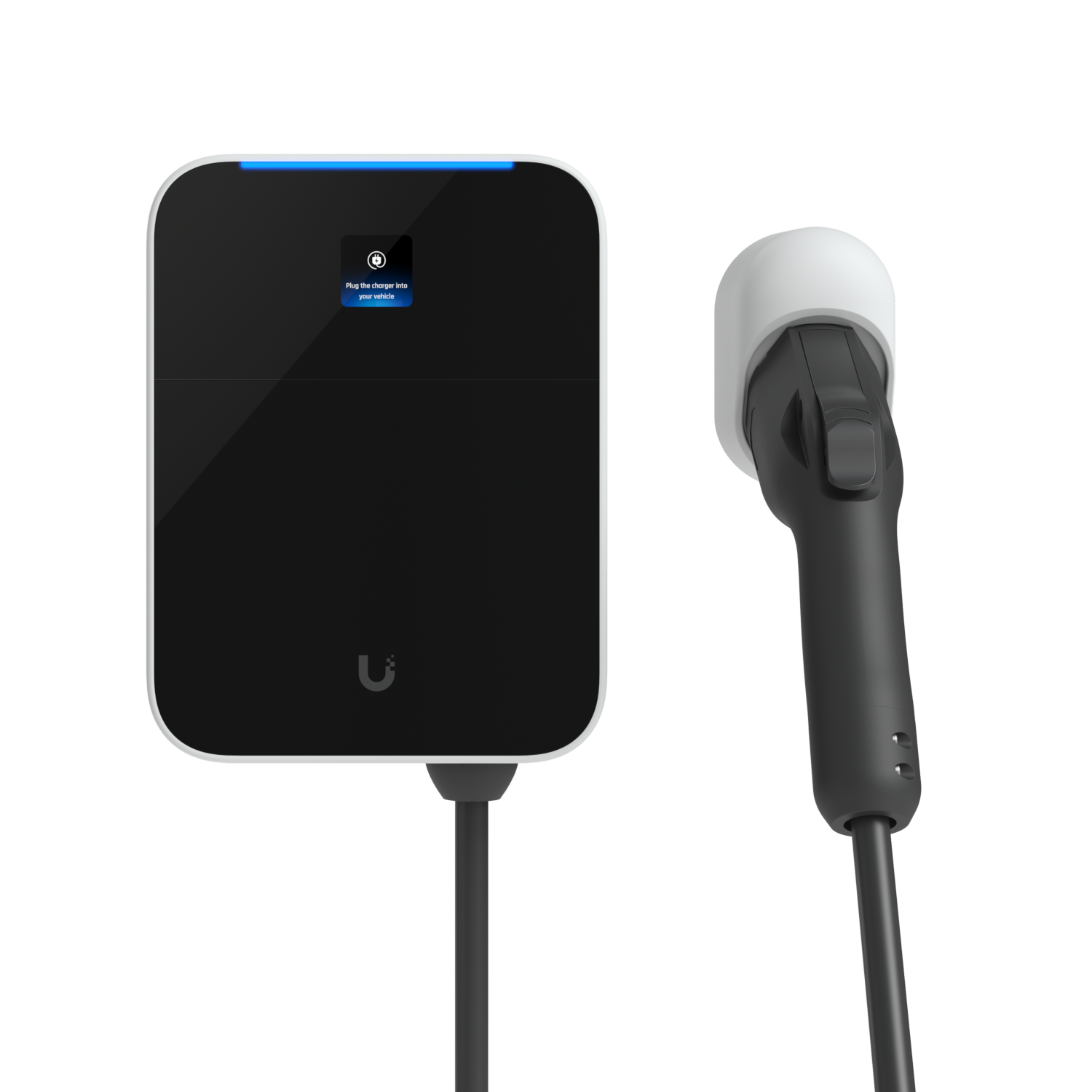

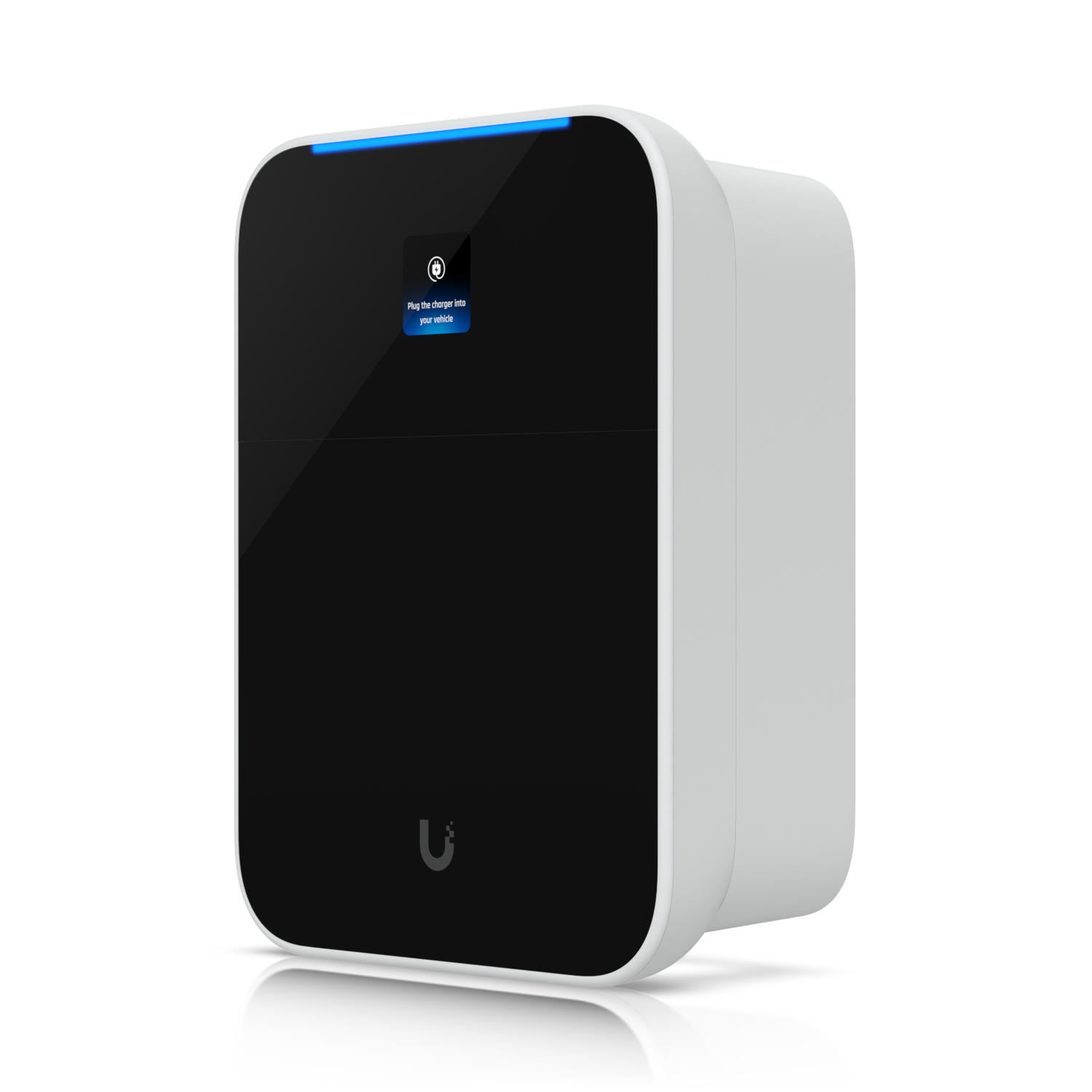

EV Station Lite
Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment.
Features:
- 11 kW max charging output with SAE J1772 charging plug
- 1.7" LCM display
- Access control with UniFi Identity mobile app and NFC card*
- Connected with UniFi WiFi Auto-Link or Ethernet
- UL certified

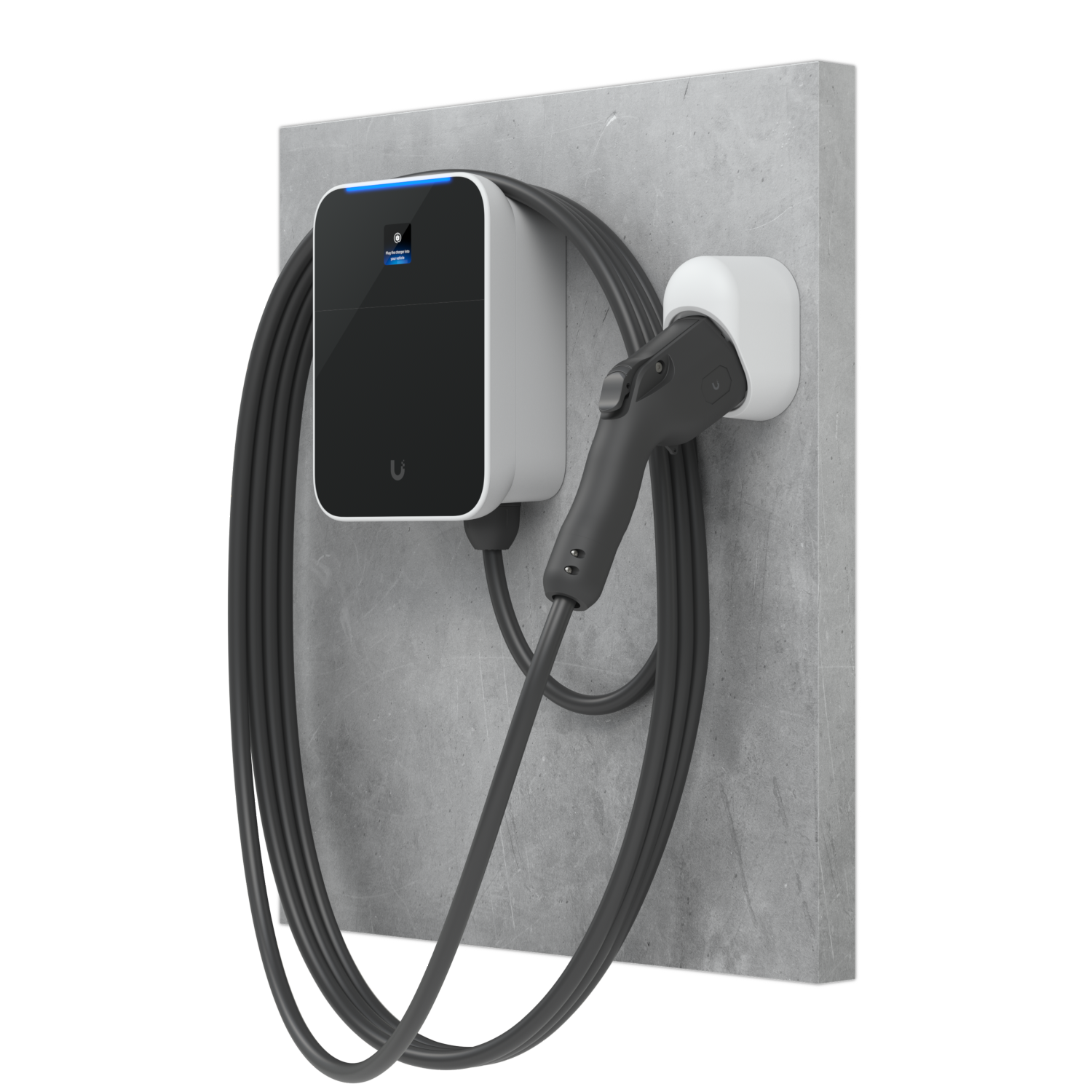

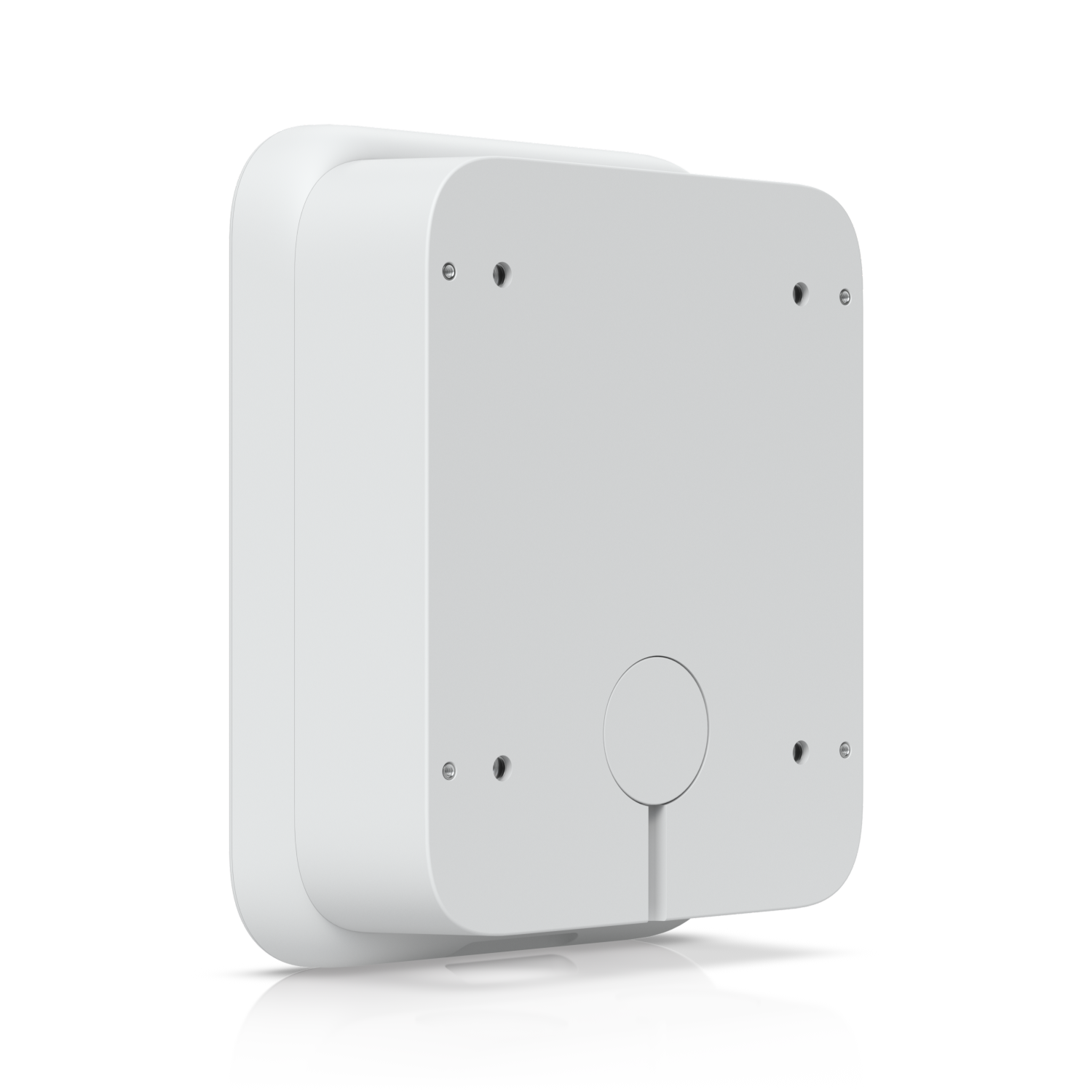

- Includes wall mount
Specifications
Specifications UC-EV-Station-Lite
| Mechanical | ||||

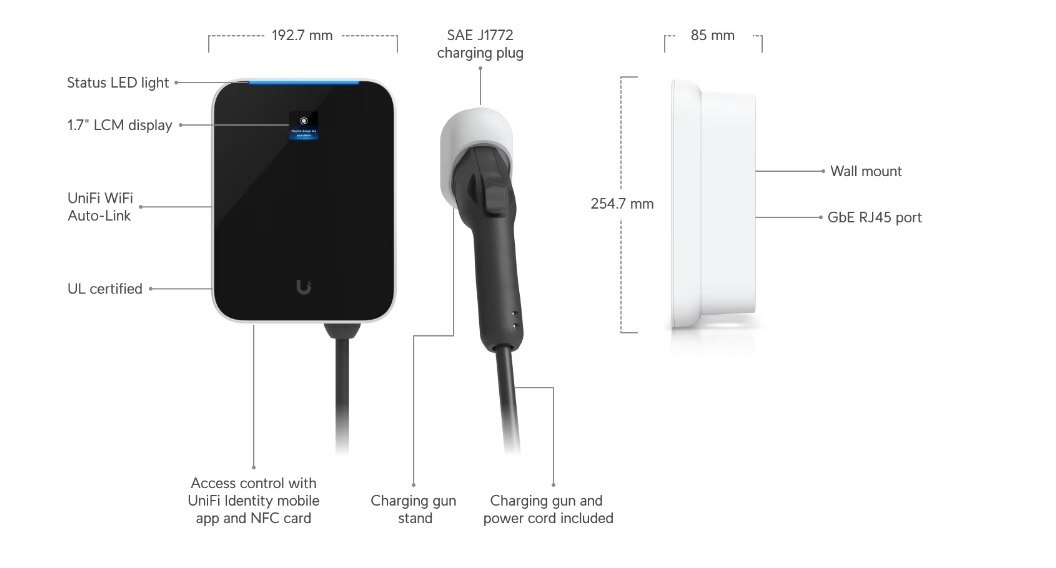

| Dimensions | 254.7 x 192.7 x 85 mm (10 x 7.6 x 3.3”) | |||
| Weight | 5.9 kg (13 lb) | |||
| Enclosure material | Polycarbonate | |||
| Charging cable length | 7 m (23 ft) | |||
| Mounting | Wall mount or stand | |||
| Weatherproofing | Type 3R | |||
| Charging outlet | SAE J1772 | |||
| Hardware | ||||
| Display size | 1.7" LCM display | |||
| Resolution | 240 x 240 (1:1) | |||
| Processor | Dual-core Arm® Cortex®-A53, 1 GHz | |||
| Power input | 200–240V ~ 50A, 50/60Hz, 1φ | |||
| Power output | 200–240V ~ 50A, 50/60Hz, 1φ | |||
| Circuit breaker for charging output | Circuit rating | Max. load | Plug-in | Hardwired |
| 70A | 50A | No | Yes | |
| 60A | 48A | No | Yes | |
| 50A | 40A | Yes | Yes | |
| 40A | 32A | Yes | Yes | |
| 30A | 24A | Yes | Yes | |
| 20A | 16A | Yes | Yes | |
| The circuit must be rated for 125% of the maximum load. | ||||
| Note. EV Station Lite can be wired to support higher amperages. Please consult your electrical code for breaker and wire sizing requirements. The field-wiring terminal is rated up to 105° C and is compatible with wiring up to 16 mm 2 (6 AWG). | ||||
| Connectivity | (1) GbE RJ45 port (1) USB-C port Bluetooth® 5.0 WiFi | |||
| Ambient operating temperature | -40 to 50° C (-40 to 122° F) | |||
| Ambient operating humidity | 5 to 90% noncondensing | |||
| Certifications | FCC, IC, UL | |||
| Software | ||||
| Management application | UniFi Connect: Version 3.14.4 and later UniFi Connect iOS™ and Android™: Version 2.18 and later | |||
