Ubiquiti UISP-Dish 5.15 - 6.875 GHz 30 dBi Point-to-point (PtP) Dish Antenna

(0)No Reviews yet
  • SKU: UISP-Dish
US$‎229.00
16 in stock
Mississippi
16 In stock

Product Information

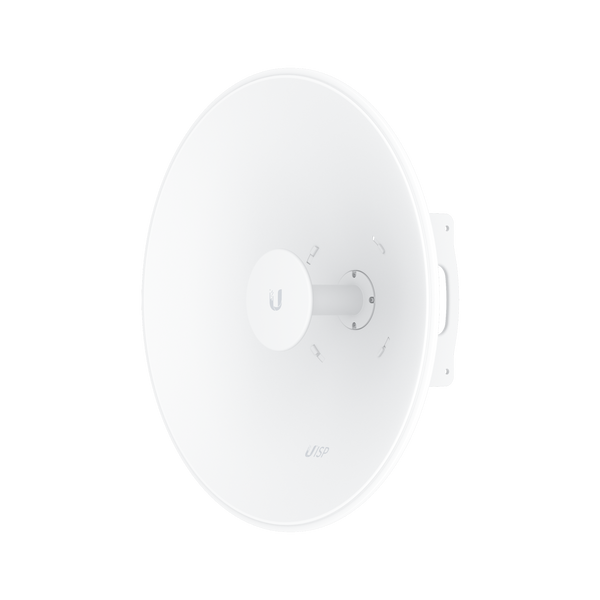

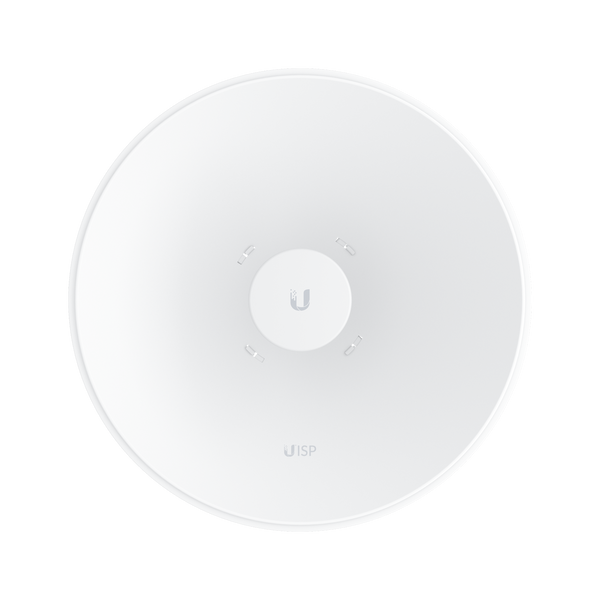

Ubiquiti Networks UISP-Dish

Point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

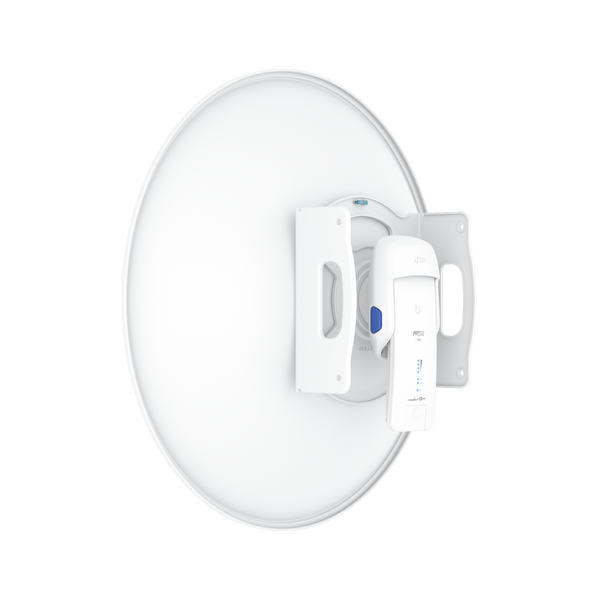

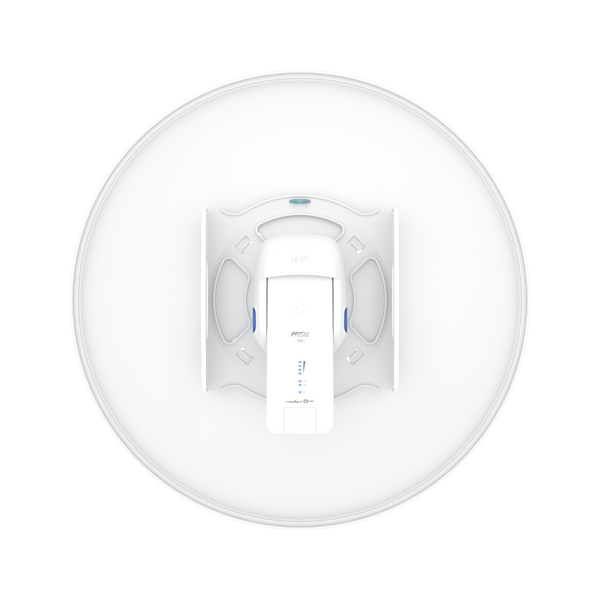

The UISP® Dish is a high-gain PtP antenna that provides ample coverage by utilizing a wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD) or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Dish also has a latch on each side for secure, snap-in radio connection.



Features:

  • Frequency range: 5.15 - 6.875 GHz
  • 30+ km PtP link range
  • Precision mounting bracket for easy installation and alignment
  • Two side latches for secure, snap-in radio connection

Specifications

Specifications UISP-Dish

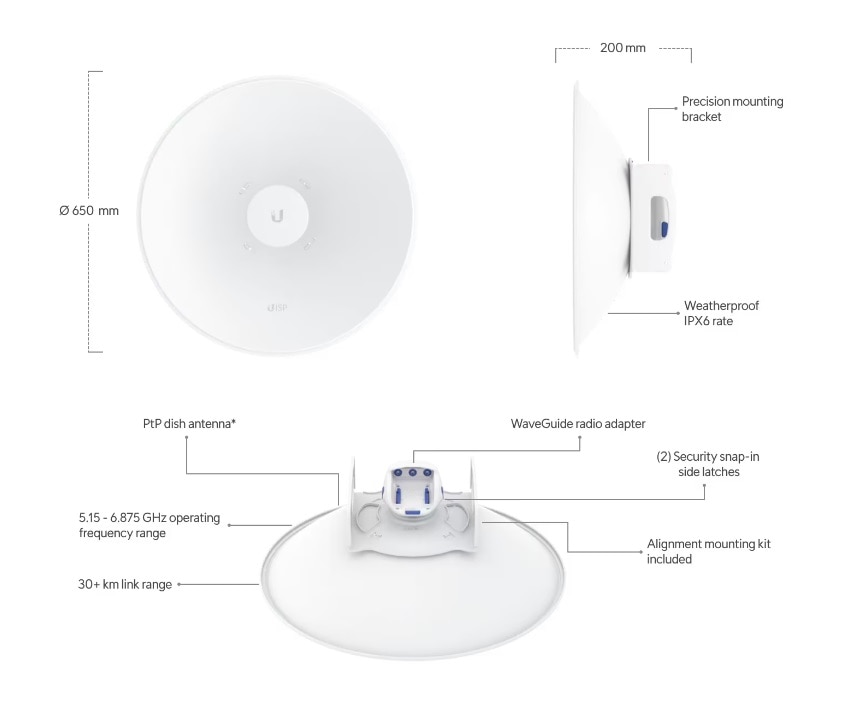

DimensionsØ 650 x 200 mm (Ø 25.6 x 7.9")
WeightDevice: 4.54 kg (10 lb) Mount: 3.1 kg (6.8 lb)
Enclosure materialsPowder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
Wind survivabilityUp to 200 km/h (124 mph)
Wind loading860 N at 200 km/h
MountingAlignment mounting kit (included)
Mechanical adjustment±15° elevation
Pole compatibilityØ40 to 90mm (Ø1.57 to 3.5")
WeatherproofingIPX6
Hardware
Frequency range5.15 to 6.875 GHz
Gain30 dBi
BeamwidthAzimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Elevation5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Electrical downtilt
Maximum VSWR2:1
PolarizationDual-linear
Cross-pol isolation20 dB
