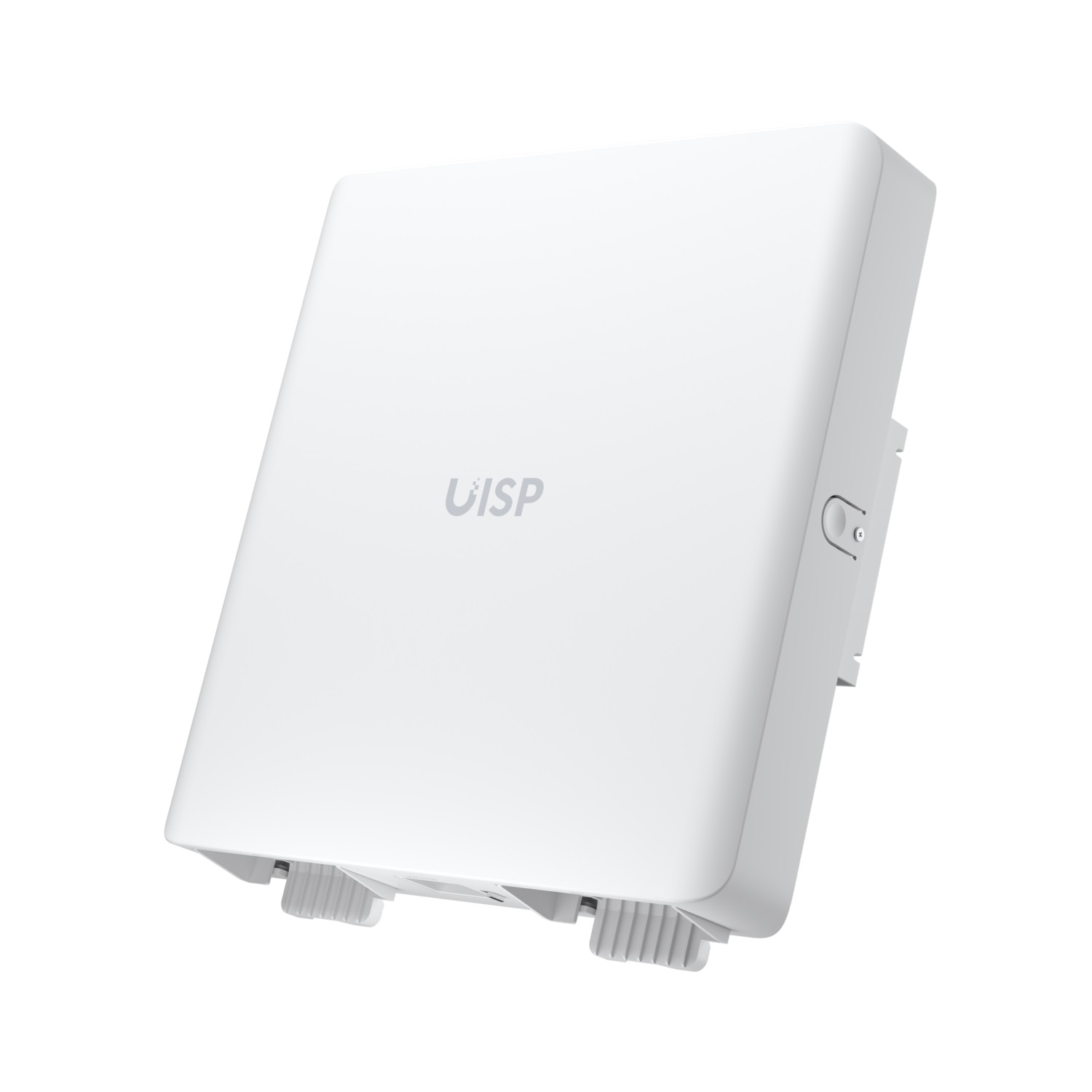

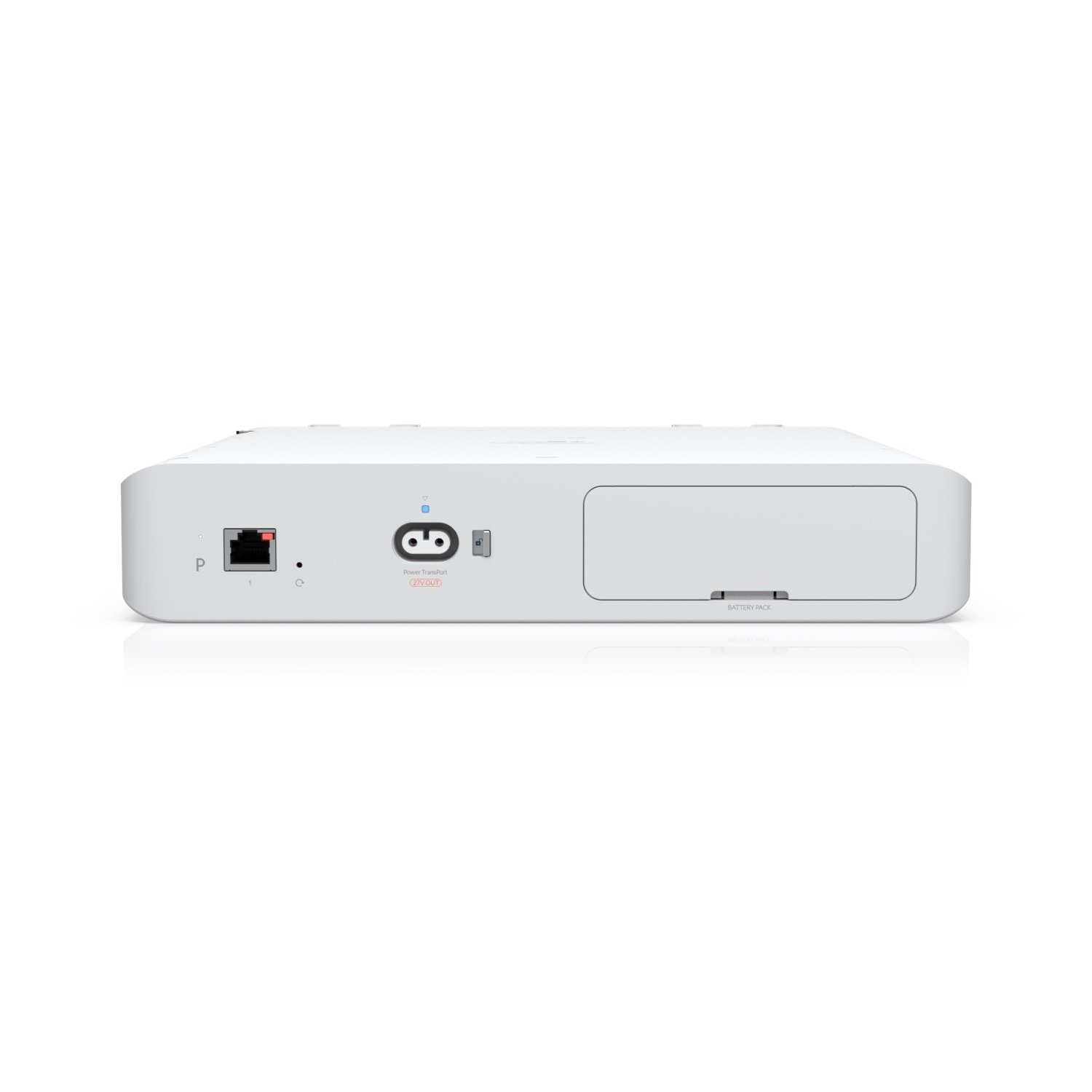

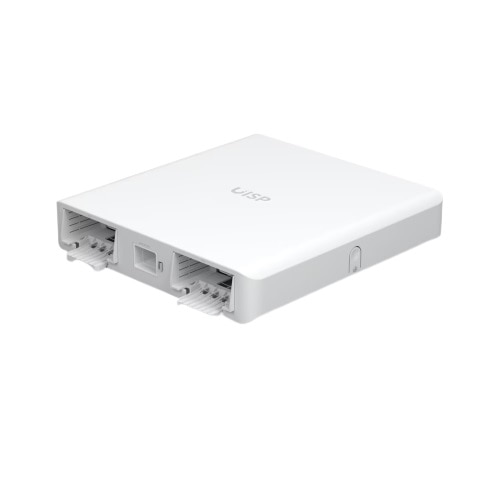

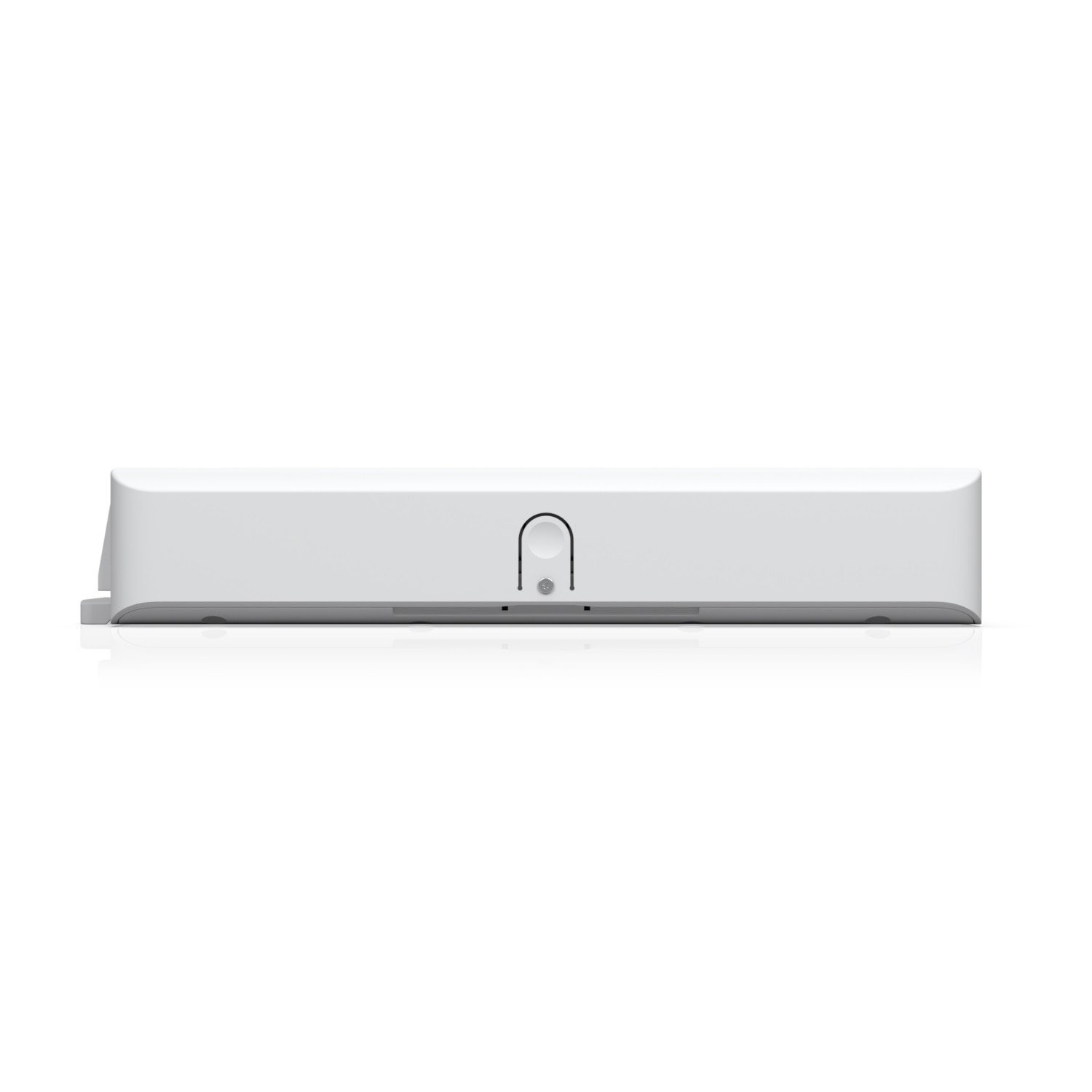

Ubiquiti Networks UISP Power
- SKU: UISP-P
$299.00
Product Information
Ubiquiti Networks UISP-P
UISP Power
Uninterruptible power system designed for MicroPoP applications.
Features:
- Total power supply: 200W* (27V DC) / Redundant power supply: 100W
- 115Wh Li-ion backup battery
- (1) Power TransPort output
- (1) DC battery port for an external 24V lead-acid battery (not included)

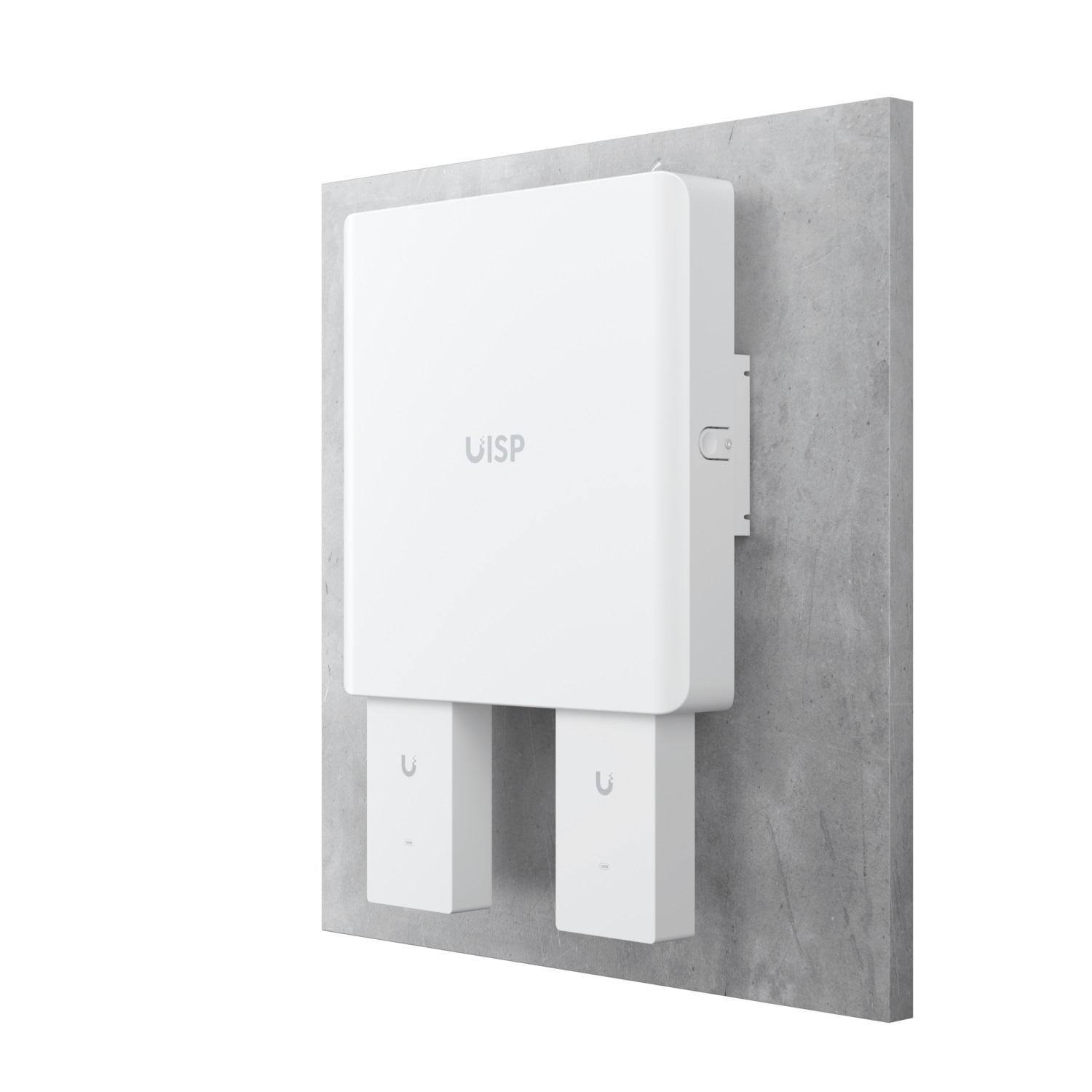

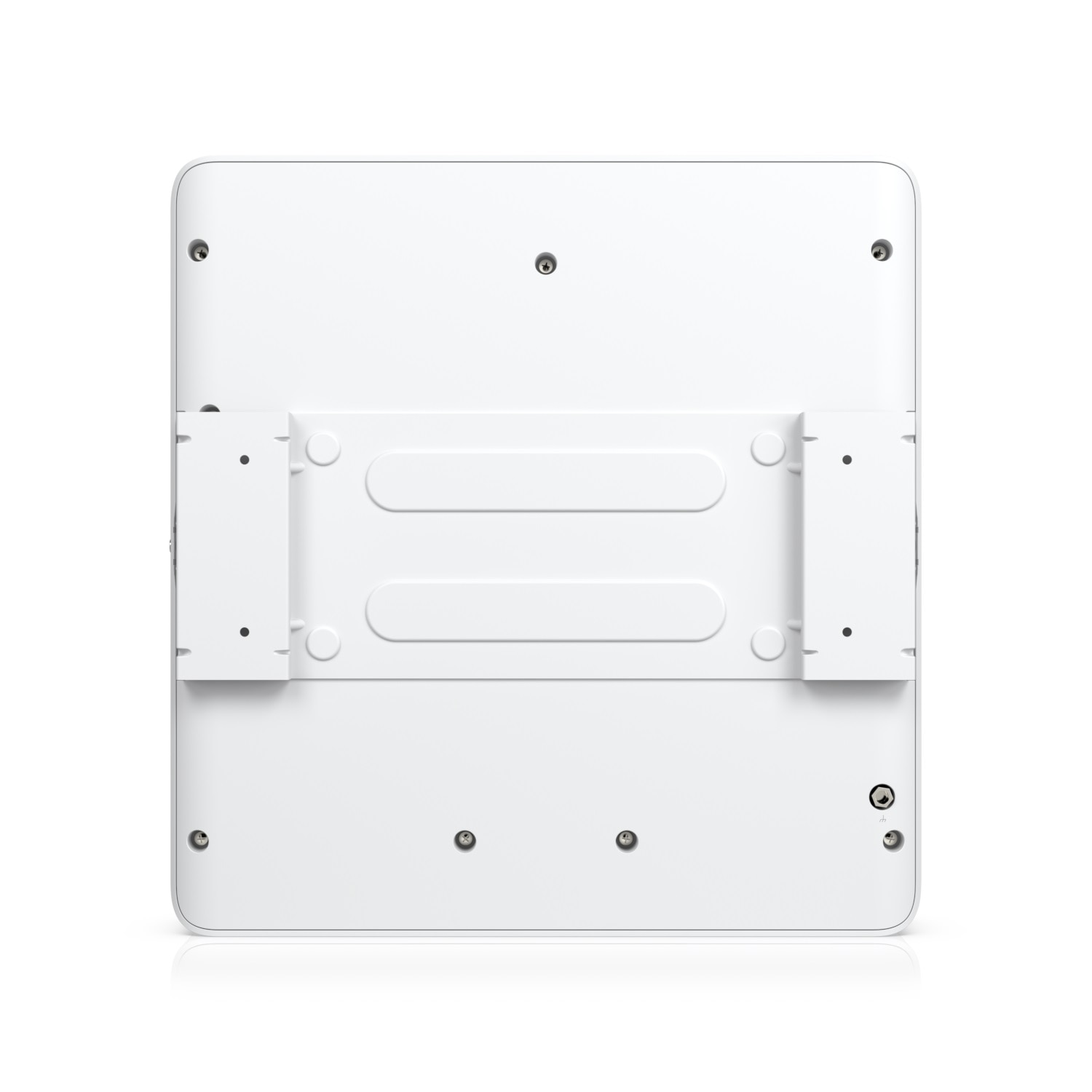

- Wall-mountable (kit included)
- Compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro
Specifications
Specifications UISP-P

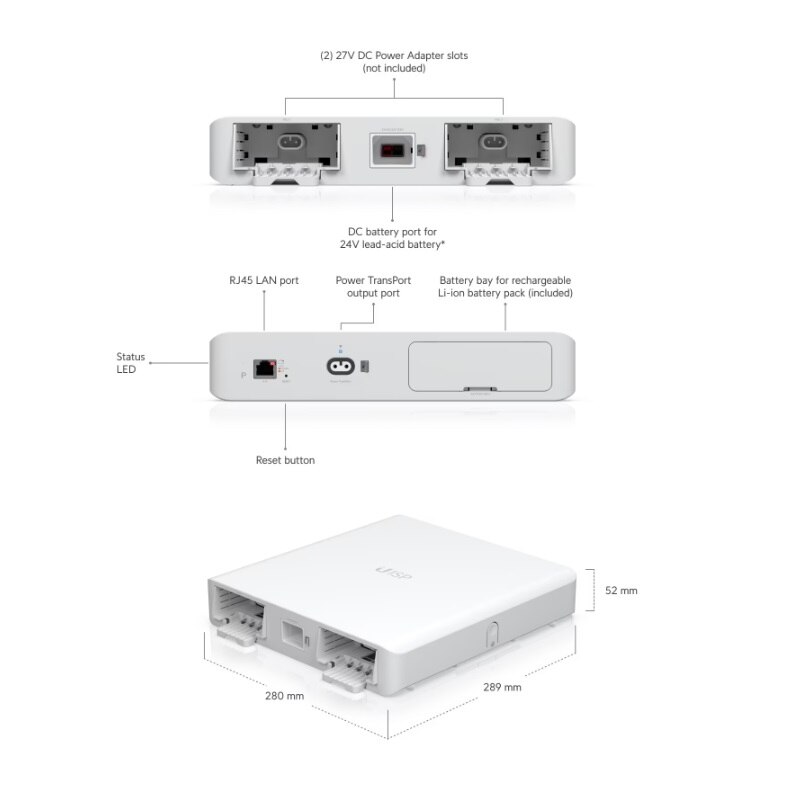

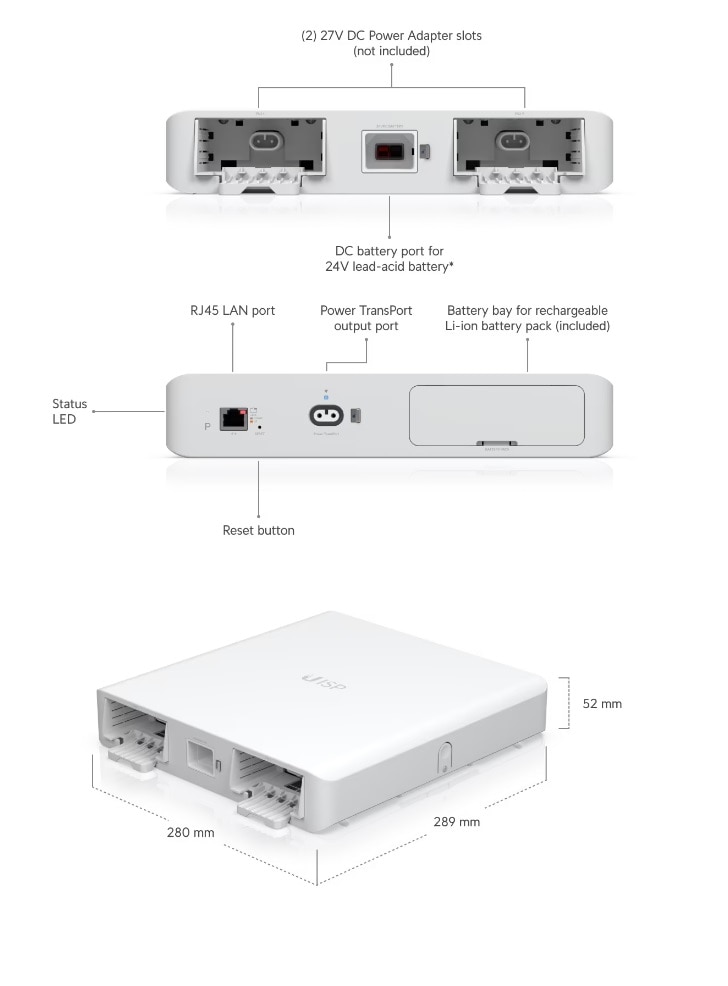

| Dimensions | 289 x 280 x 52 mm (11.38 x 11.02 x 2.05") |
| Weight | 1.4 kg (3.1 lb) |
| Enclosure materials | Polycarbonate, acrylonitrile butadiene styrene |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 LAN port |
| Management interface | Ethernet In-band Bluetooth |
| Power TransPort output | 27V DC, 100W (with 1 power adapter) 27V DC, 200W (with 2 power adapters) |
| Power method | (2) 27V DC, 4.4A power adapters (120W Power TransPort Adapter not included) |
| Backup power | (1) 25.2V DC, 7.93A rechargeable Li-ion battery pack (included) (1) 24V DC, 8.33A lead acid battery input* (battery not included) *Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Max. power consumption | 3W (excludes Power TransPort output and battery charger) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| RJ45 data port | Link/activity |
| Power TransPort | On/Off |
| Compatibility | |
| Supported models | UISP Console UISP Router (installed with UISP Box) UISP Router Pro UISP Switch (installed with UISP Box) UISP Switch Pro |
| Software | |
| Management application | UISP: Version 1.4.5 and later |
