Ubiquiti Mobile Router Ultra

(0)No Reviews yet
  • SKU: UMR-Ultra-US
$129.00
  • Manufacturer: Ubiquiti Networks
  • Installation Guide: Download

Out of Stock

 Open chat or call us for stock status

Product Information

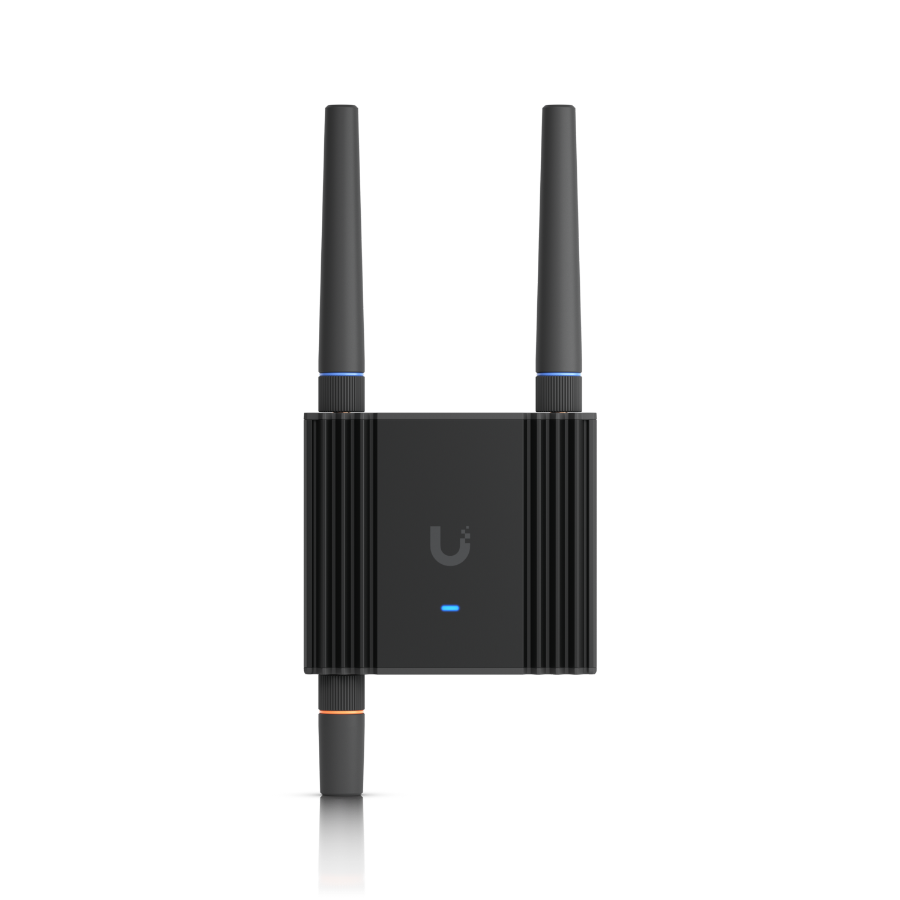

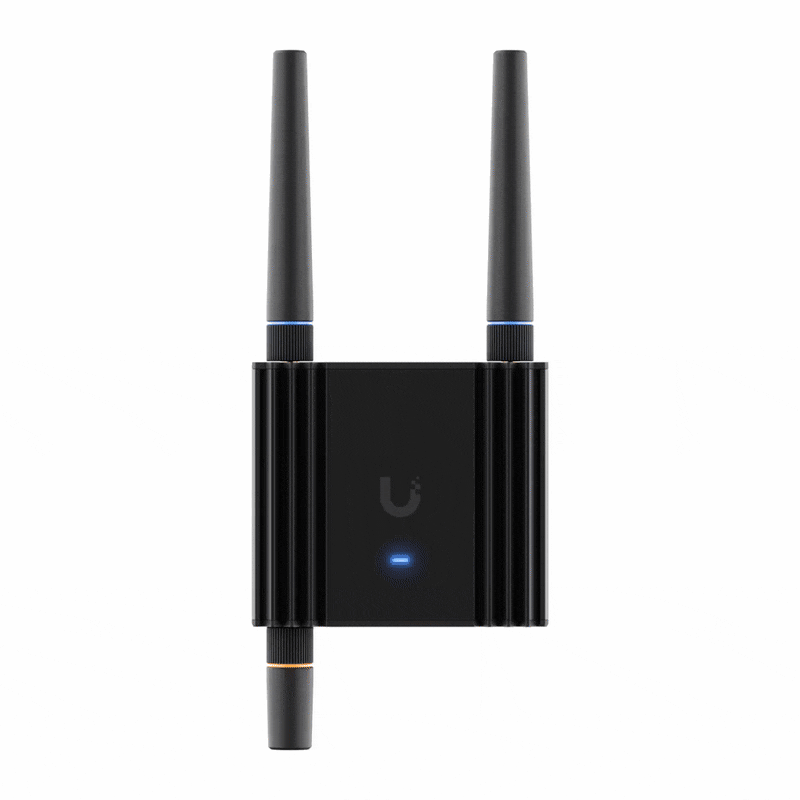

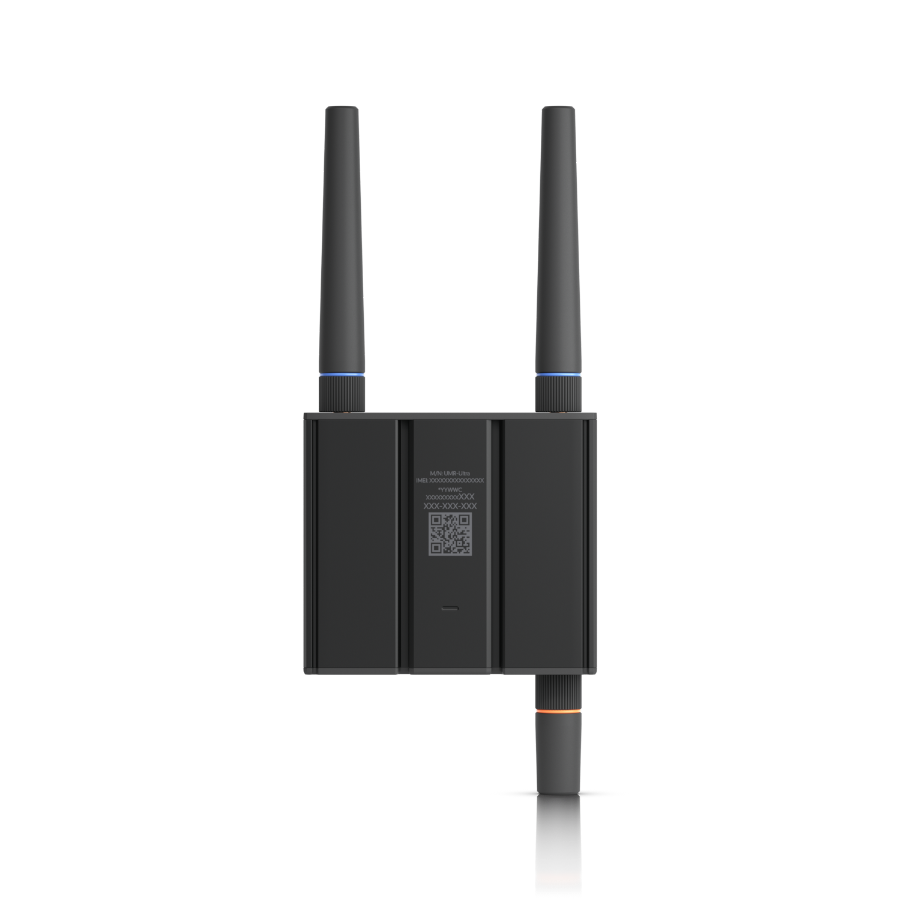

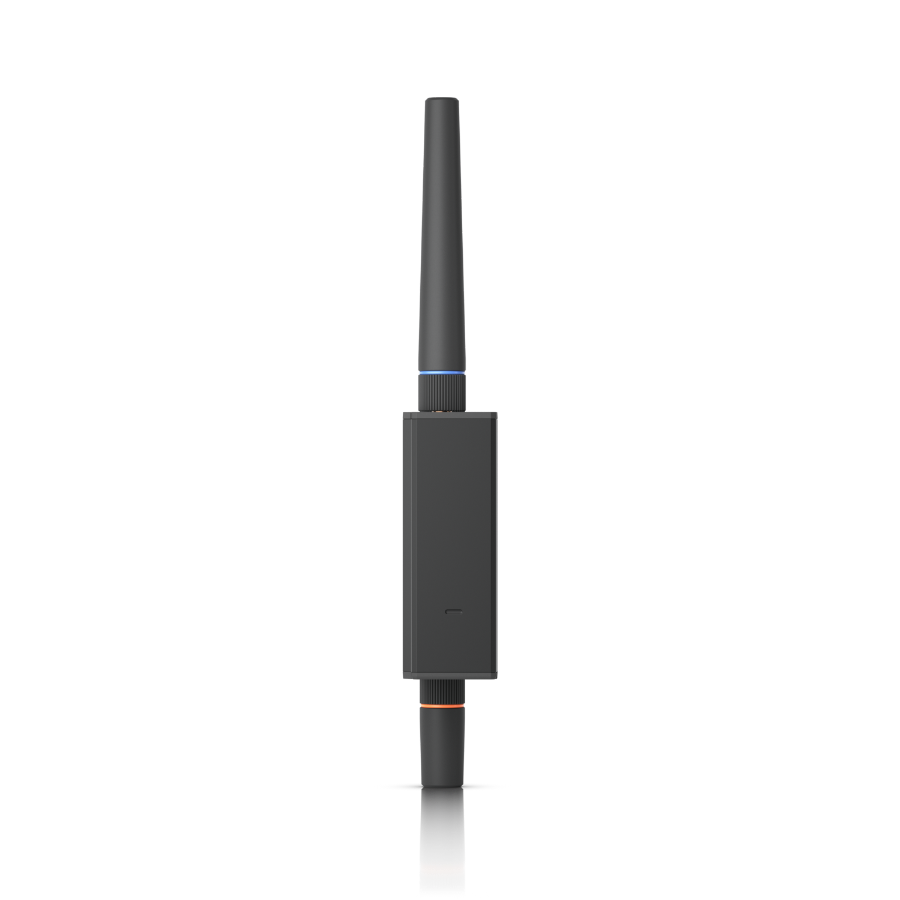

Ubiquiti Networks UMR-Ultra-US

Mobile Router Ultra

Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.


Features:

  • Site-to-site VPN and VPN client routing
  • (2) FE RJ45 ports

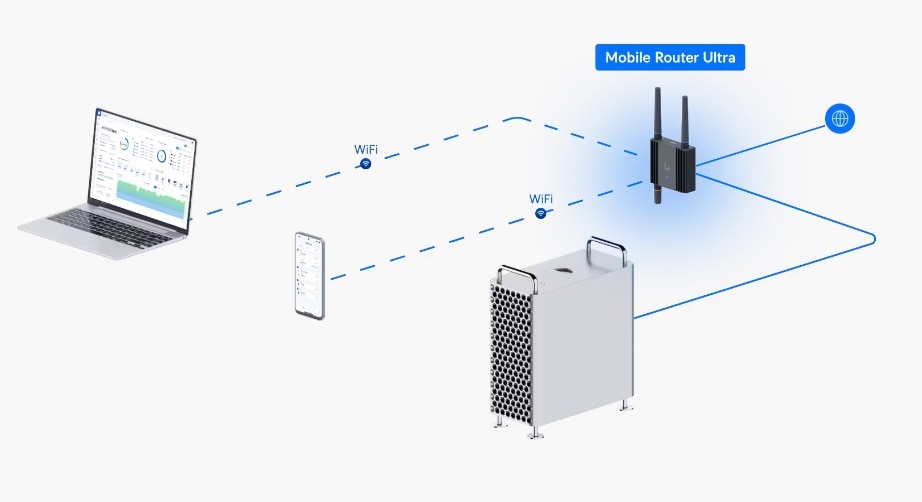

  • Automatic failover among LTE, wired WAN and WiFi
  • Powered using USB Type-C or 4-pin DC power socket

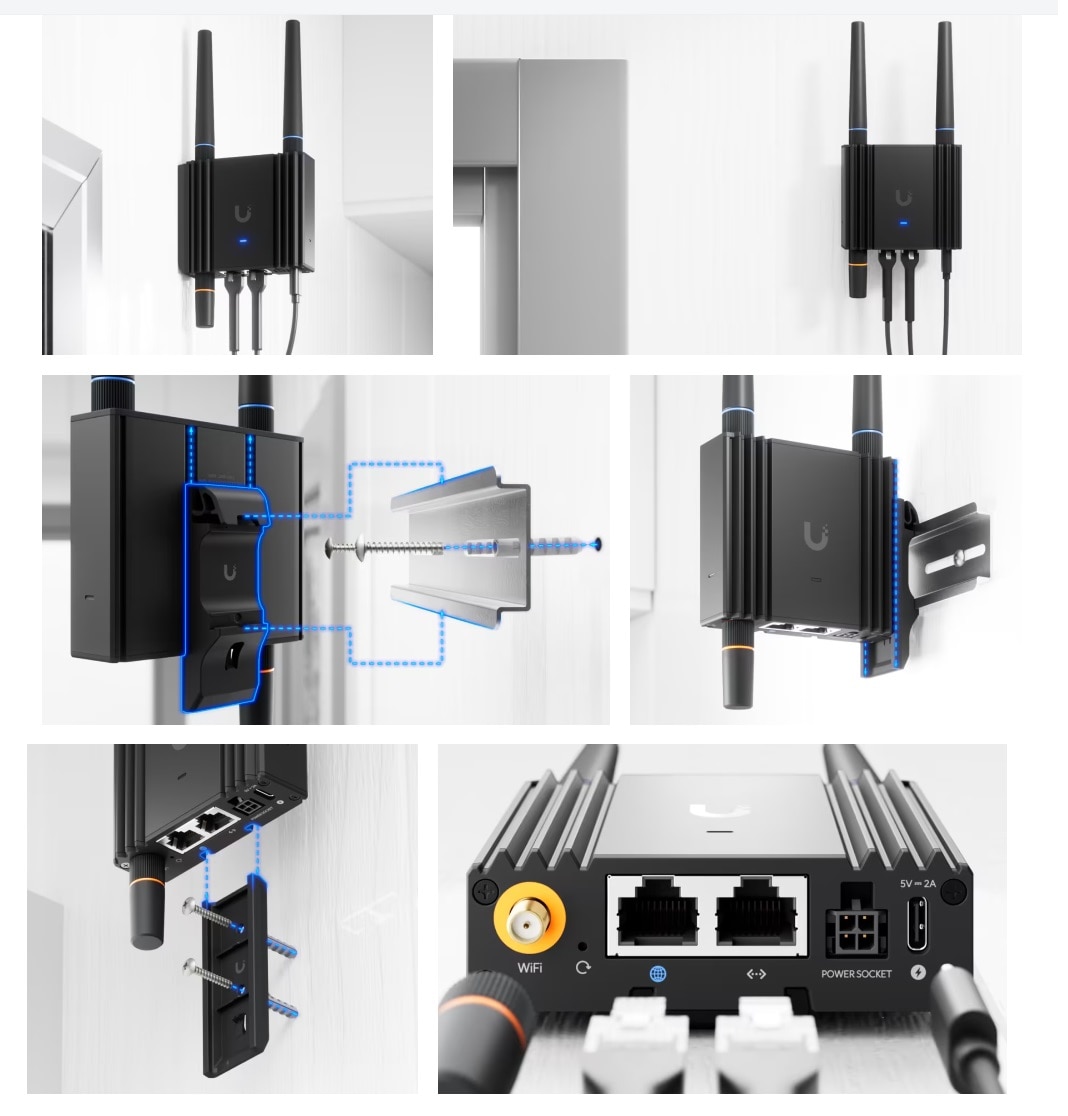

  • Wall and DIN rail mount options
  • Optional Mobility Cloud Subscription
  • WiFi 4 single chain 2.4 GHz radio

Specifications

Specifications UMR-Ultra-US

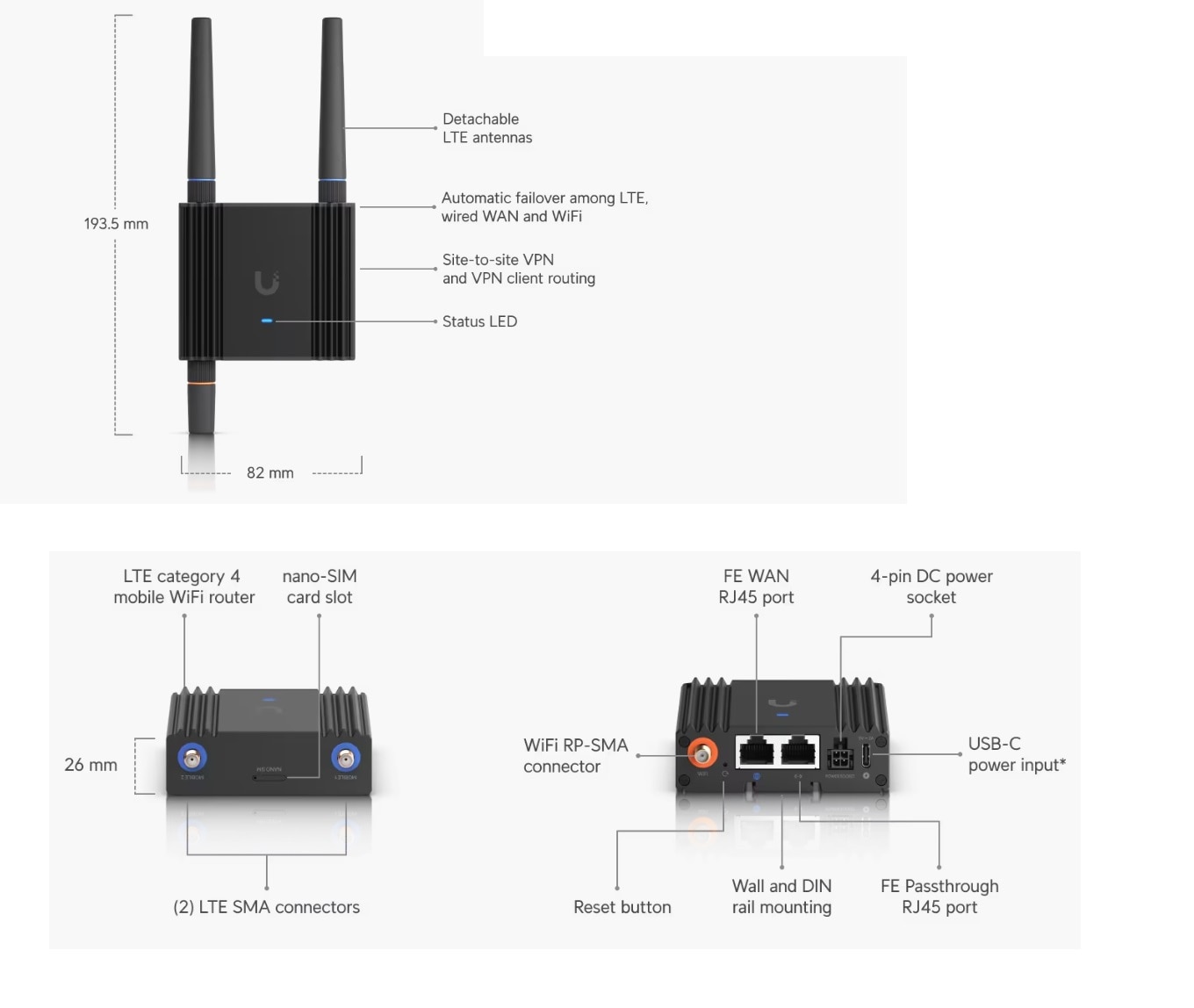

DimensionsWithout antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1")
With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1")
WeightDevice: 200 g (7.1 oz)
DIN rail/wall mounts: 20 g (0.7 oz)
Enclosure materialPolycarbonate, aluminum alloy
Mount materialPolycarbonate
Hardware
Management interfaceEthernet WiFi

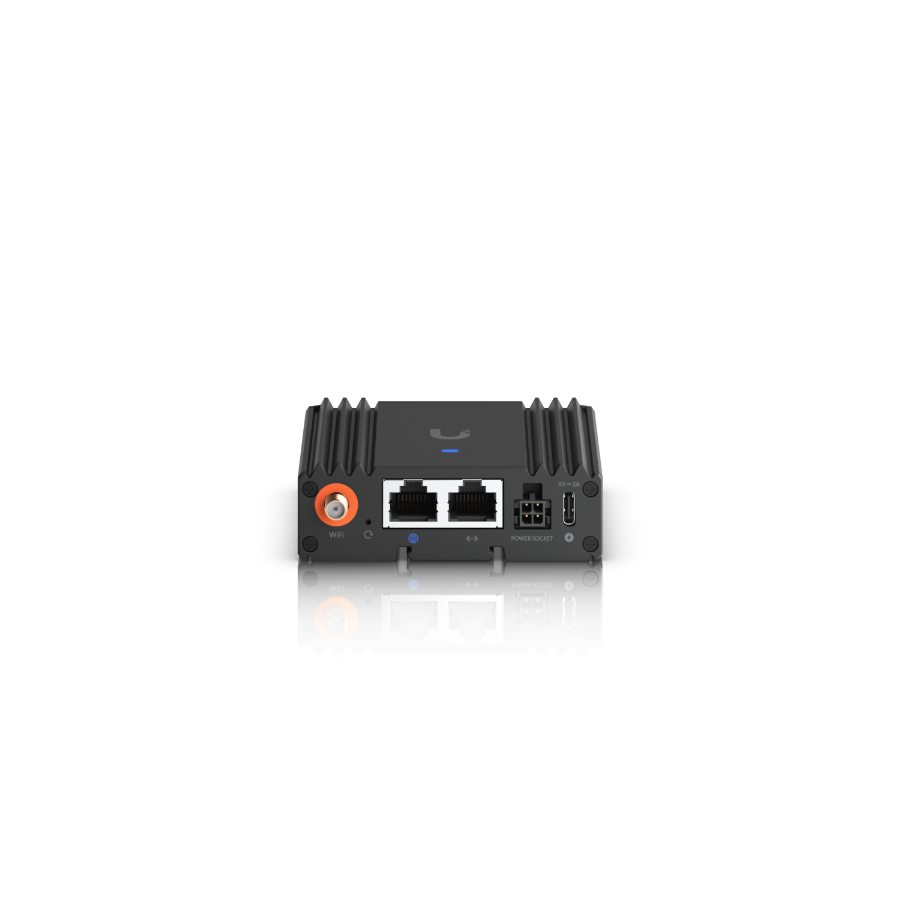

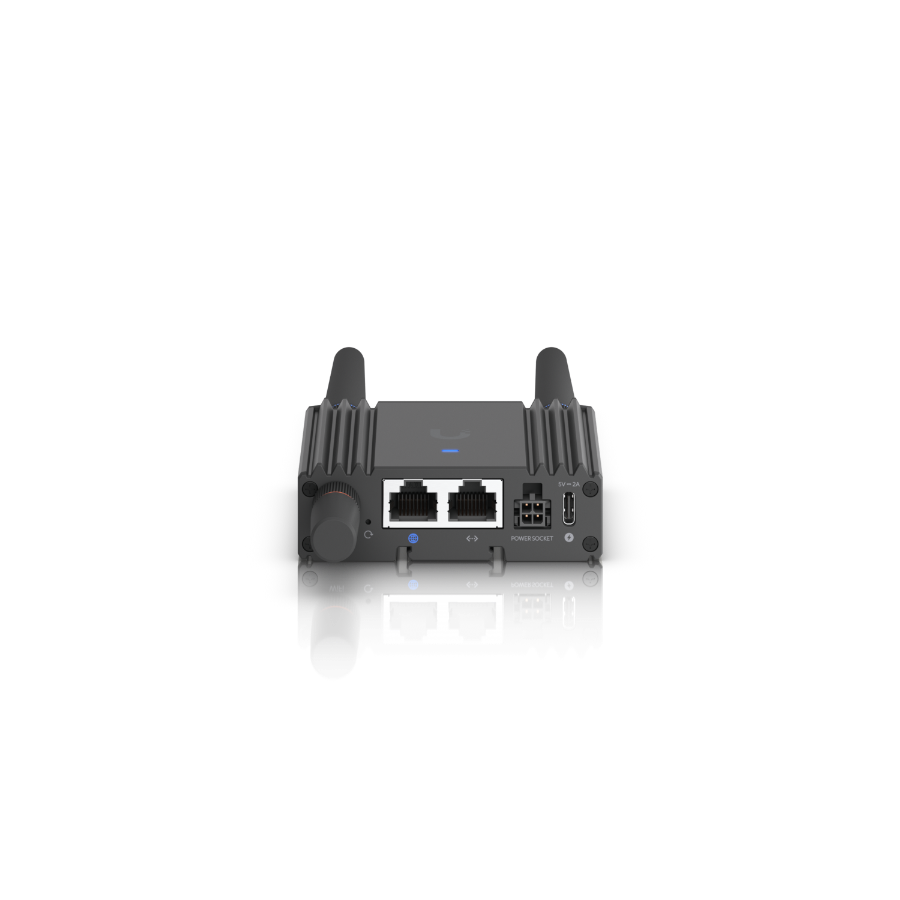

Networking interface(2) FE RJ45 ports
LTE Category 4 radio
WiFi 4
Power supplyUSB Type-C (5V DC/2A)
4-pin* ATX DC power socket (9—30V DC)
Max. power consumption5.7W

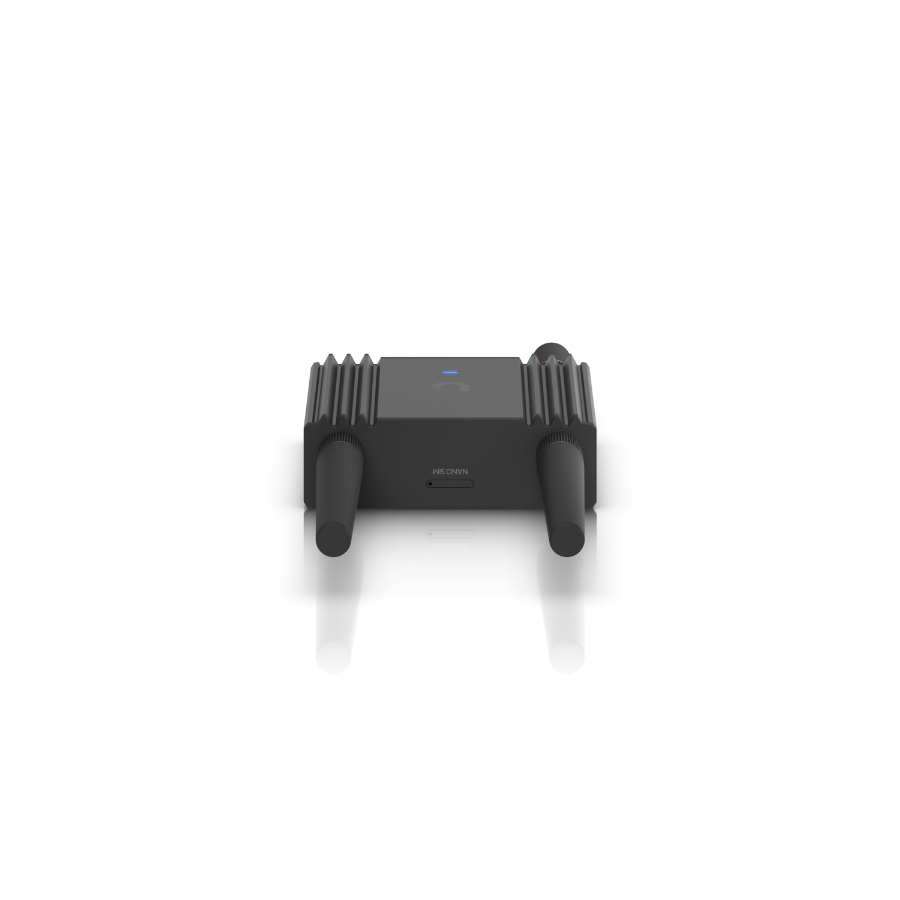

SIMnano SIM
LTE bandsB2, B4, B5, B12, B13, B14, B25, B26, B66, B71
LTE throughput speed*Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at the device location.
WiFi standardsWiFi 4, 2.4 GHz, 20/40 MHz
Max. WiFi TX power17 dBm

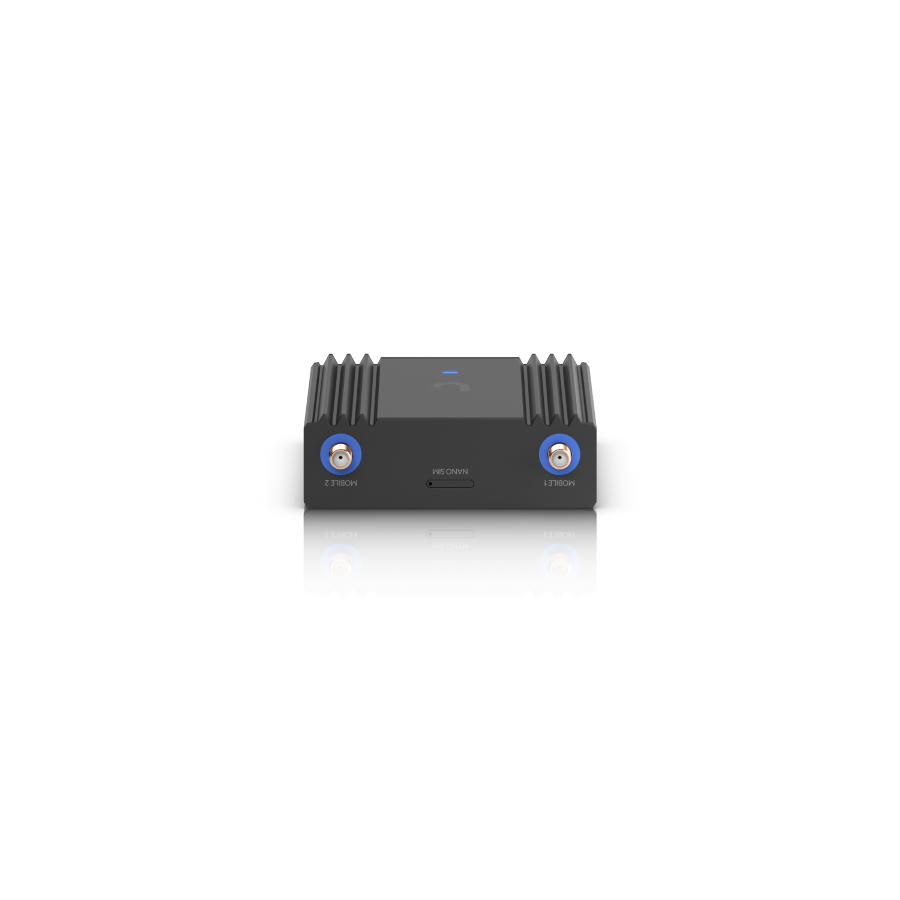

Antenna SMA ports(1) Mobile 1: SMA female connector, supports 1Rx only
(1) Mobile 2: SMA female connector, supports 1Tx and 1Rx
(1) WiFi: RP-SMA female connector
External antennas(2) Mobile/LTE antennas with SMA male connectors
(1) WiFi antenna with RP-SMA male connector
LEDStatus: blue/white
ButtonFactory reset

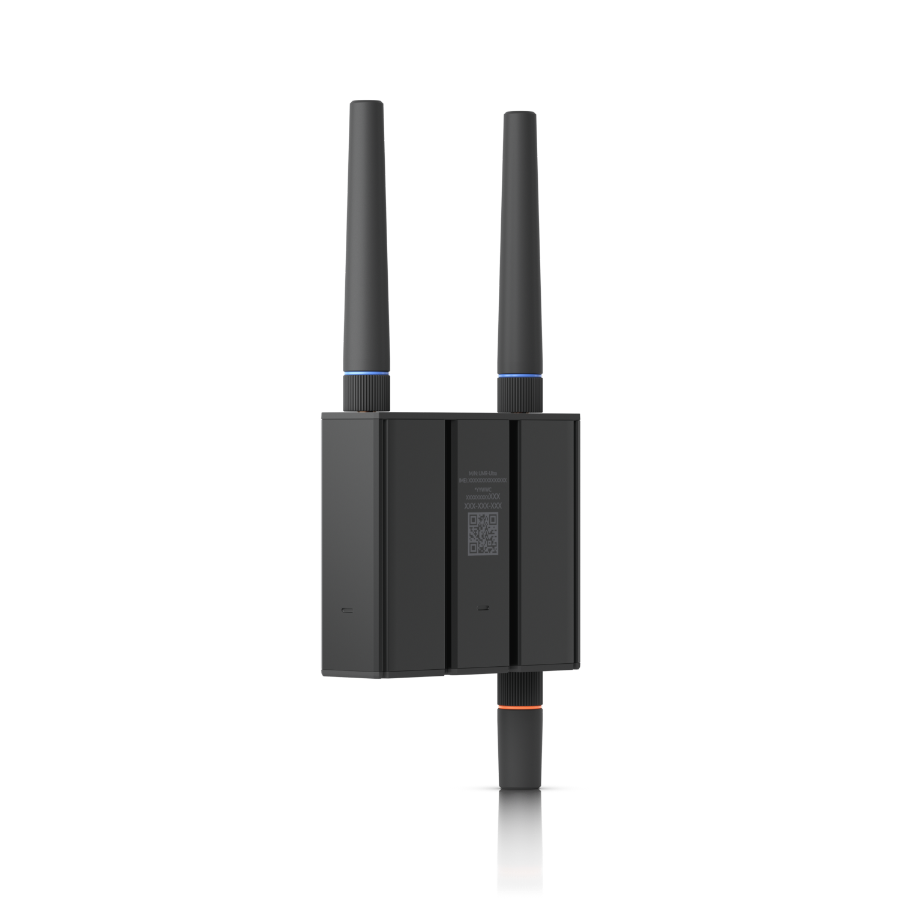

MountingDIN rail/wall mount (Included)
Ambient operating temperature-30 to 70° C (-22 to 158° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsFCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
Supported WiFi Data Rates
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
