Ubiquiti Power Distribution Hi-Density
- SKU: USP-PDU-HD
$999.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

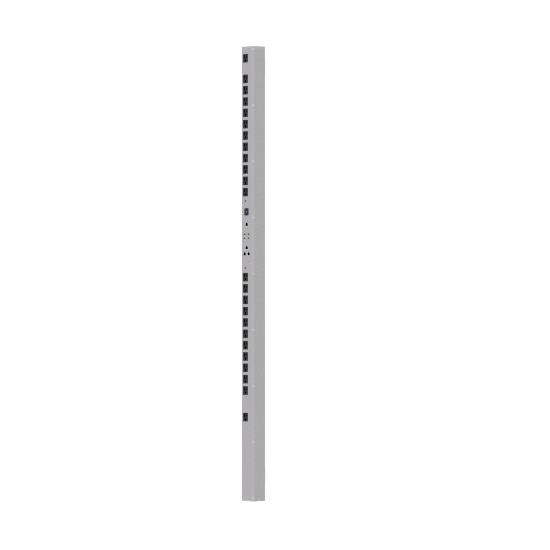

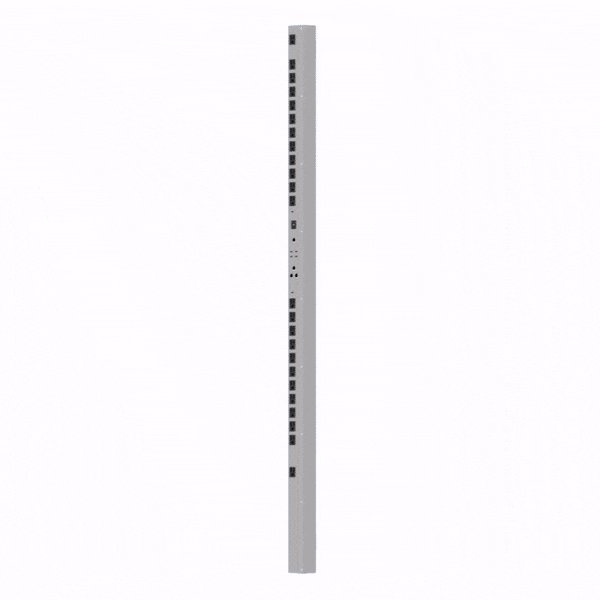

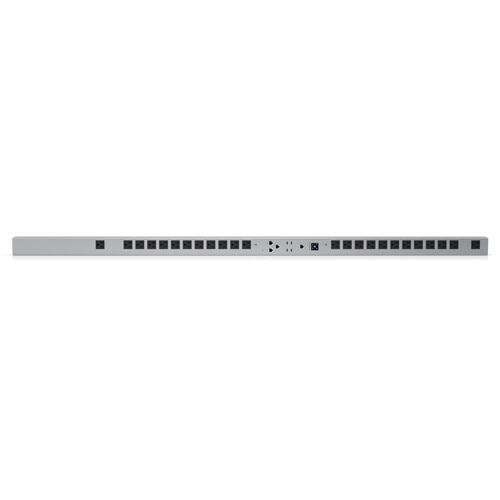

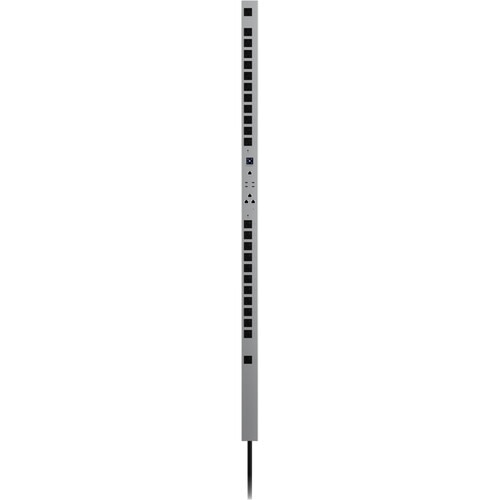

Ubiquiti Networks USP-PDU-HD
Power Distribution Hi-Density

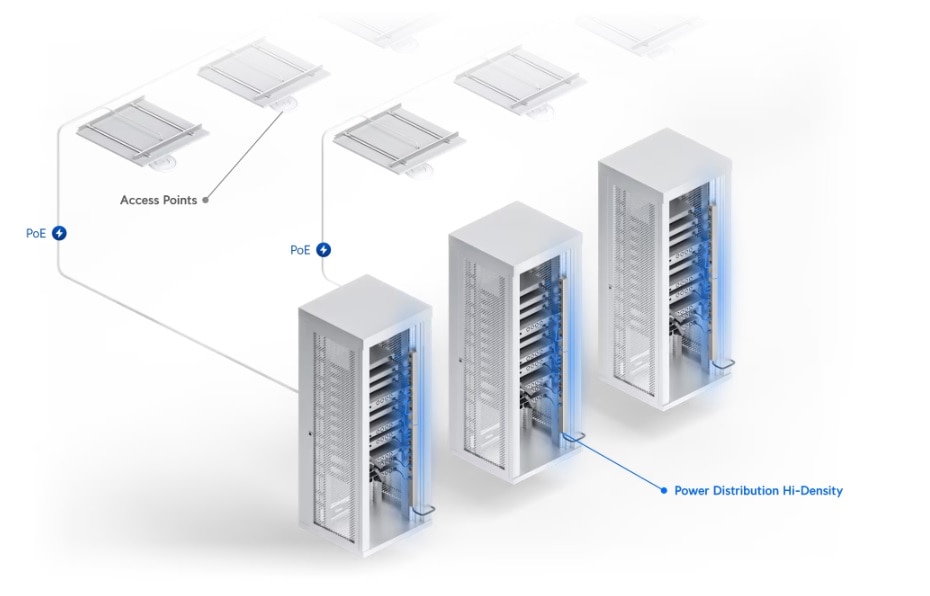

Power distribution unit designed to support large, rack-mounted UniFi hardware deployments.

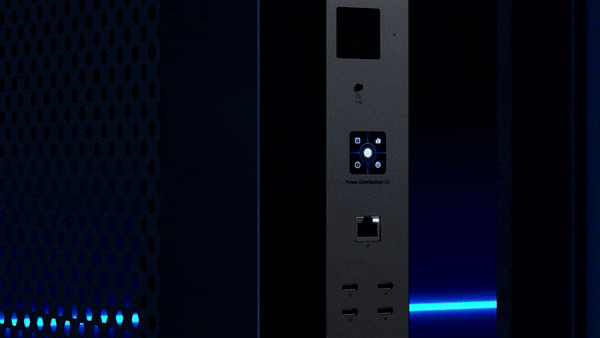

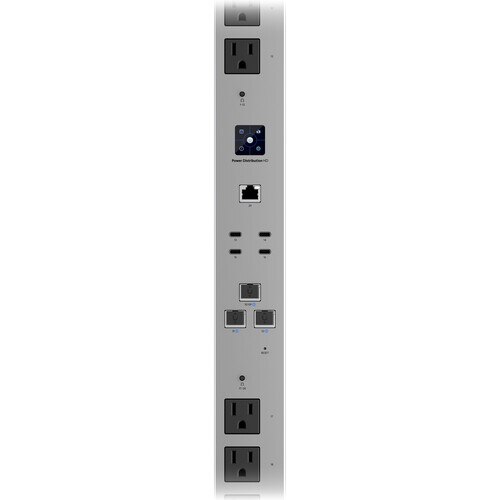

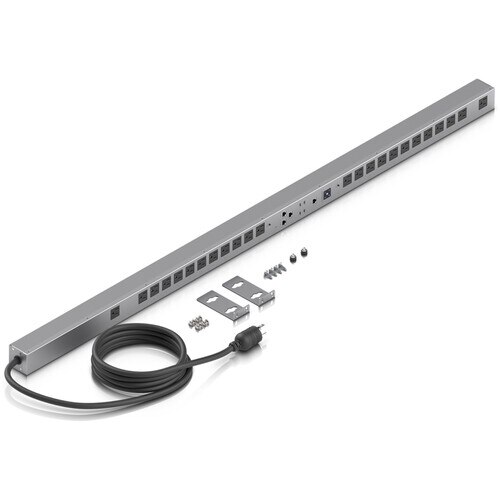

The system is designed to automatically restart devices such as ISP modems and routers lose connection, or you can manually restart your equipment as needed. You can also check your system with the convenient 1.3" touchscreen located on the front panel. The built-in circuit breaker helps to protect your equipment. A rackmount kit is included.Features:
- (24) Remote-reset outlets
- (4) USB-C ports
- 3 m power cord with NEMA L5-30 plug
- 1.3" LCM touchscreen with automation rotation*

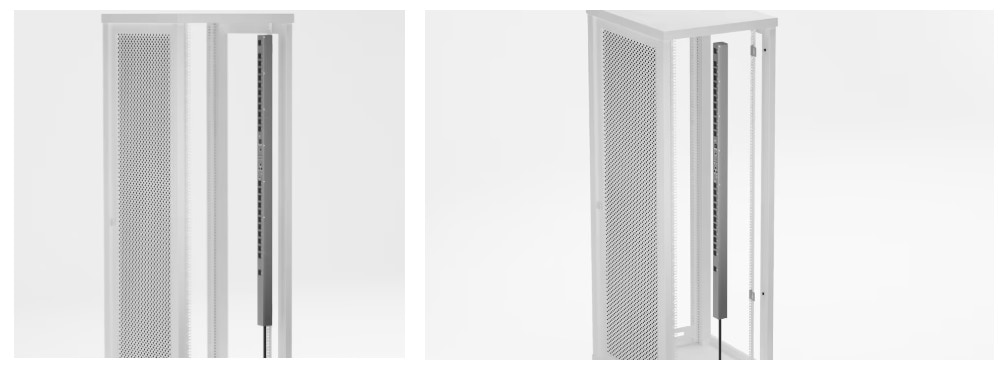

- Compatible with 36U racks and taller
Specifications
Specifications

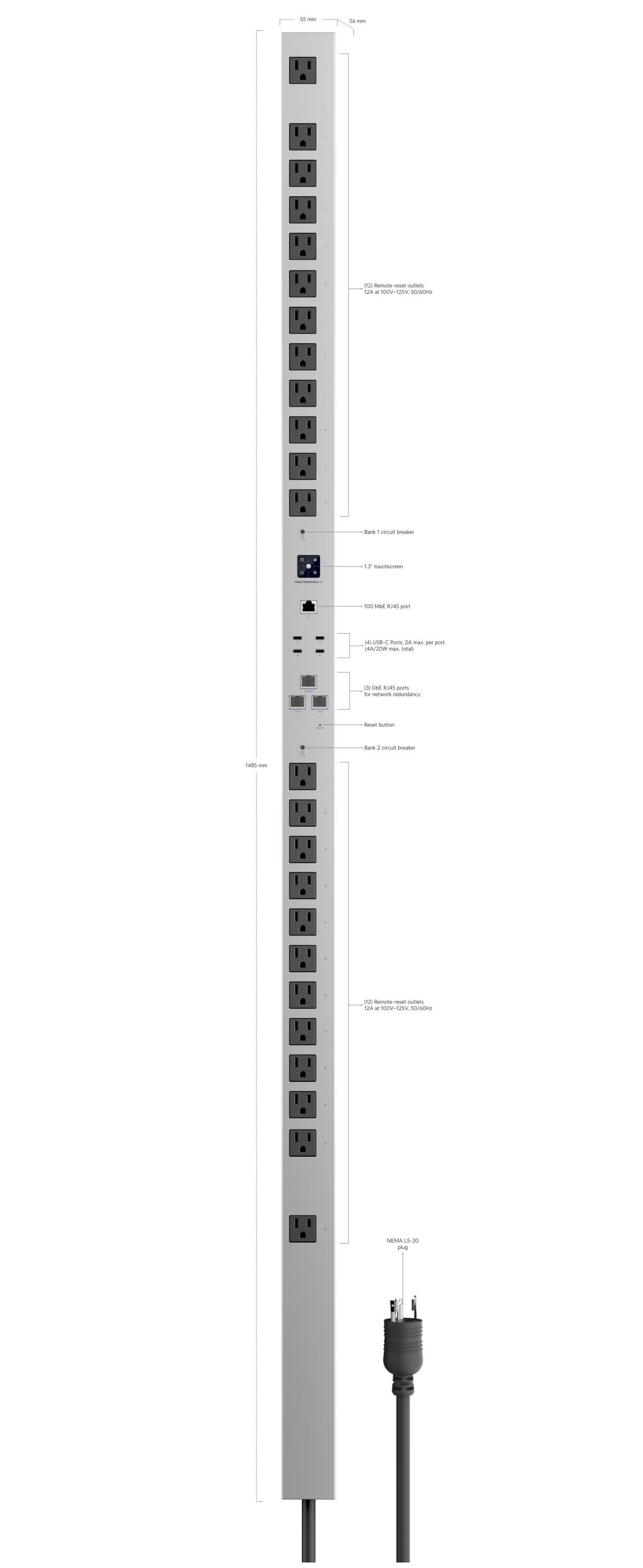

| Dimensions | 1485 x 55 x 56 mm (58.5 x 2.17 x 2.2") |
| Weight | 6.3 kg (13.9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 port (3) GbE RJ45 ports for network redundancy |
| Management interface | Ethernet |
| Power output | (24) Power control outlets: — Per Bank (Bank1: port 1 to 12, Bank2: port 17 to 28): Rating output current: 12A at 125V AC (1500W) Max. output current: 15A at 125V AC (1875W) —Total: Rating output current: 24A at 125V AC (3000W) Max. output current: 30A at 125V AC (3750W) (4) USB type C port: 5VDC 2A per port, total 20W Max. power |
| Power method | 100—125V AC, 30A Max. (Derated to 24A), 50/60 Hz (NEMA L5-30P) |
| ESD/EMP protection | Air: ± 8kV Contact: ± 4kV |
| LCM display | (1) 1.3" touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading |
| Buttons | (1) Factory reset (2) Circuit breaker |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC |
| Application Requirements | |
| UniFi Network | Version 8.0.24 and later |
| Mobile apps | UniFi iOS™ and 10.11.0 and later Android™ 10.11.0 and later |
