Ubiquiti UniFi SmartPower PDU Pro
- SKU: USP-PDU-Pro
$279.00
Product Information

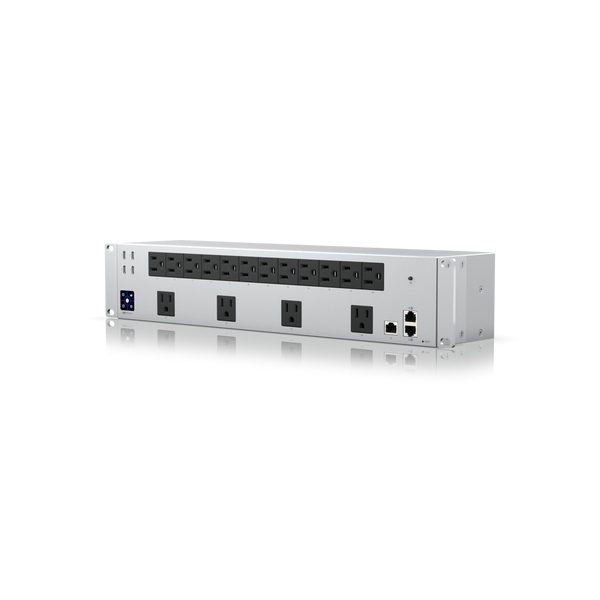

Ubiquiti Networks USP-PDU-Pro
UniFi SmartPower PDU Pro

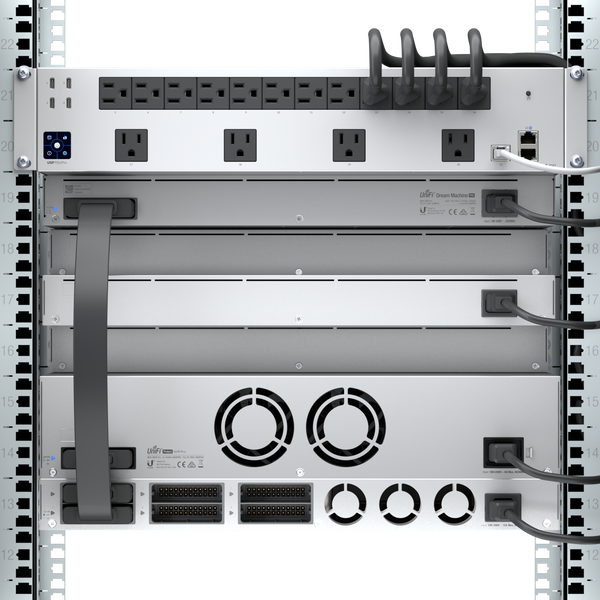

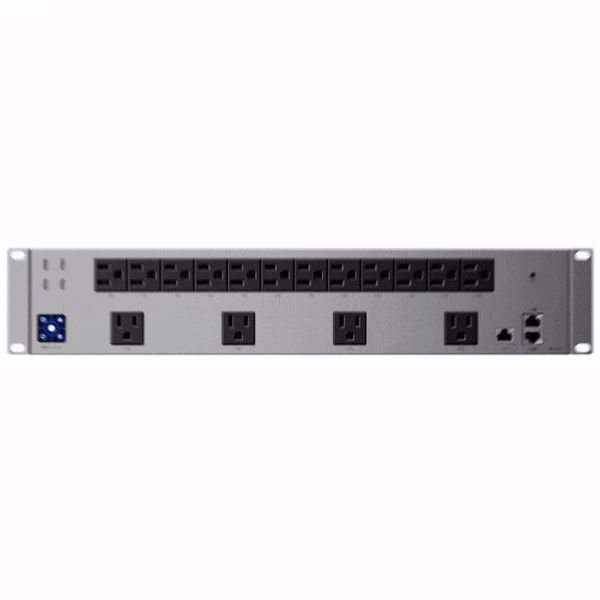

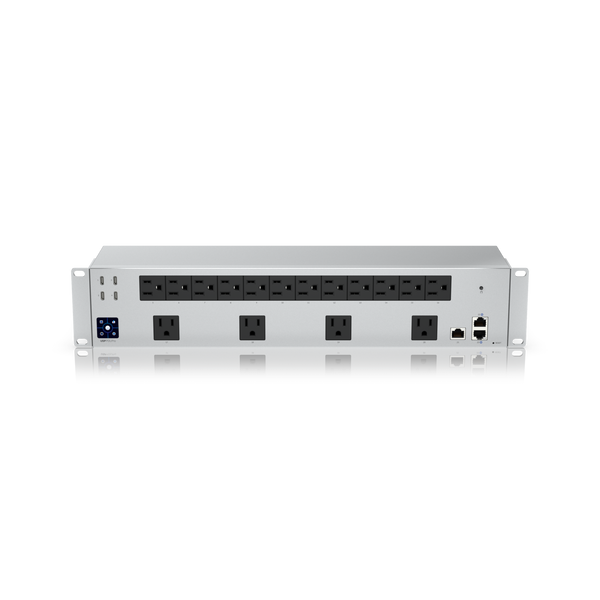

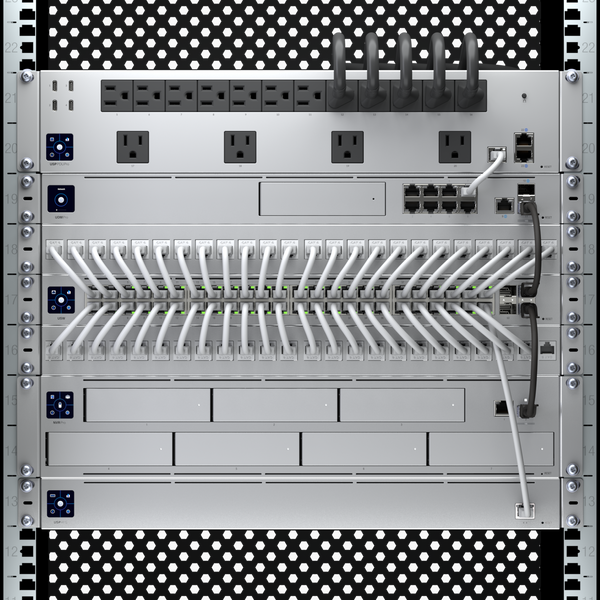

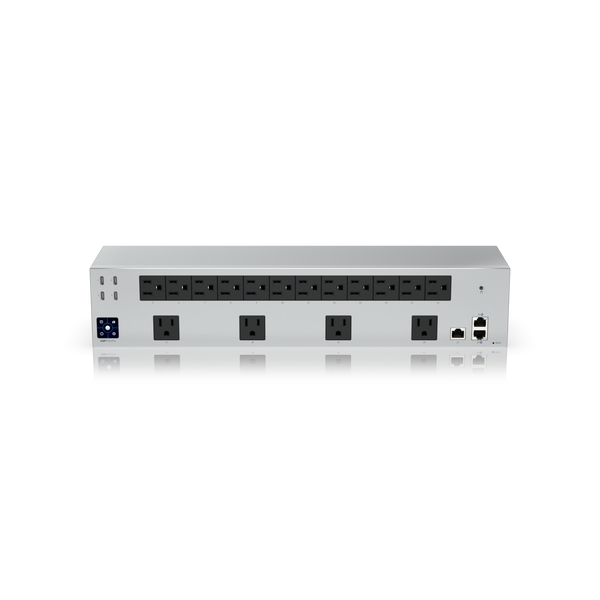

The SmartPower PDU Pro was designed to supply power to an entire rack-mounted UniFi system and remotely manage each connection.
Features:

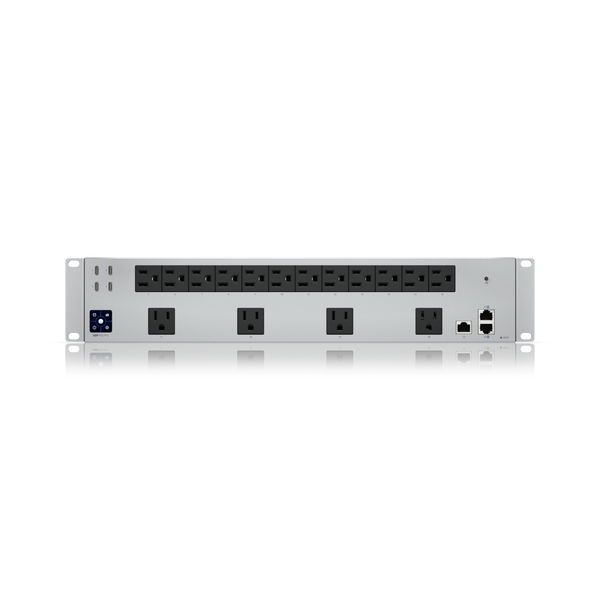

- (16) AC power outlets enabling remote monitoring and restarts

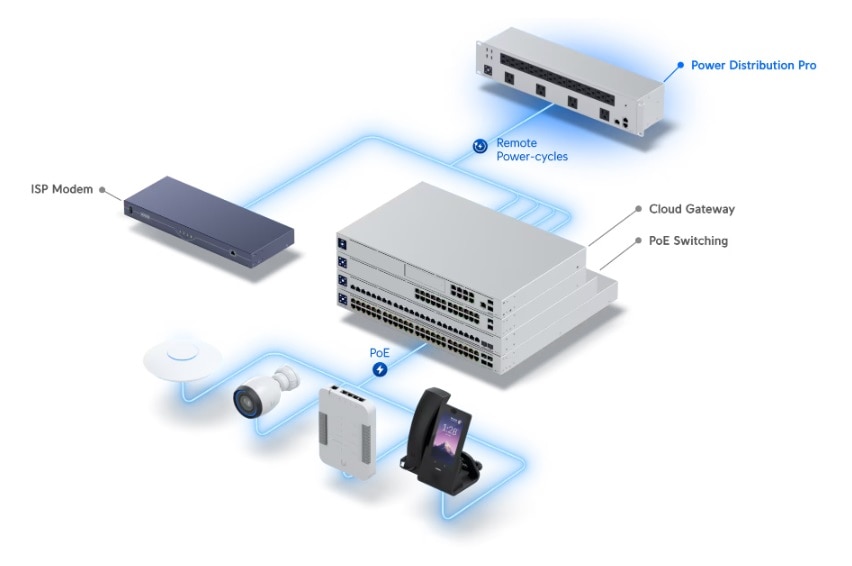

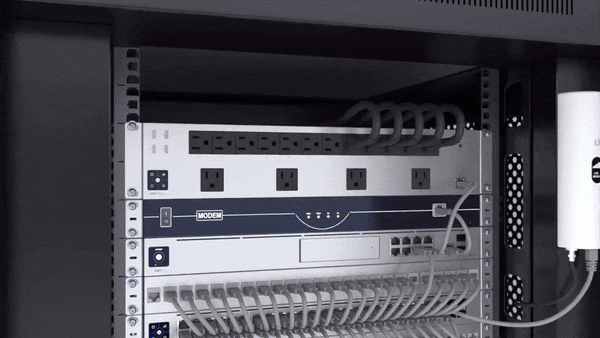

- Attempt to automatically recover from Internet outages*
- (3) GbE RJ45 ports for network redundancy**
- (4) USB-C ports supporting a total power budget of 20W
*ISP modems and optical network terminals using a US AC plug are reset during an outage. **Virtual router redundancy support coming soon. Requires multiple UniFi Gateways.
Specifications
Specifications USP-PDU-Pro
| Dimensions | 442.4 x 87.4 x 106 mm (17.42 x 3.44 x 4.17") |
| Weight | Without mount 3.45 kg (7.61 lb) With mount: 3.7 kg (8.16 lb) |
| Enclosure material | SGCC steel |
| Managementinterface | Ethernet |
| Networking interfaces | (1) 100 MbE RJ45 port (3) GbE RJ45 ports for network redundancy |
| Power output | (16) Power control outlets, 125V AC, 15A max., 60Hz (1875W max. total) (4) USB-C Ports, 2A max. per port(4A/20W max. total) |
| Buttons | (1) Factory reset (1) Circuit breaker |
| LCM display | (1) 1.3" touchscreen Bootup animation: bootup in progress Firmware upgrade icon: rmware upgrading |
| Max. power consumption | 1875W for 125V AC |
| Power method | 100—240V AC, 15A max., 50/60Hz |
| Power supply | AC/DC internal, 40W |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certications | FCC, IC |
