Ubiquiti Unifi Flex 2.5G 8-port
- SKU: USW-Flex-2.5G-8
$159.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks USW-Flex-2.5G-8
Ubiquiti Unifi Flex 2.5G 8-port
Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.
Features:
- (8) 2.5 GbE ports
- (1) 10 GbE PoE+ input port for power / SFP+ port combo
- Optional powering with included 5V, 3A USB-C adapter
Specifications
Specifications USW-Flex-2.5G-8

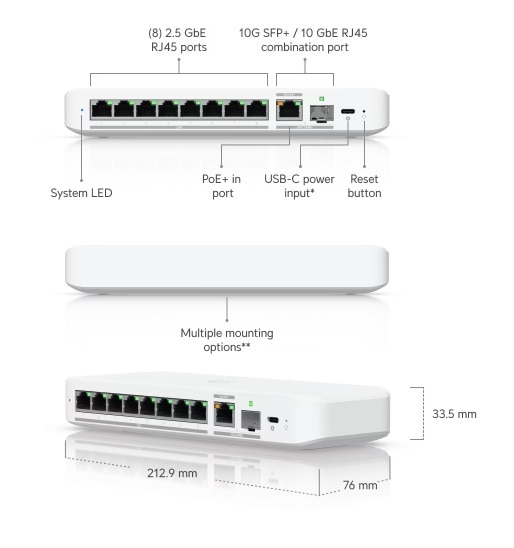

| Dimensions | 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3") |
| Weight | 420 g (0.92 lb) |
| Enclosure material | Polycarbonate |

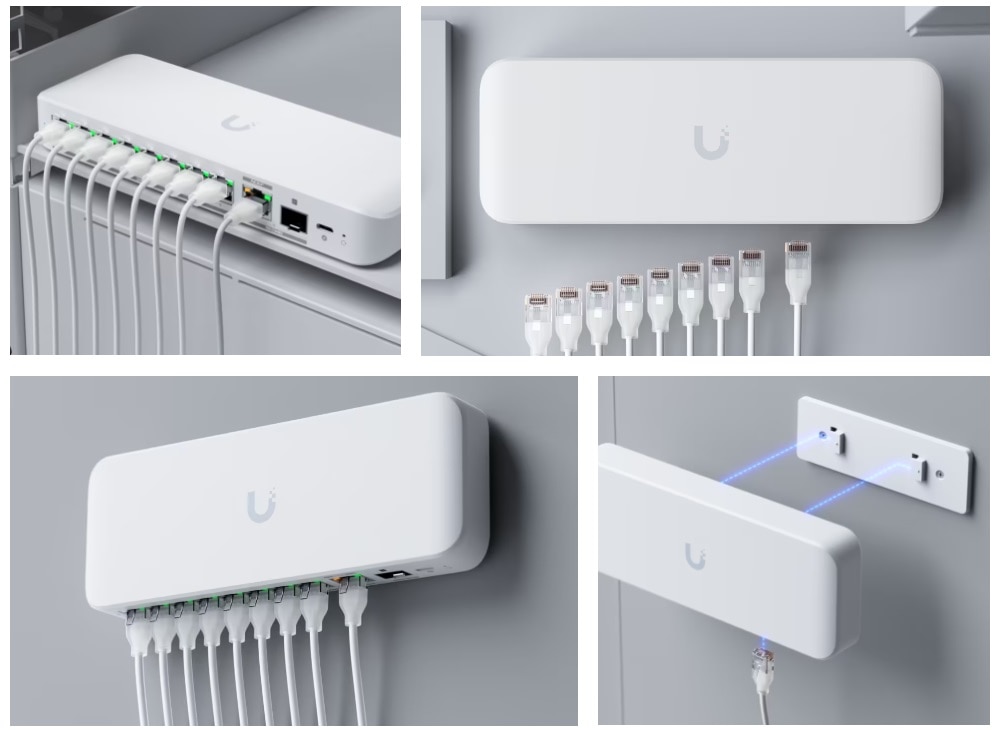

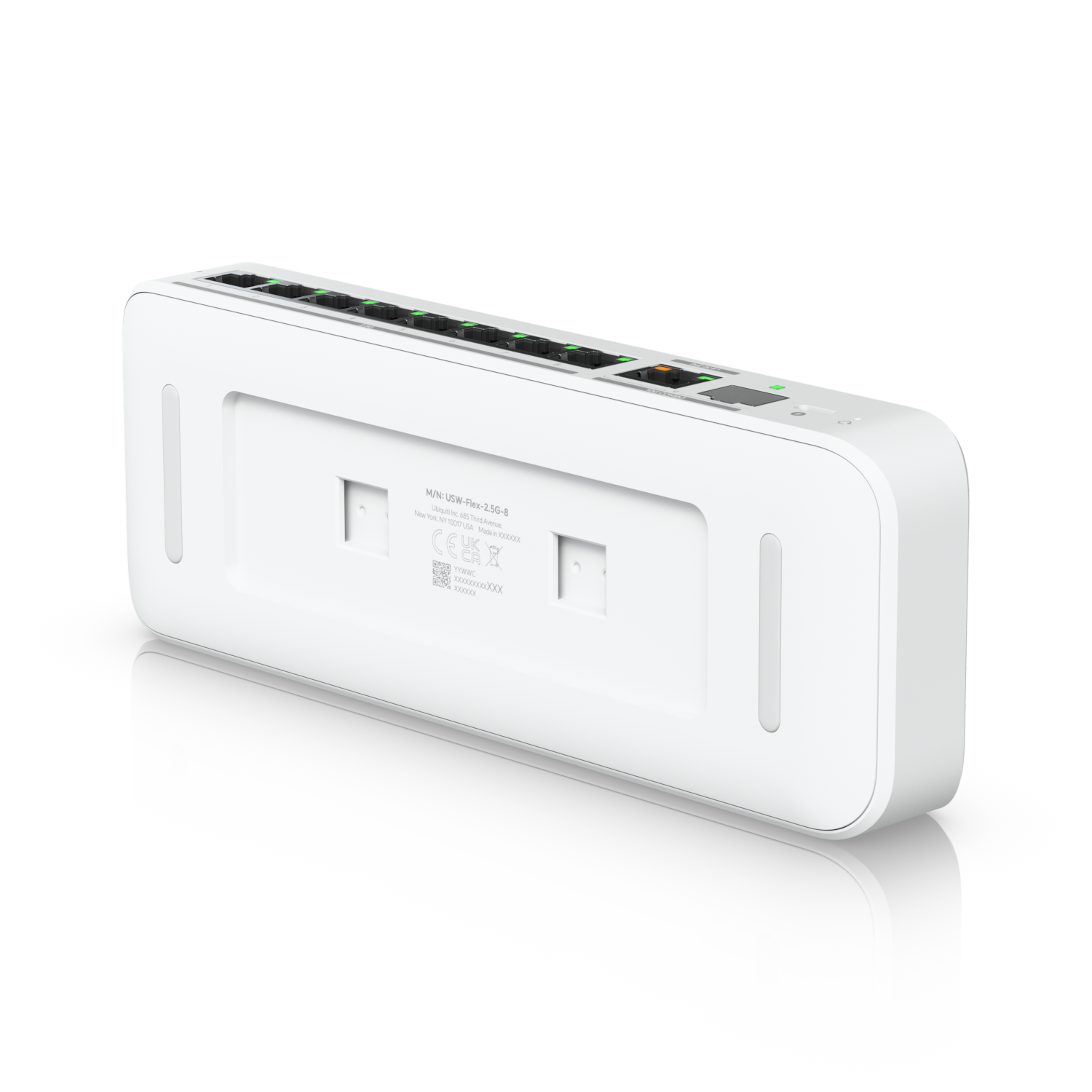

| Mounting | Wall-mountable (kit included) DIN rail-mountable (sold separately) |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) 2.5/1 GbE RJ45 ports (1) 10G SFP+ or 10/5/2.5/1 GbE combination port* |
| Total non-blocking throughput | 30 Gbps |
| Switching capacity | 60 Gbps |
| Forwarding rate | 44.64 Mpps |
| Power method | (1) AC power adapter, 5V DC, 3A (1) PoE+ (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-) |
| Power supply | External AC/DC adapter UniFi PoE switch |
| Supported voltage range | AC/DC input: 5V DC PoE input: 42.5—57V DC |
| Max. power consumption | 14W |
| Button | Factory reset |
| Ambient operating temperature | -20 to 45° C (-4 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | STP / RSTP with priorities and port-level disable Storm control Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit Proprietary loop protection Port isolation Port mirroring |
| LEDs | |
| System | Blue/white: power Blinking white: bootup in progress Blinking blue: firmware upgrading Steady white: factory defaults; unit is awaiting adoption Steady blue: unit is adopted |
| Ethernet | Link/activity PoE input |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 9.0.108 and later |
