Ubiquiti UniFi Protect Camera AI Theta 8MP Wide-Angle, 12MP Fisheye 360° Lens
- SKU: UVC-AI-Theta
Product Information
Ubiquiti Networks UVC-AI-Theta
Ubiquiti UniFi Protect Camera AI Theta 8MP Wide-Angle, 12MP Fisheye 360° Lens
A complete AI Theta system that discreetly secures any space while maintaining a warm and inviting atmosphere.
The Ubiquiti Camera AI Theta is a sophisticated security camera that boasts an 8MP wide-angle lens with a horizontal viewing angle of 97.5 degrees, which makes it perfect for monitoring large areas such as warehouses, parking lots, and building exteriors. In addition to the wide-angle lens, the camera also features a 12MP fisheye lens that captures a 360-degree view of the surroundings, providing a comprehensive view of the environment.
The camera's built-in AI capabilities enable it to detect and track movement, recognize people and vehicles, and provide real-time alerts to the user. The AI-powered analytics also allow for the customization of the camera's detection settings, making it suitable for various use cases such as perimeter security, traffic monitoring, and object detection.

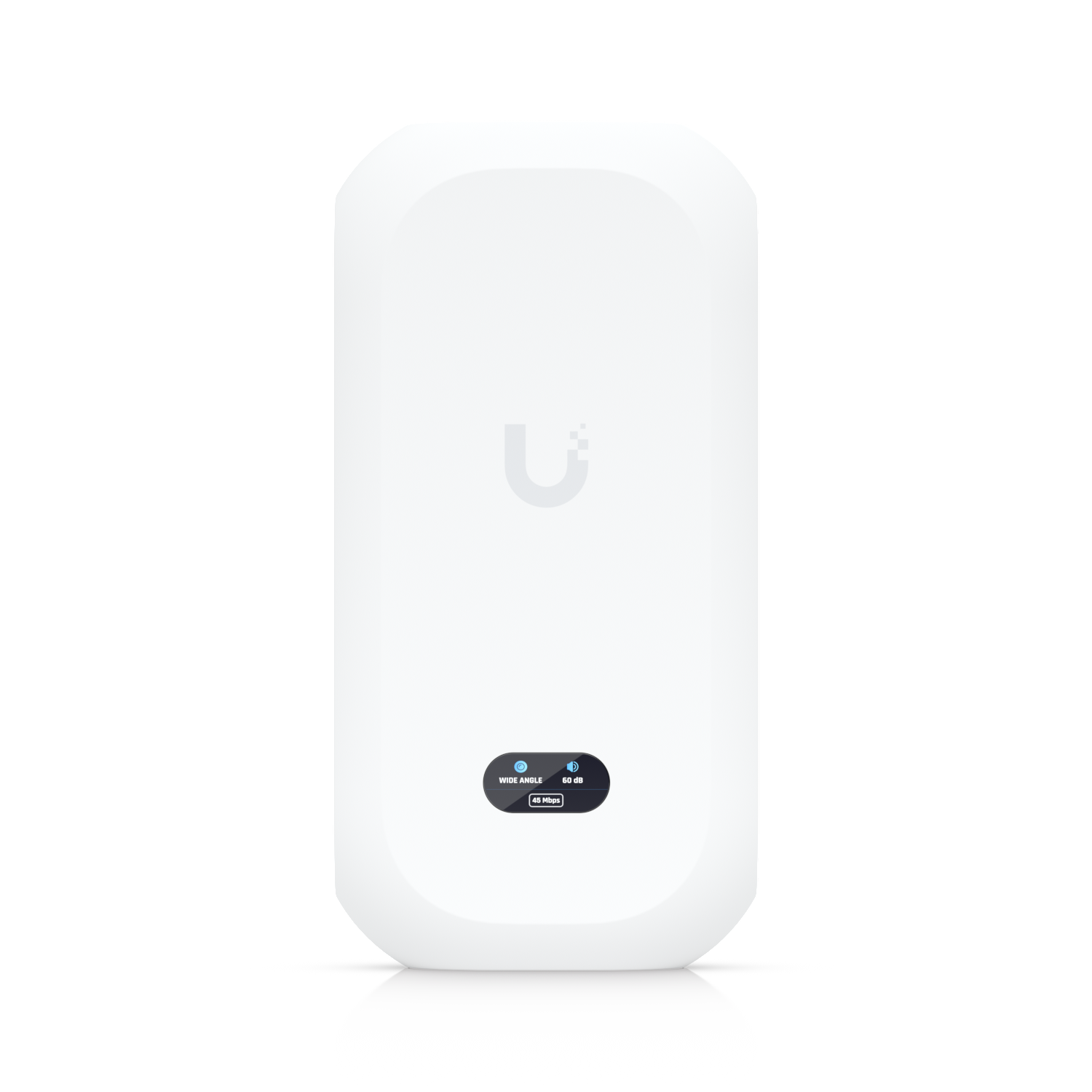

The Ubiquiti Camera AI Theta has a color LCM display that enables quick and easy access to camera settings, configuration, and live footage. The display provides clear and vivid visuals that are essential in identifying and tracking objects, making it an ideal tool for security personnel.

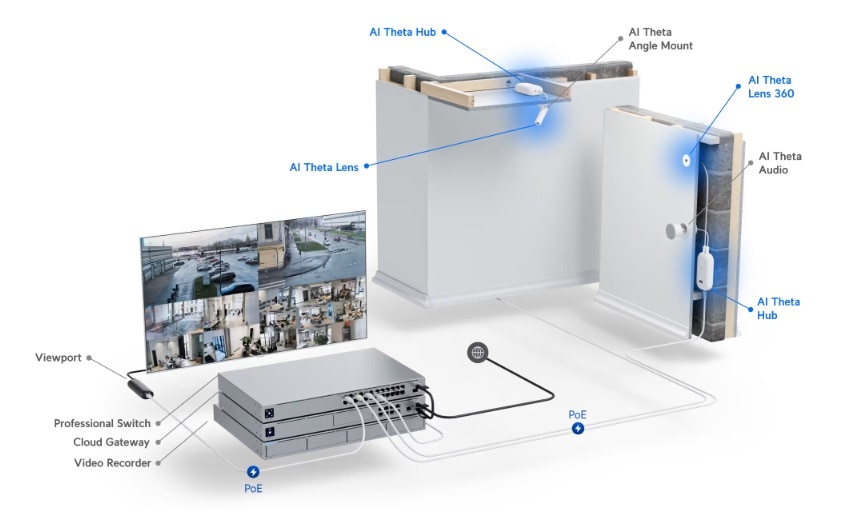

The camera is easy to install and integrates seamlessly with the UniFi Protect software, which allows for centralized management of multiple cameras from a single platform. The software also provides advanced features such as motion detection zones, event-based recording, and customizable alerts, making it a reliable and comprehensive security solution.
Overall, the Ubiquiti Camera AI Theta is an advanced security camera that combines cutting-edge AI technology with high-quality hardware to provide users with a comprehensive and customizable security solution.
Features:

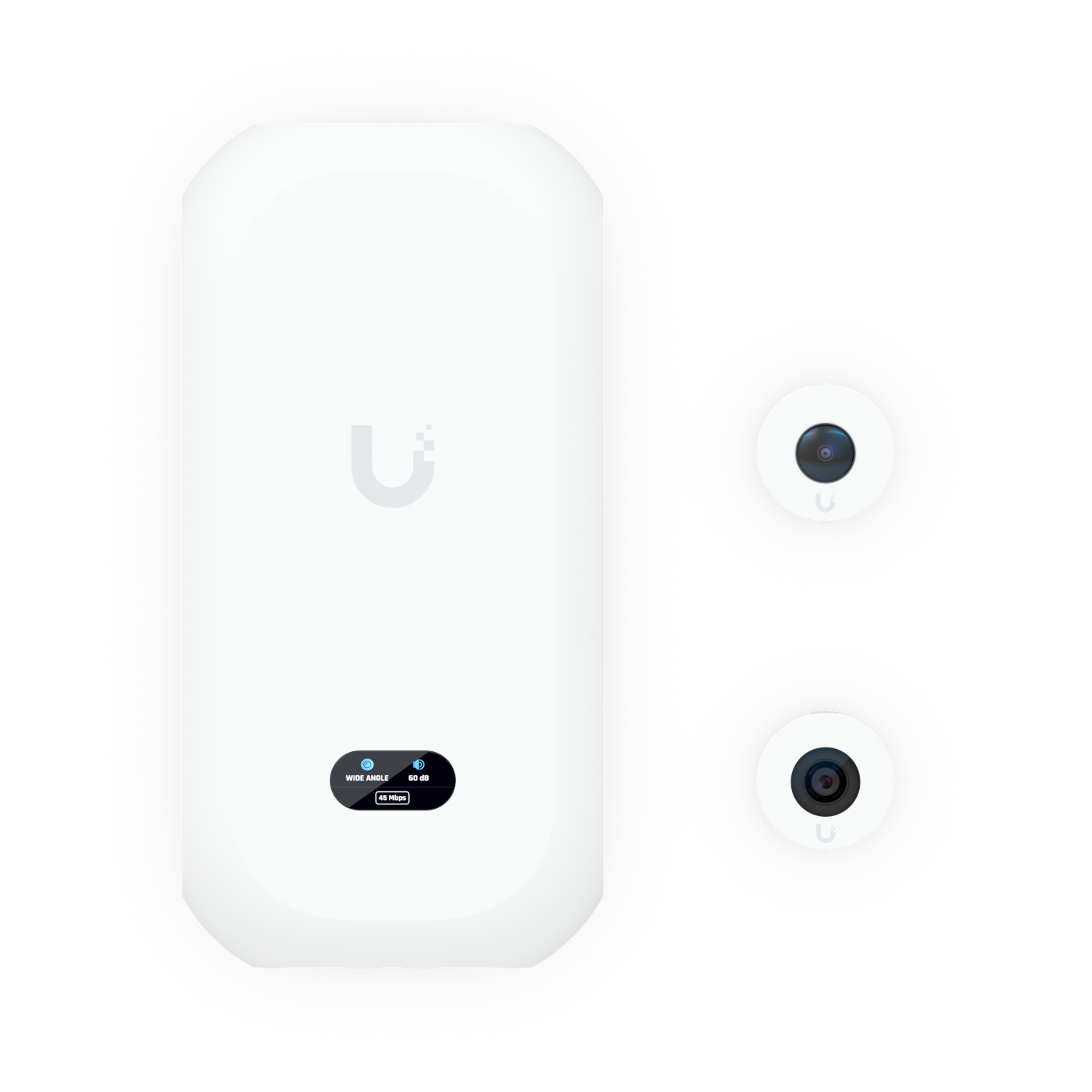

- Kit includes (1) AI Theta Hub, (1) Wide-Angle Lens, (1) 360 Lens, and (2) Standard Flush Mounts.
- 4K (9MP) resolution and ultra-wide 360° view with 360 Lens.
- 4K (8MP) video resolution with Wide-Angle Lens.
- Advanced AI: Detect people, read license plates, and more*.
- Minimal footprint with lens separated from the camera body.
- PoE powered hub that connects to lens with included cable.
- Supports optional AI Theta Audio module for two-way audio.
*License plate recognition supported with Long-Distance and Wide-Angle lenses.
Specifications
Specifications UVC-AI-Theta
| Mechanical | |

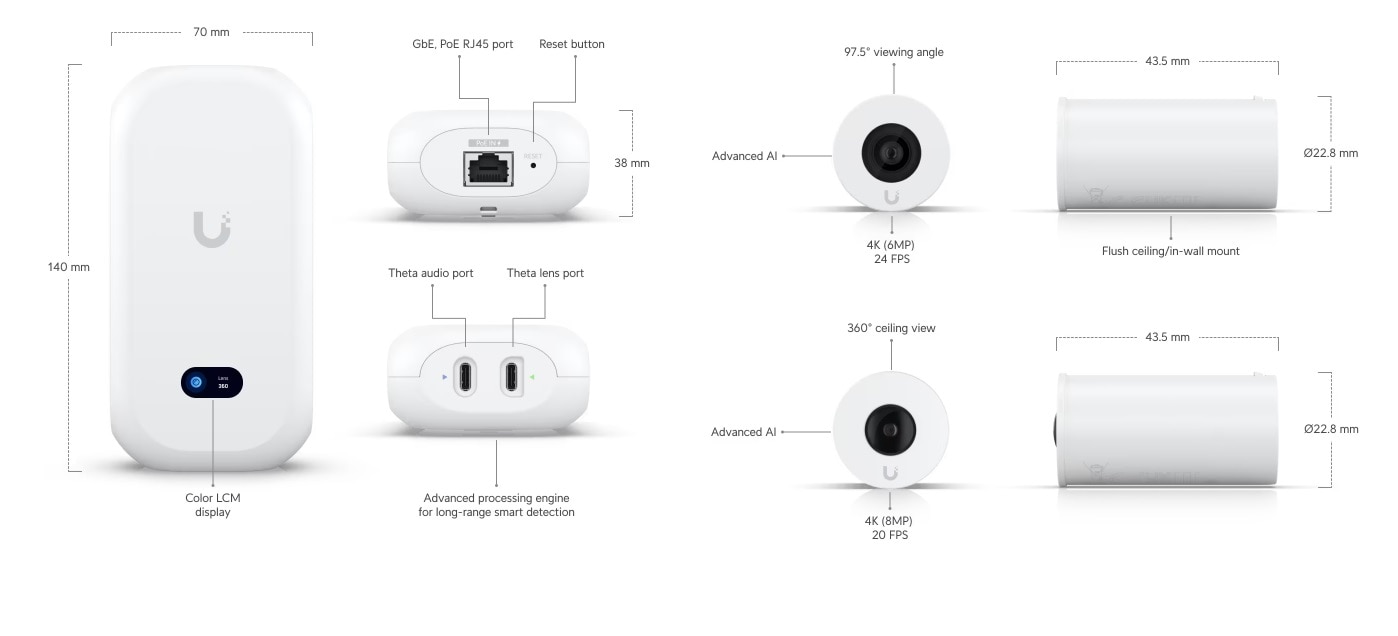

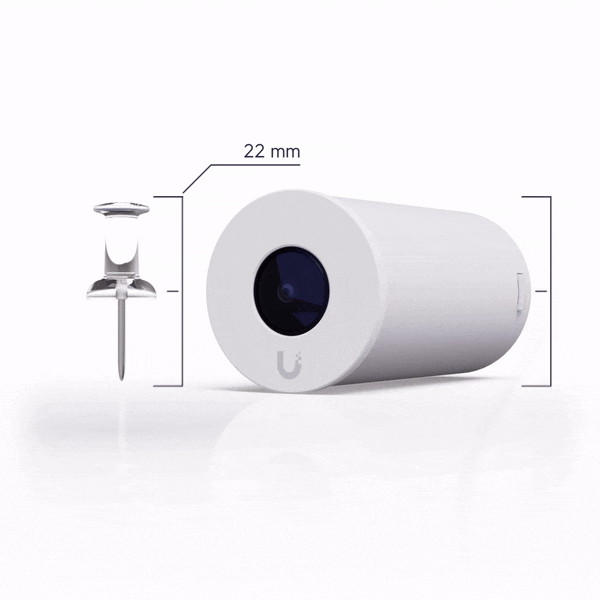

| Dimensions | UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”) |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) UVC-AI-Theta-Lens/360: 15 g (0.5 oz) UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz) |
| Enclosure material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate |
| Mount material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate |
| Cable jacket enclosure dimensions | 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3") |
| Cable jacket enclosure material | PVC |
| Cable length | 1 m (3.3 ft) |
| Cable diameter | 3.7 mm (0.15") |
| Cable jacket material | Woven fabric |
| Cable weight | 18 g (0.63 oz) |
| Cable connector type | Theta proprietary |
| Optics | |
| Sensor | UVC-AI-Theta-Lens: 8MP CMOS UVC-AI-Theta-Lens-360: 12MP CMOS |
| Lens | Fixed focal length |
| View angle | UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2° UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180° |
| Video | |
| Resolution | UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3) UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1) |
| Max. frame rate | UVC-AI-Theta-Lens: 24 FPS UVC-AI-Theta-Lens-360: 20 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |

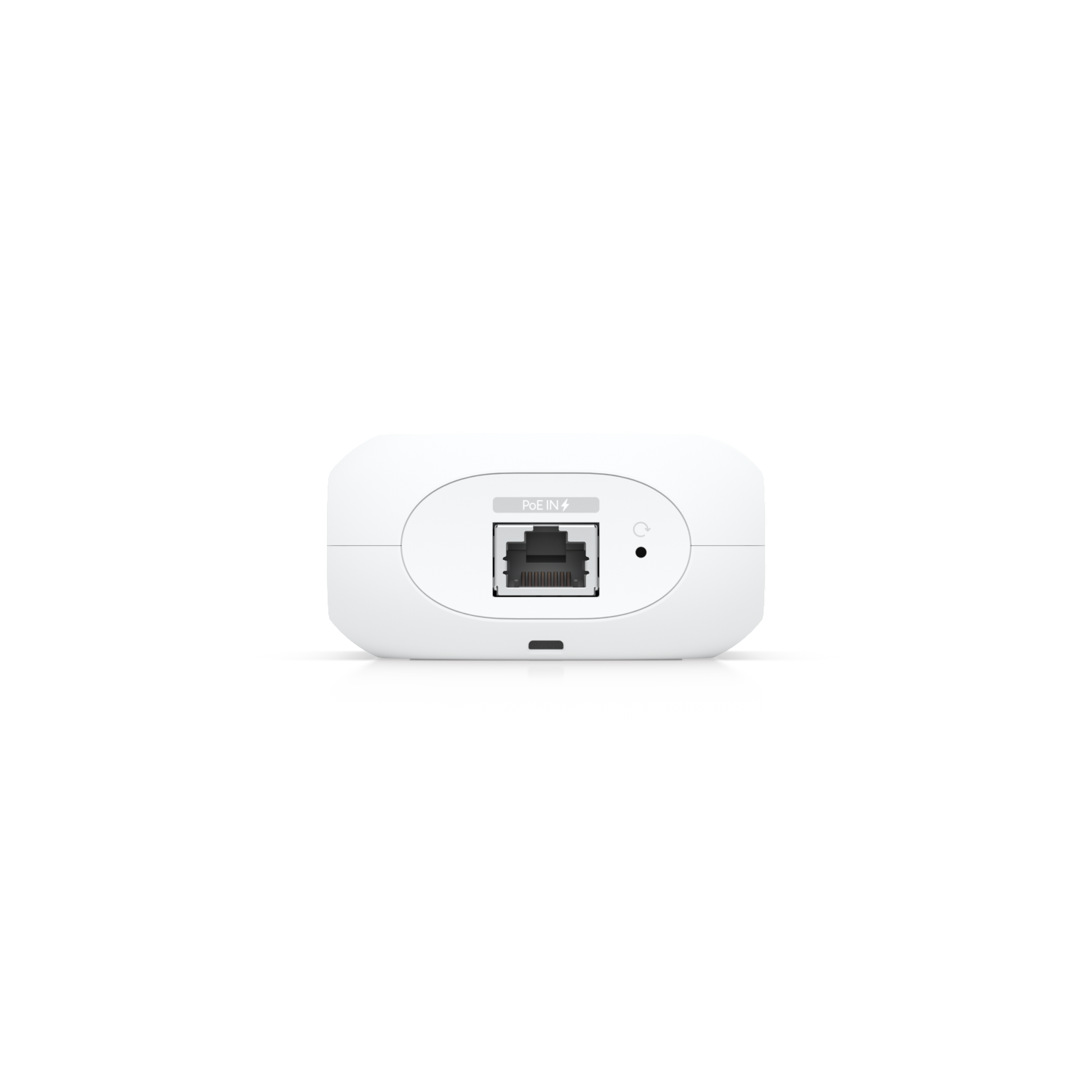

| Networking interface | GbE RJ45 port |
| Max. power consumption | 12.5W |
| Power method | PoE |
| Power supply | 5V DC, 0.5A |
| Supported voltage range | 37—57V DC |
| Output power | 5V DC, 1A per port |
| LED | R/G/B/W |
| Button | Factory reset |

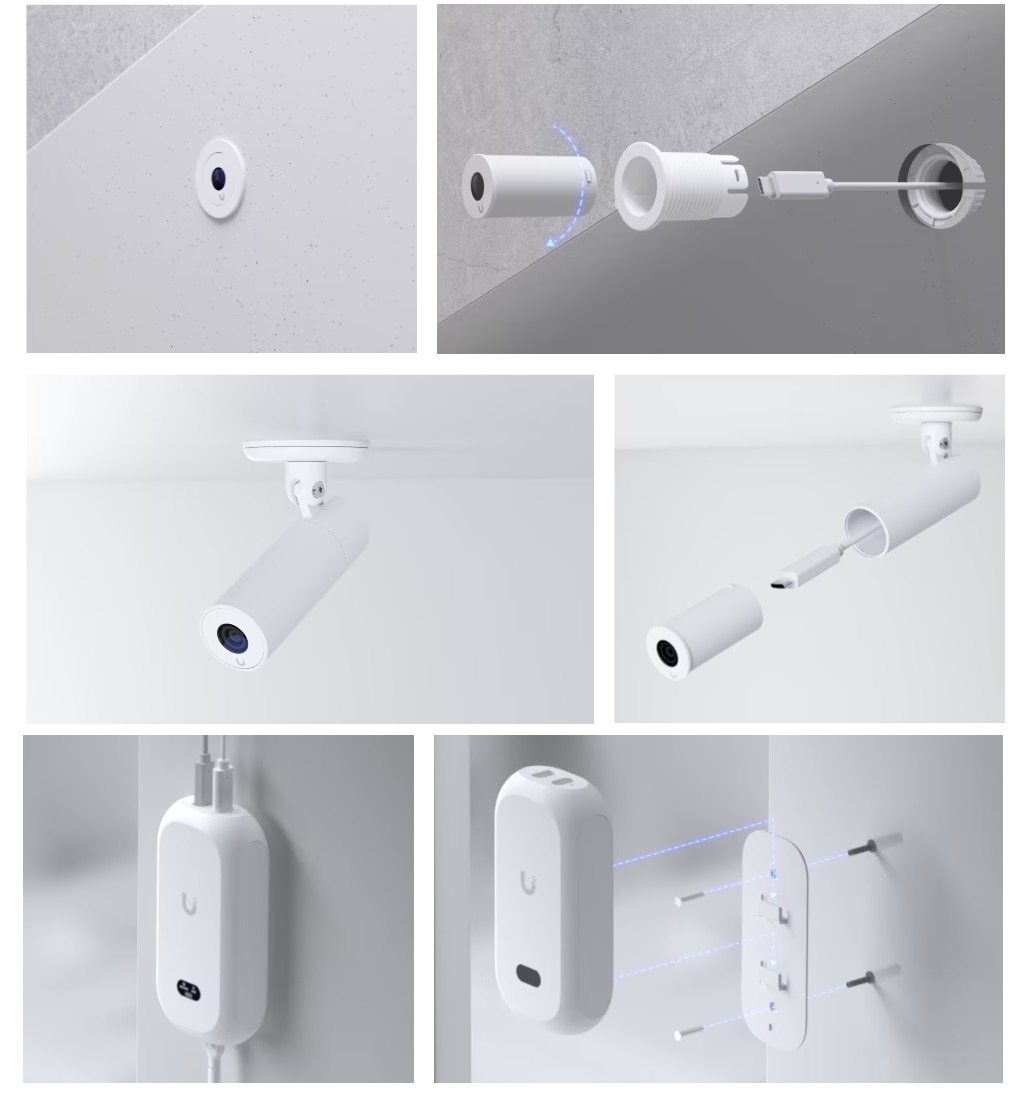

| Mounting | Wall, ceiling mount |
| Ambient operating temperature | -20 to 40° C (-4 to 104o F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Supports optional AI Theta Audio module for two-way audio (Sold separately) |
| Speaker | Supports optional AI Theta Audio module for two-way audio (Sold separately) |
| Software | |
| Web application | UniFi Protect: Version 2.7.18 and later |
| Mobile app | UniFi Protect iOS™ and Android™: Version 1.11.0 and later |
