Ubiquiti airFiber 5X PoE Injector, 24VDC 24W
US$16.00
- SKU: POE-24-AF5X
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
- Availability: 9 In Stock
(updated live)7 In stock at College Station2 In stock at Mississippi
Product Information
- Description
- Specifications

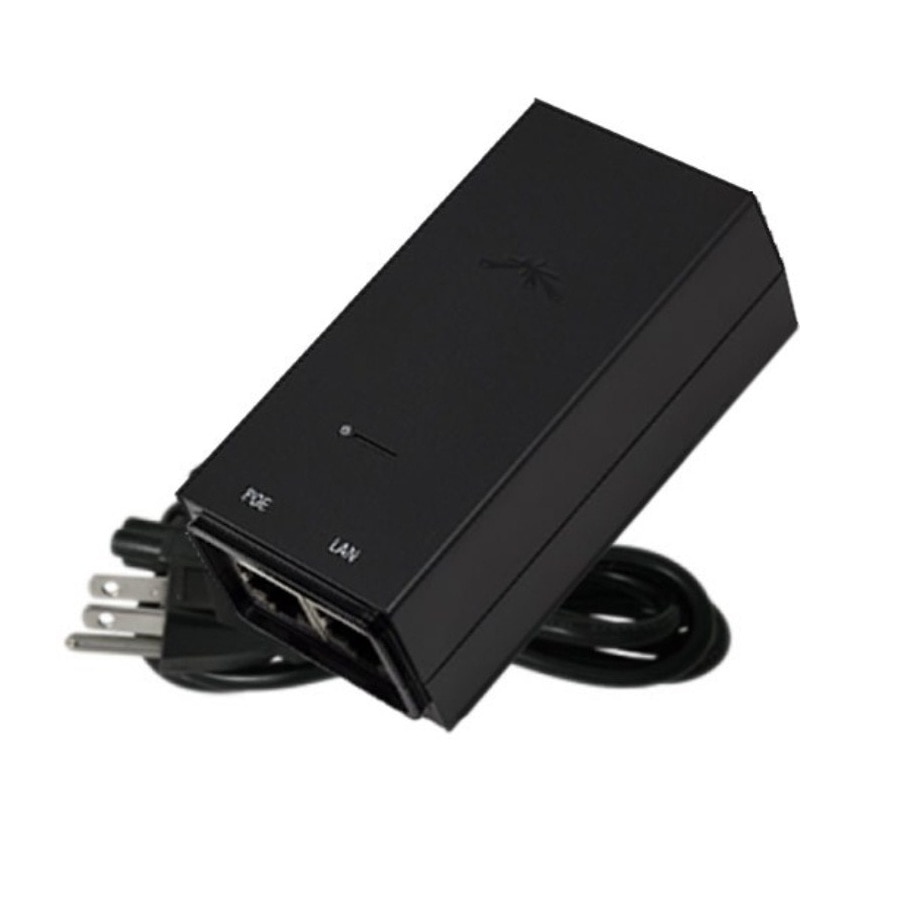

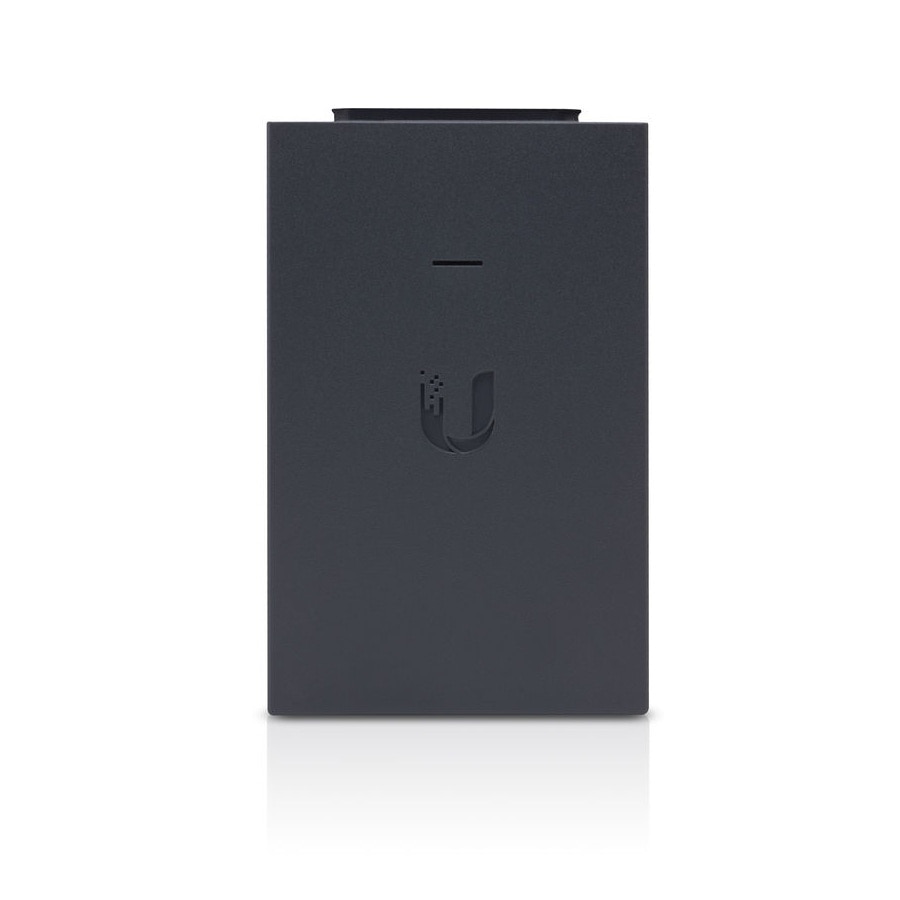

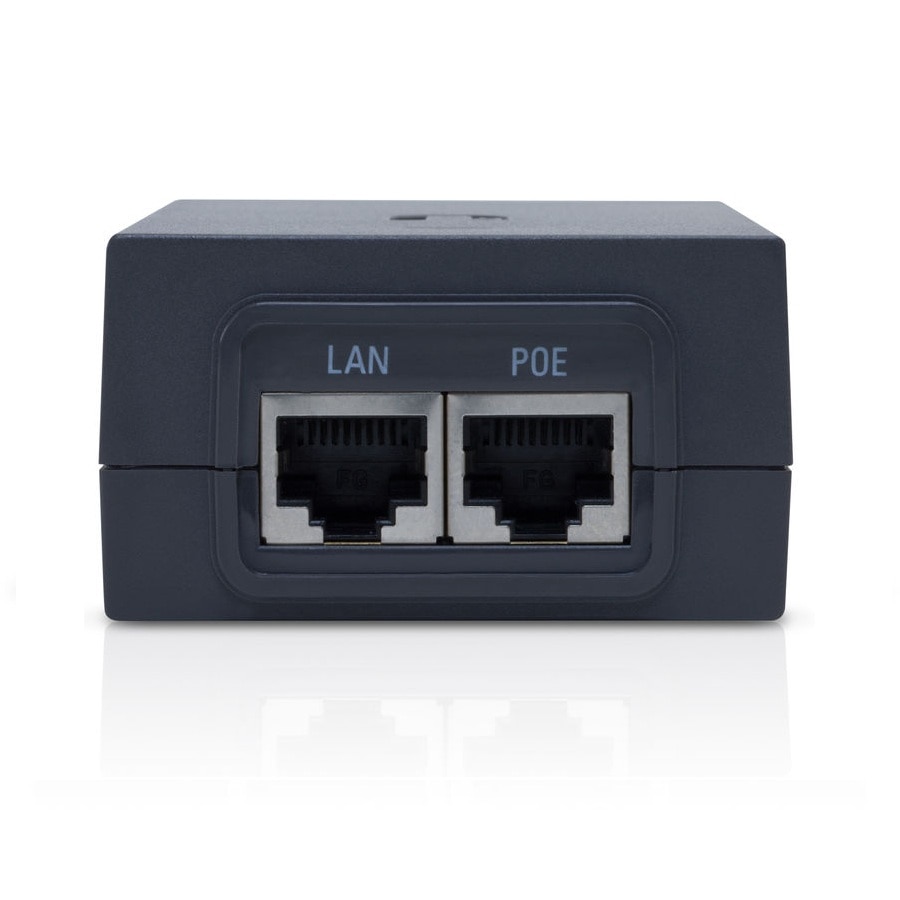

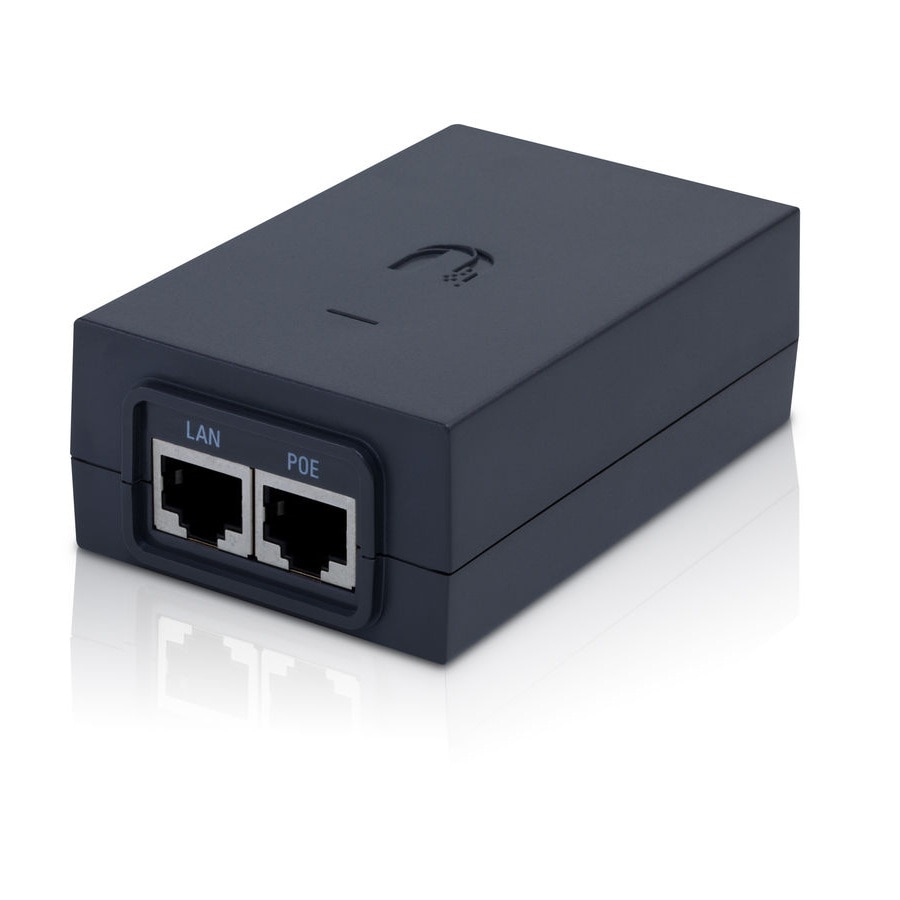

Ubiquiti POE-24-AF5X
Power Over Ethernet Adaptor for airFiber 5X
The POE-24-AF5X gigabit PoE adapter is designed to power AirFiber 5X devices. It can provide a voltage of 24V and up to 1A current. It has an LED indicating power supply. You may have to combine the adapter to the cable between radio and the network switch.
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Specifications POE-24-AF5X
| Model | POE-24-AF5X |
| Dimensions | 88 x 57 x 33 mm (3.47 x 2.24 x 1.30") |
| Weight | 158.5 g (5.59 oz) |
| Output Voltage | 24VDC @ 1.0A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Input Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (- |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Non-Condensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20µS) Power |
| Peak Pulse Current | 36A (10/1000µS) Data |
| Shunt Capacitance | <5 pf data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
