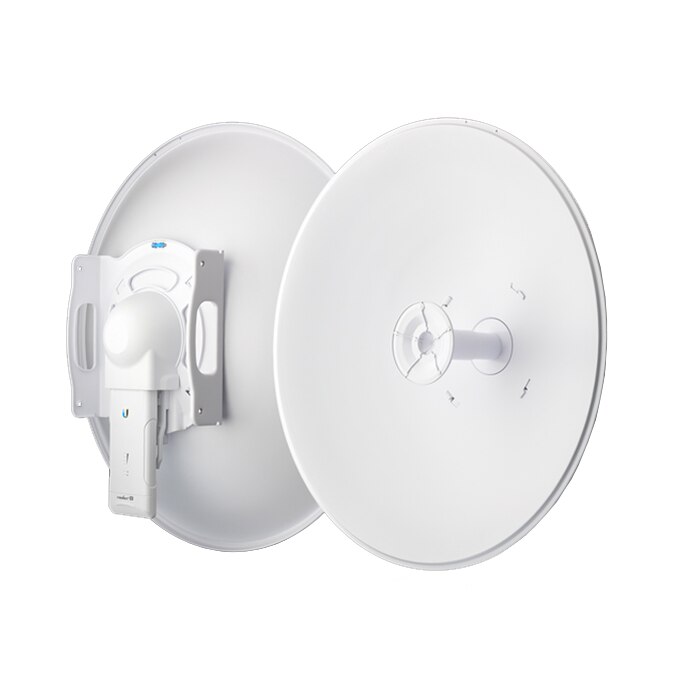

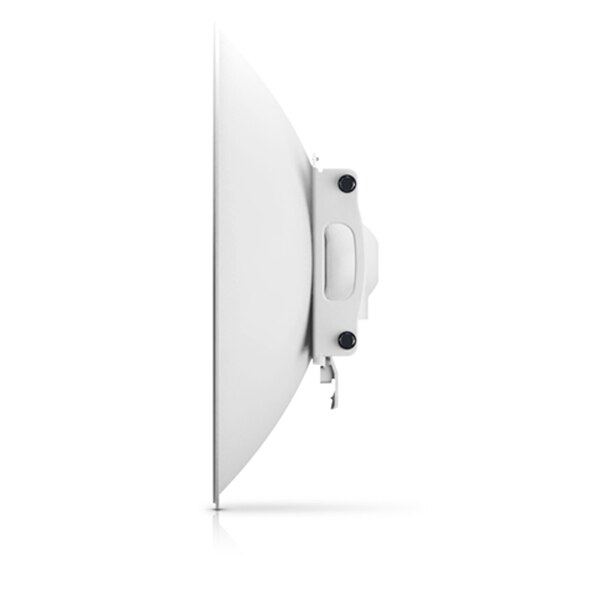

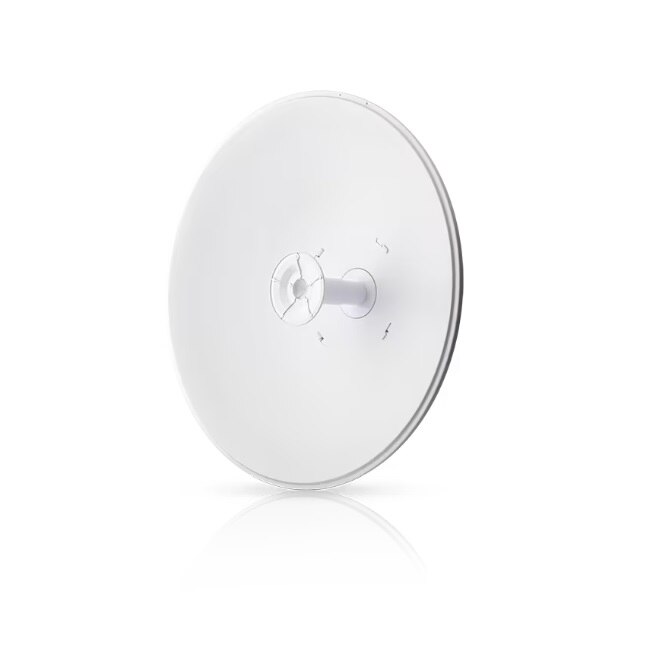

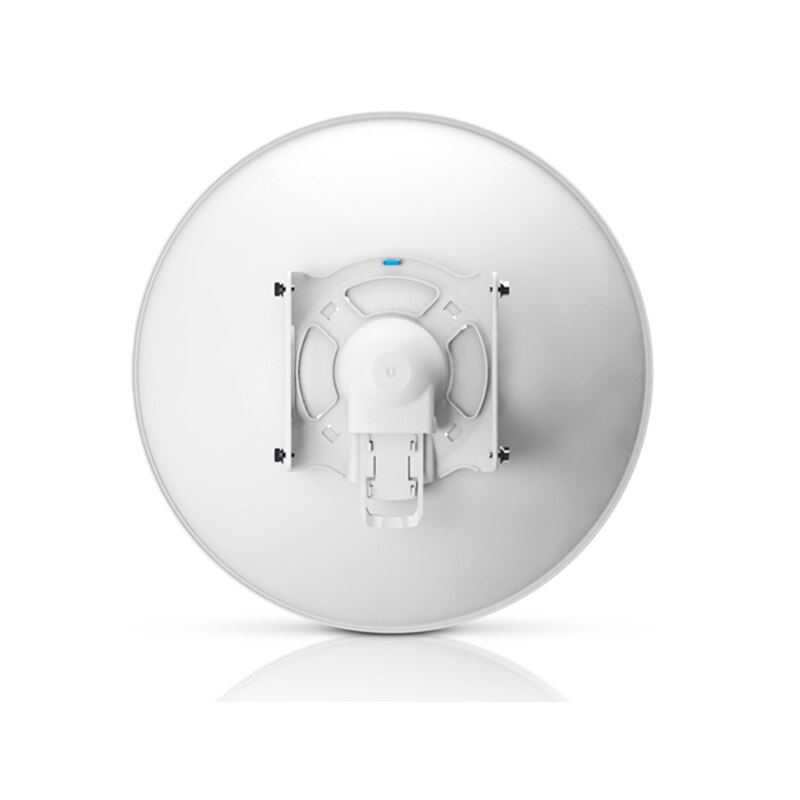

Ubiquiti 5GHz RocketDish Lightweight PtP Bridge Dish Antenna

(0)No Reviews yet
  • SKU: RD-5G30-LW
US$‎109.00
4 in stock
College Station
4 In stock

Product Information

Ubiquiti Networks RD-5G30-LW

RocketDish 5G-30 Lightweight

5 GHz, 30 dBi RocketDish LW antenna with extended depth of the dish reflector that rejects noise interference in co-location deployments.

Features:

  • 2x2 dual-polarity performance
  • Robust mechanical design for outdoor application use
  • Compatible with Rocket Prism 5AC
  • 5.1 to 5.9 GHz Frequency
  • 30 dBi Gain
  • 5.8° Beamwidth
  • 30 dB F/B Ratio
  • 1.6:1 Max. VSVR
  • Dual-Linear Polarization
  • 35 dB Min. Cross-pol Isolation

Innovative Mechanical Design

  • Secure pole-mounting The hardware is designed to securely mount and maintain the position of the dish during harsh outdoor conditions.
  • Convenient installation The bubble level allows for easy alignment.
  • Precision elevation adjustment of the RD-5G30-LW Use this new feature to quickly fine-tune and adjust the elevation.

Weatherproof Design

  • Protective shroud The shroud* protects the cables and connectors from nature’s elements.
  • Mounting hardware of the RD-5G30-LW Made of galvanized steel that is powder-coated for superior corrosion resistance.
  • Fasteners of the RD-5G30-LW GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.

The RD-5G30-LW features the same gain as the RD-5G30 and adds the following advantages:

  • Lightweight yet robust components lessen the load
  • The extended depth of the dish reflector rejects noise interference in co-location deployments.
  • The design of the mounting bracket allows for ease of installation on a pole or tower.

Specifications

Specifications

Dimensions650 x 650 x 386 mm (25.6 x 25.6 x 15.2")
Weight7.4 kg (16.31 lb)
Frequency Range5.1 - 5.9 GHz
Gain30 dBi
HPOL Beamwidth5.8° (3 dB)
VPOL Beamwidth5.8° (3 dB)
F/B Ratio30 dB
Max. VSWR1.6:1
Wind Loading790 N @ 200 km/h (178 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
PolarizationDual-Linear
Cross-pol Isolation35 dB Min.
ETSI SpecificationEN 302 326 DN2
MountingUniversal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
