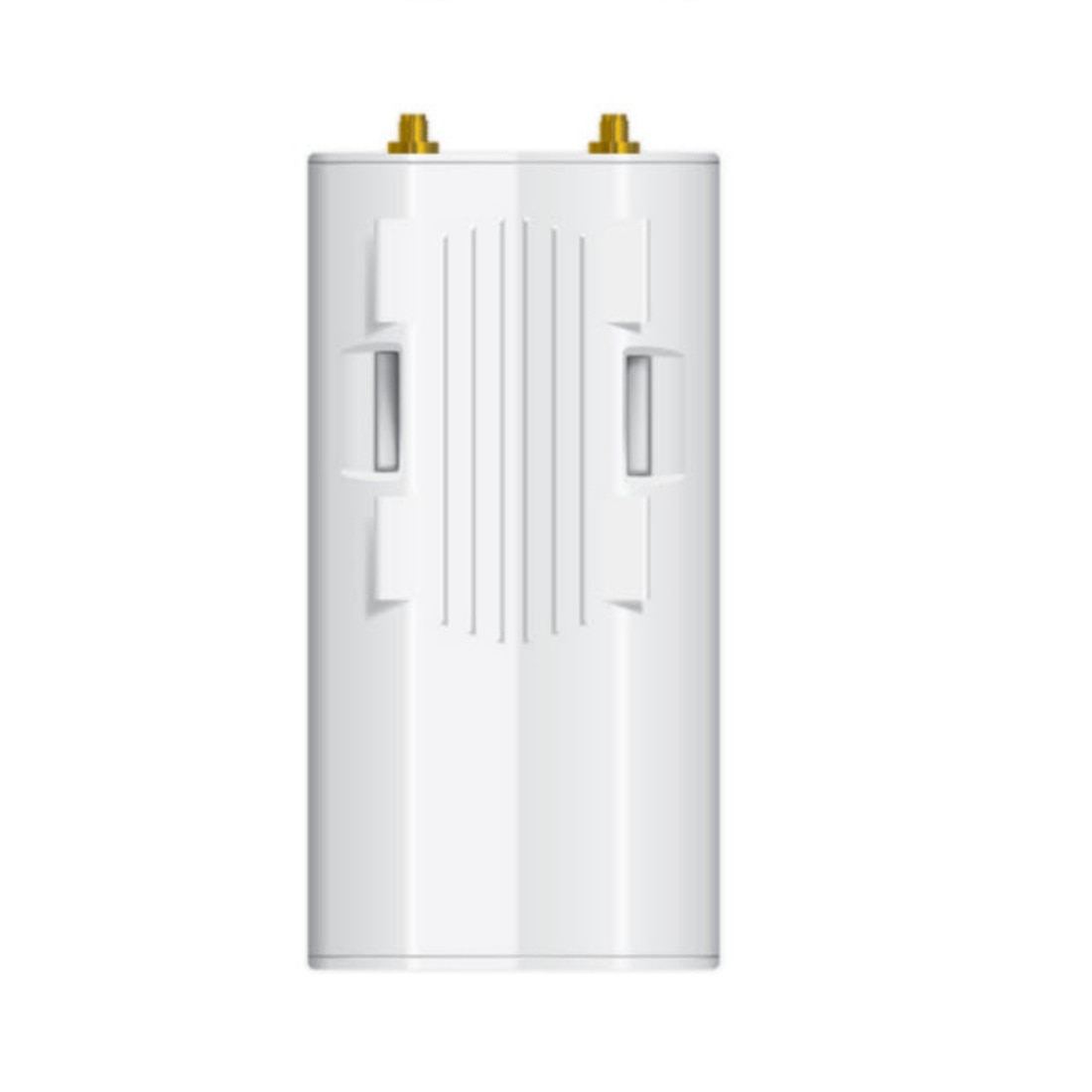

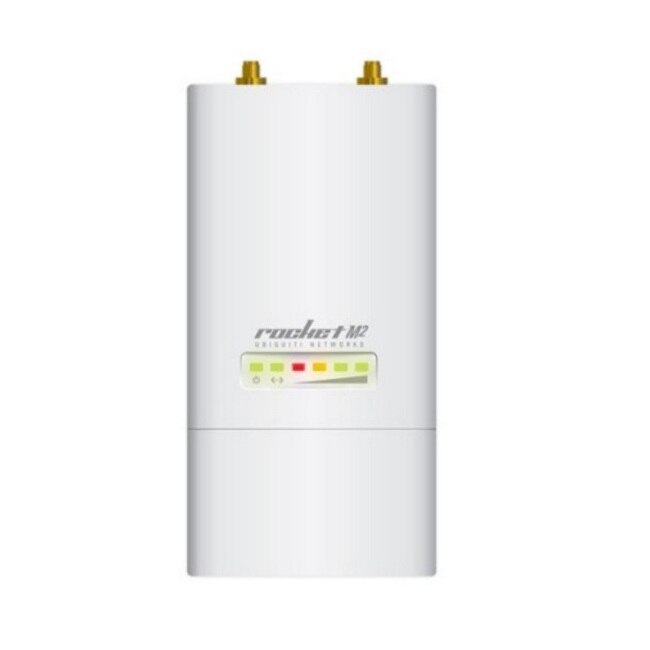

Ubiquiti RocketM2 Wireless AP, Outdoor 802.11b/g/n 600mW

(0)No Reviews yet
  • SKU: RocketM2-US
  • Manufacturer: Ubiquiti Networks
  • Datasheet: Download
  • User Guide:Download

Out of Stock

Call for Availability

Product Information

Ubiquiti RocketM2 Wireless AP, Outdoor 802.11b/g/n 600mW (For World Version Please Call for Availability)

Ultimate in RF Performance: The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.

Rocket M Seamlessly Integrates with AirMax BaseStation and Rocket Antennas: Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

The Rocket M easily and securely snaps into place on Ubiquiti Carrier-Class Antennas

AirOS V: Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

Specifications

Specifications RocketM2

Processor SpecsAtheros MIPS 24KC, 400MHz
Memory Information32MB SDRAM, 8MB Flash
Networking Interface2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Enclosure Size16cm length x 8cm width x 3cm height
Weight0.5 kg
RF Connector2x RPSMA (Waterproof)
Enclosure CharacteristicsOutdoor UV Stabalized Plastic
Mounting KitPole Mounting Kit included
Max Power Consumption6.5 Watts
Power Supply24V, 1A POE Supply Included
Power MethodPassive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature-30C to 75C
Operating Humidity5 to 95% Condensing
Shock and VibrationETSI300-019-1.4
Wireless ApprovalsFCC Part 15.247, IC RS210, CE
RoHS ComplianceYES
