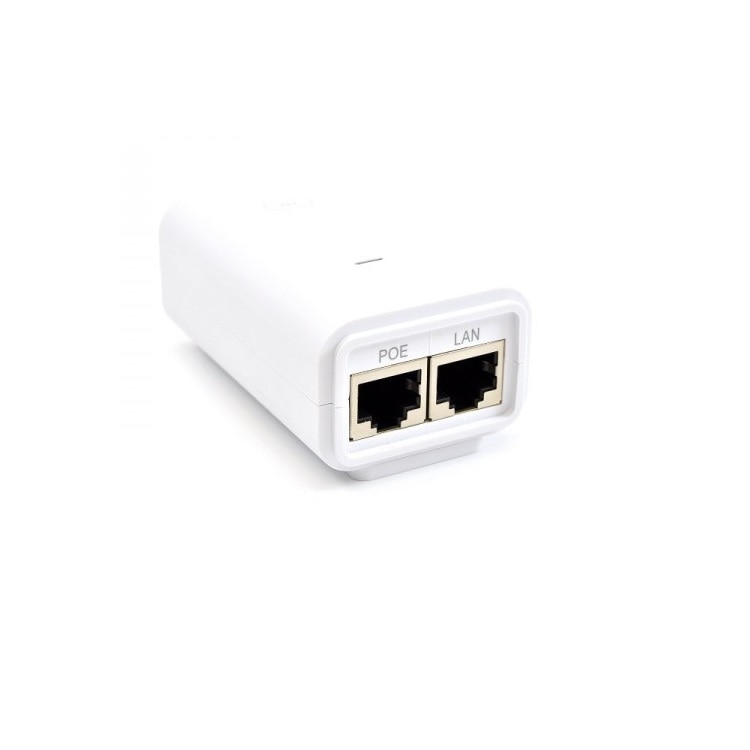

Ubiquiti Gigabit 802.3af Supported PoE Injector
US$8.00
- SKU: U-POE-AF
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti U-POE-AF
Gigabit POE Injector 802.3af Support
A Ubiquiti 48V 802.3af active PoE injector for use with any 802.3af compliant device such as Ubiquiti UAPs and VoIP phones.
Specifications
Specifications U-POE-AF
| Dimensions | 86 x 46 x 33 mm (3.39 x 1.81 x 1.30") |
| Weight | 100 g (3.53 oz) |
| Output Voltage | 48VDC 802.3af |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Input Voltage | 100-240AC @ 50/60Hz |
| Input Current | 0.3A @ 120VAC, 0.2A @240VAC |
| Inrush Current | <40A Peak @ 120VAC, <70A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ± 1% |
| Load Regulation | ± 3% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Operating Humidity | 35 to 95% Non-Condensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Shunt Capacitance | <5 pf data |
| Response Time | <1 ns |
| Compliance | IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B |
| AC Cable with Earth Ground | EU, AR, BR, UL/cUL, CCC, Mexico, RCM |
