Ubiquiti 802.11AC Wave 2 Access Point with Dedicated Security Radio
- SKU: UAP-AC-SHD-US
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

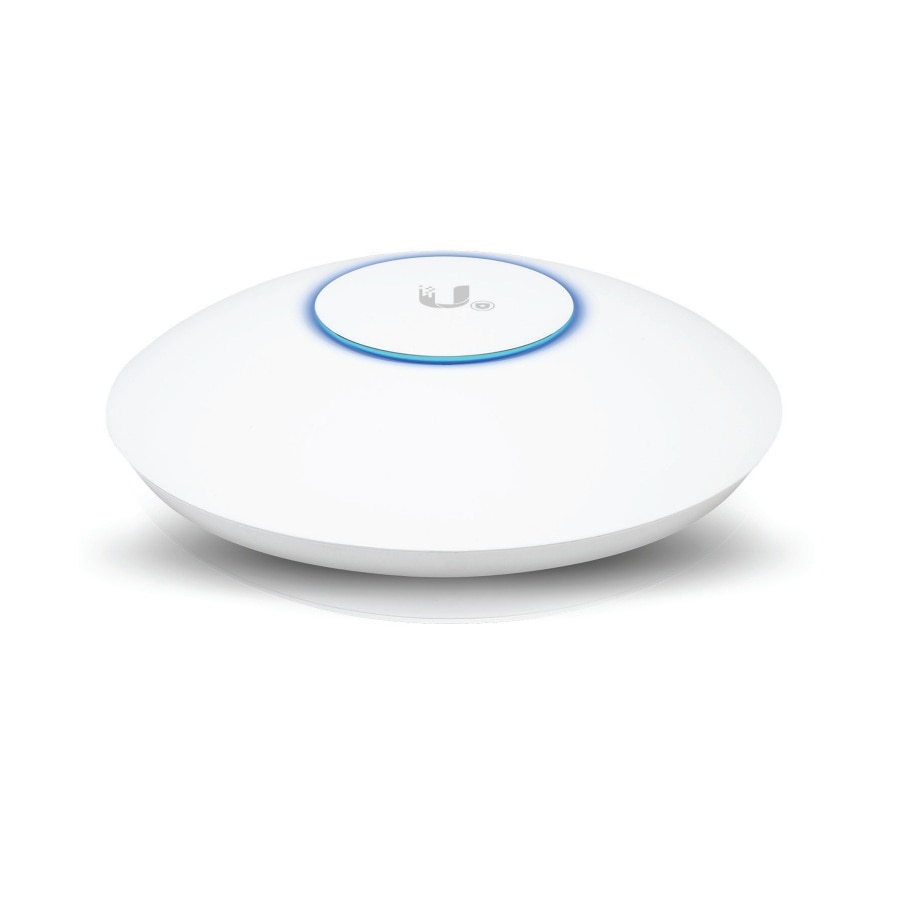

Ubiquiti UAP-AC-SHD-US (US Version)
802.11AC Wave 2 Access Point with Dedicated Security Radio
Wave 2 802.11ac UniFi High-Density, 4x4 MU-MIMO Access Point with dedicated Security radio and BLE to support intrusion detection/prevention, realtime airtime anlysis and performance optimization, continuous spectrum monitor & channel adjustment + client location estimation & tracking.
Scalable Enterprise Wi-Fi Management
The UniFi® Ecosystem enables the system integrator to effectively and efficiently create wireless network designs of any size, from small to large, with the potential for unlimited scalability.
The built-in, dedicated security and monitoring radios of the UniFi AC SHD (Secure High Density) AP provides visibility into site performance, channel planning, and local interferers, allowing the integrator to properly evaluate performance and quickly respond to changing interference and security threat landscapes.
Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Specifications
Specifications UAP-AC-SHD-US
Dimensions | 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89") |
Weight With Mounting Kits | 700 g (1.54 lb) 830 g (1.83 lb) |

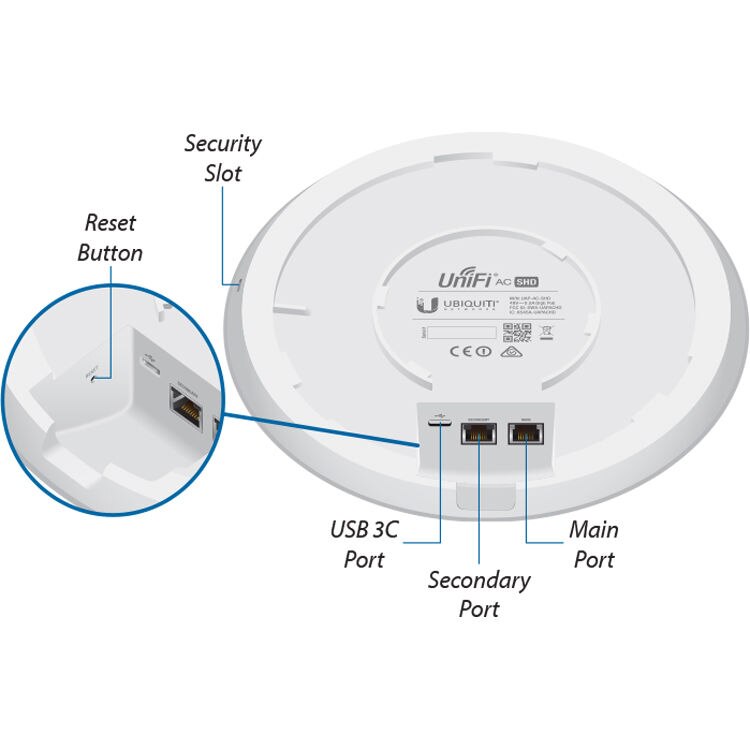

Networking Interface | (2) 10/100/1000 Ethernet Ports |
Buttons | Reset |
Power Method | 802.3at PoE+ |
Supported Voltage Range | 44 to 57VDC |
Power Supply | UniFi Switch (PoE) |
Power Save | Supported |
Maximum Power Consumption | 20W |
Radios | 2.4 GHz, 5 GHz, Security |
TX Power 2.4 GHz 5 GHz | 6-25 dBm 6-25 dBm |
Antennas 2.4 GHz 5 GHz | (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each |
Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF) |
BSSID | Up to 8 per Radio |
Mounting | Wall/Ceiling (Kits Included) |
Operating Temperature | -10 to 70° C (14 to 158° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
Advanced Traffic Management
VLAN | 802.1Q |
Advanced QoS | Per-User Rate Limiting |
Guest Traffic Isolation | Supported |
WMM | Voice, Video, Best Effort, and Background |
Concurrent Clients | 500+ |
Supported Data Rates (Mbps)
Standard | Data Rates |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
