Ubiquiti UniFi XG Access Point 5GHz 802.11ac US
Product Information
Ubiquiti Networks UAP-XG-US
UniFi XG Access Point 5GHz 802.11ac US
Expand your 10-Gigabit network with the UniFi XG Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System.
Deploy the UniFi XG AP in very high-density environments requiring maximum wireless performance. The UniFi XG AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3bt PoE compatibility. Available in single- and five.packs.
Quad-Radio Capabilities: Three client radios deliver unparalleled Wi-Fi performance while a dedicated security radio provides persistent threat management.
Superior Processing Power: The UniFi XG AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser equipped AP.

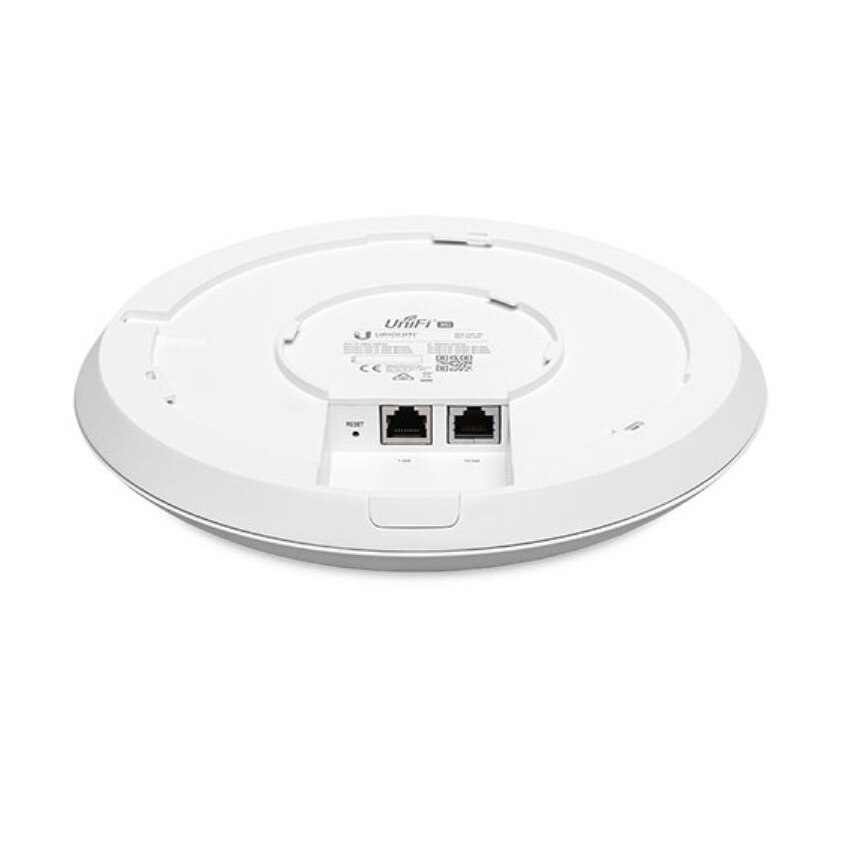

10G and 1G Ethernet Connectivity: Designed to be a 10G Ethernet backhaul, the primary port carries both data and PoE, while the secondary Gigabit Ethernet port is for bridging and also supports PoE input.
Power over Ethernet (PoE) Standard: The UniFi XG AP can be powered by an 802.3bt PoE compliant switch.
Easy Mounting: Its sleek design seamlessly integrates into any environment (all accessories included) and is compatible with existing UAP-AC-PRO mounts.
LED: The unique LED provisioning ring provides administrator location tracking and alerts for each device.
Features:
- 10Gigabit Ethernet Support
- 4x4 MU-MIMO Quad-Radio: (3) client, 1 Security
- Dual 5 GHz 802.11ac Wave 2 Radios
- 3.466 Gbps Combined Radio Rate in 5 GHz
- 800 Mbps Radio Rate in 2.4 GHz
- Dedicated Security Radio with Persistent Threat Management
- 1,500 Client Association Limit
- 802.3bt Power Injector Included
Specifications
Specifications UAP-XG-US
| Dimensions | 228 x 228 x 50 mm (8.98 x 8.98 x 1.97") |
| Weight WithMounting Kits | 1.20 kg (2.65 lb) 1.35 kg (2.98 lb) |
| Networking Interface | (1) 10/100/1000 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port |
| Buttons | Reset |
| Power Method | 802.3bt PoE |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | PoE Injector 50VDC, 1.2A Gigabit |
| Power Save | Supported |
| Maximum Power Consumption | 31W |
| Radios | 2.4 GHz, (2) 5 GHz, Security |
| Maximum TX Power | 2.4 GHz 5 GHz 25 dBm 25 dBm |
| Antennas 2.4 GHz 5 GHz | (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each (2) Dual-Port, Dual-Polarity Antennas, 8 dBi each |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling/Junction Box (Kits Included) |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1500 |
| Supported Data Rates (Mbps) | |
| Standard | Data Rates |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
