Ubiquiti PowerBeam 5 GHz airMAX Bridge with RF Isolated Reflector

(0)No Reviews yet
  • SKU: PBE-M5-300-ISO-US

Out of Stock

Product Information

PowerBeam M5 ISO | PBE-M5-300-ISO

5 GHz airMAX Bridge with RF Isolated Reflector

Incorporating advanced engineering with proprietary airMAX technology, the PowerBeam M5 ISO is ideal for deployments requiring maximum performance and RF isolation.

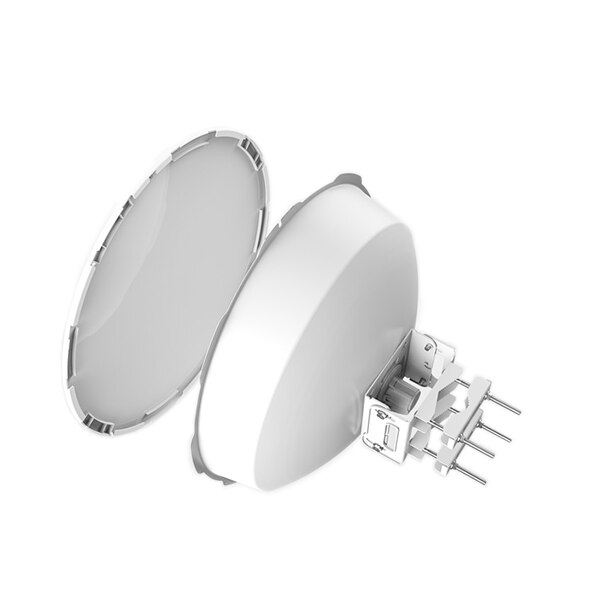

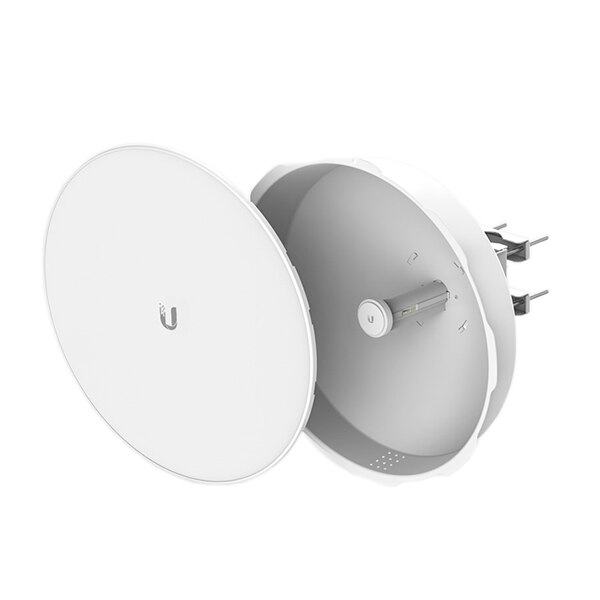

Innovative Mechanical Design

The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

Superior RF Isolation

Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.

Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Specifications

Processor SpecsAtheros MIPS 74Kc, 560 MHz
Memory64 MB DDR2, 8 MB Flash
Networking Interface(1) 10/100 Ethernet Port
Wireless ApprovalsFCC, IC, CE
RoHS ComplianceYes
Dimensions364 x 364 x 276 mm (14.33 x 14.33 x 10.87")
Weight2.55 kg (5.62 lb)
Power Supply24V, 0.5A PoE
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range20-26VDC
Max. Power Consumption6W
Gain22 dBi
Operating frequency
Worldwide
USA

5170 - 5875 MHz
5725 - 5850 MHz
Wind Loading210 N @ 200 km/h (47 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
LEDs(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDsSoftware-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes5/8/10/20/30/40 MHz
PolarizationDual Linear
EnclosureOutdoor UV Stabilized Plastic
MountingPole-Mount Kit Included
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Non-Condensing
Salt Fog TestIEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration TestIEC 68-2-6
Temperature Shock TestIEC 68-2-14
UV TestIEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain TestETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
