Ubiquiti UniFi AC Lite Dual Radio Access Point 5-Pack (US Version)
UniFi AC Lite Dual Radio Access Point 5-Pack (US Version)
Dual-Radio Performance, Gigabit Speeds
The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.
Sleek, Ultra-Compact Design
The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.
Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Save Money and Save Time
The UniFi AP comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or Linux machine, in a private cloud, or using a public cloud service.
Wi-Fi 802.11ac MIMO Technology
The 802.11ac MIMO Technology offers Gigabit speeds and range up to 400'.
Intuitive UniFi Controller Software
Install, configure, and manage all of the UniFi APs with the intuitive and user-friendly UniFi controller user interface.
Build wireless networks as big or small as needed. Start with one or more and expand to thousands, while maintaining a single unified management system.
Use the UniFi controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
You can use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Guest Portal/Hotspot Support
Easy customization options for guest portals include authentication, hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for guest portal/hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. The UniFi AP includes hotspot functionality. It includes built-in support for billing integration using major credit cards, and built-in support for voucher-based authentication. It also includes a built-in hotspot manager for voucher creation, guest management, payment refund, full customization, and branding of hotspot portal pages.
A single UniFi Controller running in the cloud can manage multiple sites, multiple, distributed deployments, and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portals, and administrator read/write, and read-only accounts.
The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
Upload map images of your location for a visual representation of each wireless network.
UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.

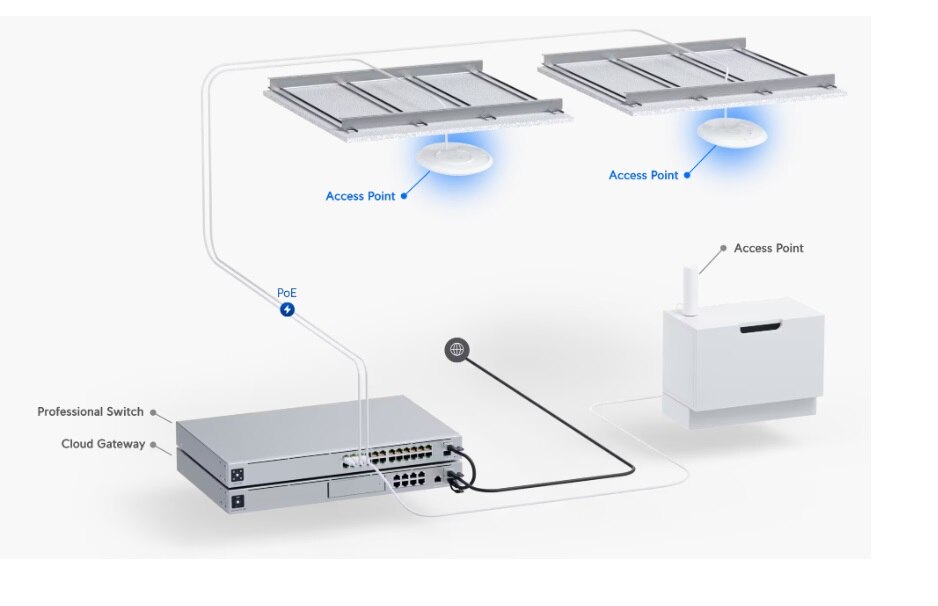

Extend Your Coverage
With the UniFi controller software running in an NOC or in the cloud, administrators can extend and centrally manage the wide areas of indoor and outdoor coverage, using any combination of UniFi APs.

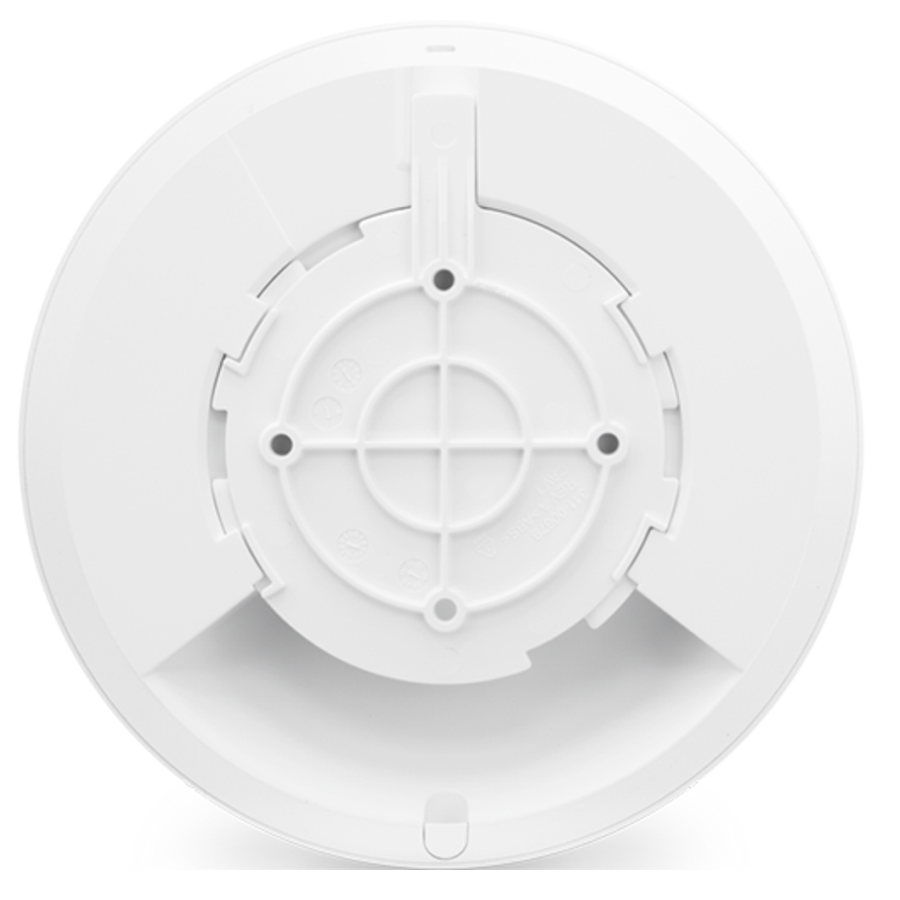

Sleek wall or ceiling mount design (all accessories included).
It has an industrial design with an LED provisioning ring or square, which provides administrator location tracking and alerts for each device.
Power over Ethernet (PoE)
Power over Ethernet (PoE) functionality allows both power and data to be carried over a single Ethernet cable to the device. The unit can also be powered from the Ubiquiti TOUGHSwitch PoE PRO (sold separately).

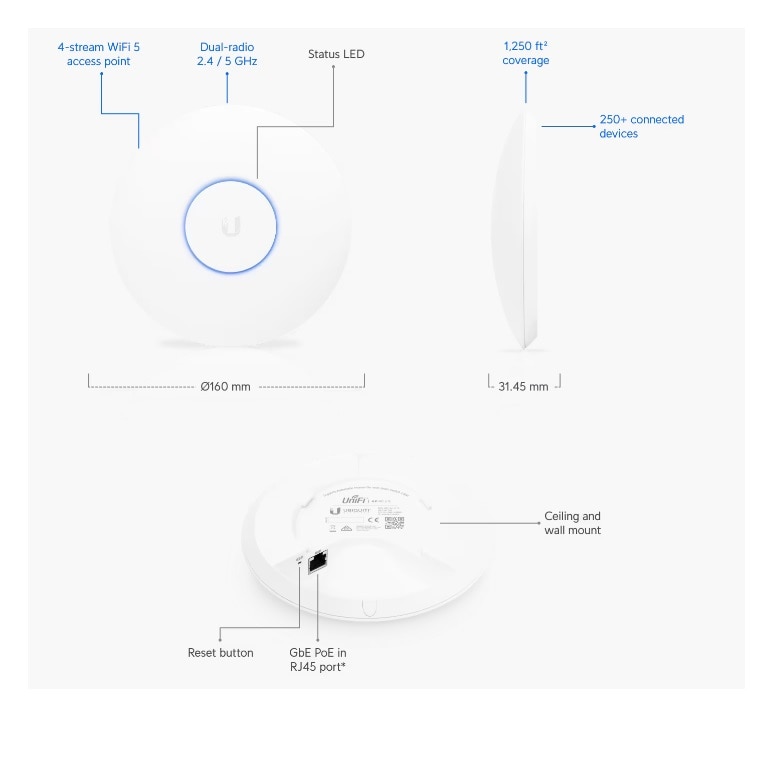

|Dimensions||160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")|
With Mounting Kits
|170 g (6.0 oz)|
185 g (6.5 oz)

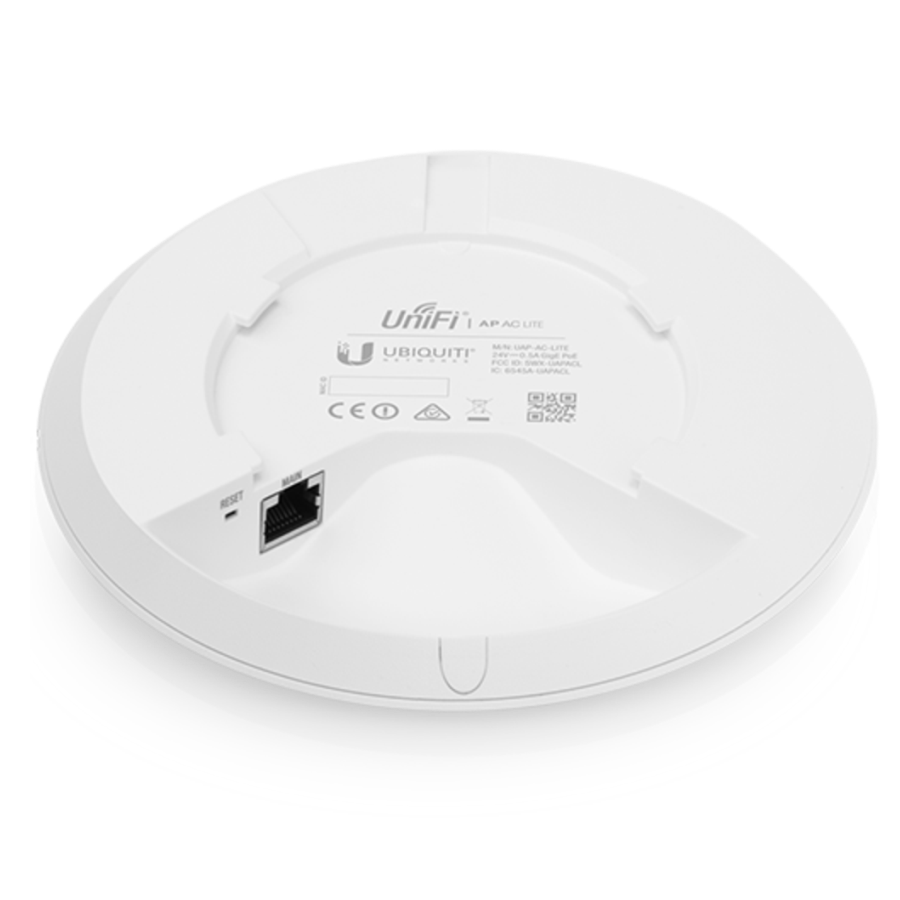

|Networking Interface||(1) 10/100/1000 Ethernet Port|
|Antenna||(2) Dual-Band Antennas, 3 dBi Each|
|Wi-Fi Standards||802.11 a/b/g/n/ac|
|Power Method||Passive Power over Ethernet (24V), |
(Pairs 4, 5+; 7, 8 Return)
|Power Supply||24V, 0.5A Gigabit PoE Adapter*|
|Maximum Power Consumption||6.5W|
|Maximum TX Power|
|BSSID||Up to Four per Radio|
|Wireless Security||WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)|
|Certifications||CE, FCC, IC|
|Mounting||Wall/Ceiling (Kits Included)|
|Operating Temperature||-10 to 70° C (14 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Advanced QoS||Per-User Rate Limiting|
|Guest Traffic Isolation||Supported|
|WMM||Voice, Video, Best Effort, and Background|
|802.11a||6, 9, 12, 18, 24, 36, 48, 54 Mbps|
|802.11n||6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)|
|802.11ac||6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)|
|802.11b||1, 2, 5.5, 11 Mbps|
|802.11g||6, 9, 12, 18, 24, 36, 48, 54 Mbps|
