Uniview Uniview 5MP 360° Fisheye Fixed Dome Network Camera
- SKU: IPC815SB-ADF14K-I0
$539.00 $669.00
- Manufacturer: Uniview
- Data Sheet: Download
Product Information
Uniview IPC815SB-ADF14K-I0

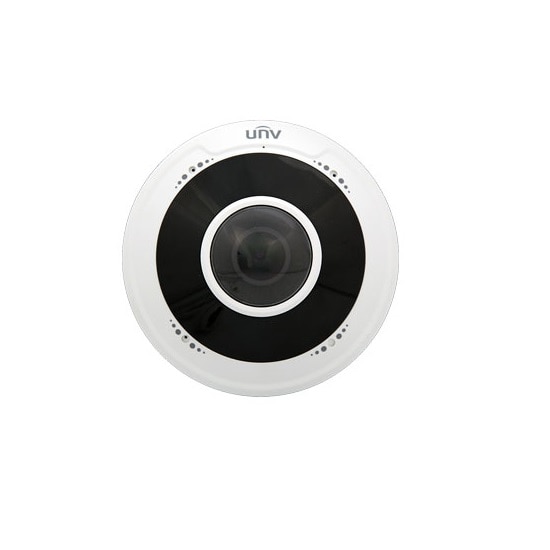

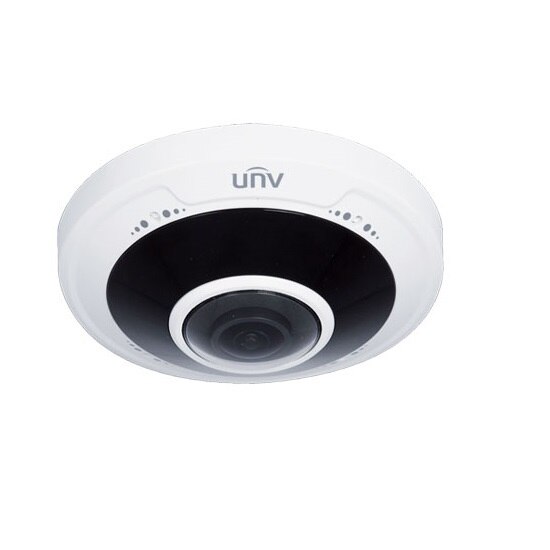

5MP 360° Fisheye Fixed Dome Network Camera
This IPC815SB-ADF14K-I0 camera uses a 1/2.8" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 33' of night vision. The camera's 1.4mm fixed lens delivers a 360° panoramic overview. It can also provide a myriad of fisheye and panoramic views from 11 display modes when mounted on a ceiling, wall, or table. Two built-in microphones enable the camera to pick up audio. An onboard card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Features:
- High quality image with 5MP, 1/2.8"CMOS sensor
- 5MP (2592*1944):@ 30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Built-in 2 Mic, Supports the detection of sounds over longer distances
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 10m (33ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP66 protection
- Support PoE power supply
Specifications
Specifications IPC815SB-ADF14K-I0
Camera | |||||
Image sensor | 1/2.8", progressive scan, 5.0 megapixel, CMOS | ||||
Minimum Illumination | Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR | ||||
Day/Night | IR-cut filter for day & night function | ||||
Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||
WDR | 120dB | ||||
S/N | >55dB | ||||
Lens | |||||
Lens type | 1.4mm@F2.0 | ||||
Iris | Fixed | ||||
Angle of View | 360° | ||||
DORI | |||||
DORI Distance | Lens 1.4mm | Detect (m) 31.5 | Observe (m) 12.6 | Recognize (m) 6.3 | Identify (m) 3.2 |
Illuminator | |||||
IR Range | UP to 10m (33ft) | ||||
wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Compression | Ultra 265, H.265, H.264, MJPEG | ||||
H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
Frame Rate | Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
U-code | Support | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 4 areas | ||||
ROI | Up to 8 areas | ||||
Video Stream | Triple streams | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/ Flip Horizontal/180° | ||||
Dewarping | N/A | ||||
HLC | N/A | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Events | |||||
Statistical Analysis | heat map | ||||
Basic Detection | Motion detection, tampering alarm, audio detection | ||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711 | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way audio | Supported | ||||
Suppression | Supported | ||||
Sampling Rate | 8 KHZ | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256GB | ||||
Network Storage | ANR, NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation EZView EZLive | ||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||
Live View Display | |||||
Mount Type | Support table, wall, and ceiling | ||||
Decoding Mode | Support software decoding | ||||
Display Mode | 11 display modes in total Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ | ||||
Interface | |||||
Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||||
Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||
Alarm I/O | 1/1 | ||||
RS485 | N/A | ||||
Built-in Mic | Supported 2 | ||||
Built-in Speaker | N/A | ||||
WIFI | N/A | ||||
Network | 1 * RJ45 10M/100M Base-TX Auto-adaptive Ethernet | ||||
Video Output | N/A | ||||
Certifications | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: | ||||
2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||
General | |||||
Power | DC12V±25%,PoE (IEEE 802.3af) | ||||
Power consumption: Max. 8.5W | |||||
Power Interface | Ø 5.5mm coaxial power plug | ||||
Dimensions (Φ × H) | Φ125 × 43.7 mm (Φ4.9" × 1.7") | ||||
Weight | 0.36kg (0.79lb) | ||||
Material | Metal + Plastic | ||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
surge protection | 4KV | ||||
Reset Button | Supported |
