WaveOptics 2-Fiber SM G652D Toneable Gel-Free Flat Drop Fiber Cable
- SKU: FOSPC-002-F-TFDLTD30-FT000-US
$0.31
- Manufacturer: WaveOptics
- Data Sheet: Download
Product Information
WaveOptics FOSPC-002-F-TFDLTD30-FT000-US

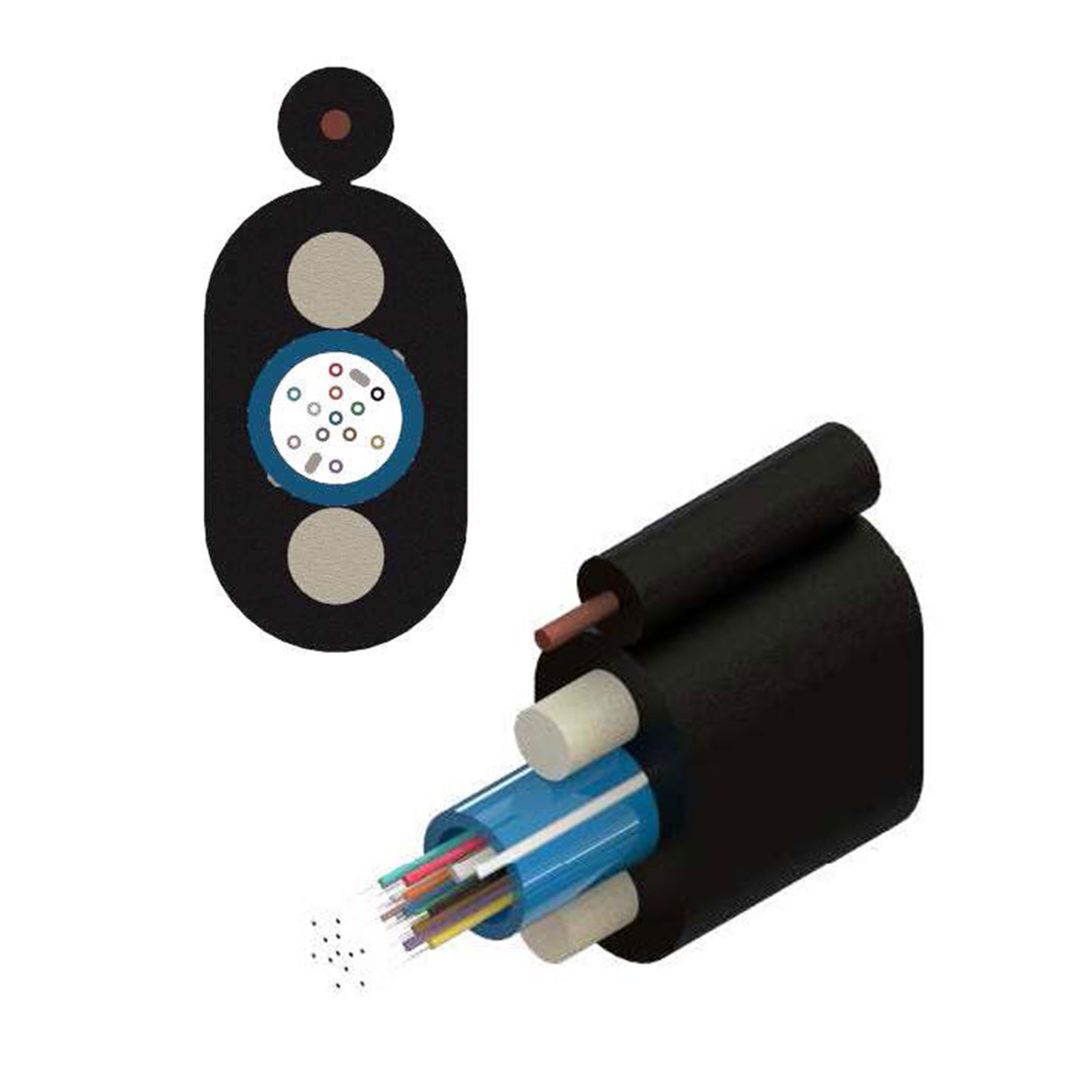

2-Fiber SM G652D Toneable Gel-Free Flat Drop Fiber Cable
Waveoptics® Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.
PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.
Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.
APPLICATIONS:
- Outdoor
- Aerial
- Duct Installation
- Self-supporting
- Direct-buried
PROTECTIONS:
- UV Resistant
- Water Blocking
- Crush Resistant
Specifications
Specifications FOSPC-002-F-TFDLTD30-FT000-US
| Design Properties | |
| Fiber per Tube | 1-12 |
| Nominal Outer Dimensions | 8.0 mm x 4.5 mm (0.31 in x 0.18 in) (±5%) |
| Dielectric Strength Member Material / Diameter | EAA Coated FRP / 1.65 mm (0.065 in) |
| Outer Jacket Material | Polyethylene |
| Loose Tube Diameter | 3.0 mm (0.12 in) |
| Drum Length | 2,000 ft, 5,000 ft ,10,000 ft, 15,000 ft & 20,000 ft (±5%) |
| Temperature Range | |
| Operation | -40°C to 70°C (-40°F to 158°F) |
| Installation | -30°C to 70°C (-22°F to 158°F) |
| Storage / Transport | -40°C to 70°C (-40°F to 158°F) |
| Mechanical Properties | |
| Crush Resistance (Short-Term / Long-Term) | 2,200 N/100mm / 1,100 N/100mm |
| Minimum Bend Radius (Operation / Installation) | 10 x OD / 20 x OD |
