WaveOptics Loose Tube All-Dielectric Cable Dry 12F G652.D
- SKU: FOSPC-012-F-SJADD-FT000-US
$0.31
- Manufacturer: WaveOptics
- Data Sheet: Download
Product Information
WaveOptics FOSPC-012-F-DJSAD-FT000-US
Loose Tube All-Dielectric Cable Dry 12F G652.D

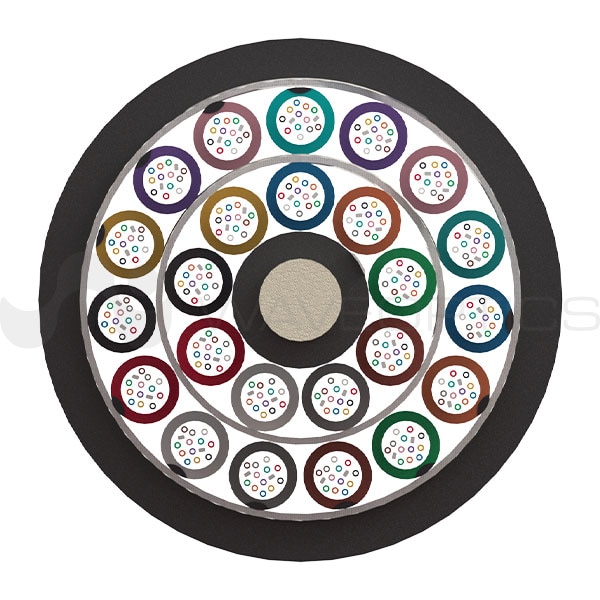

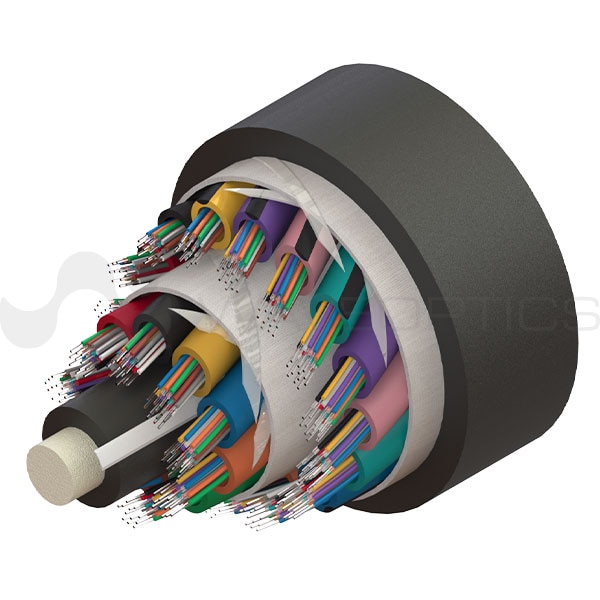

Waveoptics® Loose tube all-dielectric cables are the most commonly-deployed outside plant cables, because of its price and its installation flexibility, since these cables can be installed both in aerial (lashed) installations as well as in ducts through the following techniques: air-blown, jetted or pulled into a duct.
PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.
The SZ-stranded method for loose tubes and two ripcords ensure a quick and easy mid-span access. Dielectric central strength member requires no bonding or grounding.
APPLICATIONS:
- Outdoor
- Duct Installation
- Lashed
- Air-Blown Fiber
PROTECTIONS:
- UV Resistant
- Water Blocking
Specifications
Specifications FOSPC-012-F-DJSAD-FT000-US
| Design Properties | |
| Fiber per Tube | 2-12 |
| Dielectric Strength Member | FRP |
| Outer Jacket Material / Thickness | Polyethylene / 1.5 mm (0.06 in) |
| Loose Tube Diameter | 2.5 mm (0.07 in) |
| Drum Length | 10,000 ft, 15,000 ft & 20,000 ft (±5%) |
| Temperature Range | |
| Operation | -40°C to 70°C (-40°F to 158°F) |
| Installation | -30°C to 70°C (-22°F to 158°F) |
| Storage / Transport | -40°C to 70°C (-40°F to 158°F) |
| Mechanical Properties | |
| Crush Resistance (Short-Term / Long-Term) | 2,200 N/100mm / 1,100 N/100mm |
| Minimum Bend Radius (Operation / Installation) | 10 x OD / 20 x OD |
