WiFi Texas 16 port 1U Rack mount 10/100 shielded injector, 24V power supply, 120W

(0)No Reviews yet
  • SKU: POE-16-24v120w
  • Manufacturer: PoE Texas
  • Data Sheet: Download
6 in stock
College Station
6 In stock

Product Information

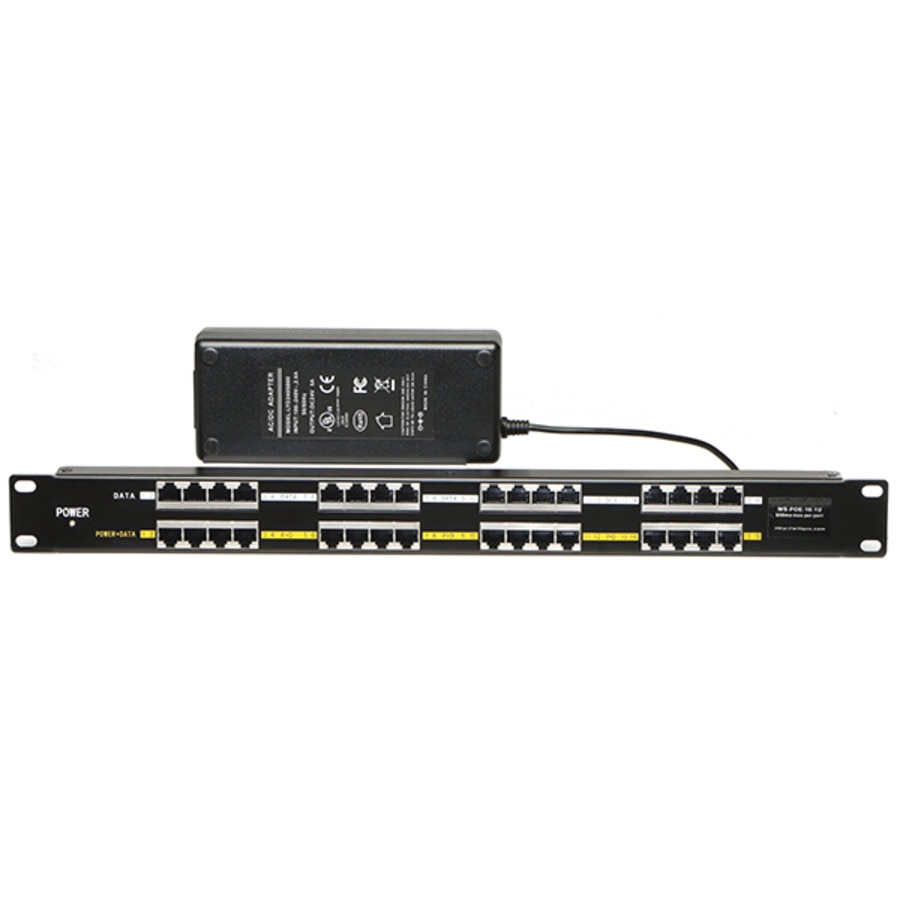

WiFi Texas POE-16-24v120w

10/100, Mode B, rack mount 16 Port Injector with a 24 volt 120 watt power supply

The WS-POE-16-24v120w Power over Ethernet (POE) injector provides power to as many as 16 devices from a central power source up to 328 ft (100 meters) away. Use this device to inject power into the CAT-5, CAT-6 or CAT-7 cable and power devices such as cameras, VOIP phones, and WiFi access points.

The injector works works with any ethernet switch or router. The 24 volt 120 watt power supply provides 24 volts to all ports, and 120 watts is the total available power for all devices.

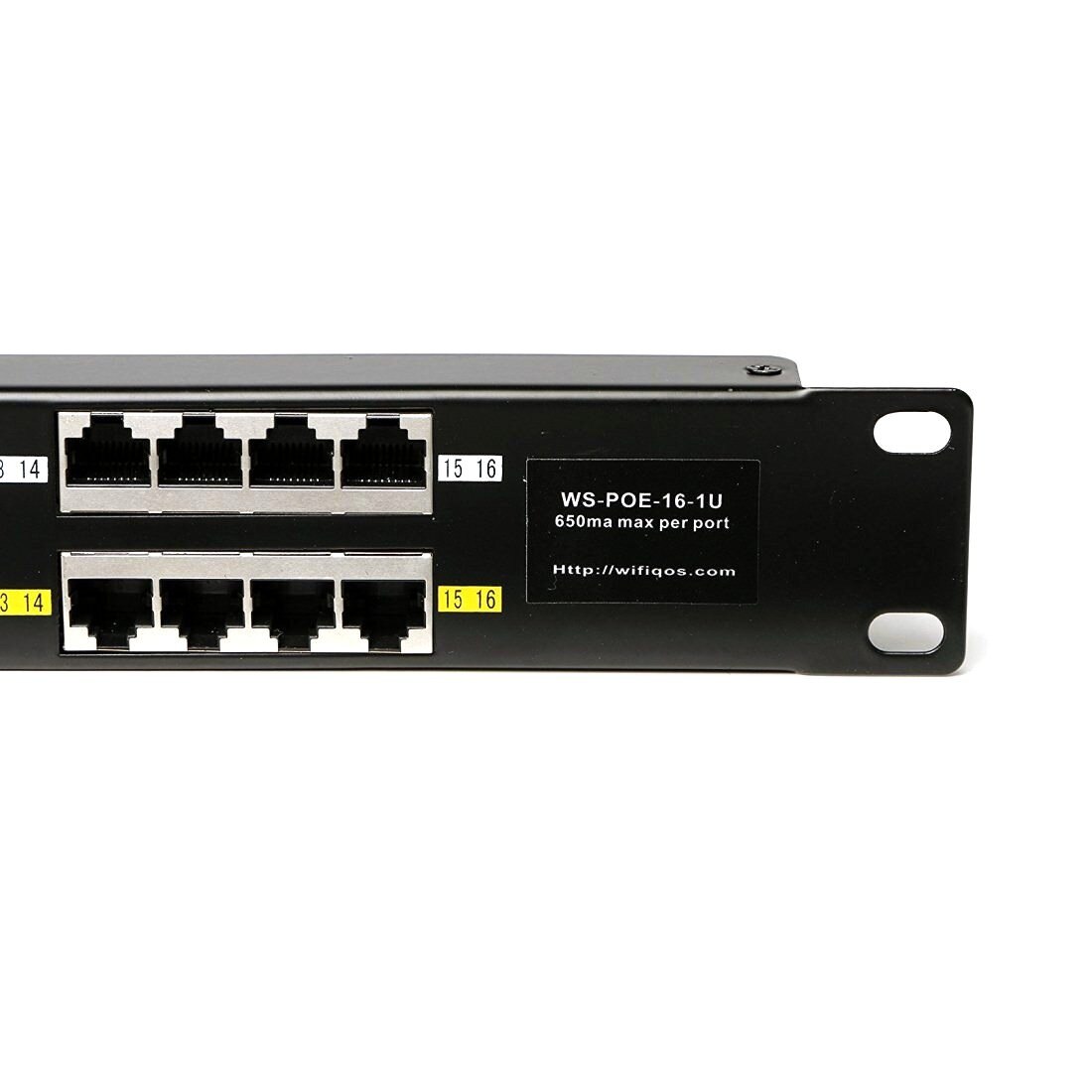

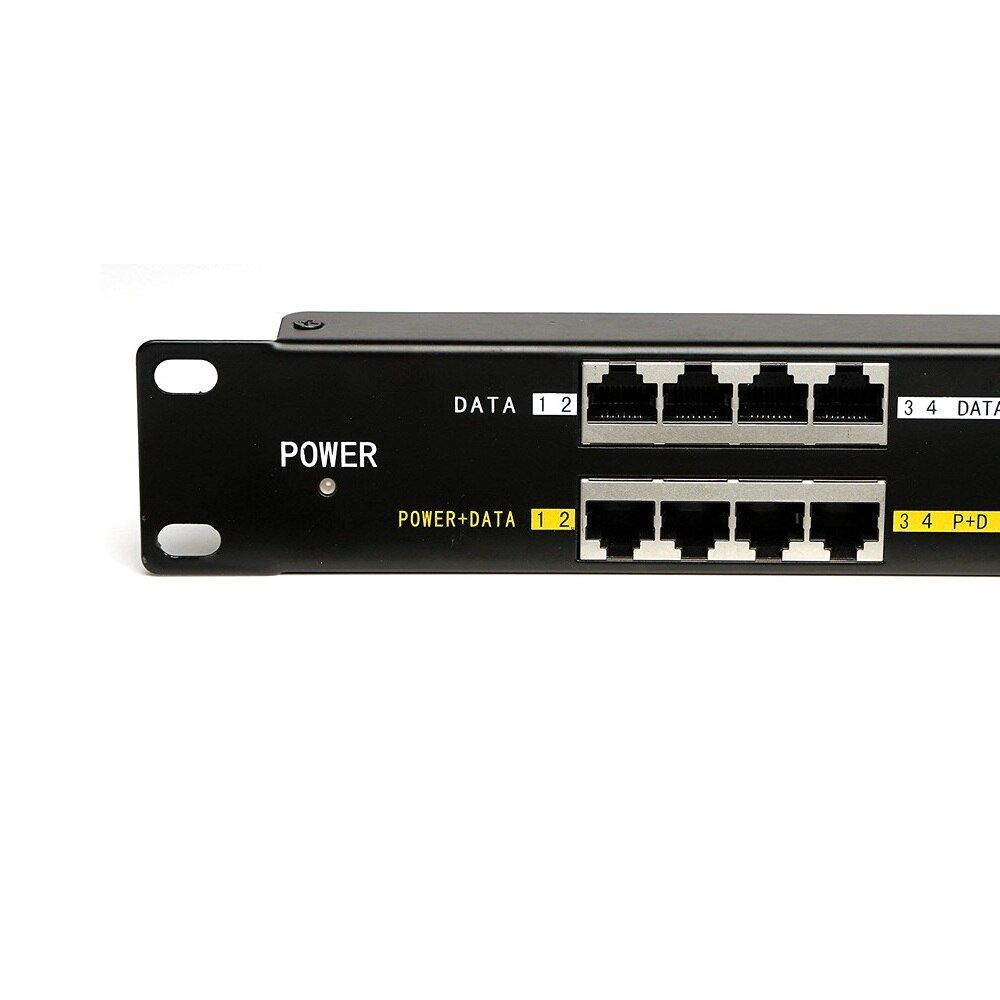

  • 16 shielded RJ45 jacks with Data + Power out
  • Power per port limited to 650 ma
  • 16 shielded RJ45 jacks Data in – connect to your switch
  • 2.1mm x 5.5mm DC power jack
  • Screw terminal power input with ground screw * LED power status
  • 10/100 operation

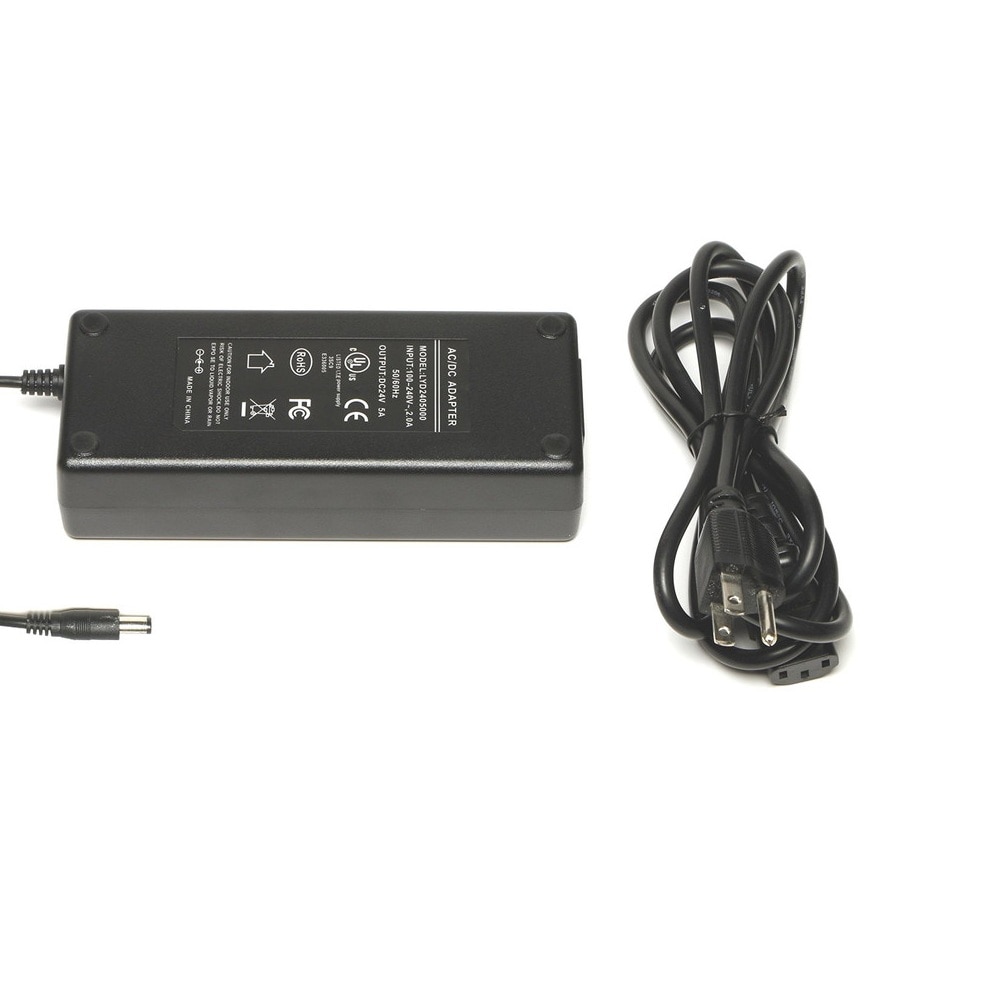

  • 24 volt, 120watt power supply included (100-240v autosense, 50/60hz, UL / CE approved)


Specifications POE-16-24V120W

Data + PoE Ports16
Data Ports16
Data Rate10/100
Dimensions20x4x1.75 in.
Max Amps Per Kit5 Amps
Max Power for Kit120 Watts
Max. Amps Per Port650 mA
Mount Typerack
Operating Humidity5% to 90%
Operating Temperature Range-10 - 60C
Output Voltage24 volts
PoE MethodPassive
PoE Mode/PinoutMode B (+4,5 -7,8)
Power Input2.1mm DC, screw termin.al
Power SuppliesWS-PS-24v120w
