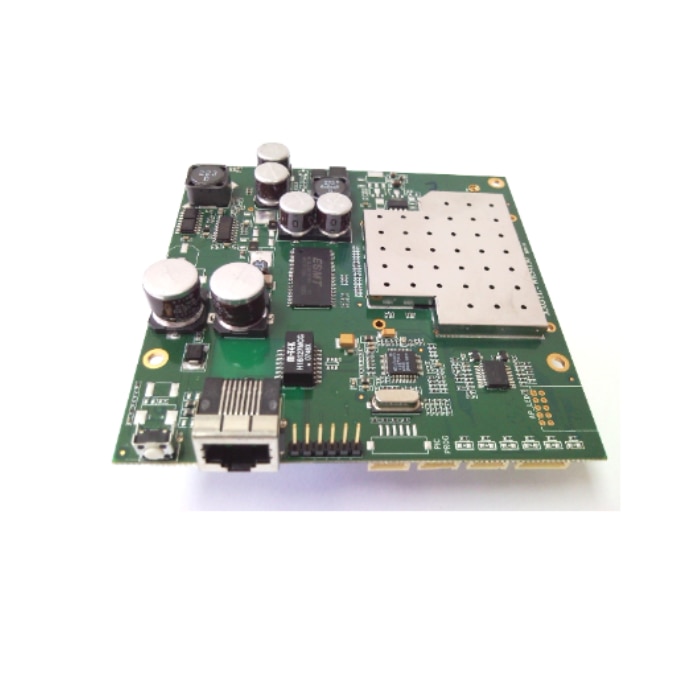

XAGYL WR24G30
XAGYL Osprey 2.4GHz 802.11b/g 1W (30dBm) Wireless Router with OpenWRT 15.05
The WR24G30 is a 1000mW TX power IEEE 802.11b/g integrated radio system, designed for widefrequency of 2.3GHz to 2.5 GHz to support high value applications in both licensed & unlicensedbands. The WR24G30 assures lowest EVM (Error Vector Magnitude) at higher modulation rates tomaintain low packet errors that maximizes data throughput. The design uses highly linear outputpower amplifiers in balanced mode to deliver linear power even at 64 QAM radio modulations whilemaintaining EVM below 4%. With better RX sensitivity and high SNR (specs stated in fieldconditions), the WR24G30 is specially designed to deliver best performance in long range outdoorapplications. The enhanced resilience to RF surges and integrated lightning protection on the Ethernetport makes it ideal for deploying in harsh environments.
Features:
- 32-bit MIPS 4Kc 180MHz processor
- 8MB Flash and 16MB SDRAM
- 30dBm (1W) output power
- MMCX antenna connector
- Redundant output power amplifiers
- Signal strength indicator LEDs
- 10/100Mbps auto MDI/MDX Ethernet port
- Shielded RJ45 connector
- RS232 port
- Power over Ethernet up to 28V with overvoltage and short circuit protection
- On board temperature sensor
- On board PoE voltage sensor
- Off board temperature sensor
- Fan controller with speed modulation
- Ethernet surge protection
- Enhanced ESD protection
- Intrusion Detection
- 802.11b/g Wifi support
- 5/10/20MHZ channel bandwidth
- Factory defaults reset switch
- Compatible with OpenWRT, DD-WRT and Open-Mesh.
Options:
- Extended frequency support 2.3GHz to 2.5GHz
- 40MHz channel bandwidth
- Off board LEDs for remote signal and status monitoring
- RS422 support
- GPS Module
- Real time clock
- 32MB SDRAM
- Factory default reset from PoE injector
Specifications WR24G30
| Chipset & CPU | Atheros AR2315 |
| Operation Voltage | 24V (10V to 28V), 48V optional |
| Radio Frequency Band | 2412MHz to 2484MHz, 2300MHz to 2525MHz optional |
| Data Rates | 54, 48, 36, 24, 18, 12, 9, 6 Mbps (Auto fall back) |
| Channel Bandwidth | 5, 10, 20Mhz, 40MHz optional |
| Network Connection | 10/100 Auto MDI/MDX Fast Ethernet |
| UART | RS232, RS422/RS485 optional |
| Antenna ports | Single MMCX port |
| Power consumption | 24V (15W), 48V optional |
| Operating temperature | -4ºF to +158ºF (-20ºC to +70ºC) |
| Dimension | 4.13" x 2.4.13" (105 x 105 mm) |
| Tx/Rx Specification | |||
| Band | Data Rate | Tx Power | Rx Sensitivity |
| IEEE 802.11b (2412 MHz ~ 2484 MHz) | 1 Mbps 2 Mbps 5 Mbps 11Mbps | 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm | -97dBm ± 1dBm -95dBm ± 1dBm -92dBm ± 1dBm -90dBm ± 1dBm |
| IEEE 802.11g (2412 MHz ~ 2484 MHz) | 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps | 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 29dBm ± 1dBm | -93dBm ± 1dBm -93dBm ± 1dBm -91dBm ± 1dBm -89dBm ± 1dBm -86dBm ± 1dBm -82dBm ± 1dBm -77dBm ± 1dBm -74dBm ± 1dBm |
