Cambium Fiber
XGS-PON ONU
Seamless Integration of Fiber
and Wireless
The ONU plugs into a Cambium radio infrastructure, leveraging the radio’s wireless backhaul capabilities to bridge the gap
between the fiber network endpoint and the end user location. It’s an ideal solution for areas where deploying fiber is
impractical or cost prohibitive.
Imagine compact, versatile deployments
with our integrated Cambium Fiber
XGS-PON Pluggable ONU!

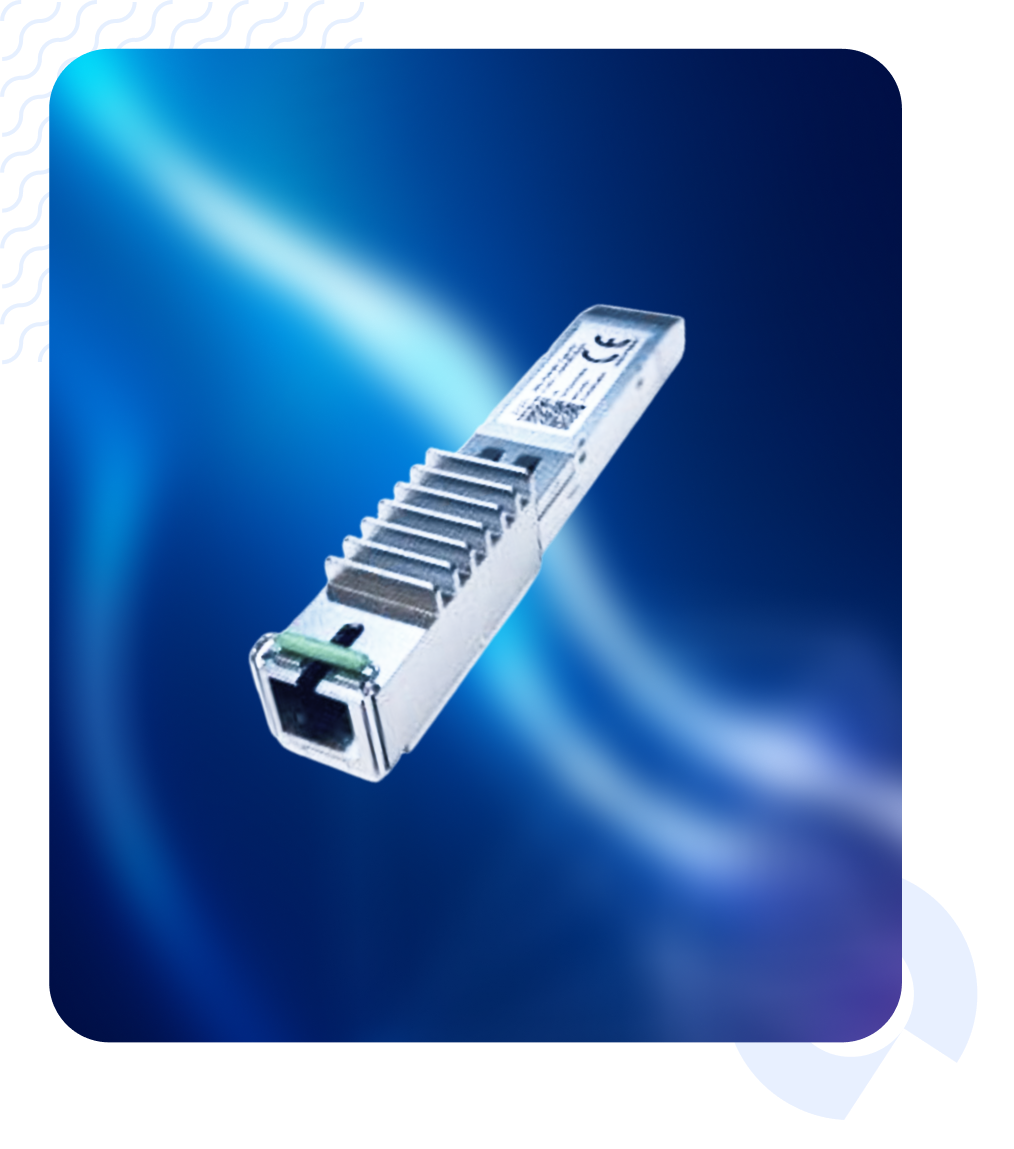

The Pluggable ONU (Optical Network Unit) extends the fiber network into hard-to-reach places or last-mile applications with seamless integration directly into Cambium radios such as ePMP™ 4500/4600 or cnWave™ 60 GHz V5000/V3000.
Quick Look- Extend XGS-PON networks to last-mile applications with ePMP and cnWave
- Terminate XGS-PON connections directly into cnMatrix for small-form factor, low-cost integrated solutions
- Supports XGS-PON for up to 10 Gbps symmetrical services
Cambium Fiber emphasizes performance,
costeffectiveness, and ease of
management
Featuring high-speed XGS-PON technology (as well as GPON and ComboPON), Cambium solutions provide symmetrical 10 Gbps speeds to meet the growing demands of high-speed internet for residential, enterprise, and multi-dwelling unit (MDU) environments.

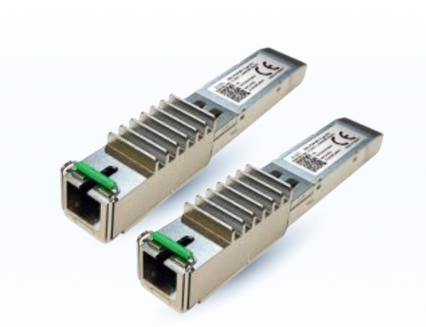

The Cambium Fiber XGS-PON Pluggable ONU (Optical Network Unit) extends the fiber network into hard-to-reach places or last-mile applications with seamless integration directly into Cambium radios such as ePMP™ 4500/4600 or cnWave™ 60 GHz V5000/V3000.
The ONU plugs into a Cambium radio infrastructure, leveraging the radio’s wireless backhaul capabilities to bridge the gap between the fiber network endpoint and the end user location. It’s an ideal solution for areas where deploying fiber is impractical or cost prohibitive.
The Pluggable ONU also enables the direct
termination of a fiber XGS-PON
connection into a cnMatrix™ switch or
other third-party switches/routers
Its compact design eliminates the need for additional external ONUs or converters and results in a small form-factor deployment, reducing space and power requirements, keeping installation costs low while delivering the full capabilities of XGS-PON technology.
Cambium’s Fiber portfolio extends this integration with centralized management through cnMaestro™ Network Management for end-to-end visibility, enabling service providers and enterprises to efficiently monitor and troubleshoot their networks. With robust security features and a focus on Quality of Experience (QoE), Cambium ensures a reliable, secure, and optimized user experience for every deployment.

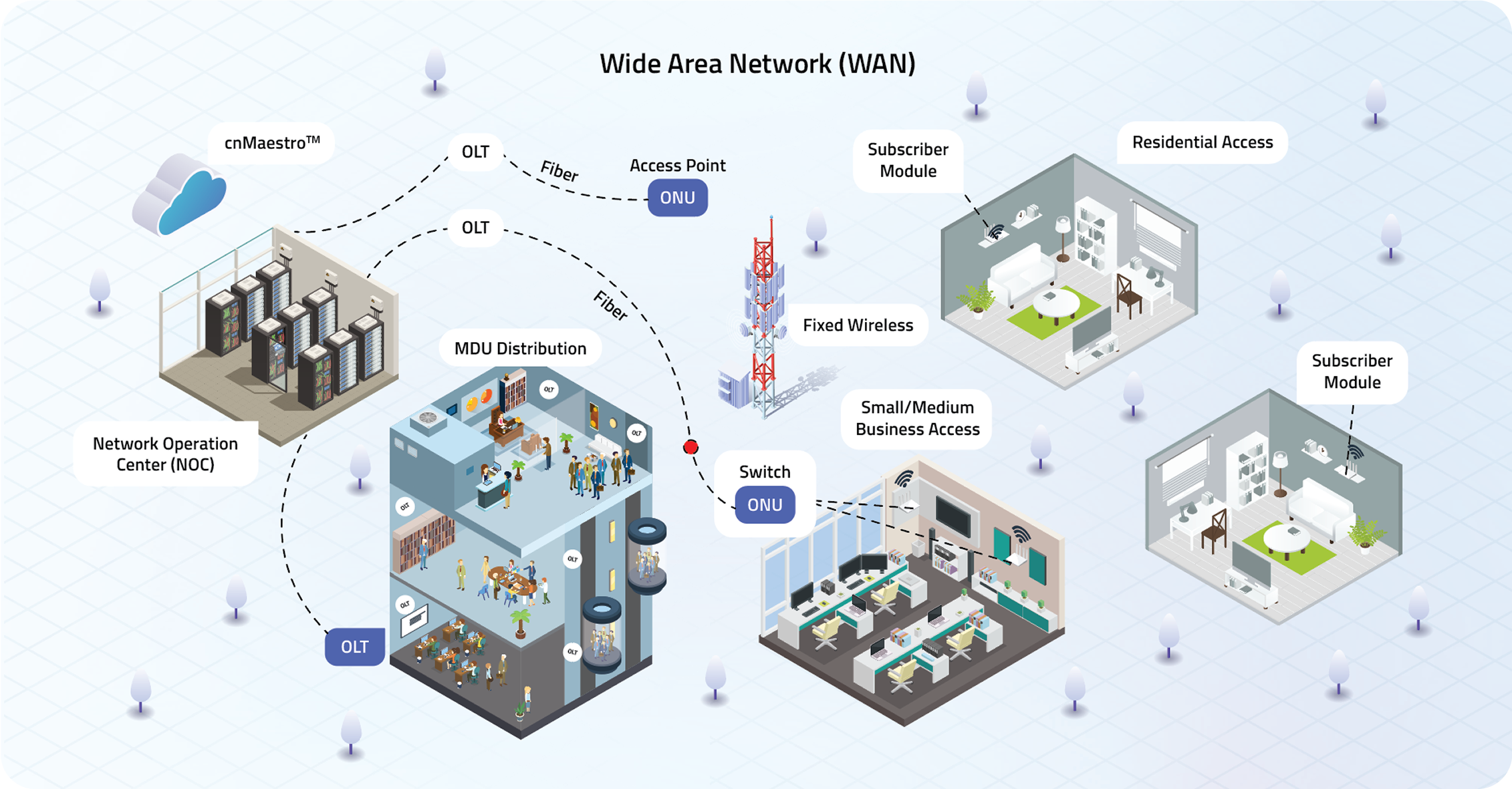

Applications
Internet Service Provider
Applications

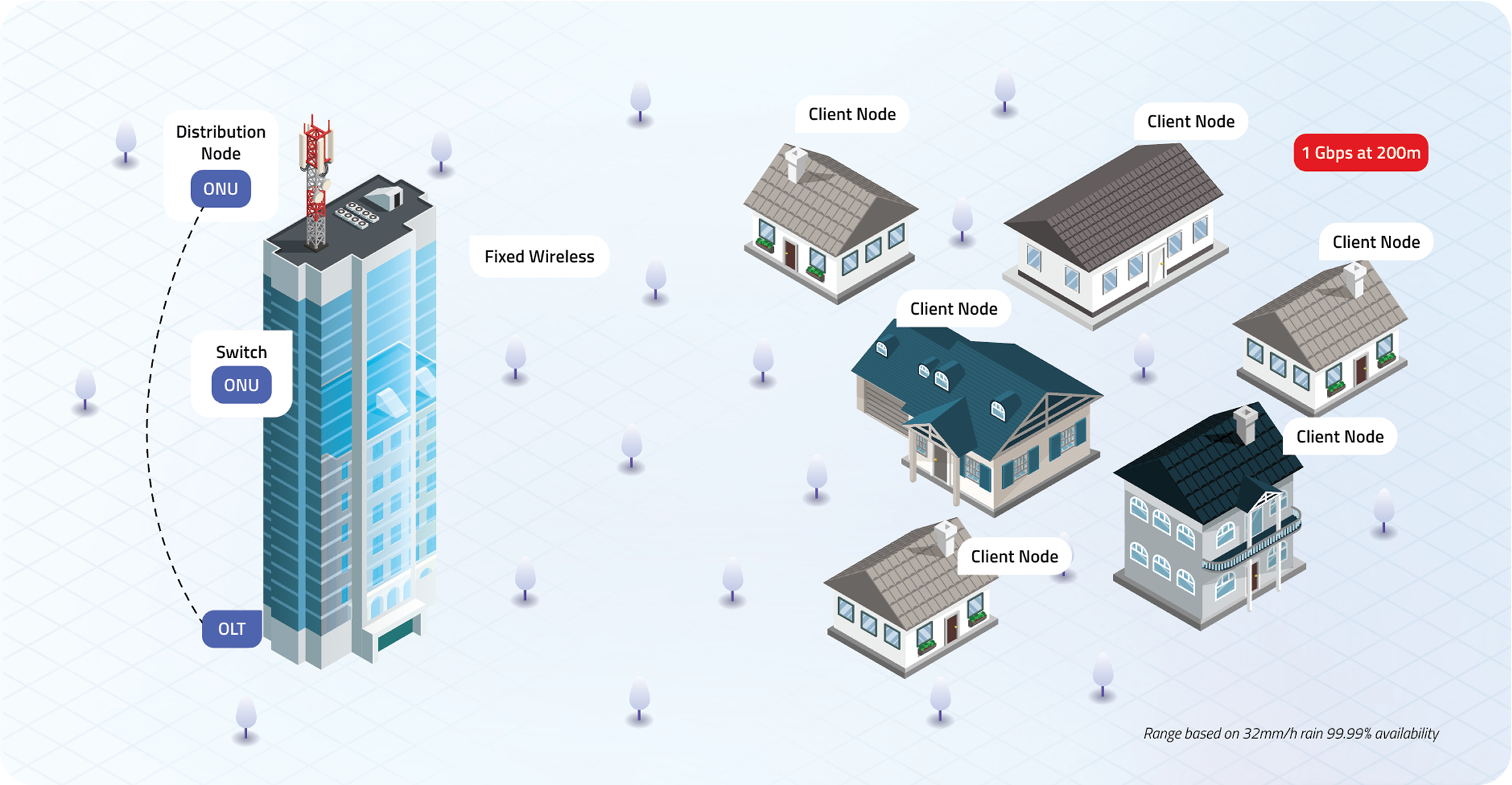

MDU/Campus Coverage Using a Wireless PMP
Network & XGS-PON
Specifications
Compatibility
| PON | Cambium 8-port & 16-port OLTs & other third-party options |
| Wireless Radios | ePMP 4500/4600, Force 400C/425, cnWave 60 GHz V5000/V3000 |
| Ethernet Switches/Routers | cnMatrix & other third-party options |
Environmental
| Temperatures | -40 to 55°C |
Optical
| XGS-PON single fiber up to 10 Gbps symmetric |
Mechanical
| SFP+ package with SC/APC receptacle | |
| Media: SMF |
