Powerful dual-core system for 5G
network backbone deployment

Icons

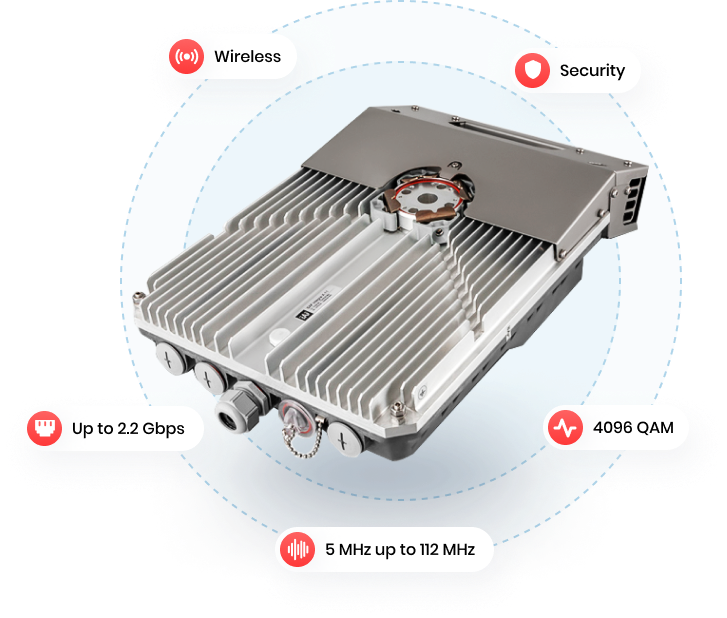

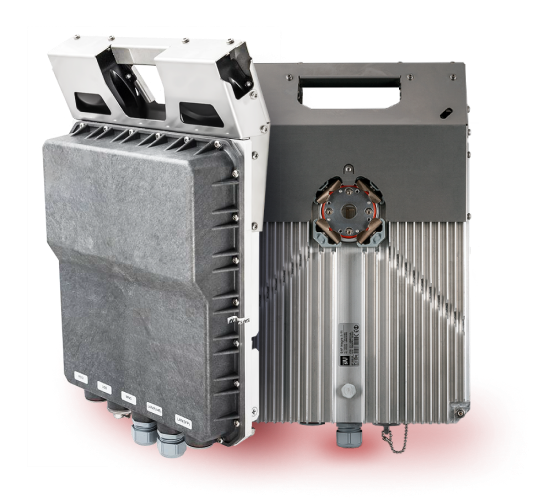

SAF Tehnika meets another milestone on its way of consistent technological innovation. We are proud to announce our new dual core radio Integra-X, the newest member of full-outdoor radio product line.

Integra-X incorporates two transceivers and two modem chains allowing this system to operate with built-in 2+0 XPIC, reaching maximum data transmission capacity up to 2.2 gigabits per second.

For doubling the capacity SAF Tehnika has developed a hybrid OMT solution – now we offer a powerhouse that ‘carries up to 4+ Gbps of traffic on distances of more than 20km*.


High Capacity
High capacity and reliability

Integra-X offers 2.2 Gbps at
2x112 MHz 4096QAM

built Pic
Built-in 2+0 XPIC

Integra-X incorporates two
transceivers and two modem
chains allowing this system to
operate with built-in 2+0 XPIC

Ethernet Switch
10Gbps Ethernet switch

Ethernet functionality with
50Gbps switching capacity.

Standard Warranty
5 year standard warranty

Upgrades and new features.
Excellent 24/7 technical
support and reliable capacity.

Key characteristics

Integra-X
Capacity:Up to 2.2 Gbps at 2x 112 MHz 4096QAM
Frequency bands:6, 7, 8, 11, 13, 15, 18 and 23 GHz. All licensed bands up to 38 GHz*
Modulation:up to 4096QAM
Channel Bandwidth:5 to 112 MHz
Configurations:1+0, 2+0 XPIC, 2+0 ACAP, 4+0*
Gigabit Ethernet:1xRJx45, 2xSFP+
Management:5 to 112 MHz
Antenna:External antenna
Form factor:280 x 437 x 100 mm / 11.02” x 17.2” x 3.9”, 8.5 kg / 18.7 lbs
Temperature range:-33 ... +55 °C / -28 … +130 °F

*Inquire SAF Tehnika representative for more information
