FTTH Bend Resistance
Fiber Optic Drop Cable
Fiber Optic Drop Cable
FTTH Bend Resistance

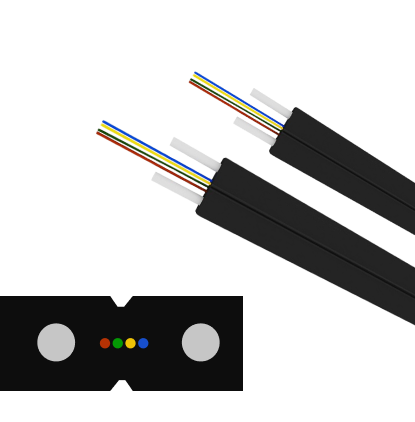

The LiteLinx All-Dielectric FTTH Drop Cable is a cost-effective, compact cable designed for both indoor and outdoor applications, making it an ideal choice for short-distance external usage. Its flat design facilitates easy stripping without the need for specialized tools, streamlining the installation process.
The optical fiber is centrally positioned within the cable, with two parallel reinforcement rods made of either KFRP (Kevlar Fiber Reinforced Plastic) or FRP (Fiber Reinforced Plastic) located on both sides. These rods serve to protect the fibers against crushing and traction forces, ensuring their safety.
The LSZH (Low Smoke Zero Halogen) outer jacket provides excellent flame-retardant properties, emitting low levels of smoke and containing no halogen materials. This not only prevents toxicity but also offers resistance to UV radiation and various chemicals.

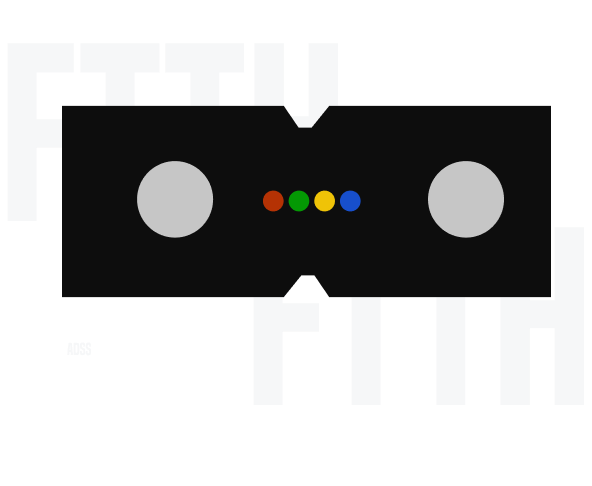

Structure Design
Two parallel FRP are placed at two sides Optical Fiber Unit 1-12F ITU-T G.657.A1 / G.657.A2 LSZH outer sheath
Highlights
Compact Design
For indoor and outdoor use, enhances aesthetics.
Easy Access
Simple peeling with minimal tools reveals clear fiber.
Exterior Stapling
Rugged design allows secure outside wall installation.
Thermal Stability
Maintains performance in extreme temperatures.
OFNR/FTA Rated
Suited for basements/attics before living spaces.
All-Dielectric
Eliminates need for bonding or grounding.
Specification
| fiber count | 1-12F | |
| Strength Member | Material | FRP |
| Diameter (mm) | 0.5 | |
| Outer Jacket | Material | LSZH |
| Dimension (mm) | 2.0(±0.2)*3.0(±0.2)mm | |
| Color | Black / White | |
| Cable Weight | Kg/Km | 9.2 |
| Temperature Range | Operation | -20°C~+70°C |
| Storage | -20°C~+60°C | |
| Installation | -20°C~+70°C |
Optical Characteristics
| fiber count | 1 to 12F | ||
| Attenuation Coefficient | @1310nm | ≤ 0.36 dB/Km | |
| @1550nm | ≤ 0.22 dB/Km | ||
| Macrobending Loss (1 turn 10mm radius for G.657.A1; 7.5mm radius for G.657.A2) | ITU-T Standard | G657.A1 | G657.A2 |
| @1550nm | ≤ 0.75 dB | ≤ 0.5 dB | |
| @1625nm | ≤ 1.5 dB | ≤ 1.0 dB |
Mechanical Performance
No leakage through the open cable end in Water Penetration Test IEC 60794-1-F5B The Tensile Loading Test, Torsion Test, Crush/Impact Resistance Tests, Repeated Bending Test, and Temperature Cycling Test in compliancewith IEC Standards did not result in any jacket cracking or fiber breakage.
