SERIES

Integra-G

Next generation radio platform

Next generation radio platform specifically tailored for
dense urban deployment


buy now

next generation

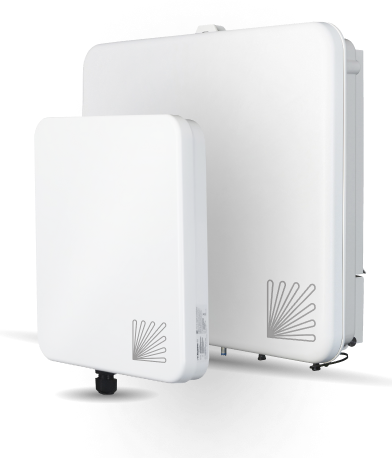

All-outdoor microwave
radio product

Integra-G is an unbelievably light, energy-efficient carrier-grade
system that exemplifies an outstanding return on innovative
engineering - know-how and high competence in radio electronics
and materials science that translates into a lower total cost of
ownership, as well as less time spent on the installation site, and
better reliability of the link even in densely served areas.

Up to 1Gbps throughput

With header compression in 1+0 configuration or 2+0*.

Easier handling & saving on shipping cost

All-Outdoor radio (incl. modem, Ethernet network
processor, PoE splitter and surge arrestor) in a
single-unit compact design.

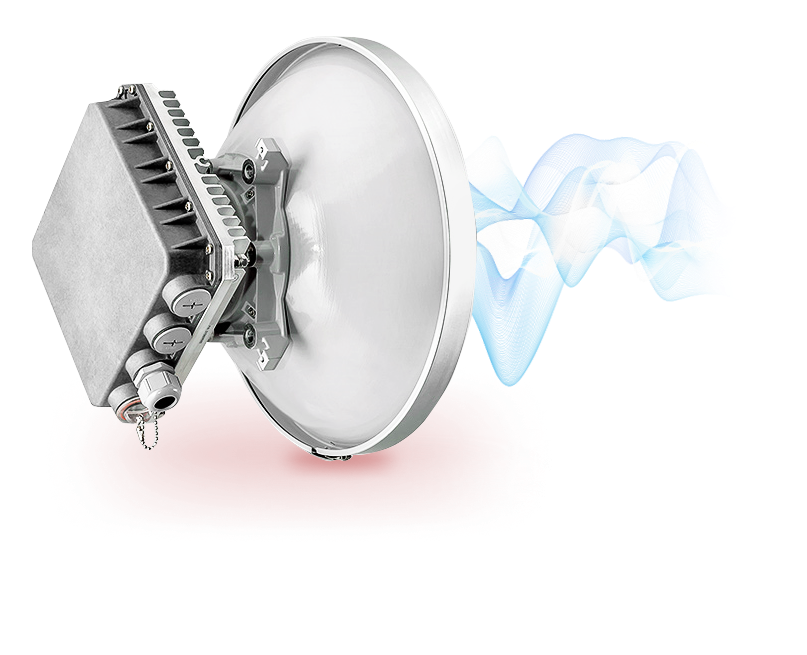

Fast installation

Direct radio and antenna integration
allows to save time usually spent on radio
to antenna assembly and hermetization.

Scalable channel bandwidth

From 3.5MHz up to 60MHz in single hardware design. Integra is the most universal radio fit for variety of applications – from last-mile to backbone connectivity.

Better link performance

Makes it possible to use smaller size antenna on
existing link or to cover longer distances due to
better system gain @ 256 QAM. With optional ETSI Class 4 antennas Integra is perfect radio to be deployed in dense microwave environment.

Key Characteristics

INTEGRA-G
Capacityup to 1 Gbps with HC
up to 472 Mbps at 56 MHz 2048 QAM
up to 491 Mbps at 60 MHz 2048 QAM
Frequency bands6, 7, 8, 11, 13, 15, 17, 18, 23, 24, 25, 26, 28, 38 GHz and more*
Max Modulation2048QAM with hitless ACM
Channel Bandwidth
ETSI ETSI
from 3.5 MHz up to 56 MHz from 5 MHz up to 60 MHz
Configurations 1+0, 2+0 link bonding, 1+1 HSB
Gigabit Ethernet1xRJ-45, 2xSFP
ManagementIn-band, SNMP v1/2c/3, SSH, Telnet, HTTPS, Serial, RADIUS, Network Time Protocol
AntennaExternal antenna (default)*
Form factor280 x 437 x 100 mm / 11.02” x 17.2” x 3.9” (6-13 GHz)
235 x 250 x 72 mm / 9.26” x 9.85” x 2.84” (15-38 GHz)
Temperature range-33 ... +55 °C / -28 … +130 °F
