Integra-W
Next generation radio platform
Next generation radio platform specifically tailored for
dense urban deployment
buy now
next generation
All-outdoor microwave
radio product

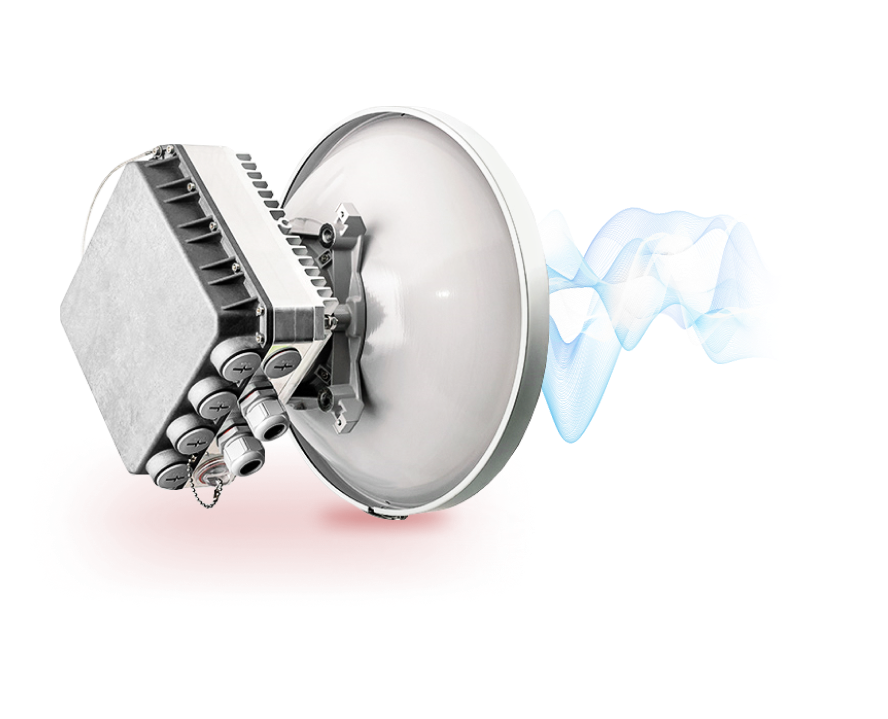

Integra-W is one of SAF Tehnika’s most innovative radio systems designed specifically for wideband applications. Integra-W supports channel bandwidths of up to 112 MHz and modulations up to 1024QAM for network capacity upgrades of up to 883Mbps per full-duplex radio link. Integra-W provides the best industrial-grade all-outdoor experience. This All-Outdoor radio contains a radio, modem and PoE splitter with a surge arrestor all in one box, which is perfect for shelter-free installation. Carefully selected materials for best corrosion resistance and simplified installation makes it a top choice for various network backbone applications. High performance predistortion algorithm introduced in Integra-W enables high Tx power, which is critical for wide-bandwidth and high modulation radio links. Integra-W is one of the most reliable and durable radios on the market.
900 Mbps backbone link
Long distance 900 Mbps backbone link
with two radio links in 80MHz at 256QAM
with a system gain as high as 87 dBm.
High performance pre-distortion
High performance pre-distortion algorithm enables high Tx power performance.
Wideband channel
up to 112 MHz
Better link performance
High Tx power and an advanced pre-
distortion algorithm allow for long distance
links. Superb for extending a Fiber Optics

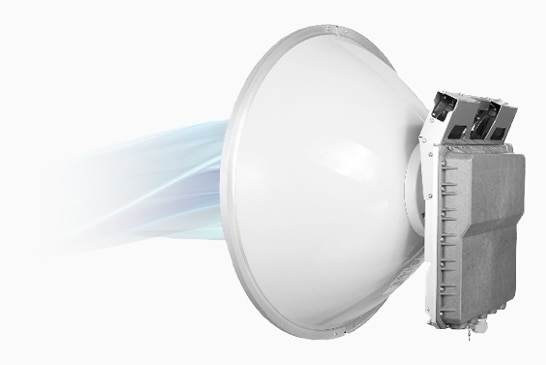

network over high capacity radio. Integra WS
can reach up to 122km with a 99.995%
availability rate. Distance varies due to
environment and capacity settings.
The highest reliability
High reliability innovative materials for the
best corrosion resistance, EMC isolation
and a great heat dissipation system result
in the radio supporting a wide temperature
range. The best possible lightning
protection - no risk of damaging the data
transmission equipment over data cable.
All-outdoor
All-outdoor system consists of a radio,
modem and PoE splitter with a surge
arrestor in a single HW design which can
be directly mounted to the antenna,
allowing for shelter-free installations.
Key Characteristics
| INTEGRA-G | |
|---|---|

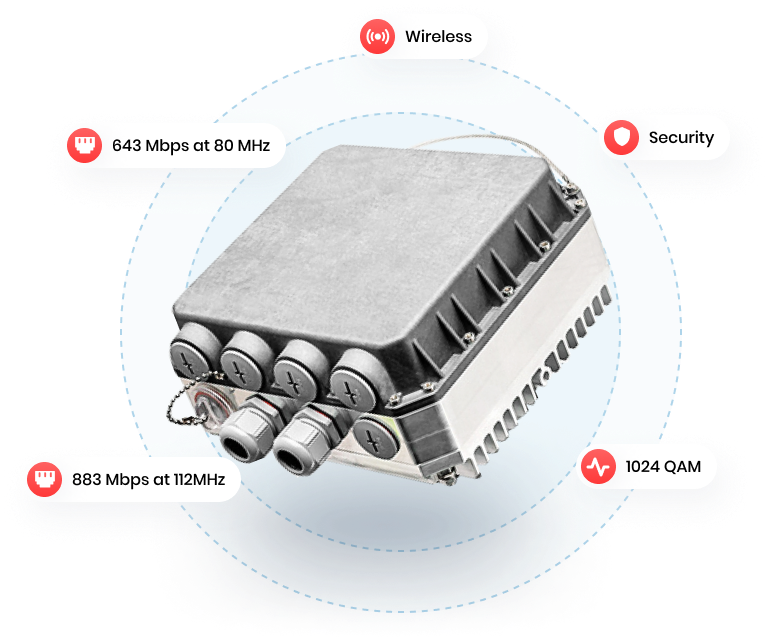

| Capacity | 883 Mbps at 112MHz 1024 QAM 643 Mbps at 80 MHz 1024 QAM |
| Frequency bands | 6, 7, 8, 11, 13, 15, 17, 18, 23, 24, 25, 26, 28, 38 GHz and more* |
| Max Modulation | 1024QAM with hitless ACM |
| Channel Bandwidth ETSI FCC | From 56 MHz up to 112 MHz From 40 MHz up to 80 MHz |
| Configurations | 1+0 |
| Gigabit Ethernet | 2xRJ-45, 1xSFP |
| Management | Out-of-band, In-band, SNMP v1/2c/3, SSH, Telnet, HTTPS, Serial, RADIUS, Network Time Protocol |
| Antenna | External antenna (default)* |
| Form factor | 280 x 437 x 100 mm / 11.02” x 17.2” x 3.9” (6-13 GHz) 235 x 250 x 72 mm / 9.26” x 9.85” x 2.84” (15-38 GHz) 235 x 250 x 111 mm / 9.26” x 9.85” x 4.37” (17/24 GHz) |
| Temperature range | -33 ... +55 °C / -28 … +130 °F |
