Perfect solution
Industrial applications where fiber is not available

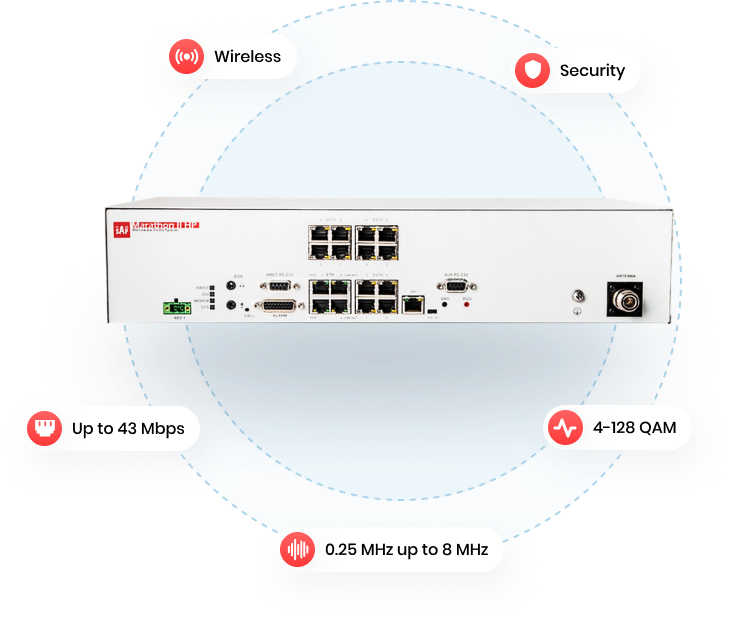

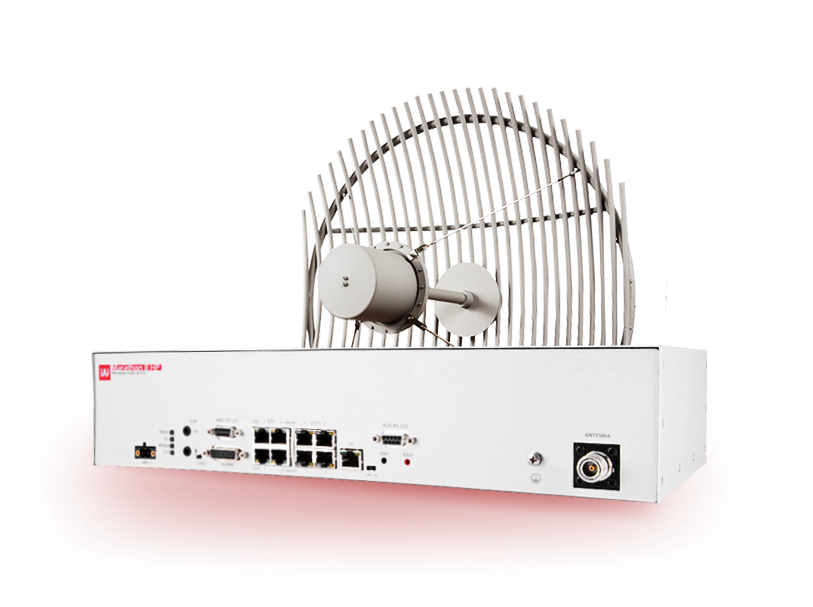

CFIP Marathon 300 MHz / 1.4 GHz point-to-point long-haul
microwave system is the perfect solution for industrial
applications where fiber is not available. Primarily designed for
remote and rural areas Marathon Full Indoor Unit can establish a
link in adverse weather conditions and over long distances,
frequently exceeding 100 km. SAF Tehnika Marathon solution is
particularly recommended for utility (electricity, water), oil & gas,
public safety, and transport companies who are looking for
reliable data & voice transmission.
Propagation advantage utilization
Marathon Full Indoor Unit can establish a
link in adverse weather conditions and near
non-line-of-sight situations. It is perfectly
suitable for long distance links in
mountainous areas and over-water paths.
Advanced ethernet functionality
Built-in managed Gigabit Ethernet switch that
supports QoS, up to 4093 VLANs, STP allows
Marathon II to be used in secure and self-
healing network topologies – an exceptional
feature for long-haul, low frequency full
indoor radio system.
High link performance
Powerful radio coupled with industry leading
modem that supports ACM, ATPC, up to
128QAM modulation with high system gain,
ensuring up to 43Mbps Ethernet and 12E1
capacity data transmission over long
distance (100km+)
Low power consumption
Modern components and latest
technologies applied in Marathon II make it
the most energy efficient low frequency
band radio currently on the market.
Easy & intuitive system management
User friendly WEB GUI with failure-safe
remote site configuration saves time
and decreases system configuration
and link maintenance costs.
Maintenance free design
Market-unique fanless cooling system & all
indoor architecture makes Marathon II highly
reliable and maintenance free digital
microwave radio with ideal surge protection.
Key Characteristics
| ETSI | FCC | ||
|---|---|---|---|
| Capacity | Up to 43 Mbps |  | - |
| Frequency bands | 300-400 MHz and 1350-1517 MHz | | |
| Modulation | 4QAM, 16QAM, 32QAM, 64QAM, 128QAM | | - |
| Channel Bandwidth | 0.25, 0.5, 1, 1.5, 1.75, 2, 3, 3.5, 4, 5, 7 and 8 MHz | | - |
| Interfaces | 1Gigabit Ethernet 4xRJ-45; 4 E1/T1 4xRJ-45; 2x V.24/V.28 DB 25 (optional) | | - |
| Traffic | Ethernet + E1/T1; V.24/V.28 Serial (optional) | | |
| Form factor | IDU 1U rack | (88x482x230 mm); 3.8 kg | (1.77x16.92x9.44 inch); 8.38 lbs |
| Power consumption | Up to 30W | | - |
