Modern Low Frequency
Microwave Radio System for Industrial Applications

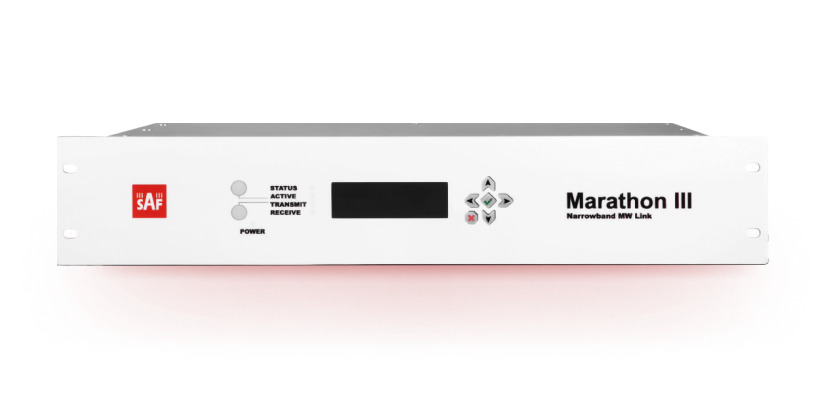

Marathon III 900 MHz point-to-point long-haul microwave system
is designed for remote and rural areas, providing reliable data and
voice transmission even in adverse weather and over long
distances. The full indoor unit establishes a strong link, making it
ideal for utility (electricity, water), oil & gas, public safety, and
transport companies. Don't let a lack of fiber hold you back -
choose SAF Tehnika's Marathon III solution today
Propagation advantage utilization
The Marathon III Full Indoor Unit can establish a link in adverse weather and near non-line-of-sight situations. It is perfectly suitable for long-distance links in mountainous areas & over-water paths.
Easy & intuitive system management
A user-friendly WEB GUI with fail-safe remote
site configuration saves time & decreases
system configuration & link maintenance costs

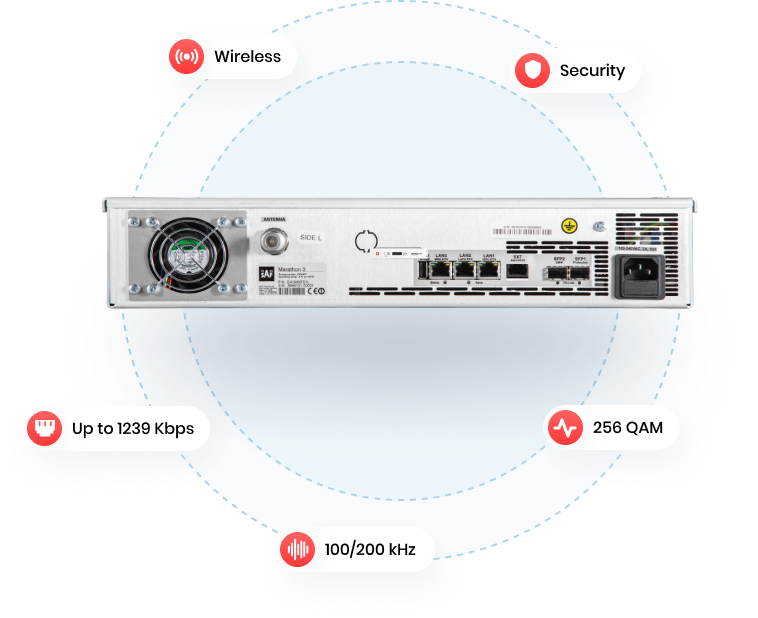

Advanced ethernet functionality
With a built-in managed Gigabit Ethernet
switch that supports QoS, up to 100 VLANs, STP
protection, Marathon III can be used in secure &
self-healing network topologies, making it an
exceptional feature for a long-haul, low-
frequency full indoor radio system
High link performance
Our powerful radio, coupled with an industry
-leading modem that supports ACM, up to
256QAM modulation with high system gain,
ensures up to 1239 Kbps Ethernet and 4xASI or
16E1/T1 extension port data transmission over a
long distance (over 100 km/62 mi).
Key Characteristics
| FCC | |
|---|---|
| Capacity | Up to 1239 Kbps |
| Frequency bands | 933-944 MHz |
| Max Modulation | QPSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM |
| Channel Bandwidth | 100/200 kHz |
| Interfaces | Gigabit Ethernet 3xRJ-45; 2x 1000BASE-X (SFP); Up to 16 E1/T1 16xRJ-45(optional); Up to 4 ASI 4xBNC(optional) |
| Traffic | Ethernet + E1/T1; V.24/V.28 Serial (optional) |
| Form factor | IDU 1U rack |
| Power consumption | Up to 30W |
