SERIES

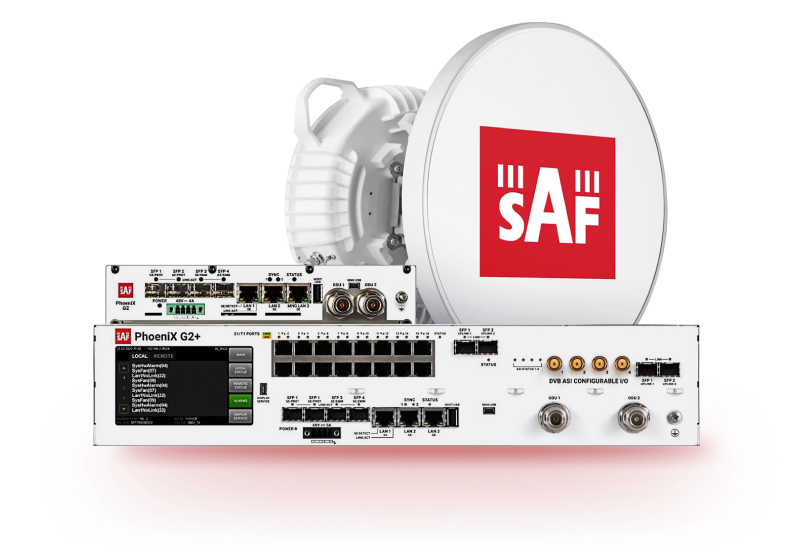

PhoeniX-G2
Latest split mount/full-indoor solution with XPIC support
Best in class transmit power in dual-core full-indoor
system for backbone deployment
buy now
Saf tehnika

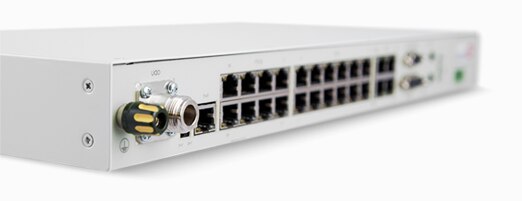

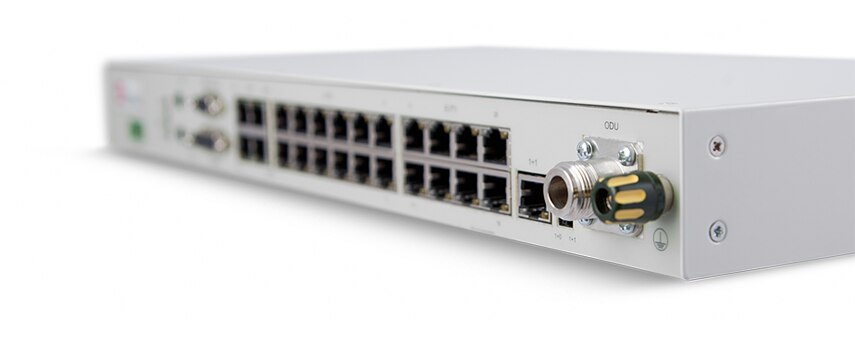

PhoeniX series split mount system
PhoeniX Series split mount system is designed to fit in a classic
telecom architecture with a radio located outdoors and a
sheltered indoor unit. Supporting channel bandwidths of up to 60
MHz, the PhoeniX Series offers capacities of up to 1 Gbps in 2+0
configurations
High capacity throughput
Market-proven technology supporting 1024 QAM modulation & 60 MHz channel bandwidth ensures a high throughput capacity of up to 452 Mbps per radio.
Excellent for network upgrade
Flexible TDM/IP architecture allows easy transition from TDM-only to hybrid or IP-only network using single highly adjustable PhoeniX Series device & upgrade with additional modules transporting up to 64xE1 or 16xASI streams.
Enhanced ethernet functionality
Built-in managed Gigabit Ethernet switch supports QoS, VLANs with QinQ, IEEE 1588v2, AES256-bit over-the-air encryption & other essential features which allow to setup and maintain highly customized end-user connectivity services.
Flexible network configuration
With a single IDU supporting either one or two ODUs, it is possible to use 1+0, 2+0 (with Layer 1 aggregation), 1+1 link protection in HSB/FD/SD, as well as 2+0 XPIC configurations without the need for a second indoor unit.
Key Characteristics
| PhoeniX G2 | PhoeniX G2+ | |
|---|---|---|
| Capacity | Up to 2.2 Gbps at 2x 112 MHz 4096QAM | up to 1 Gbps in 2+0 |
| Frequency bands | 4, 6, 11, 13 GHz | 2, 4, 6, 7, 8, 11, 13, 15, 18, 23 and 38GHz |
| Max Modulation | 4096 QAM | 1024QAM |
| Channel Bandwidth ETSI FCC | from 3.5 MHz up to 56 MHz from 5 MHz up to 60 MHz* | from 3.5 MHz up to 56 MHz from 5 MHz up to 60 MHz* |
| Form factor | 1/2 width 1U (44 x 220 x 240 mm) / (1.73 x 8.66x 9.45 in); 2.2 kg / 4.9 lb | 19” 2U (90 x 430 x 265 mm) / (3.54 x 16.93 x 10.43 in) |
| Power Consumption | IDU only:< 30W | IDU only w/o ASI or E1/T1: < 27W, 4xASI: < 10W, 16xE1 / T1: |
| PhoeniX G2 ODU | PhoeniX G2 IRFU | |
|---|---|---|
| Antenna | N-Type or flange | A) N-Type or flange B) SMA Tx and Rx ports5 |
| IF to IDU | N-Type | SMA |
| RSSI | BNC | 2-port for multi-meter |
| Power | --- (over IF port) | 2-pin power port (alternative to IF port) |
| Form factor | 288x288x80mm; 3.5 kg / 11.34x11.34x3.15 inch; 7.72 lbs | 19” 2U rack 90x430x260mm; 5.8 kg / 19” 2U rack 3.54x16.93x10.24 inch; 12.79 lbs |
| Power Consumption | 13-27W Standard radio power version; 21-39W High radio power version; 39-55W Very high radio power version | 13-27W Standard radio power version; 21-39W High radio power version; 39-55W Very high radio power version |
