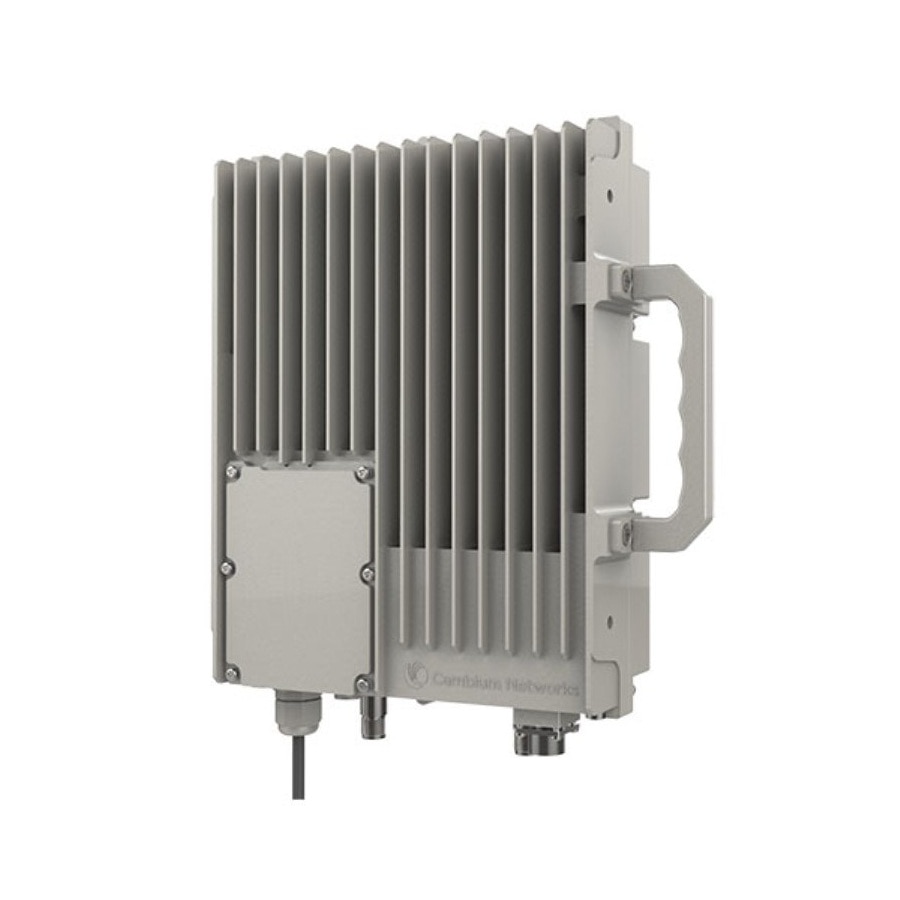

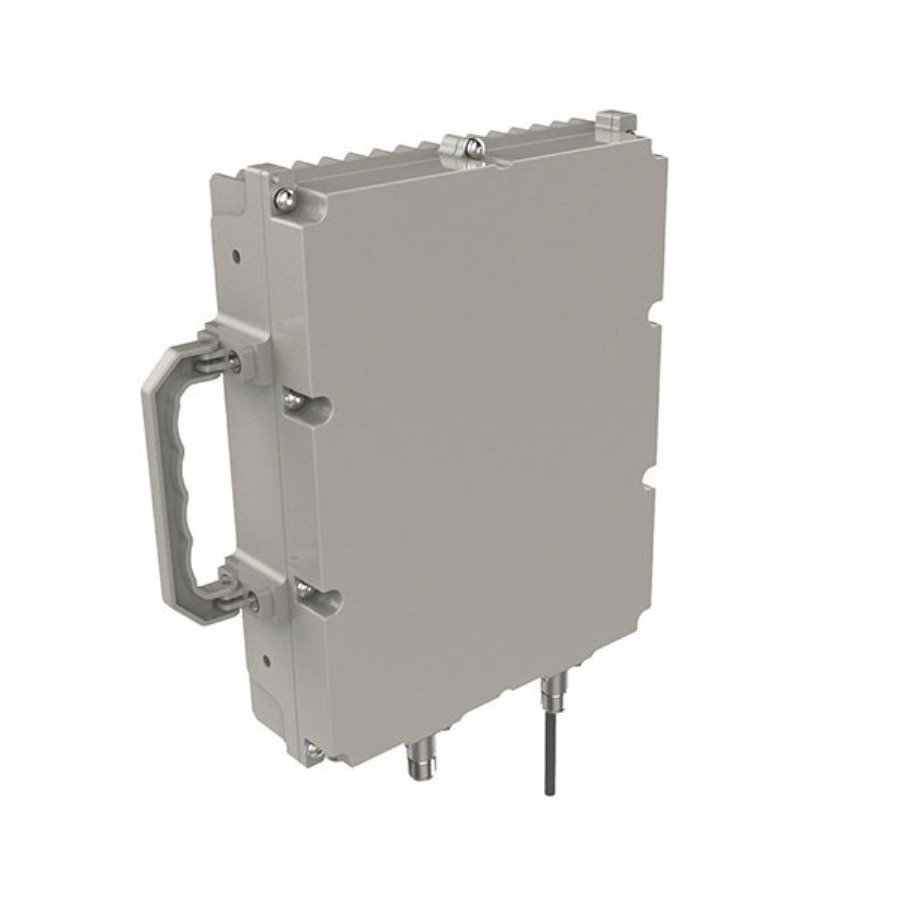

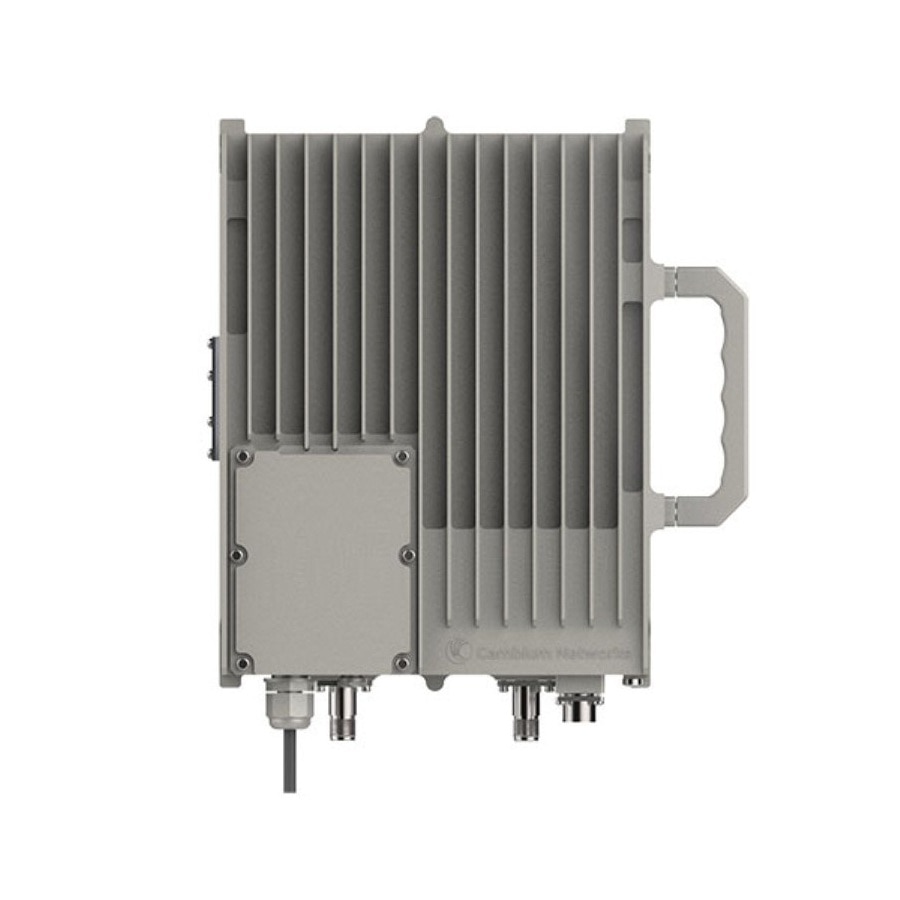

Cambium cnRanger Palisade Remote Radio Head 2.5GHz Band 41 LTE

  • SKU: 2LTE-RRH-220
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped directly from other locations when out of stock. Email me when this product is in stock!
US$‎3,499.00

Specifications 2LTE-RRH-220

INTERFACE
Physical Layer 2x2 MIMO OFDMA, SC-FDMA
BBU Interface SFP+ / CPRI v7.0 Fiber cable: N000000L131A, pre-terminated, 2m cable
DC Power Power cable N000000L130A, two conductor plus ground
PHYSICAL
Antenna Connection 2 N-Type
Surge Suppression EN61000-4-5: 1.2us/50us, 500 V voltage waveform
Environmental IP67
Temperature / Humidity -40°C to +55°C (-40°F to +131°F), 5 to 95% non-condensing
Weight 6 kg (13.2 lbs)
Dimensions (HxWxD) (including mount) 10 3/4" (H) x 3 3/16" (H) x 12 1/2" (D) (273 mm x 81 mm x 318 mm)
Wind Survival 200 Km/Hr
Optional Mounting Kit 1.5" to 3.0" (38 to 76 mm) pole N000000L128A
Power Consumption 55 W nominal, 72 W peak
Recommended Power Supply P/N: N000000L129A - XP Power 120 W PSU
Input Voltage ± 48V DC (36V to 60V)
SPECTRUM
Frequency Range 2300 - 2700 MHz, Bands 38, 40, 41
Channel Width 5 MHZ*, 10 MHz, 15 MHz*, 20 MHz
LINK BUDGET
Transmit Power Range 42 dB dynamic range (1 dB step)
Maximum Transmit Power 33 dBm per chain, 36 dBm combined
CERTIFICATIONS
FCC ID Z8H89FT0045 **
ETSI EN 301 908-1 v11.1.1 EN 50385 / EN 62311 Draft EN 301 489-50 v2.1.0

Cambium Networks 2LTE-RRH-220

cnRanger Palisade Remote Radio Head 2.5GHz Band 41 LTE

Cambium Networks cnRanger Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.


Features:

  • High Power Remote Radio Head (RRH) works through dense foliage where EIRP-limited 5 GHz is not an option.
  • Fully managed and controlled by Baseband Unit (BBU)
  • 2 LTE carrier support* (pending FCC Approval)
