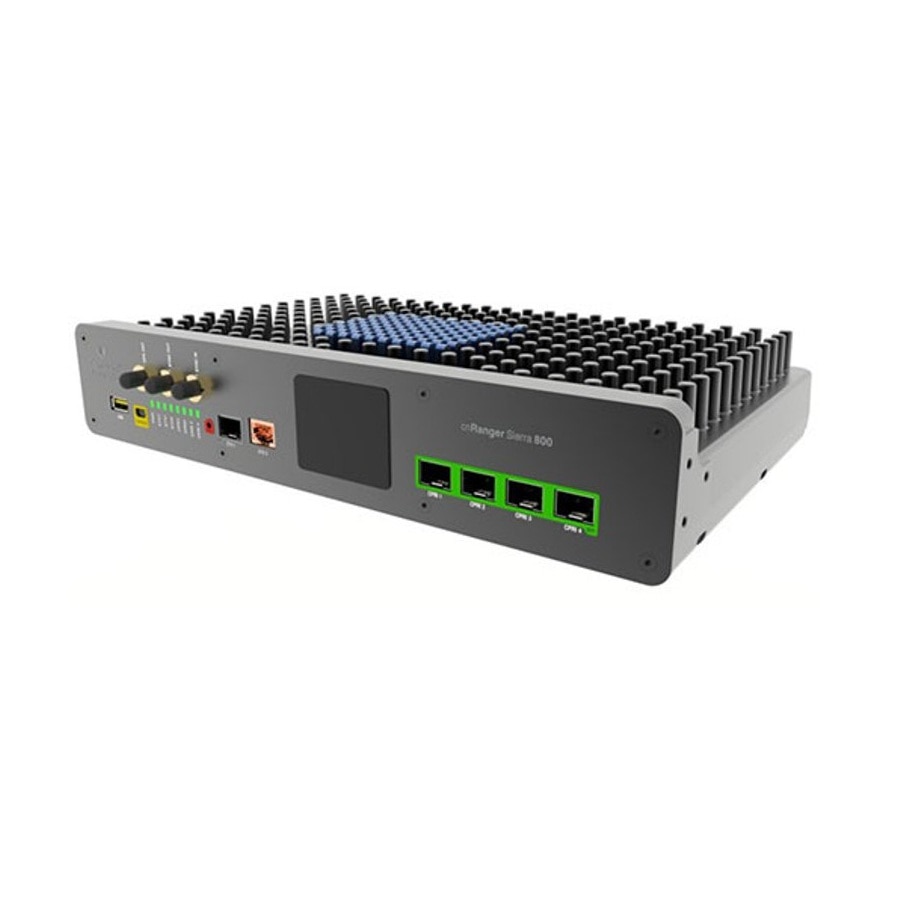

Cambium cnRanger Sierra 800 Baseband Unit
US$8,688.57
- SKU: LTE-BBU-800
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks LTE-BBU-800
cnRanger Sierra 800 2.5GHz Baseband Unit Band 41 LTE
The cnRanger™ Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.
Features:
- Simplified LTE with a Virtualized, Embedded core
- LTE Optimized for Fixed Wireless Broadband
- Zero touch configuration automatically recognizes and provisions elements on contact while prohibiting unauthorized devices
- Avoid cost and complexity of the Evolved Packet Core (EPC). Eliminate dependency on cloud communication, provision infrastructure in minutes
Specifications
Specifications LTE-BBU-800
| INTERFACE | |
| Model Name | Sierra 800 |
| Model Numbers | LTE-BBU-800 |
| RRH Interface | Four SFP+ / CPRI v7.0 |
| Ethernet Interface (Copper) | 10/100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant |
| Ethernet Interface (Optical) | 1000Base-SX |
| Channel Spacing | Configurable on 1 MHz increments |
| Frequency Range | 2300 - 2700 MHz, Bands 38, 40, 41, software upgradeable to any TD-LTE band |
| Channel Width | 5 MHz, 10Hz, 15 MHz, 20 MHz |
| Console Interface | Mini USB Seriel |
| Display Interface | 1.77 inch LCD Display |
| Protocols Used | IPv4, UDP, TCP, IPv4, ICMP |
| Network Management | HTTP, HTTPS, SSH, cnMaestro |
| MTU | 1500 bytes |
| Encryption | AES-128 and SNOW 3G |
| Performance | |
| Subscriber per Sector | 64(software upgradeable to 256) |
| PPS | TBD |
| HARQ | Yes |
| Maximum Deployment Range | 32 km (20 mi) |
| Latency | <30 ms typical |
| Throughput | Config 1: 68 Mbps DL / 20 Mbps UL Config 3: 95 Mbps DL/13 Mbps UL |
| GPS Synchronization | On-board GPS and GPS antenna via SMA connector, 1PPS Synch IN via SMA connector, 1PPS SYNC OUT via SMA connector |
| Quality of Service | QCI; DSCP classification |
| Physical | |
| Surge Suppression | Ethernet EN61000-4-5: 8us/20us, 2kW voltage waveform DC Power Port EN61000-4-5: 10us/700us, 2kV vK voltage waveform |
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 5-95% non-condensing |
| Weight | 3.2Kg (7.1 lbs) |
| Dimensions (including mount) | (WxHxD) 13" (W) x 2 3/8" (H) x 9" (D) (330 mm x 60 mm x 229 mm) |
| Power Consumption | 90 W nominal, 120 W peak |
| Recommended Power Supply | P/N N000000L129A - SP Power 120 W PSU |
| Input Voltage | ± 48V DC (36V to 60V) |
| Other | |
| LTE Standard for EPC and eNB | 3GPP Release 10, software upgradeable through release 13* |
| LTE Configurations Supported | 1 and 3 |
| Evolved Packet Core | Fully embedded, virtualized EPC |
| Layer 2 Support | Bridge Mode |
| Carrier Aggregation | 2 Component Carrier |
| Frequency Re-Use | N=1 |
