Cambium cnRanger Tyndall 2.5GHz CAT4 14dBi SM Band 41 LTE (US Version)
US$238.00
- SKU: 2LTE-SM-101-US
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks 2LTE-SM-101-US (US Version)

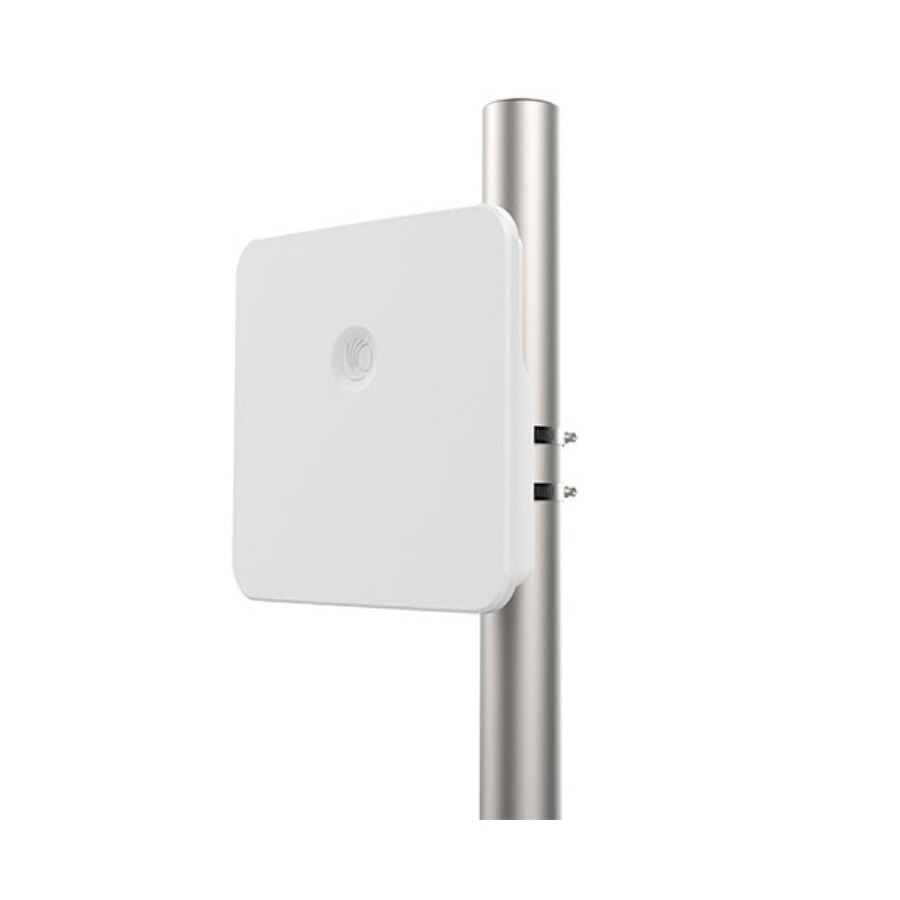

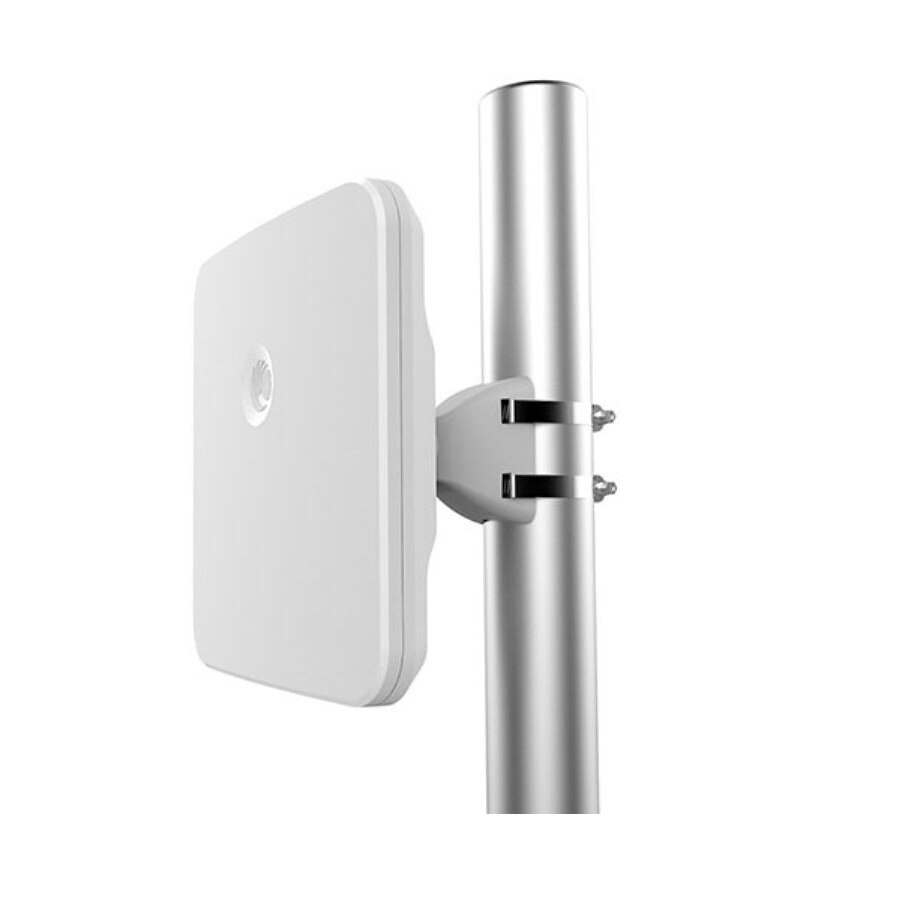

cnRanger Tyndall 2.5GHz CAT4 14dBi Subscriber Module Band 41 LTE
The Cambium cnRanger™ Tyndall Subscriber Module Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.
Features:
- LTE Optimized for Fixed Wireless Broadband
- High power transmitter provides enhanced uplink
- Reliable yet cost effective subscriber for cnRanger system
- Easy installation, with “Point and Go” configuration and provisioning
Specifications
Specifications 2LTE-SM-101-US
| MAC (Media Access Control) Layer | TDD-LTE Advanced Release 10 |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP |
| Network Management | HTTP, HTTPS, SSH, cnMaestro |
| MTU | 1500 |
| Performance | |
| PPS | TBD |
| HARQ | Yes |
| Ultimate Sensitivity | -98 dBm |
| Spectrum | |
| Channel Spacing | 1MHz as specified in the BBU |
| Frequency Range | LTE Band 38: 2570 - 2620 MHz, LTE Band 40: 2300 - 2400 MHz, LTE Band 41: 2496 - 2690 MHz |
| Channel Width | 5 MHz*, 10 MHz, 15 MHz*, 20 MHz |
| Security | |
| Authentication | SIM authentication via BBU, cnMaestro or Web GUI provisions BBU with SIM information |
| Link Budget | |
| Transmit Power Range | 66 dB dynamic range |
| Maximum Transmit Power | 26dBm |
| Physical | |
| Surge Suppression | EN61000-4-5: 1.2us/50us, 500 V voltage waveform |
| Environmental | IP 55 |
| Temperature/Humidity | -40°C to +60°C (-40°F to +140°F), 5-95% non-condensing |
| Weight (w/included mount) | 4.4 lbs (2 kgs) |
| Dimensions (HxWxD) | 10.2" (H) x 10.2" (W) x 3.6" (D) (260 mm x 260 mm x 92 mm) |
| Wind Survival | 190 Km/Hr |

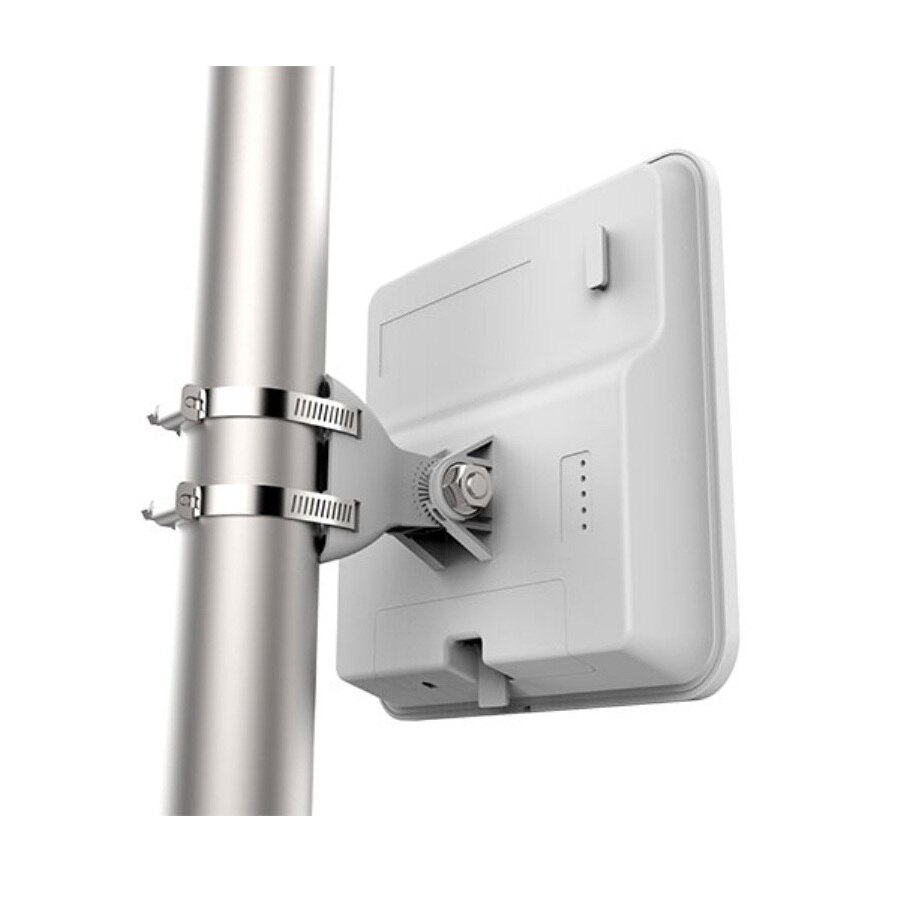

| Pole Diameter Range (w/included mount) | 1.5" to 3.0" (38 to 76 mm) |
| Power Consumption | 7.6 W |
| Power Supply | 30 V PoE |
| Encryption | AES-128 and SNOW 3G |
| Antenna | |
| Integrated Antenna Peak Gain | 15 dBi |
| 3 dB Beamwidth - Azimuth | 30 degrees |
| 3 dB Beamwidth - Elevation | 30 degrees |
| Polarization | Slant, +/- 45 Degrees |
| Front-to-Back Isolation | >25 dB |
| Cross Polarization | >23dB |
| Features | |
| LTE Standard for EPC and eNB | 3GPP Release 10, category 4 |
| Default Configuration Reset | Supported |
