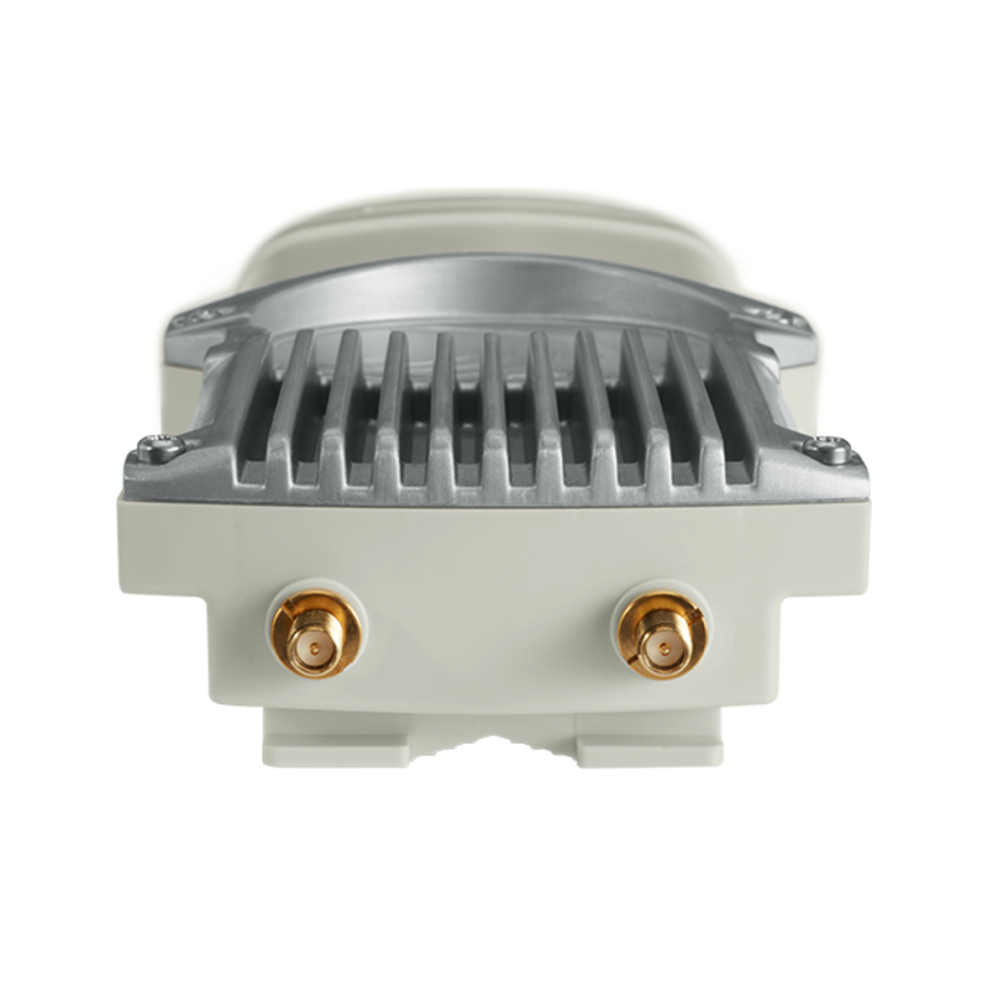

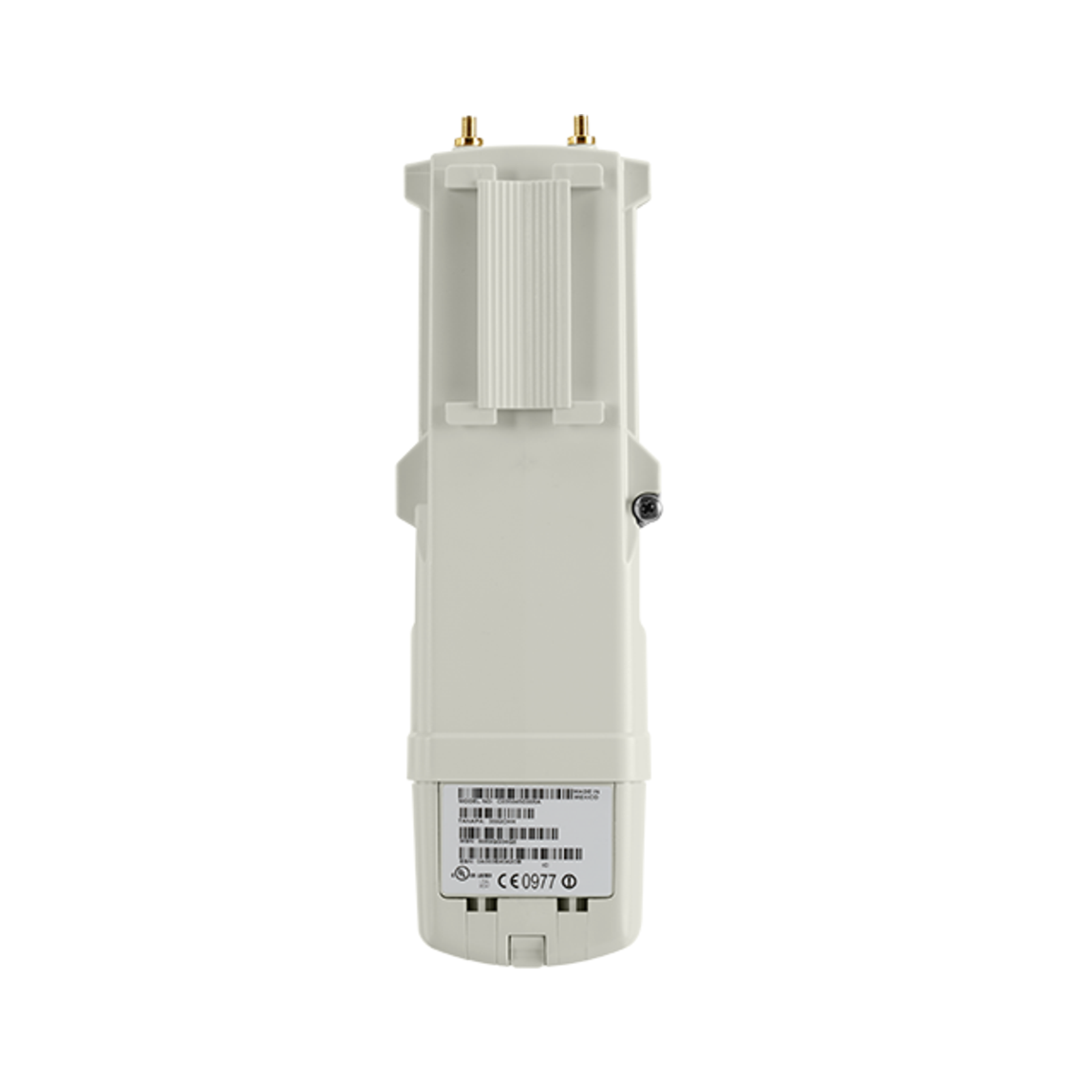

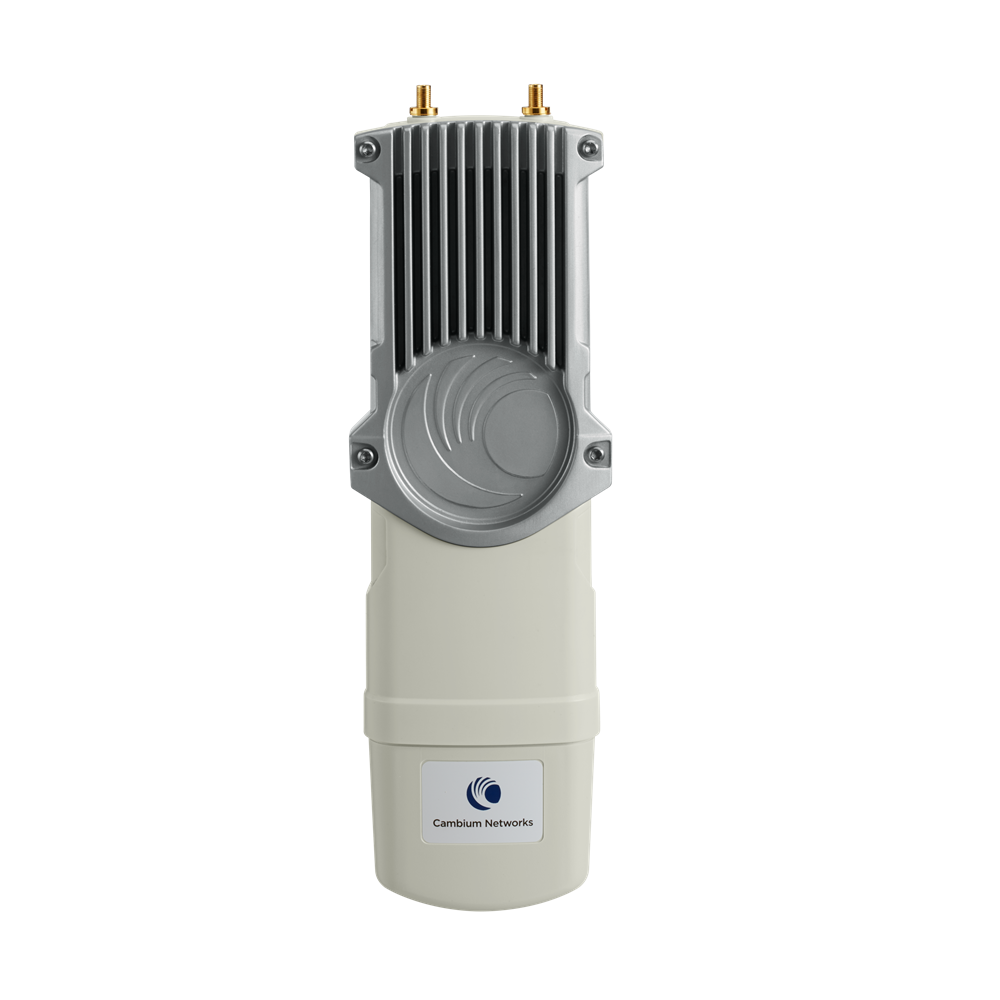

Cambium PMP 450i 900MHz Conn. Subscriber Module

  • SKU: C009045C001A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: 12 In Stock    (updated live)
    12 In stock at College Station

(click to select)

Open Box Item(s)

Cambium PMP 450i 900MHz Conn. Subscriber Module

Cambium Networks PMP 450 is the premiere outdoor fixed wireless platform providing quality, performance, unmatched spectral efficiency and unrivaled scalability.

PMP450i 900 MHz allows for deeper frequency propagation to suit the needs of rural broadband deployments, SCADA and sensor data backhaul and even video surveillance applications.


  • Deeper frequency propagation for Cambium Networks PMP 450 platform
  • Provides a reliable link for near and non-line-of-site (NLOS) deployments
  • 100 Mbps subscriber capacity in a 20 MHz channel
  • Access point is now 802.3at compatible and includes an AUX port, while the Subscriber can re-use the 30 VDC power supplies common to the PMP 100 platform

Shipping Information:

Dimensions (W x H x L)4.33cm X 3.15cm X 12.99cm
Weight1.1 lbs

Specifications C009045C001A

Frequency902 - 928MHz
Channel SpacingConfigure on 0.5MHz increments
Channel Width5, 7, 10, or 20MHz
Physical Layer2x2 MiMO OFDM
Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant (SM is 10/100BaseT only)
ProtocolsIPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
Network ManagementHTTP, HTTPS, Telnet, FTP, SNMP v3
VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Subscriber per Sectorup to 238
Max Range120mi (190km)
Antenna Connection50ohm, SMA
Transmit Power Range22dB dynamic range (to EIRP limit by region) (1dB step)
Maximum Transmit Power25dBm
Surge SupressionEN61000-4-5: 1.2us/50us, 500 V voltage waveform
Operating Temperature-40 to 140deg F (-40 to 60deg C)
Power Consumption12W typical, 15W max
Input Voltage20 - 32V DC
Encryption56-bit DES, FIPS-197 128-bit AES
