Cambium 900MHz 12 dBi Yagi Antenna, Dual Slant
- SKU: N009045D003A
$110.45
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information

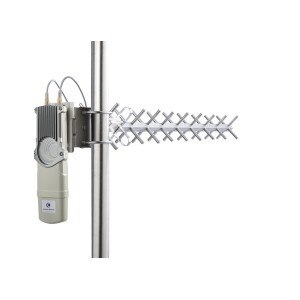

Cambium 900MHz 12 dBi Yagi Antenna, Dual Slant
This Dual slant, ±45° directional yagi antenna is compatible with PMP 450i 900MHz

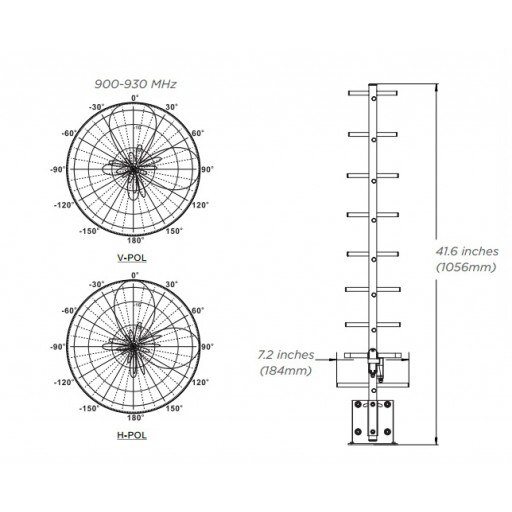

Specifications
Specifications N009045D003A
| Frequency | 900-930MHz |
| Gain | 12 dBi |
| VSWR | <1.7:1 |
| Polarization | Dual slant, +/-45deg |
| Horizontal Beamwidth | 45deg |
| Nominal Impedance | 38deg |
| Front-to-back Ratio | 50ohms |
| Isolation | >16dB |
| Max Power Input | 50W |
| Lightning Protection | DC Ground |
| Connector | 2 x RP-SMA Male |
