Cambium ePMP 2.4 GHz High Gain Radio

(0)No Reviews yet
  • SKU: C024900C161A
  • Manufacturer: Cambium Networks
  • Data Sheet:Download

Out of Stock

Call for Availability

Product Information

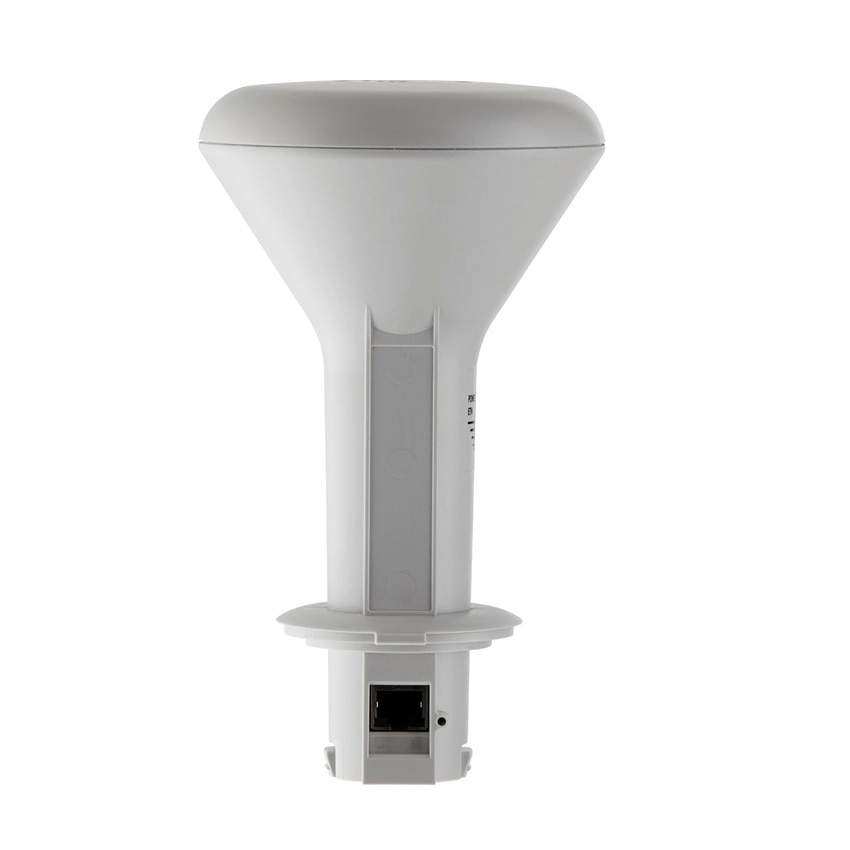

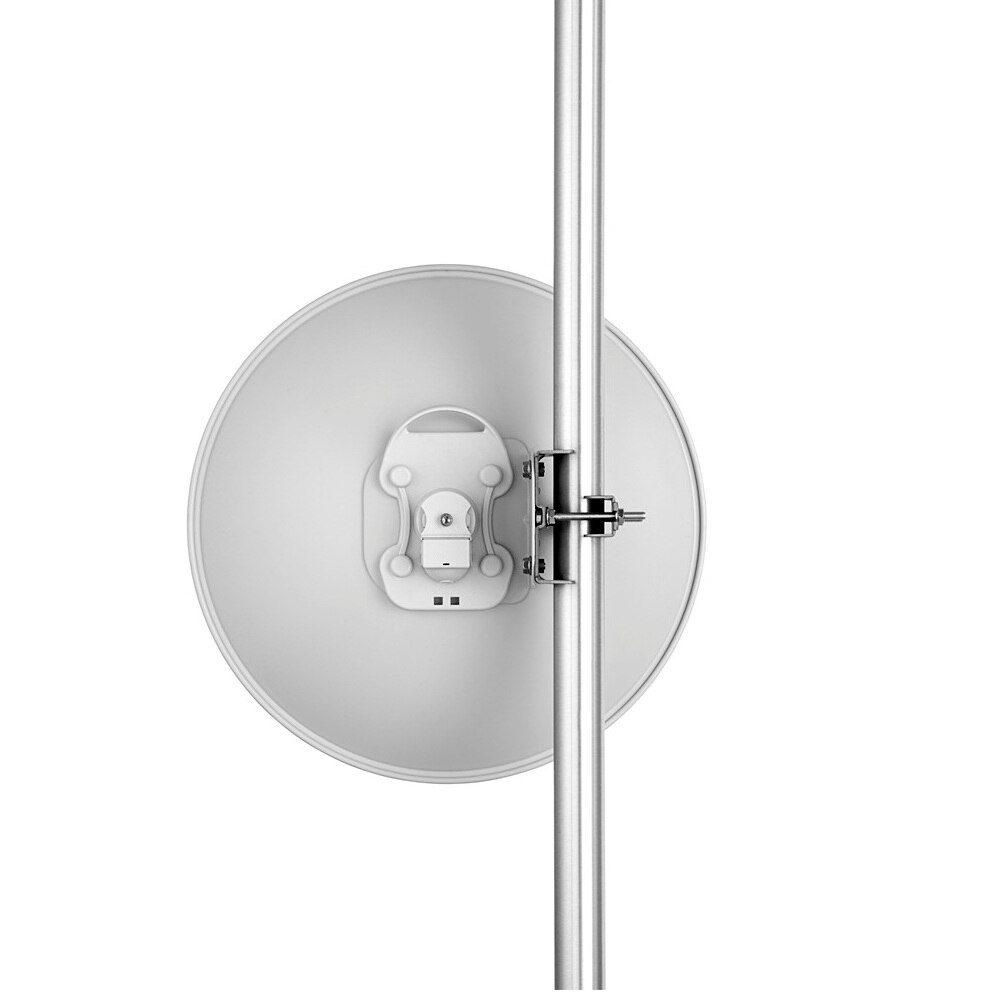

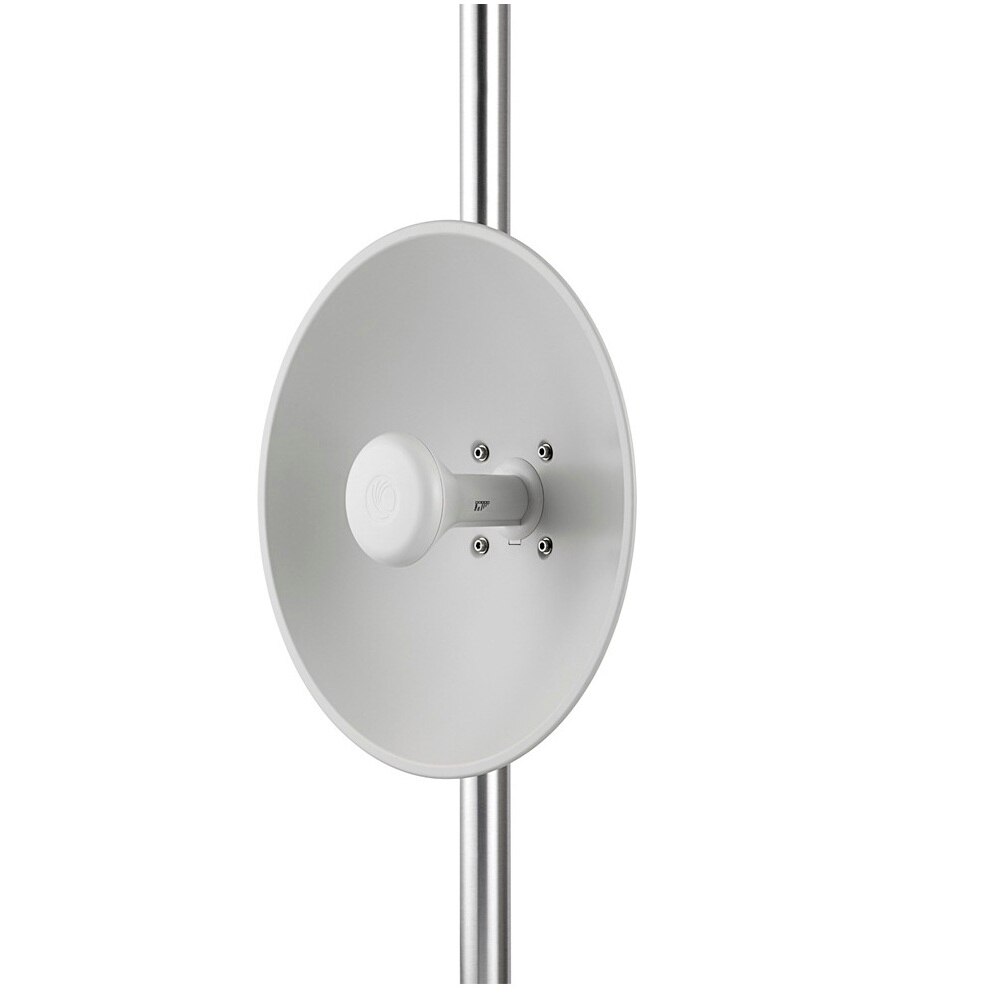

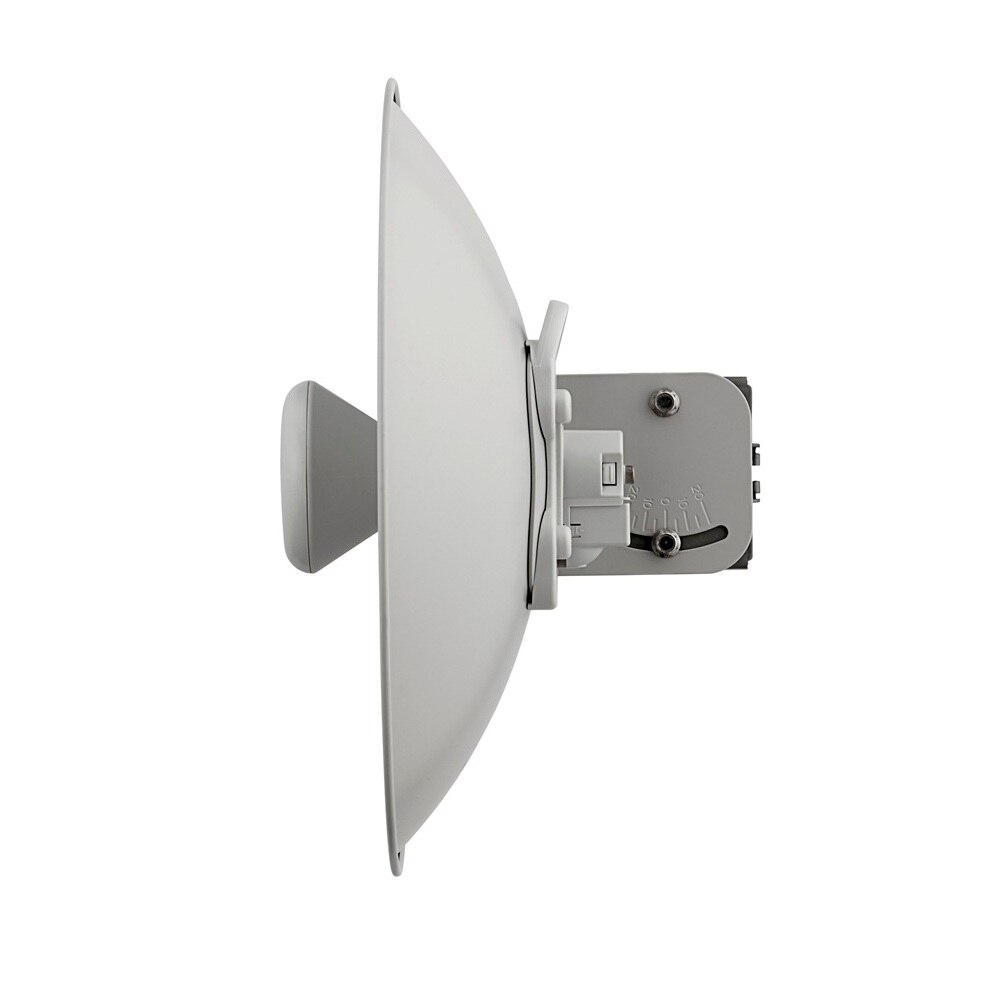

Cambium Networks C024900C161A ePMP 2.4 GHz High Gain Radio

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.


Features:

  • Cambium Networks’ ePMP Force 200 is designed to operate in high interference environments and provides superior throughput of over 200 Mbps of real user data.
  • Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.
  • QoS management offers an outstanding quality for triple play services – VoIP, video and data and provides three levels of traffic priority.
  • Long deployment range is enabled by the 17 dBi antenna combined with 30 dBm of transmit power.
  • This platform can be configured as a Subscriber Module or a high gain PTP radio

Specifications

Specifications C024900C161A

Frequency Range2402-2472MHz
Gain17dBi
Physical Layer2x2 MiMO/OFDM
Ethernet Interfaced10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
ProtocolsUsed IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network ManagementHTTPs, SNMPv2c, SSH
VLAN802.1Q with 802.1p priority
Nominal Receive Sensitivity (w/FEC)@200MHz Channel MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC)@40MHz Channel MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive)MCS0 (BPSK) to MCS15 (64QAM 5/6)
Transmit Power Range-15 to 30dBm
Surge Suppression1J
EnvironmentalIP55
Encryption128-bit AES
Temperature-22 to 140deg F (-30 to 60deg C)
Wind Survival90mph (145kmh)
Power Consumption10W max, 5W
Input Voltage10 to 30V
