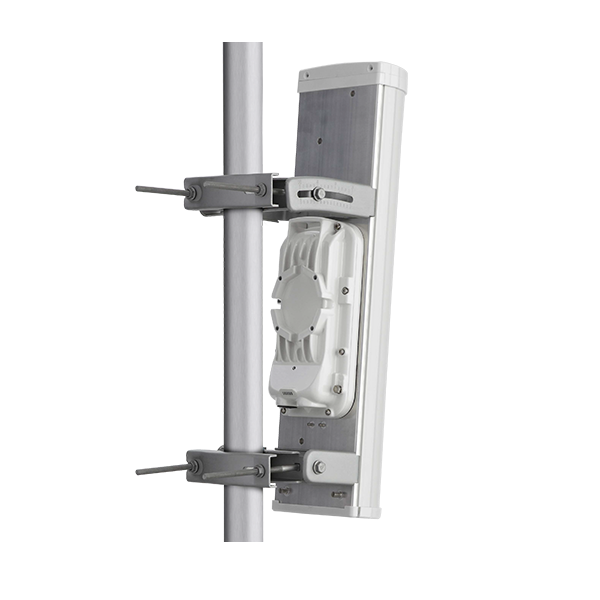

Cambium 5 GHz PMP 450i Integrated Access Point, 90° FCC
US$3,877.65
- SKU: C050045A006C
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C050045A006C
5 GHz PMP 450i Integrated Access Point, 90° FCC
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Features:
- An ultra-wide band radio supports 4900 MHz to 5925 MHz with dynamic interference filtering, improved transmit power and better receive sensitivity.
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAXLOC certified models available for hazardous deployments.
- Dynamic Interference Filtering to provide industry leading noise isolation for improved performance
- Updated FPGA and SoC architecture triples the processing power compared to PMP 450
- Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.
- Option with new Integrated 90 degree sector antenna optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.
Specifications
Specifications C050045A006C
| Channel Spacing | Configurable on 2.5 MHz increments |
| Frequency Range | 4900 - 5925 MHz |
| Channel Width | 5 MHz, 10 MHz or 20 MHz |
| MAC Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | HTTP, HTTPS, Telnet, FTP, SNMP v3 |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Subscriber Per Sector | Up to 238 |
| ARQ | Yes |
| Maximum Deployment Range | Up to 40 miles (64 km) |
| Latency | 3-5 ms, typical |
| GPS Synchronization | Yes, via Autosync (CMM4) |
| Quality of Service | Diffserve QoS |
| Antenna Beam Width | 90° (3dB rolloff) sector for integrated (Dual polarity, H+V) |
| Antenna Gain | 18 dBi integrated 90° sector |
| Transmit Power Range | 40 dB dynamic range (to EIRP limit by region)(1 dB step) |
| Maximum Transmit Power | +27 dBm combined output |
| Mean Time Between Failure | > 40 Years |
| Environmental | IP67, IP66 |
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-95% non-condensing |
| Weight | Approx. 2.5 kg (5.5 lbs) |
| Wind Survival | 200 km/h (124 mi/h) |
| Dimensions (HxWxD) | 37.0 x 37.0 x 6.4 cm (14.5 x 14.5 x 3.2") |
| Power Consumption | 15 W typical, 25 W max, 55 W max with Aux port PoE out enabled |
| Input Voltage | 48-59 V DC, 802.3at compatible |
| Encryption | 56-bit DES, FIPS-197 1280bit AES |
