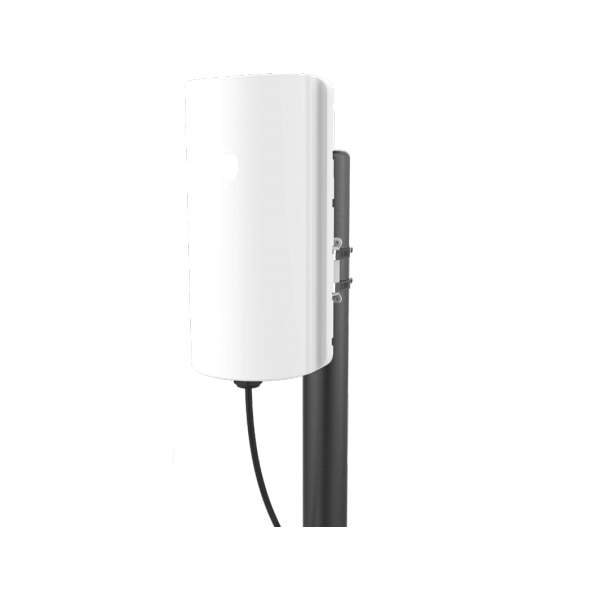

Cambium 5 GHz 450 MicroPoP Sector - 90 Degree - FCC
- SKU: C050045A207A
$1,139.04
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C050045A207A
PMP450 MicroPOP 5GHz Sector AP, Limited to 20 subscribers and 2-mile radius Integrated 13 dBi 90 degree Sector Antenna Access Point, FCC
The Cambium Networks 450 platform adds another tool to more completely connect hard-to-reach subscribers with the affordable MicroPOP Access Point.
Features:
- Ultra-wide band radios: 4.9 GHz to 5.925 GHz
- Capable of up to 300 Mbps aggregate in a 40 MHz channel
- Onboard GPS to provide synchronization with network
- Software-defined, purpose-built technology.
- Gigabit Ethernet Interface provides the maximum transfer rates to the device.
- Limited to 20 Subscribers and 2 miles range, but can be extended to 238 SMs and maximum range via license key.
- New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the original 450 hardware.
- Integrates seamlessly with existing 450 platform devices to extend coverage to obstructed or hard-to-reach areas, affordably.
- Centralized cloud management using cnMaestro.
- Features fully scheduled deterministic TDD, with low and consistent latency to perform under load.
Specifications
Specifications C050045A207A
| Channel Spacing | Configurable on 2.5 MHz increments |
| Frequency Range | 4900 - 5925 MHz |
| Channel Width | 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
| Interface | |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Security | |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License) |
| Performance | |
| ARQ | Yes |
| Subscribers Per Sector | Up to 20 (Optional license key available to allow up to 238) |
| Ultimate Sensitivity | -94 dBm |
| Maximum Deployment Range | Up to 3.2 km (2 mi) - Optional license key to allow up to 64 km (40 mi) |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, supported by embedded GPS module or Cambium Synch via PoE |
| Quality of Service | Diffserve QoS |
| Surge Suppression | EN 61000-4-5: 10x700us, 4Kv, EN 61000-4-2: ESD 30kV contact / 30kV air |
| Mean Time Between Failure | >40 Years |
| Environmental | IP67 |
| Temperature / Humidity | -40°C to 60°C (-40°F to 140°F), 0-100% non-condensing |
| Weight | 2 kg / 4.41 lbs (including mounting bracket) |
| Wind Survival | 200 kph (124 mph) |
| Dimensions (H x W x D) | 31 x 17 x 10 cm (12 x 6.7 x 3.7 in), mount standoff 11 cm (4.3 in) |
| Power Consumption | 9W typical, 12W peak |
| Input Voltage | 46-59V DC, 802.3af compatible |
| Physical | |
| Integrated Antenna Peak Gain | 13 dBi |
| 3 dB Beamwidth - Azimuth | 90º |
| 3 dB Beamwidth - Elevation | 10º |
| Polarization | Dual linear, H + V |
| Front-To-Back Isolation | >28 dB |
| Cross Polarization | 15 dB |
| Link Budget | |
| Transmit Power Range | 56 dB dynamic range (to EIRP limit by region) (1 dB step) |
| Maximum Transmit Power | +27 dBm (MIMO, combined V+H) (+22 dBm @ 256QAM) |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Certifications | |
| ISED Canada | 109W-0032 |
| FCC ID | Z8H89FT0032 |
| ETSI | EN 301 893 v2.1.1, EN 301 502 v2.1.1 |
