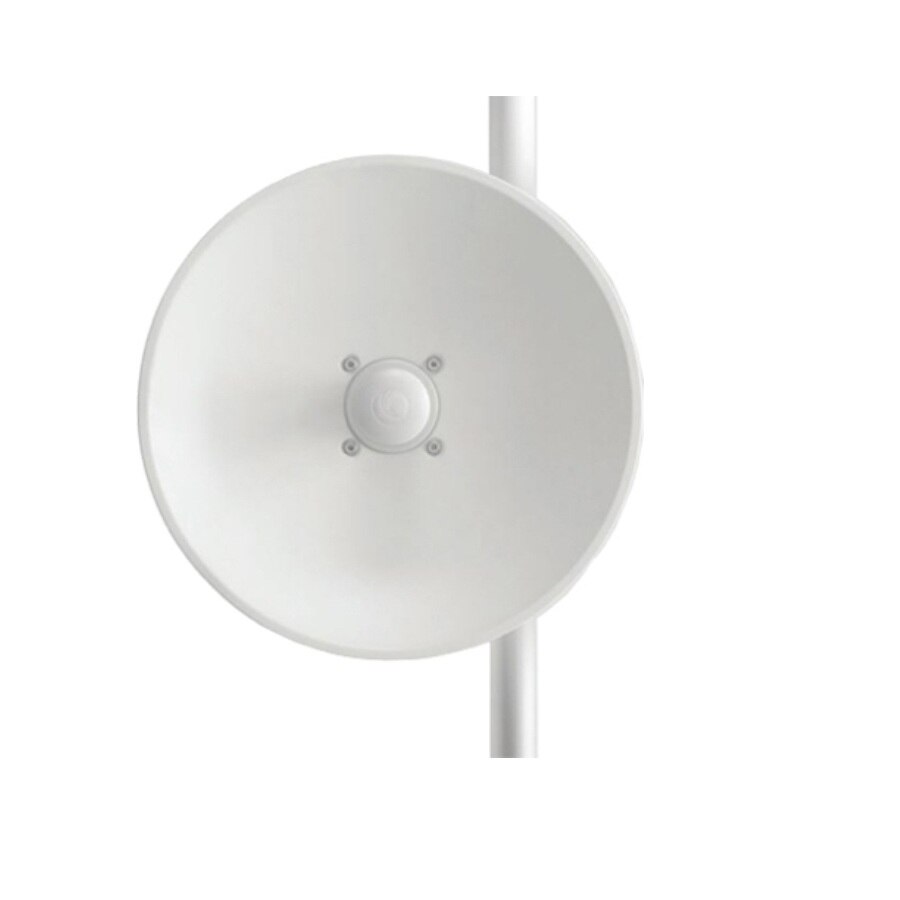

Cambium 5 GHz 450b High Gain ISED Radio Only
- SKU: C050045B023A
$390.12
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C050045B023A
PTP450b 5GHz Radio Only for High-Gain Antennas, ISED
Cambium Networks 450 platform increases performance with the addition of the 450b Subscriber and Backhaul Module.
Features:
- Ultra-wide band radios support the entire band, from 4.9 to 5.925 GHz.
- Gigabit Ethernet Interface provides the maximum transfer rates to the device.
- 3.5 mm audio jack allows direct connection of headphones without any adapters.
- New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM.
- Capable of up to 300 Mbps aggregate in a 40 MHz channel.
- Backhaul radios can function as a Point-to-Point (PTP) link or as a Subscriber Module (SM).
Specifications
| Spectrum | |
| Channel Spacing | Configurable on 2.5MHz increments |
| Frequency Range | 4900MHz - 5925MHz |
| Channel Width | 5MHz, 10MHz, 15MHz, 20MHz, 30MHz or 40MHz |
| Interface | |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000 BaseT, full duplex, rate auto negotiated, 802.3 compliant |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2 |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Security | |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point) |
| Performance | |
| PPS | 50,000 |
| ARQ | Yes |
| Ultimate Sensitivity | −94dBm |
| Maximum Deployment Range | Up to 64km (40 miles) in PMP mode, up to 200km (124 miles) in PTP mode |
| Latency | 3ms - 5ms, typical |
| GPS Synchronization | Yes, synchronized by Access Point or via 3.5mm port using cnPulse (for PTP mode) |
| Quality of Service | Diffserve QoS |
| Antenna | |
| Integrated Antenna Peak Gain | 24dBi |
| 3 dB Beamwidth - Azimuth | 7° |
| 3 dB Beamwidth - Elevation | 7° |
| Polarization | Dual linear, H + V |
| Front-To-Back Isolation | 390g (0.86lb) |
| Security | > 25dB |
| Cross Polarization | 15dB |
| Physical | |
| Antenna Accessories | Optional Radome: N000900L021A |
| Surge Suppression | EN 61000-4-5: 10x700 ?s, 4 kV, EN 61000-4-2: ESD 30 kV contact / 30 kV air |
| Mean Time Between Failure | > 40 Years |
| Environmental | IP55, Optional glands to enhance to IP67 (Part number N000000L135A) |
| Wind Survival | 200 kph (124 mph) |
| Temperature / Humidity | −40°C to 60°C (−40°F to 140°F), 0–100% non-condensing |
| Weight | 3.1kg (7lbs) including mounting bracket |
| Dimensions (HxWxD) | Diameter 45cm x 28cm (17.8in x 11.2in) |
| Pole Diameter Range (w/ included mount) | 2.5cm to 7.6cm (1in to 3in) ±20 degrees mechanical tilt |
| Power Consumption | 9W typical, 12W peak |
| Input Voltage | 20–32 VDC |
| Link Budget | |
| Transmit Power Range | 54dB dynamic range (to EIRP limit by region) (1dB step) |
| Maximum Transmit Power | +27dBm (MIMO, combined V+H) |
| Transmit Power Range | dynamic54dB range (to EIRP limit by region) (1dB step) |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Certifications | |
| ISED Canada | 109W-0042 |
| FCC ID | Z8H89FT0042 |
| ETSI | EN 301 893 v2.1.1, EN 302 502 v2.1.1 |
