Cambium 5 GHz PMP 450i Connectorized Subscriber Module

(0)No Reviews yet
  • SKU: C050045C001B
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
14 in stock
College Station
14 In stock

Product Information

Cambium Networks C050045C001B

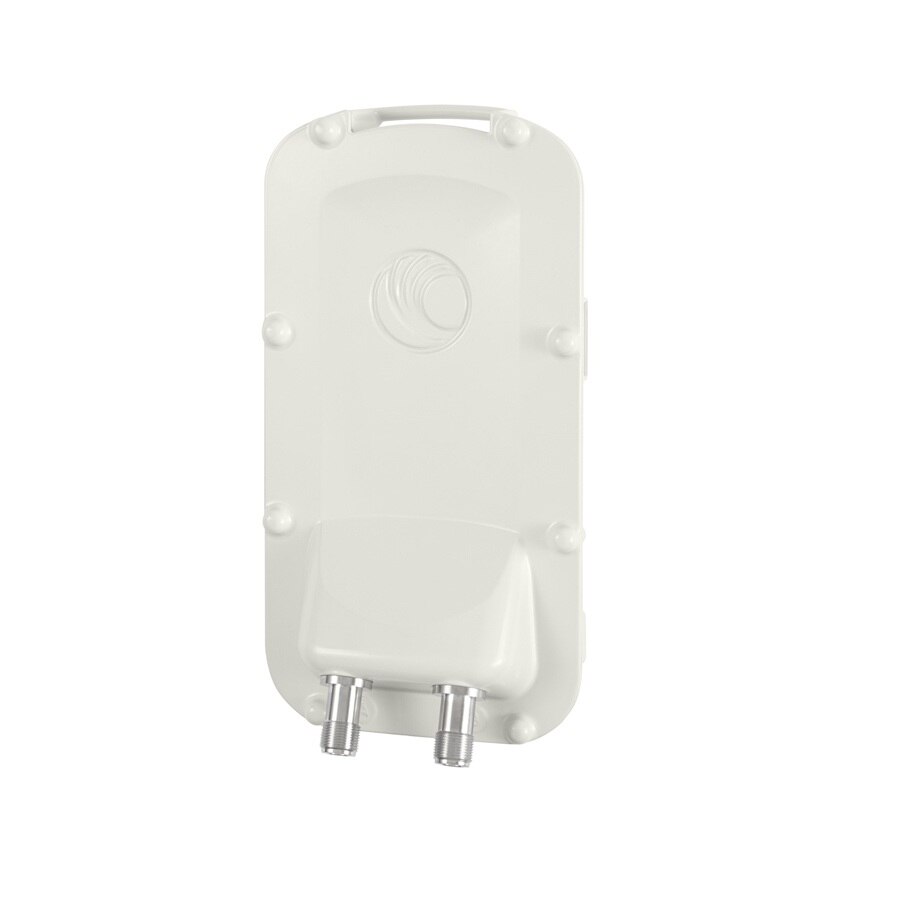

5 GHz PMP 450i Connectorized Subscriber Module

Cambium Networks offers a 450i product platform that has the most scalable industrial-grade wireless broadband solution available. This product line from Cambium features an enhanced radio design, higher transmit power, increased receive sensitivity, and dynamic interference filtering. The 450i can provide triple the range of the 450. The rugged industrial design also provides protection from the harshest environments.


Features:

  • An ultra-wide band radio supports 4900 MHz to 5925 MHz with dynamic interference filtering, improved transmit power and better receive sensitivity.
  • Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments.
  • Dynamic Interference Filtering to provide industry leading noise isolation for improved performance.
  • Updated FPGA and SoC architecture triples the processing power compared to PMP 450.
  • Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.

Specifications

Specifications C050045C001B

Frequency4900 - 5925MHz
Channel SpacingConfigure on 2.5MHz increments
Channel Width5, 10, or 20MHz
Physical Layer2x2 MiMO OFDM
Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
ProtocolsIPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
Network ManagementHTTP, HTTPS, Telnet, FTP, SNMP v3
VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Max Range40mi (64km)
Latency3-5ms
Antenna Connection50ohm, N-Type
Gain23dBi external
Transmit Power Range40dB dynamic range
Maximum Transmit Power27dBm
Surge SupressionEN61000-4-5: 1.2us/50us, 500 V voltage waveform
Operating Temperature-40 to 140deg F (-40 to 60deg C)
Power Consumption15W, 25W max, 55W max with Aux port PoE out
Input Voltage48-59 V DC, 802.3at compliant
Encryption56-bit DES, FIPS-197 128-bit AES
