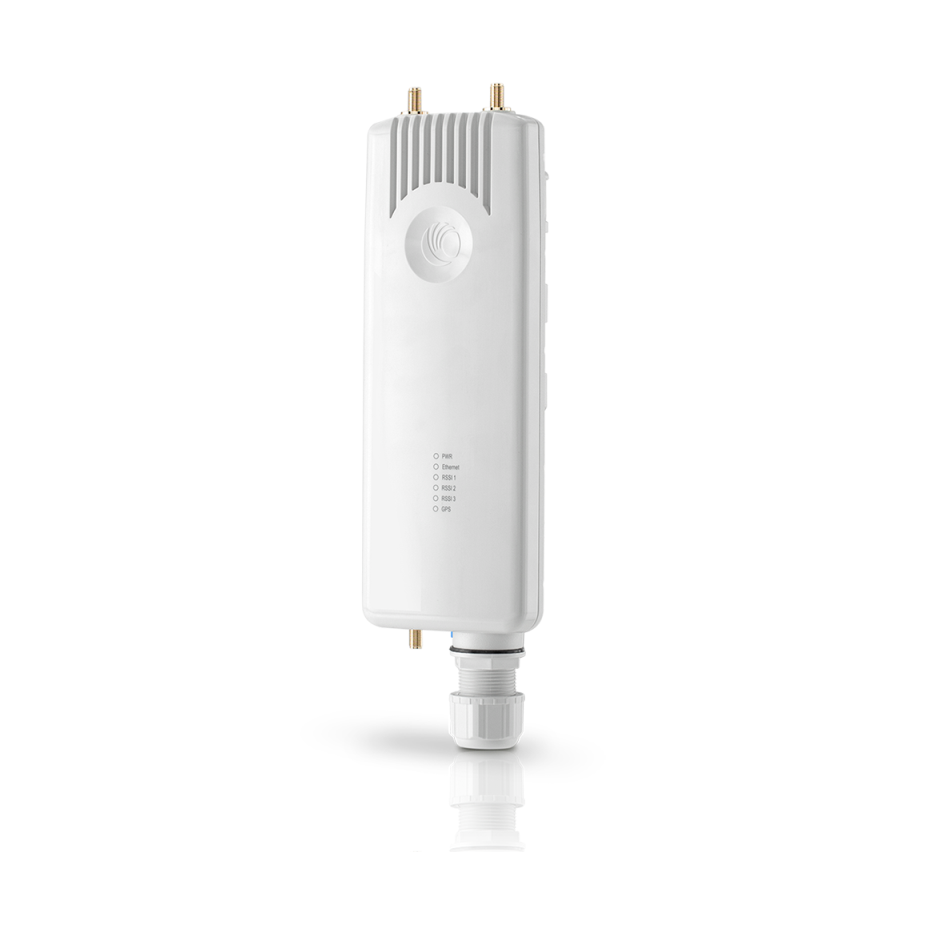

Cambium ePMP 3000L 5 GHz Access Point Radio (IC) (Canada/US cord)
Cambium Networks C050910A124A (International Version)
ePMP 3000L 5 GHz Access Point Radio (IC) (Canada/US cord)
Cambium Networks ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000L is the third generation access point (AP) that carries on the interference tolerance mechanisms with an emphasis on high-performance in low-density point to multipoint sectors.
MicroPOP Applications: ePMP 3000L is ideally suited for areas with low density or small numbers of subscribers. With support for narrow-band sectors and omnis, coverage can be added exactly where needed.
Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler the ePMP 3000L supports high performance and low consistent latency to subscribers.
- 2X2 MIMO support with peak throughput of 600 Mbps
- 256QAM-5/6, 80 MHz support
- Supports a wide frequency range: 4910 to 5950 MHz
- Frequency re-use with GPS sync and interference mitigation
- Connectorized for use with sector antenna. Also compatible with RF
- Elements Twistport(tm) Adaptor for ePMP
- Cloud or on-premises network management with cnMaestro
|Dimensions (W x H x L)||5.63cm X 3.54cm X 11.42cm|
|Channel Spacing||Configurable on 5 MHz increments|
|Frequency Range||4910 - 5970 MHz (exact frequencies as allowed by local regulations)|
|Channel Width||20 | 40 | 80 MHz|
|MAC (Media Access Control) Layer||Cambium Proprietary|
|Physical Layer||2X2 MIMO/OFDM|
|Ethernet Interfaced||100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port|
|Nominal Receive Sensitivity (w/FEC) @20 MHz Channel||MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)|
|Nominal Receive Sensitivity (w/FEC) @40 MHz Channel||MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)|
|Nominal Receive Sensitivity (w/FEC) @80 MHz Channel||MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)|
|Sector Antenna Connection||2 x 50 ohm, RP (Reverse Polarity) SMA Also compatible with RF Elements Twistport™ Adaptor for ePMP|
|GPS Antenna Connection||1 x 50 ohm, RP (Reverse Polarity) SMA; Optional external GPS Puck Antenna avaialble model N000900L030A|
|Surge Suppression||1 Joule Integrated. C000000L065A - 30V Gigabit surge suppressor recommended for optimal surge protection|
|Temperature||-22°F to +140°F (-30°C to +60°C)|
|Power Consumption||12 Watts|
|Input Voltage||30 Volts Nominal (14V to 30V Range)|
|Weight||0.7 kg (1.5 lbs) without brackets|
|Dimensions (L x W x H)||22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets|
