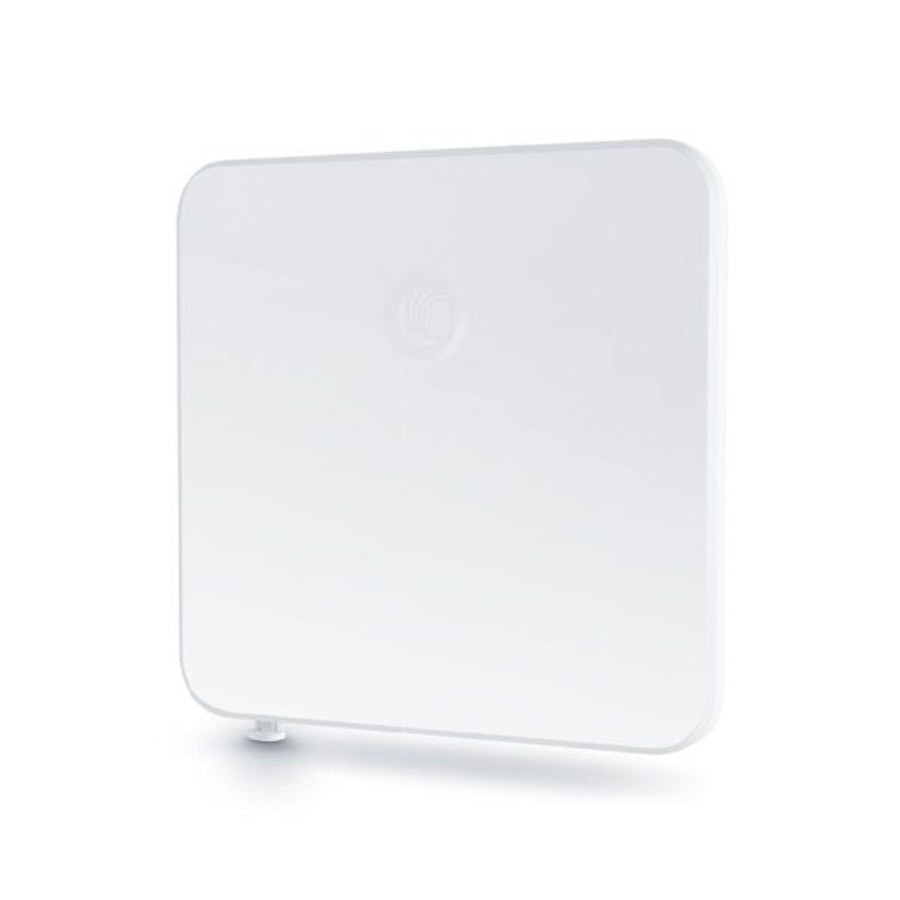

Cambium ePMP Bridge in a Box UHD PRO 5 GHz (FCC) (US cord)
US$658.39
- SKU: C058900B901A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C058900B901A
ePMP Bridge in a Box UHD PRO 5 GHz (FCC) (US cord)
Thousands of small businesses and residential users are using Cambium's Bridge-in-a-Box UHD PRO to wirelessly extend their networks by simply connecting point A to point B. Each Bridge-in-a-Box UHD PRO comes with two wireless radio modules and power supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need one from 50 feet to 5 miles away (20 meters to 8 kilometers). The modules are extremely easy to deploy as they come pre-configured and pre-paired to connect.
How are people using Bridge-In-A-Box?
- Extending Internet Connectivity
- Connecting Remote Wi-Fi Hotspots
- Remote Camera or CCTV Video Feeds
What Are People Connecting With Bridge-In-A-Box?
- Machine Shops / Garages / Storage Sheds
- Docks / Boat Ramps
- Any Remote or Outlying Buildings
- Remote Parking Lots
- Campus Buildings
- Building to Building
- Cabins and Lodges
- Construction Sites
- Temporary Events Such as Concerts, Farmers Markets, etc.
- Athletic Fields and Events
Features:
- Wireless Standard: ePTP proprietary protocol. Supports lower latencies, lower ranges, and higher reliability.
- Wireless Interface: Gigabit/ Fast Ethernet (100/1000 BaseT)
- Functions: Traffic Prioritization using Quality of Service (QoS), WEP Security
- Radio Transmit Power: Up to 28 dBm
- Antenna: 19 dBi
- Security: 128-bit AES encryption, WEP, Password-protected HTTPS
- Environmental: IP67
- Operating Temperature: -30°C to 60°C (-22°F to 140°F)
- Mounting: Included Pole Mount supports 2.5 cm to 4.1 cm (1.0 in to 1.6 in)
Specifications
Specifications C058900B901A
| Frequency Range | 5 GHz (4910 - 5970 MHz: exact frequencies as allowed by local regulations) |
| Channel Spacing | Configurable in 5 MHz increments |
| Channel Bandwidth Options | 5 | 10 | 20 | 40 | 80 MHz |
| Ethernet Interface | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro |
| VLAN | 802.1Q with 802.1p priority |
| ARQ | Yes |
| Wind Survival | 180 kmh (112 mph) |
| Power Consumption | 12 W (Up to 15 W in extreme cold temperatures when heater is activated) |
