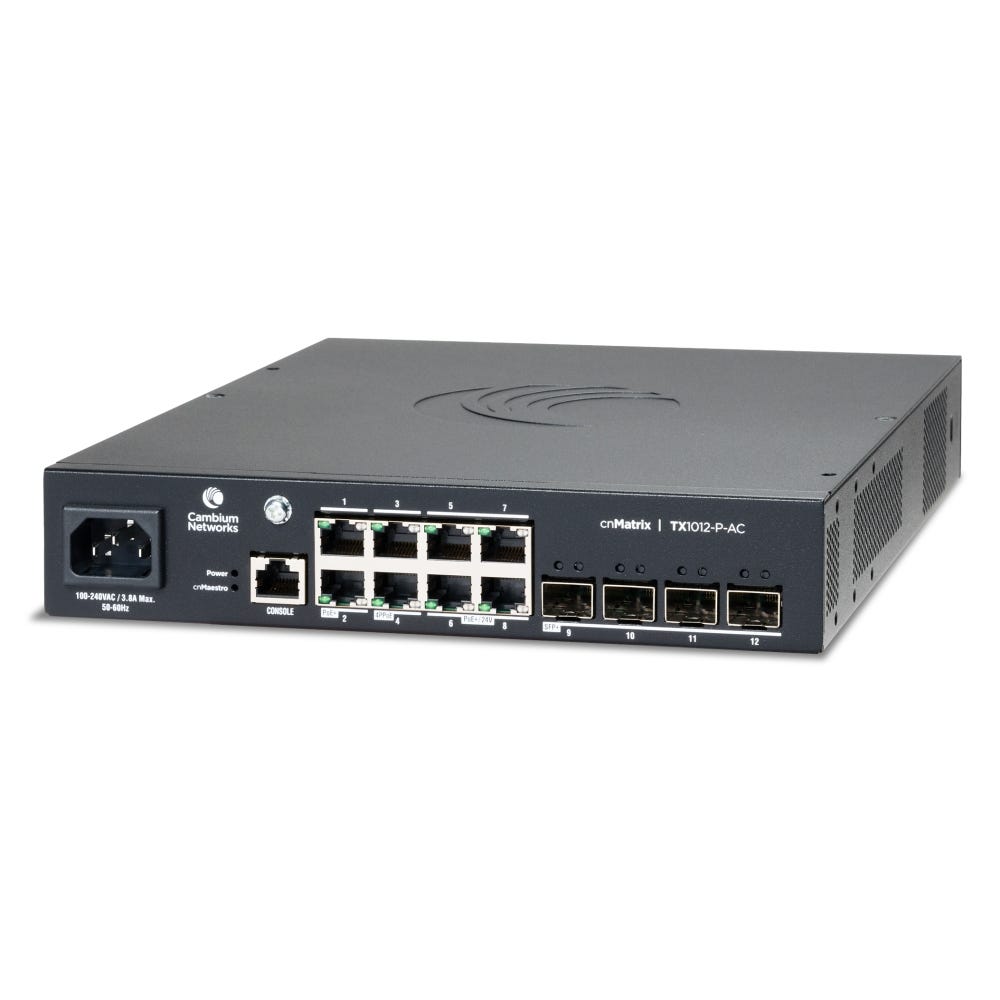

Cambium cnMatrix TX1012-P-AC, AC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, no pwr cord, USA Only
- SKU: MXTX1012GxPA01
$1,030.06
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks MXTX1012GxPA01
cnMatrix TX1012-P-AC, AC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, no pwr cord, USA Only
Specifications
| Throughput | 96Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| 10/100/1000 Mbps RJ45 Ports | 8 |
| 1 Gbps Fiber Ports (SFP) | 0 |
| 10 Gbps Fiber Ports (SFP+) | 4 |
| PoE+ Enabled Ports 802.3af/at/bt | 8 |
| Low Voltage Passive PoE (24V) | 4 |
| High Power 4 PPoE (up to 90W) | 2 |
| Serial Console | Yes |
| Rack Mount Kit | Yes, Optional |
| Internal Fans | 1 |
| Reset Button | Yes |
| MAC Address Table Size | 16K |
| Flash Storage | 128MB |
| DRAM | 512MB |
| VLANs | 4K |
| QinQ | Yes |
| LACP/Trunking | 8 LAGs/8 links per LAG |
