Product Information
Cambium Networks N000900L021A

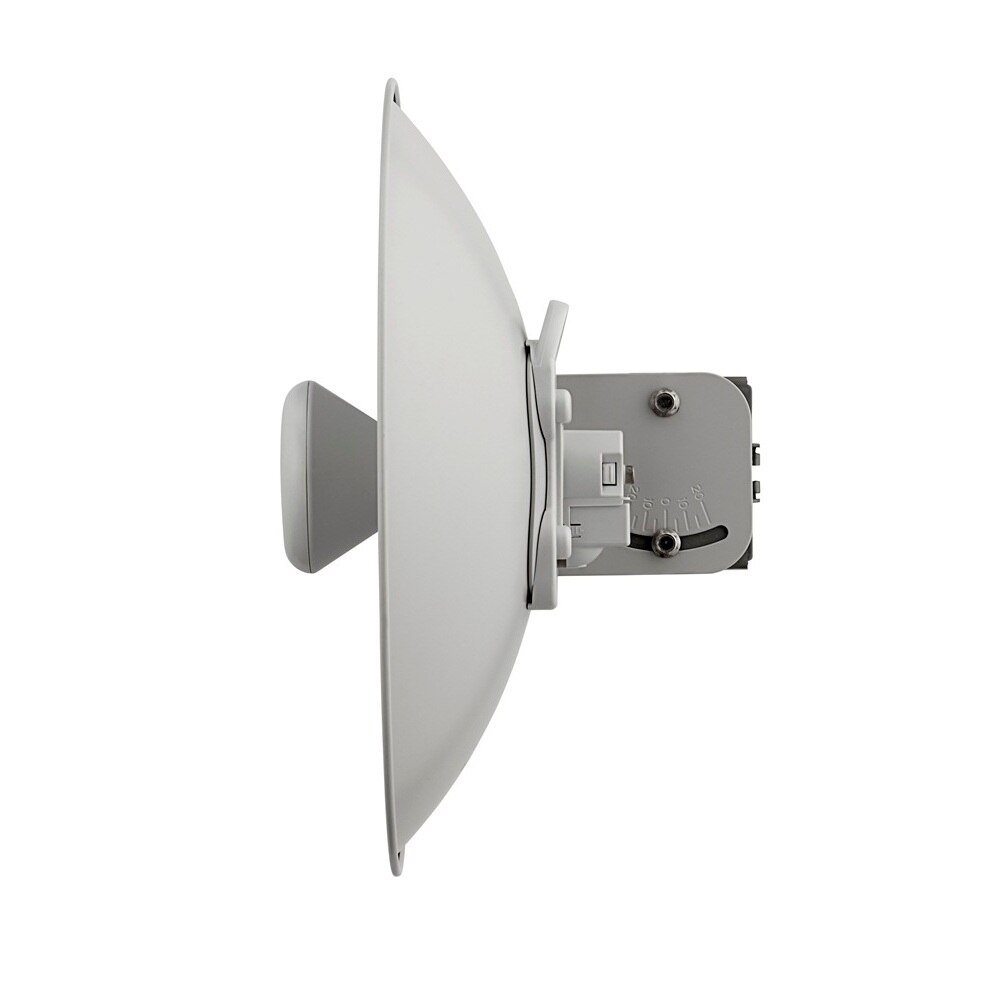

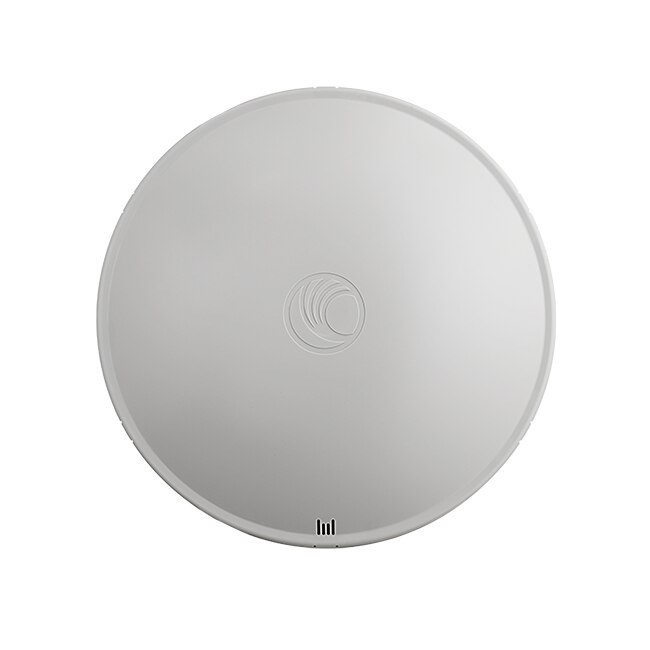

ePMP Force 200 Radome
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.
- Provides Additional Protection to the Dish Antenna
- Attaches Easily to the Dish
- Applications: Snow, Rain, Ice, Wind, Blowing Sand and Debris
Specifications
Specifications N000900L021A
INTERFACE | |
MAC (Media Access Control) Layer | Cambium Proprietary |
Physical Layer | 2x2 MIMO/OFDM |
Ethernet Interfaced | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
Protocols Used | IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
Network Management | HTTPs, SNMPv2c, SSH |
VLAN | 802.1Q with 802.1p priority |
PERFORMANCE | |
ARQ | Yes |
Nominal Receive Sensitivity (w/FEC) @200MHz Channel | MCS0 = -92 dBm to MCS15 = -68 dBm (per branch) |
Nominal Receive Sensitivity (w/FEC) @40MHz Channel | MCS0 = -89 dBm to MCS15 = -65 dBm (per branch) |
Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS15 (64QAM 5/6) |
Quality of Service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
Transmit Power Range | -15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
PHYSICAL | |
Surge Suppression | 1 Joule Integrated |
Environmental | IP55 |
Temperature | -30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F) |
Weight | 2.4 GHz Model: 2.8 kg (6.2 lbs) 5 GHz Model: 2.3 kg (5.1 lbs) |
Wind Survival | 145 km/hour (90 mi/hour) |
Dimensions (Dia x Depth) | 47 cm x 28 cm (18.5 in x 11.2 in) |
Pole Diameter Range | 6.4 cm - 7.6 cm (2.5 in - 3 in) |
Power Consumption | 10 W Maximum, 5 W Typical |
Input Voltage | 10 to 30 V |
Encryption | 128-bit AES (CCMP mode) |
