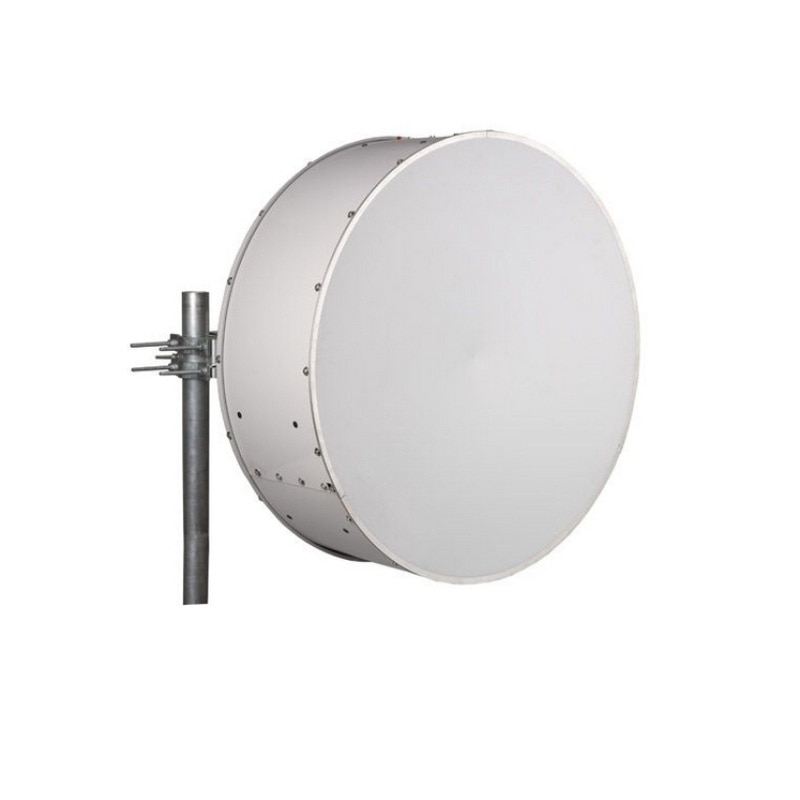

Cambium Networks 3' ANT,SP,11GHz,RFU-C TYPE&Std UBR100 - Andrew
- SKU: N110082D073A
$1,842.75
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks N110082D073A
Cambium 3' ANT,SP,11GHz,RFU-C TYPE&Std UBR100 - Andrew
Specifications
Specifications N110082D073A
| General | |
| Diameter (nominal) | 1.0 m / 3 ft |
| Polarization | Single |
| Electrical | |
| Beamwidth (horizontal) | 2.0° |
| Beamwidth (vertical) | 2.0° |
| Cross Polarization Discrimination (XPD) | 30 dB |
| Front-to-Back Ratio | 64 dB |
| Gain, Low Band | 37.2 dBi |
| Gain, Mid Band | 38.4 dBi |
| Gain, Top Band | 39.0 dBi |
| Operating Frequency Band | 10.125 - 11.700 GHz |
| Radiation Pattern Envelope Reference (RPE) | 7164 | 7166 |
| Return Loss | 17.7 dB |
| VSWR | |
| Mechanical | |
| Fine Azimuth Adjustment | ±15° |
| Fine Elevation Adjustment | ±15° |
| Mounting Pipe Diameter | 115 mm | 4.5 in |
| Net Weight | 24 kg | 53 lbs |
| Wind Velocity Operational | 200 km/h | 124 mph |
| Wind Velocity Survival Rating | 250 km/h | 155 mph |
| Wind Forces at Wind Velocity Survival Rating | |
| Angle a for MT Max | 0° |
| Axial Force (FA) | 2979 N | 670 lbf |
| Side Force (FS) | 936 N | 210 ibf |
| Twisting Moment (MT) | 1184 N•m |
| Weight with 1/2 in (12 mm) Radial Ice | 46 kg | 101 lb |
| Zcg with 1/2 in (12 mm) Radial Ice | 220 mm | 9 in |
| Zcg without Ice | 324 mm | 13 in |
