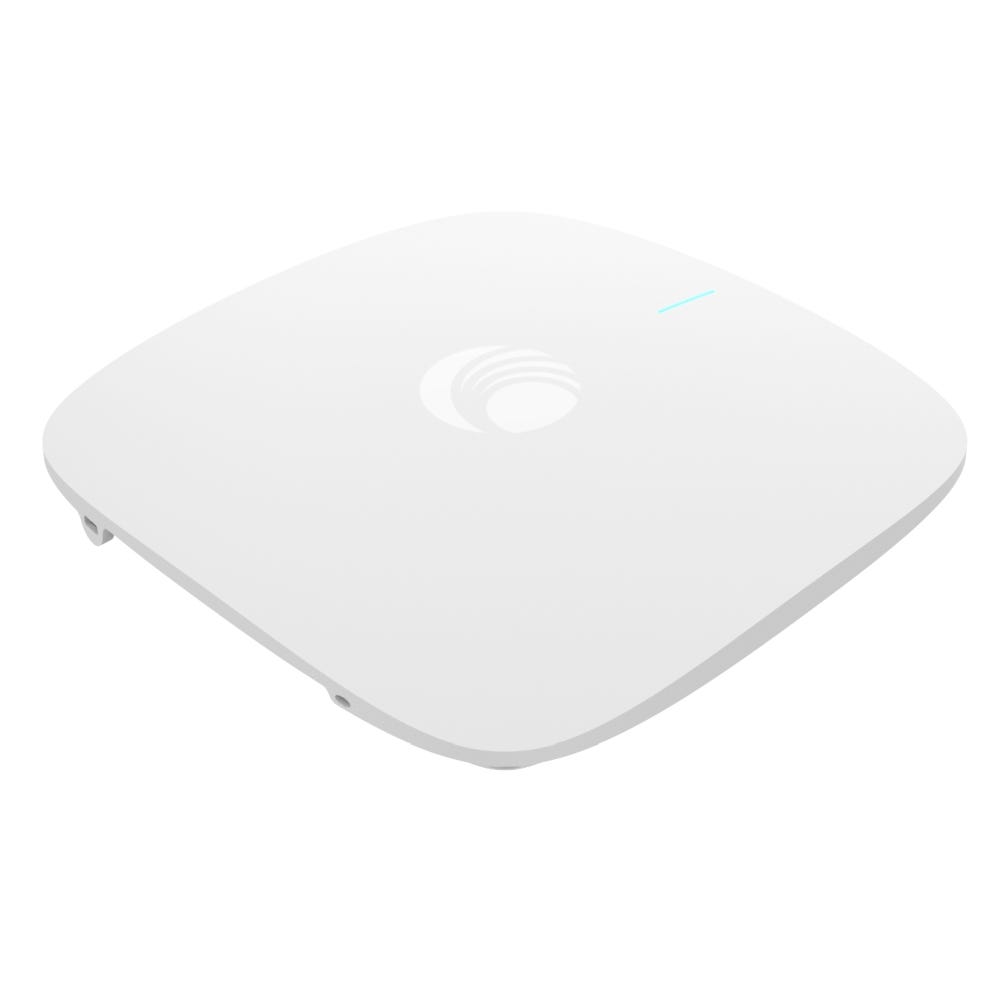

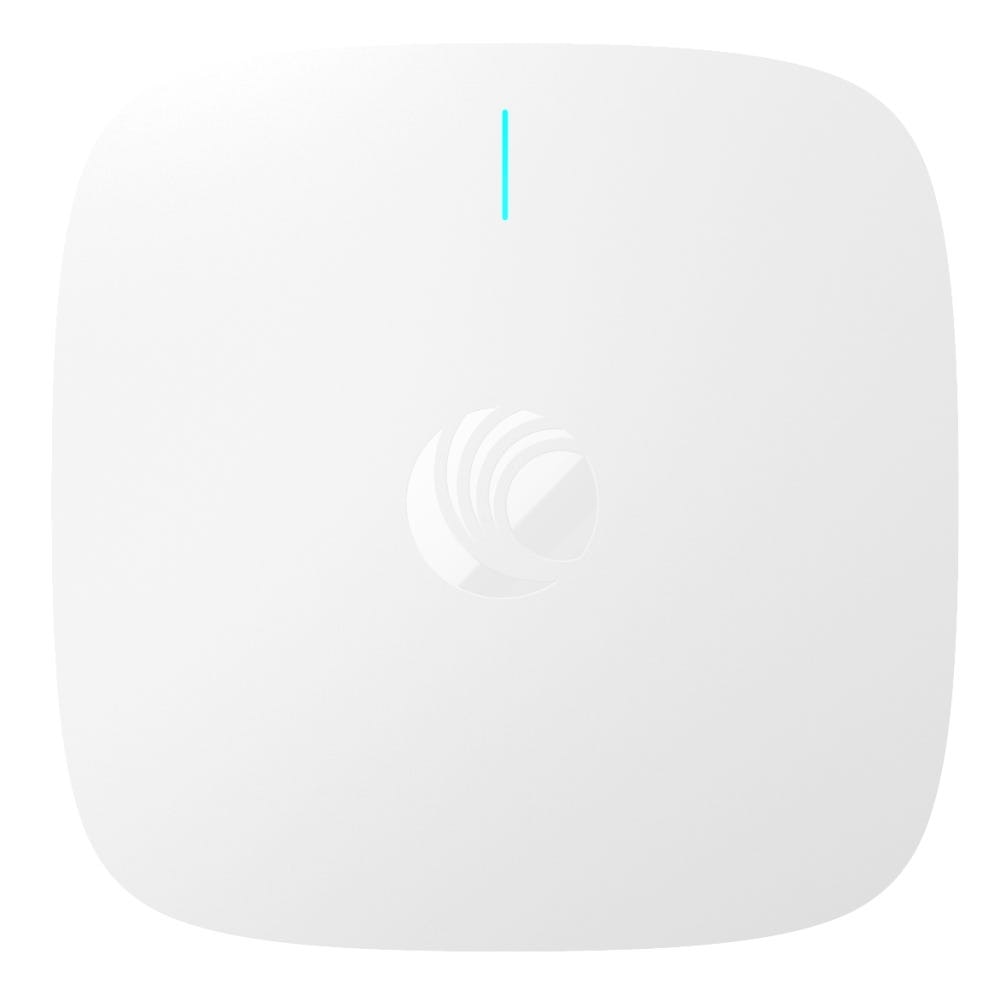

Cambium XE3-4 Indoor Tri-band WiFi 6e Access Point with SDR 4x4 (US Version)
- SKU: XE3-4X00A00-US
$981.91
- Manufacturer: Cambium Networks
- Cambium Networks XE3-4 Indoor Wi-Fi 6e AP Datahseet: Download
Product Information
Cambium Networks XE3-4X00A00-US
XE3-4 Indoor Tri-band WiFi 6e Access Point with SDR 4x4
The Cambium XE3-4 Wi-Fi 6E Access Point is a tri-radio Wi-Fi 6/6E 4x4/2x2 access point (AP) designed to deliver future-proof performance and value for building next generation networks. Wi-Fi 6 delivers faster and more efficient wireless network connections than previous generation Wi-Fi technologies. Wi-Fi 6E extends the capacity of Wi-Fi into the 6 GHz band, more than tripling the wireless spectrum available. With a high speed software-defined radio, the XE3-4 enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) mode when sufficient 6 GHz clients are available.
Features:
- Tri-Radio/Tri-Band W-Fi 6 and 6E
- 6.3 Gbps aggregate data rate
- Software-defined 5 GHz/6 GHz radio
- 2.5 GbE and 1 GbE uplink ports
- EasyPass with Microsoft Azure and Google G Suite integration
Specifications
Specifications XE3-4X00A00-US
| FCC | Ch 1–11, 36–64, 100–144, 149–165 |
| ISED | Ch 1–11, 36–64, 100–116, 149–165 |
| ETSI | Ch 1–13, 36–64, 100–140 |
| ROW | (Individual country limits may apply) Ch 1–14, 36–64, 100–144, 149–173 |
| 6 GHz Channels | |
| FCC/IC/ROW | Ch 1–229 |
| EU | Ch 1–93 |
| Radios | 5 GHz/6 GHz: 802.11a/n/ac/ax, 4x4 SW configurable 5 GHz: 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz: 802.11 b/g/n/ax, 2x2 BLE 4.1 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate | 6 GHz: 4,804 Mbps 5 GHz: 4,804 Mbps 2.4 GHz: 573.6 Mbps |

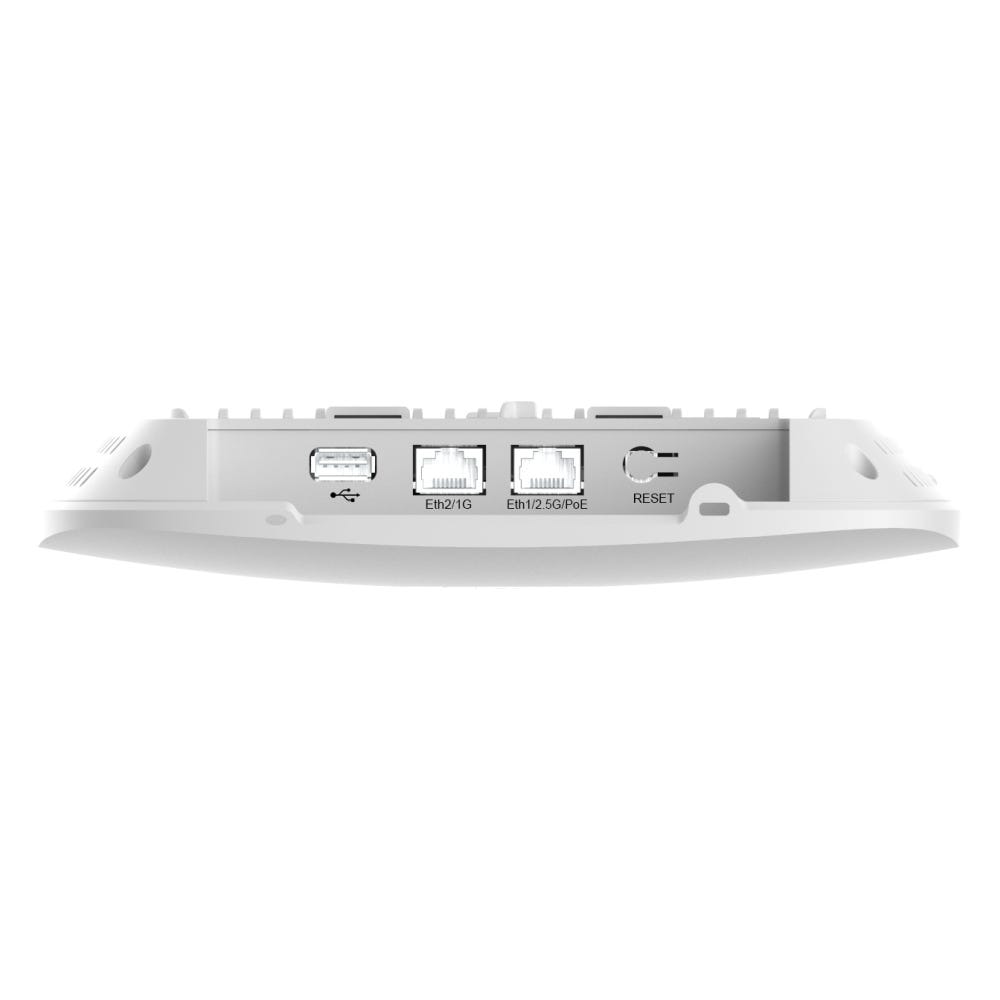

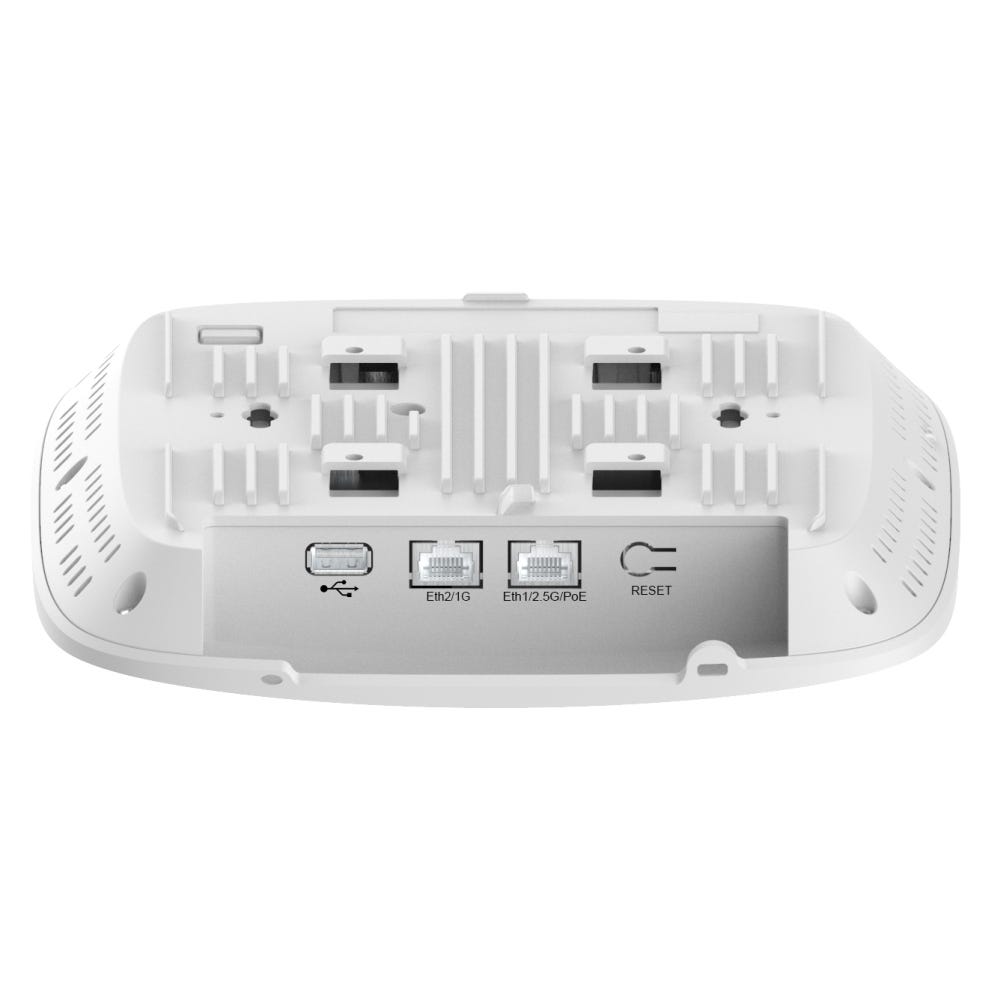

| Ports | 1 x IEEE 100/100/1000/2500 Mbps Ethernet 1 x IEEE 10/100/1000 Mbps Ethernet 1 x USB 2.0 |
| Antenna | 6 GHz: 6.29 dBi, Omni 5 GHz: 6.12 dBi, Omni 2.4 GHz: 4.85 dBi, Omni |
| Max EIRP | 6 GHz: 30 dBm 5 GHz: 31 dBm 2.4 GHz: 29 dBm |
| Power | 32W 802.3bt powered device 25.5W (802.3at) with USB, BT disabled |
| Typical | 22W (USB disabled). |
| Dimensions | 215 mm x 215 x 42 (without bracket) (8.46 in x 8.46 x 1.65 ) |
| Weight | 900 g (1.98 lbs) |
| Security | Kensington lock slot |
| LEDs | Multi-color status LEDs |
| Ambient Operating Temperature | 0ºC to 50ºC (32ºF to 122ºF) |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| MTBF | 668,759 hours 25ºC 314,145 hours at 50ºC |

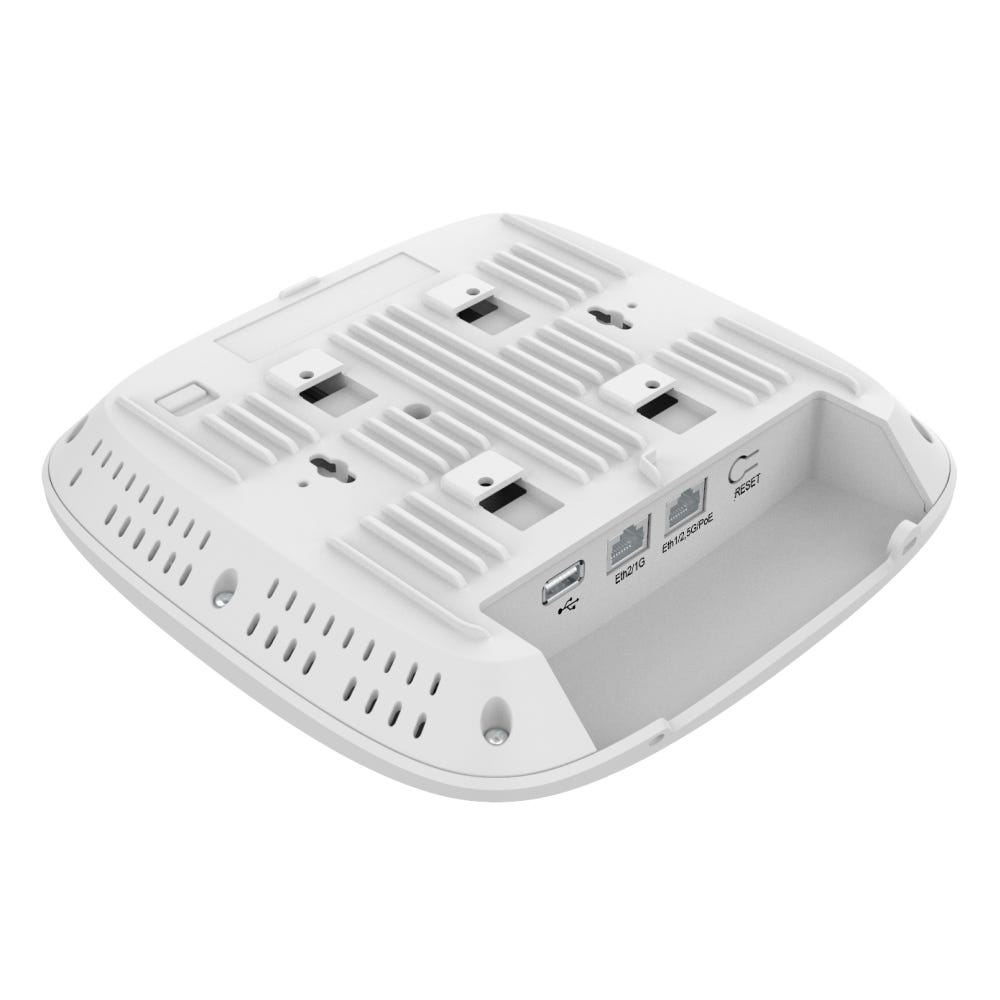

| Mount Options | Wall or ceiling, T-bar with included locking bracket, ceiling tile plate |
| Certifications | Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical EMC, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway EMC, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS |
